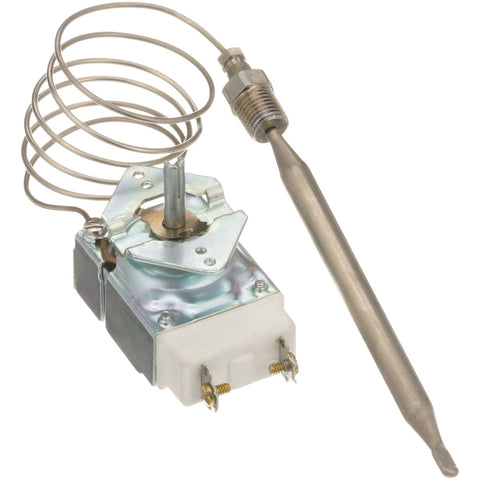

AllPoints 461272 RX Thermostat with 36" Capillary and 200°-400°F Temperature Range

$72.93 ~~Sale price$165.00you save $92.07~~

Key Features:

RX-Type Thermostat with Dial: Designed for precise temperature control in commercial fryer applications, featuring a dial with a black knob and white printed numbers (2-1/4" diameter) for easy operator adjustment.
200°F to 400°F Operating Range: Wide temperature range makes this thermostat suitable for both gas and electric commercial fryers across a broad range of cooking applications.
36" Capillary with 3/8" x 5" Sensing Bulb: Long capillary allows flexible installation in a variety of equipment configurations; bulb dimensions are compatible with standard fryer well mounting.
1/4" NPT Stuffing Box: Includes a 1/4" NPT stuffing box for secure, leak-free installation and proper sealing at the fryer wall penetration point.
Hermetically Sealed Reed Switches: Sealed switching mechanism protects internal contacts from grease-laden fryer environments, extending service life and maintaining reliable operation.
4-Way Mount Compatibility: Supports multiple mounting orientations, simplifying drop-in replacement across different OEM equipment configurations without modification.
Broad OEM Cross-Reference: Direct replacement for parts across American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Market Forge, Pitco, Royal Range, Southbend, and Tri-Star, consolidating a wide range of service needs into a single part number (AllPoints #461272).
0.67 Amp Rating: Low amp draw is compatible with standard millivolt and gas fryer control circuits commonly found in commercial kitchen equipment.

Detailed Description

The AllPoints 461272 is a Type RX thermostat built for high-heat commercial fryer environments, delivering precise temperature control across a 200°F to 400°F range. It ships with a 36-inch capillary tube, a 3/8 x 5-5/8 sensing bulb, and a 1/4 NPT stuffing box for a secure, leak-free installation. Hermetically sealed reed switches ensure consistent, long-lasting switching performance even in demanding kitchen conditions. This thermostat serves as a direct cross-compatible replacement for parts from a broad range of major equipment brands including American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Pitco, Southbend, and more, making it a go-to solution for multi-brand commercial operations.

Product Details

200°F to 400°F Temperature Range

Wide operating range covers common commercial fryer and cooking applications with precision.

36" Capillary with 1/4" NPT Stuffing Box

Generous capillary length and standard stuffing box ensure flexible, secure installation.

Broad Brand Compatibility

Direct replacement for fryers by American Range, Anets, Dean, Pitco, Imperial, Southbend, and more.

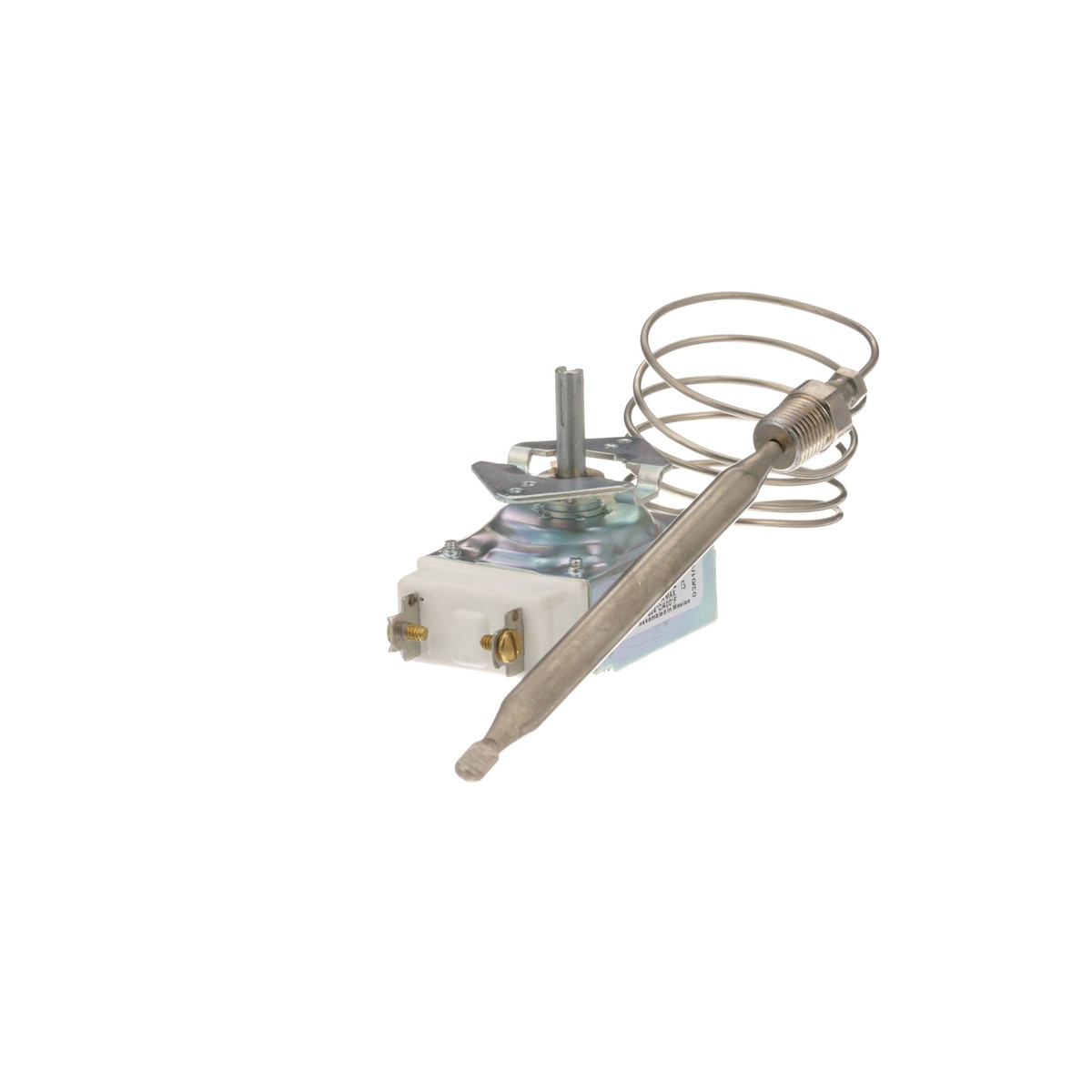

AllPoints 461272 RX thermostat angled view showing coiled capillary tube and bulb probe

RX-Type Thermostat Built for Commercial Fryers

The AllPoints 461272 is an RX-type capillary thermostat engineered as a direct drop-in replacement for a wide range of commercial fryer brands. Its robust construction and reliable snap-action operation make it a go-to part for service technicians.

RX-type design with hermetically sealed reed switches
0.67 amp rating suitable for commercial fryer controls
3/8" x 5" sensing bulb for accurate temperature detection

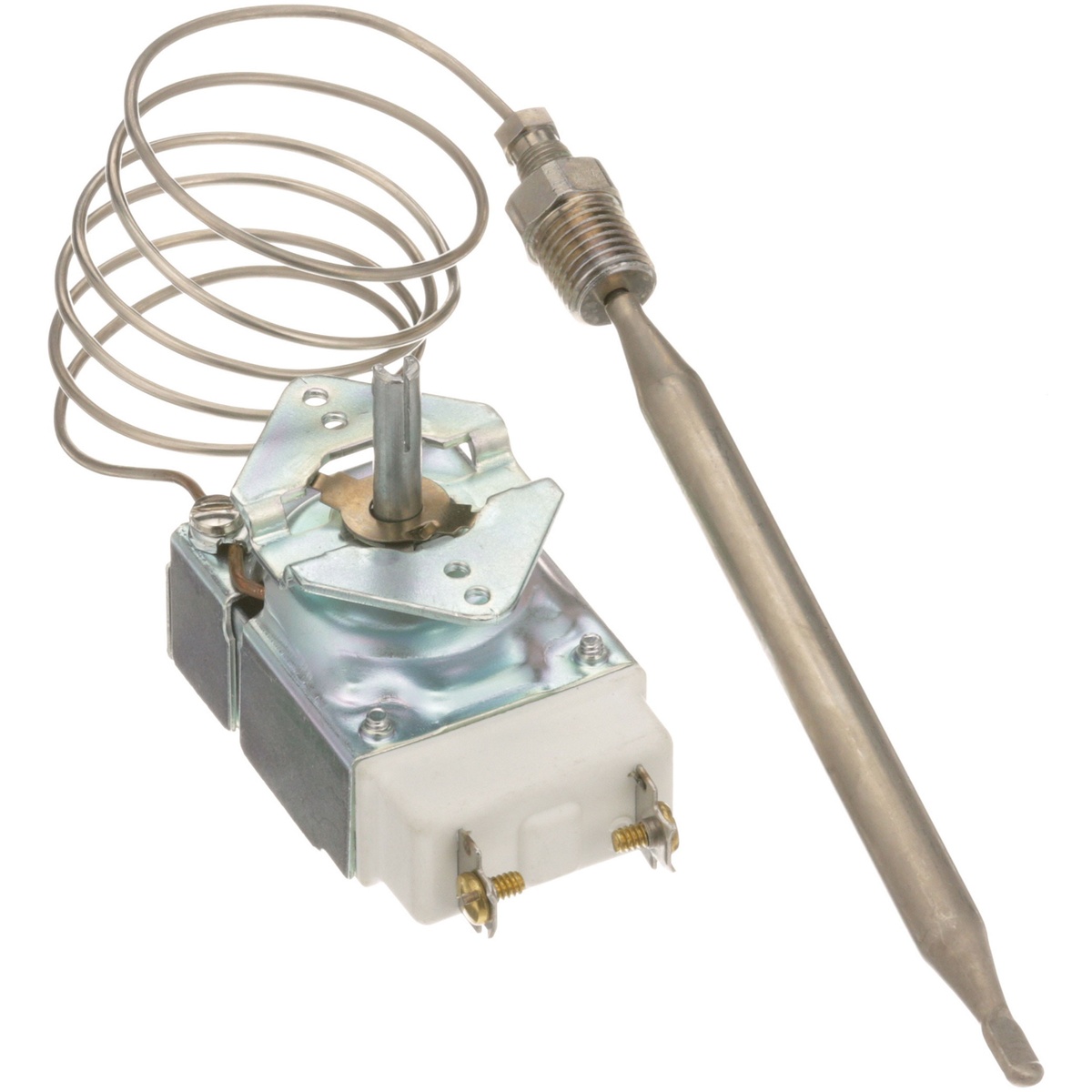

AllPoints 461272 RX thermostat front view with coiled capillary and detached sensing bulb probe

Precise Temperature Control from 200°F to 400°F

Designed to hold cooking temperatures accurately across a broad range, this thermostat keeps fryer oil at the optimal setpoint whether you are frying at low or high heat. The 36" capillary provides ample reach for most fryer configurations.

Operating range: 200°F to 400°F
36" capillary for flexible routing inside fryer cabinets
1/4" NPT stuffing box for a secure, leak-free seal

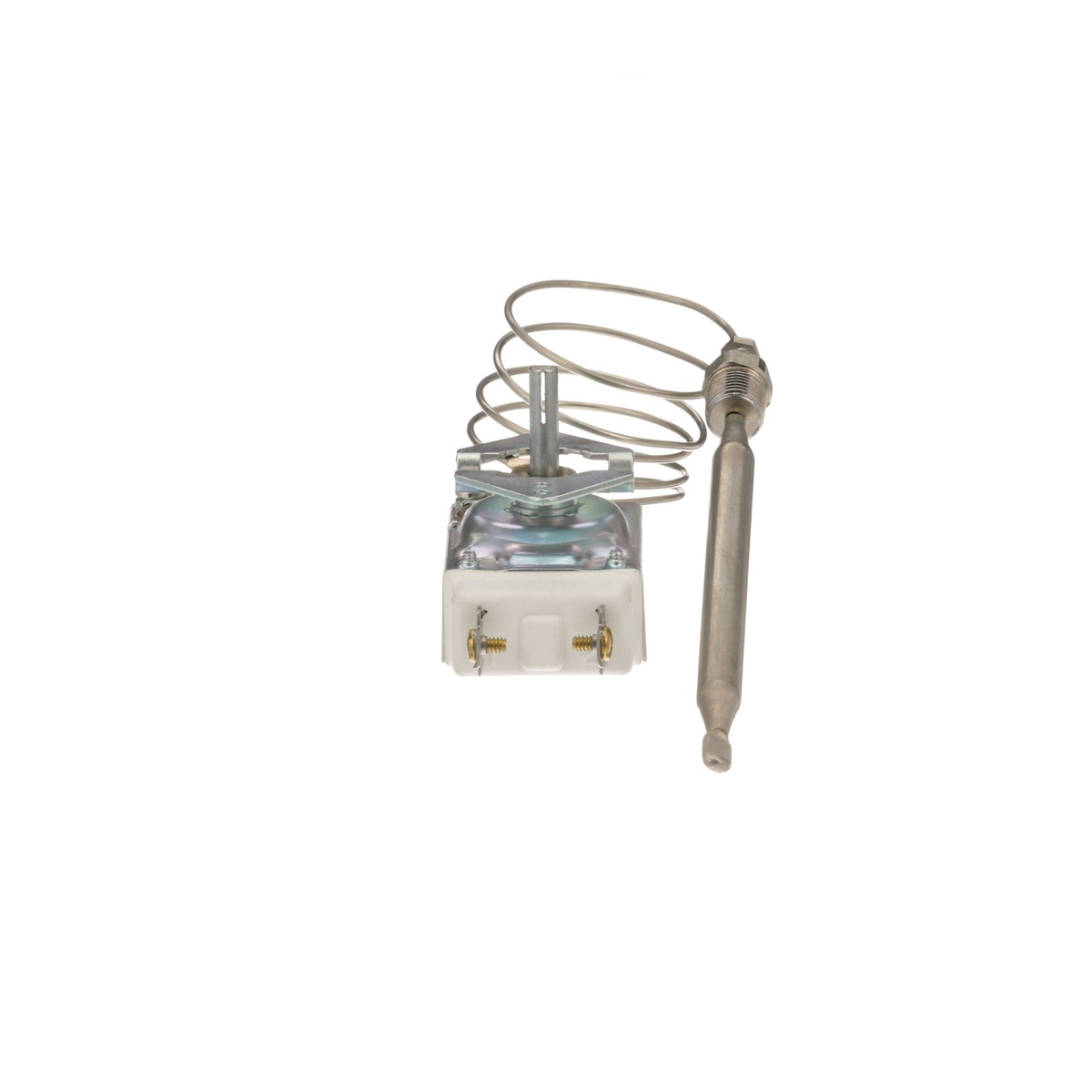

AllPoints 461272 RX thermostat side view showing body, capillary coil, and sensing bulb assembly

Compatible with Leading Commercial Kitchen Brands

This thermostat is a verified replacement part for fryers from more than a dozen top manufacturers, reducing parts inventory complexity and speeding up service calls.

American Range: A50403, AMRA50400
Anets: 60125401, P8905-03
Dean, Pitco, Imperial, Frymaster, Bakers Pride
Royal Range, Southbend, Market Forge, Tri-Star

From the Cresco Resco Team

Why You'll Love It

The AllPoints 461272 RX Thermostat delivers reliable, precise temperature control for commercial fryers across a wide range of brands and models.

Ideal for service technicians maintaining Dean, Pitco, Imperial, Anets, Southbend, and other fryers in commercial kitchens.
Hermetically sealed reed switches and a 200°F to 400°F operating range ensure consistent, accurate cooking temperatures.
With a 36" capillary and 1/4" NPT stuffing box, installation is straightforward and compatible with most standard fryer configurations.

Specifications

Part Number	461272
Thermostat Type	RX
Temperature Range	200°F - 400°F
Capillary Length	36"
Bulb Size	3/8" x 5"
Stuffing Box	1/4" NPT
Switch Type	Hermetically sealed reed switches
Current Rating	0.67 A
Ship Weight	0.67 lbs
Compatible Equipment Brands	American Range, Anets, Bakers Pride, Dean, Frymaster, Imperial, Market Forge, Pitco, Royal Range, Southbend, Tri-Star
Cross-Reference - American Range	A50403, AMRA50400
Cross-Reference - Anets	60125401, P8905-03
Cross-Reference - Bakers Pride / Tri-Star	300232, AS-300232, TRS300232, TRSTS-1175
Cross-Reference - Commercial Parts	F-105
Cross-Reference - Cooking Performance Group	3511220047
Cross-Reference - Fagor	12189749
Cross-Reference - Imperial	1175, 1175 RS, 319, IMP1175, IMP319
Cross-Reference - Jade	8800000027
Cross-Reference - Market Forge	93-0192
Cross-Reference - Pitco	60124501, 60125401
Cross-Reference - Royal Range	3113
Cross-Reference - Sierra	109-0084
Cross-Reference - Southbend	1182151, 1199572, SOU1182151
Cross-Reference - Uline Refrigeration	5300-40A, KX299-36, RX1-36
