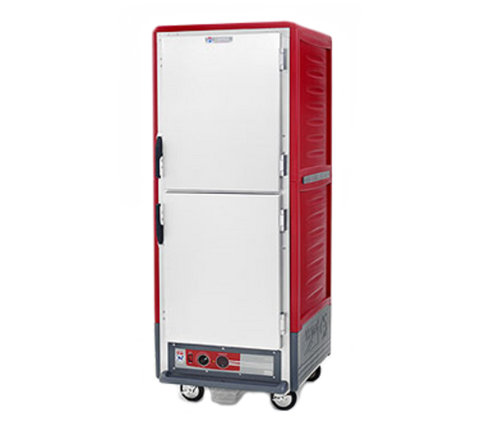

Metro C539-HDS-4 C5 3 Series Full Height Insulated Heated Holding Cabinet with Solid Dutch Doors

$4,800.00 ~~Sale price$7,202.00you save $2,402.00~~

Key Features:

Patented Insulation Armour Technology: Proprietary insulation system retains heat inside the cabinet while maintaining a cool-to-touch exterior, improving energy efficiency and reducing burn risk for operators.
Thermostatically Controlled Forced-Air Convection Heating: Ball bearing blower forced-air system delivers fast heat-up and rapid temperature recovery, keeping food at safe, ready-to-serve temperatures with a range of 80-200°F.
17-Pan Full-Height Capacity: Fixed nickel chrome wire slides (1/4" dia.) spaced in 3" increments accommodate up to 17 full-size 18" x 26" sheet pans or 32 pans at 12" x 20" x 2-1/2".
Solid Insulated Dutch-Style Doors: Two-section Dutch doors are insulated with 1" fiberglass and sealed with Santoprene high-temperature gaskets. Double-hinged, field-reversible hinges swing 180 degrees, and a lever-action magnetic latch ensures a secure close.
Removable, Bottom-Mounted Control Panel: Easily detaches for thorough cleaning; includes recessed dial controls, master on/off switch, power-indicator light, and an easy-to-read digital thermometer.
Ambient Humidity Pan: Built-in humidity pan introduces moisture into the holding environment to preserve food texture and prevent drying during extended holding periods.
Durable Polymer Construction: Cabinet body finished in red polymer-coated aluminum that resists dents, impacts, and stains for long-term durability in high-traffic foodservice environments.
Mobile-Ready Design: Equipped with 4 swivel, nickel-plated casters (2 with brakes), molded-in hand holds, and full-body bumper protection for safe and easy transport between stations.
Drip Trough and Catch Pan: Integrated drip management system simplifies maintenance and keeps the interior clean during operation.
Standard Electrical Specs: Operates on 120V/60Hz/1-phase power at 2000W/16.7A with a 7-1/2 ft. cord and NEMA 5-20P plug for straightforward installation in commercial kitchens.

Detailed Description

The Metro C539-HDS-4 is a full-height insulated heated holding cabinet from Metro's C5 3 Series, engineered for high-volume hot food holding in commercial foodservice environments. It features patented Insulation Armour technology that retains heat within the cabinet while maintaining a cool-to-touch exterior, delivering exceptional energy efficiency and operator safety. Solid, fiberglass-insulated Dutch-style doors paired with Santoprene high-temperature gaskets seal in heat effectively, while a thermostatically controlled forced-air convection system ensures fast heat-up and rapid temperature recovery. With a 17 full-size pan capacity, field-reversible hinges, and four swivel casters for mobility, this cabinet is purpose-built for bakeries, delis, catering operations, and high-output restaurant kitchens.

Product Details

Precise Temperature Control

Thermostatically controlled system maintains 80-200°F with a digital readout and master on/off switch.

Forced Convection Heating

Ball bearing blower delivers rapid heat-up and fast temperature recovery throughout the full cabinet.

Insulation Armour Technology

Patented durable polymer insulation retains heat inside while keeping the exterior cool to the touch.

Metro C539-HDS-4 full-height red insulated heated holding cabinet with solid Dutch doors, wire slides, and bottom-mounted control panel on casters

Full-Height Insulated Heated Holding Cabinet

The Metro C539-HDS-4 is built for high-volume food service operations that demand consistent food quality, safe holding temperatures, and reliable mobility. Solid, 1-inch fiberglass-insulated Dutch doors lock in heat while the cool-touch exterior promotes kitchen safety.

Solid insulated Dutch-style doors with Santoprene high-temperature gaskets
Lever-action magnetic pull latch and 180-degree field-reversible hinges
4 swivel nickel-plated casters, 2 with brakes for easy and secure transport
Drip trough with catch pan for easy maintenance

Key Specifications

Pan Capacity17 pans (18" x 26") or 32 pans (12" x 20" x 2.5")

Slide SpacingAdjustable in 1.5" increments, fixed wire, nickel chrome

Electrical120V / 60Hz / 1ph, 2000W, 16.7A, NEMA 5-20P

Dimensions27 5/8" W x 31 1/2" D x 71" H

Performance at a Glance

Full-Size Pan Capacity

80-200°F

Temperature Range

2000W

Heating Power

Ideal For

Bakeries Delis Catering Operations Specialty Food Shops High-Volume Restaurants Food Transport & Mobile Service

From the Cresco Resco Team

Why You'll Love It

The Metro C539-HDS-4 delivers professional-grade heated holding in a durable, mobile-ready design that keeps food safe and table-ready for every service rush.

Perfect for bakeries, delis, caterers, and high-volume restaurants that need reliable food holding at the right temperature.
Patented Insulation Armour technology saves energy while protecting staff from burns with its cool-to-touch exterior.
Ambient humidity pan, forced-air convection, and a removable control panel combine convenience with consistent food quality.

Specifications

Brand	Metro
Model	C539-HDS-4
Series	C5 3 Series
Cabinet Type	Full Height Insulated Heated Holding Cabinet
Color / Finish	Red Polymer
Application	Heat Only
Door Style	Dutch (Split)
Door Type	Solid, Insulated (1 in. fiberglass)
Number of Doors	2
Hinge Configuration	Right-hand, Field Reversible, 180° Swing
Door Gasket	Santoprene High-Temperature
Width	27 5/8 in.
Depth	31 1/2 in.
Height	71 in.
Pan Capacity (18" x 26")	17 pans
Pan Capacity (12" x 20" x 2 1/2")	32 pans
Slide Type	Fixed Wire (1/4 in. dia. nickel chrome)
Slide Spacing	Adjustable in 1 1/2 in. increments (3 in. nominal)
Heating System	Thermostatically Controlled Forced Convection (Ball Bearing Blower)
Temperature Range	80-200°F
Control Type	Dial (Analog)
Control Location	Bottom
Voltage	120V
Frequency	60 Hz
Phase	1
Wattage	2,000 W
Amperage	16.7 A
NEMA Plug	5-20P
Cord Length	7 1/2 ft.
Insulation Technology	Insulation Armour (Durable Polymer, Dent/Impact/Stain Resistant)
Construction Material	Aluminum with Red Polymer Finish
Casters	4 Swivel Nickel-Plated (2 with Brakes)
Weight	270 lbs.
Minimum Clearance (Sides/Top/Back)	1 1/2 in.
Minimum Clearance from Cooking Equipment	18 in.
Warranty	1-Year Against Manufacturing Defects
UPC	400010100750
