JOHN BOOS & CO.

John Boos UBIB-2124-CP7-X 24" Underbar Ice Bin/Cocktail Unit with 7-Circuit Cold Plate

$2,083.00

Key Features:

7-circuit built-in cold plate keeps soda lines chilled directly from the ice bin, eliminating the need for a separate cooler
Deep foam-insulated ice bin holds up to 115 lbs of ice, slowing melt rate and reducing ice replenishment frequency during service
22"W x 18"D x 13-1/2" deep bin interior with integrated drain for easy cleanup and water management
Constructed of 18-gauge, Type 300 stainless steel with a satin finish for long-lasting corrosion resistance in high-humidity bar environments
3" high backsplash with access plates on top for routing soda gun lines, keeping the work area organized
2-piece sliding lid provides convenient access to ice while minimizing exposure and contamination
Standard threaded inserts allow adjacent underbar units to be bolted together for a seamless, modular bar setup
Standard front inserts accommodate speed rail attachment for quick bartender access to bottles
1-1/4" stainless steel front-to-back bracing and stainless steel legs deliver a rigid, stable frame
1" adjustable stainless steel bullet feet provide leveling flexibility on uneven floors
1-7/8" drain plug and 1" MPT, 1-1/2" long drain connection for straightforward plumbing tie-in
NSF certified, meeting commercial foodservice sanitation and safety standards
Overall dimensions: 24"W x 21"D x 32-1/2"H, sized to integrate into standard underbar configurations

Detailed Description

The John Boos UBIB-2124-CP7-X is a professional underbar ice bin and cocktail station engineered for high-volume bar service, featuring a built-in 7-circuit cold plate that keeps soda lines consistently chilled without a separate cooling unit. Built from 18-gauge Type 300 stainless steel with a satin finish, the unit delivers exceptional corrosion resistance and durability in demanding commercial environments. The foam-insulated ice bin holds up to 115 lbs of ice and includes a drain, significantly slowing melt rates to reduce ice consumption during busy service periods. A 3-inch high backsplash, 2-piece sliding lid, and access plates on the backsplash for soda gun lines provide a fully functional cocktail workstation in a compact 24-inch footprint. Adjustable stainless steel bullet feet, standard speed rail front inserts, and threaded inserts for joining adjacent units allow seamless integration into virtually any bar layout.

Product Details

Deep Insulated Ice Bin

Foam-insulated bin holds up to 115 lbs of ice with integrated drain to slow melt and simplify cleanup.

7-Circuit Cold Plate

Built-in 7-circuit cold plate keeps soda lines chilled directly from the ice bin for consistently cold pours.

NSF Certified Construction

18 gauge Type 300 stainless steel with satin finish meets NSF standards for commercial bar use.

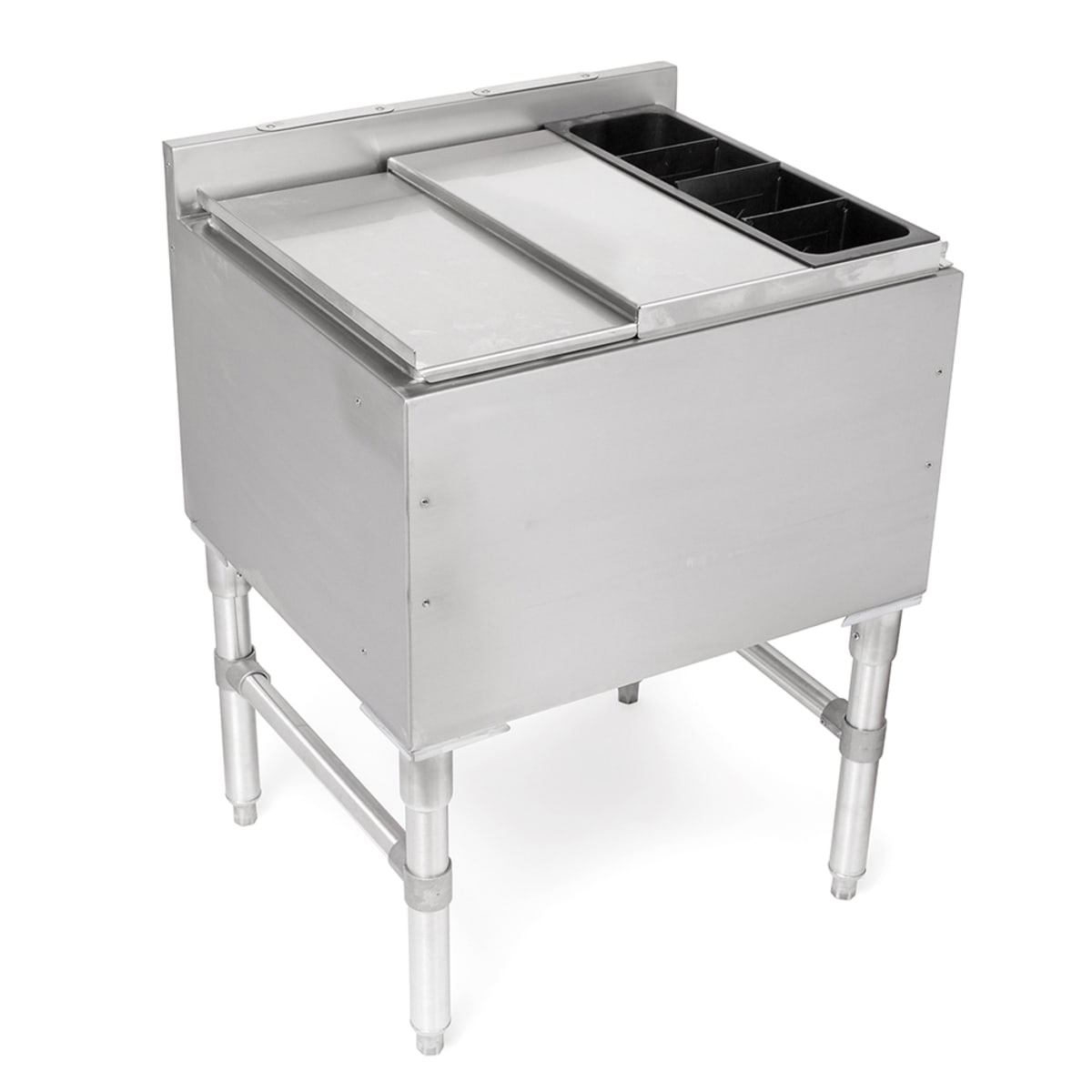

John Boos UBIB-2124-CP7-X stainless steel underbar ice bin and cocktail unit with 2-piece sliding lid, condiment holder, backsplash, and adjustable bullet feet

A Complete Underbar Cocktail Station

The John Boos UBIB-2124-CP7-X is designed to anchor any professional bar setup. At 24"W x 21"D x 32.5"H, it fits cleanly under standard bar counters and integrates directly with adjacent units via standard threaded inserts.

2-piece sliding lid for quick ice access
3" high backsplash contains ice and spills
Access plates on backsplash for soda gun lines
Standard front inserts for speed rail attachment

Key Specifications

Ice Capacity115 lbs

Cold Plate Circuits7 circuits

Material18 gauge, Type 300 stainless steel

Overall Dimensions24"W x 21"D x 32.5"H

Bin Dimensions22"W x 18"D x 13.5"H

CertificationNSF Listed

Ideal For

Full-service bars and nightclubs Hotel and resort beverage stations Restaurant bar setups High-volume cocktail stations Soda gun line installations

From the Cresco Resco Team

Why You'll Love It

The John Boos UBIB-2124-CP7-X delivers the durability, capacity, and cold-plate performance that serious commercial bars demand in one well-engineered underbar station.

Perfect for high-volume bars that need reliable ice storage and integrated soda line cooling in a compact footprint.
The 7-circuit cold plate and 115 lb foam-insulated ice bin work together to keep drinks cold and lines flowing without mechanical refrigeration.
Adjustable stainless steel bullet feet and standard threaded inserts allow easy leveling and seamless modular expansion alongside other underbar units.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Overall Dimensions	24" W x 21" D x 32-1/2" H
Bin Dimensions	22" W x 18" D x 13-1/2" H
Ice Storage Capacity	115 lbs
Construction Material	18 Gauge Type 300 Stainless Steel
Finish	Satin
Cold Plate Circuits	7-Circuit
Backsplash Height	3"
Lid Type	2-Piece Sliding Lid
Insulation	Foam Insulated Ice Bin
Legs & Bracing	Stainless Steel Legs with Side Bracing
Feet	1" Adjustable Stainless Steel Bullet Feet
Front-to-Back Bracing	1-1/4" Stainless Steel
Drain	1-7/8" Drain Plug; 1" MPT x 1-1/2" Long Drain Connection
Speed Rail Attachment	Standard Front Inserts Included
Unit Joining	Standard Threaded Inserts for Attaching Adjacent Units
Soda Gun Line Access	Access Plates on Top of Backsplash
Placement	Freestanding
Certifications	NSF
Weight	177 lbs
Warranty	1-Year Against Defects in Material & Workmanship
