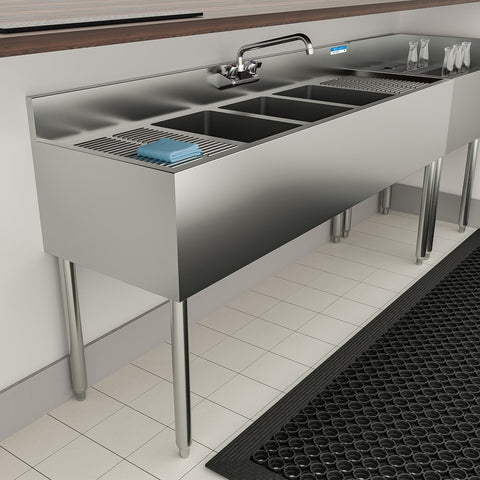

BK Resources UB4-18-360TS 60" Slim-Line 3-Compartment Underbar Sink with Two Drainboards and Faucet

$1,127.00 ~~Sale price$1,878.00you save $751.00~~

Key Features:

Slim-Line Three-Compartment Design: 60"W x 18-1/4"D x 32-1/2"H overall footprint fits tight underbar spaces while providing three dedicated wash, rinse, and sanitize compartments
18-Gauge T-304 Stainless Steel Construction: Heavy-duty stainless steel top, apron front, and sides resist corrosion and hold up to the demands of high-volume commercial bar environments
Integrally Welded Bowls: Three compartments each measuring 10"L x 14"W x 10"D, welded directly into the unit for a seamless, leak-resistant build
Dual Stamped and Pitched Drainboards: Two 13-1/2" drainboards on the left and right provide additional workspace and direct water back into the sink
Includes Lead-Free Workforce Faucet (BKF-W2-10-G): 4" O.C. splash-mount swing-spout faucet with a 10" spout is pre-configured for the 4-1/2"H backsplash, meeting lead-free compliance requirements
Complete Drain Package Included: Comes with BKDR-2 basket drains and BK-OT-15075 removable overflow standpipes for fast, tool-free maintenance
Stainless Steel Legs with Adjustable Side Bracing: Sturdy stainless legs with adjustable end bracing provide structural rigidity; high-impact, corrosion-resistant adjustable feet allow for leveling on uneven floors
NSF Certified: Meets NSF sanitation standards, making it suitable for health department-inspected commercial food and beverage operations
1-Year Manufacturer Warranty: Backed by BK Resources' 1-year warranty for added peace of mind in commercial installations

Detailed Description

The BK Resources UB4-18-360TS is a Slim-Line three-compartment underbar sink engineered for high-volume bar and food service operations where a compact 18-inch depth is essential. Built from 18-gauge T-304 stainless steel with a stainless apron on the front and sides, this unit delivers lasting corrosion resistance under demanding conditions. Three integrally welded 10 x 14 x 10 bowls allow bartenders to efficiently separate washing, rinsing, and sanitizing tasks, while dual 13.5 stamped drainboards on the left and right provide extra working surface. The sink ships complete with a lead-free BKF-W2-10-G faucet, BKDR-2 basket drains, and BK-OT-15075 removable overflow standpipes, making it a ready-to-install solution. Stainless steel legs with adjustable side bracing and high-impact corrosion-resistant feet deliver stable, level support in any bar setup.

Product Details

Heavy-Duty Construction

18-gauge T-304 stainless steel top, apron front, and sides built for demanding commercial environments.

Three Deep Wash Compartments

Integrally welded bowls - 10"L x 14"W x 10"D each - handle washing, rinsing, and sanitizing with ease.

NSF Certified

Meets NSF standards for commercial food service use, backed by a 1-year manufacturer warranty.

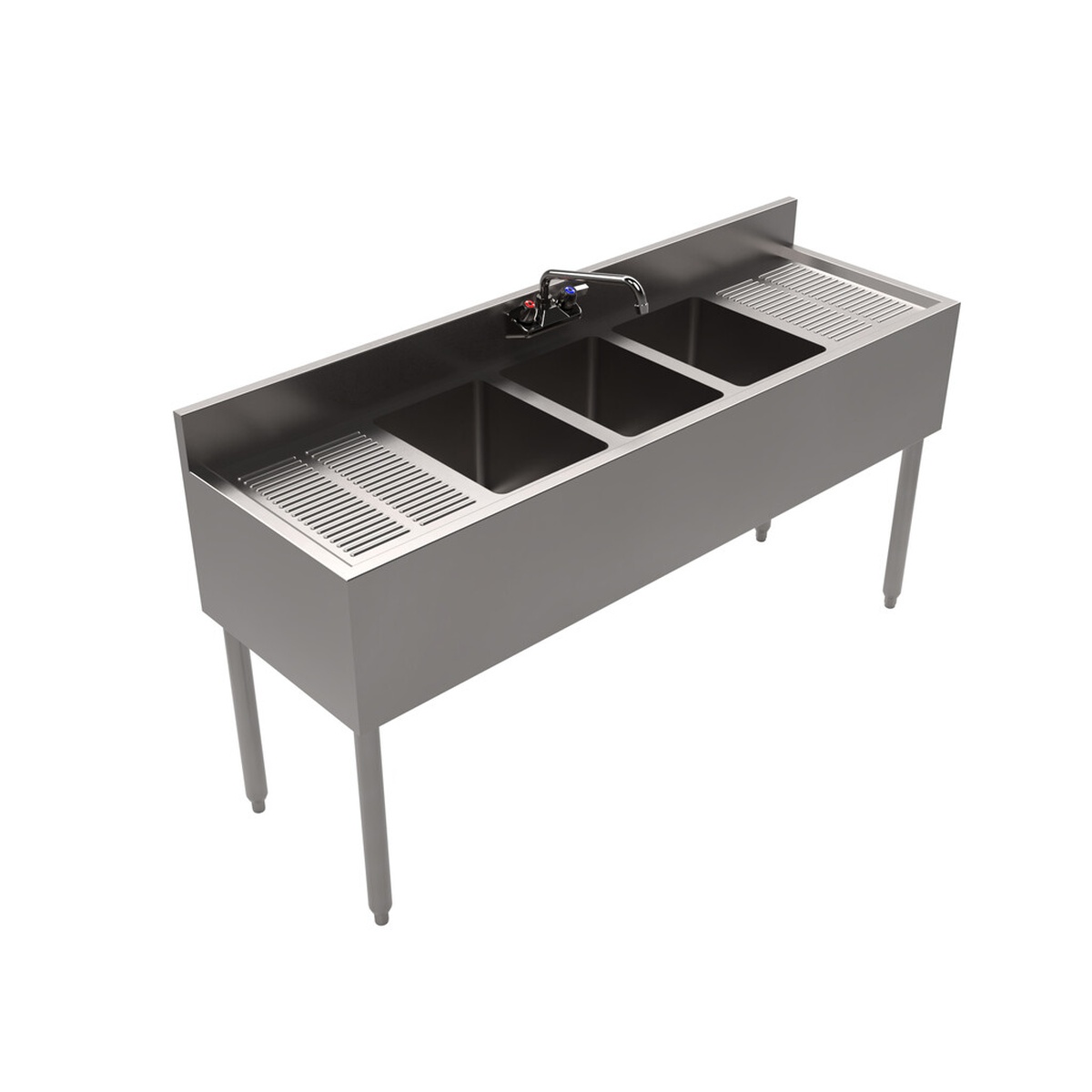

BK Resources UB4-18-360TS three-compartment underbar sink with two drainboards and swing faucet, angled front view

Slim-Line Design Built for the Bar

The UB4-18-360TS is engineered for underbar use where space is tight but performance cannot be compromised. At just 18-1/4" deep, it fits neatly beneath bar counters while delivering a full three-compartment workflow.

Overall dimensions: 60"W x 18-1/4"D x 32-1/2"H
Slim 18" depth optimized for underbar installation
Stainless apron front and sides for a clean, professional finish
Stainless steel legs with adjustable side bracing for stability

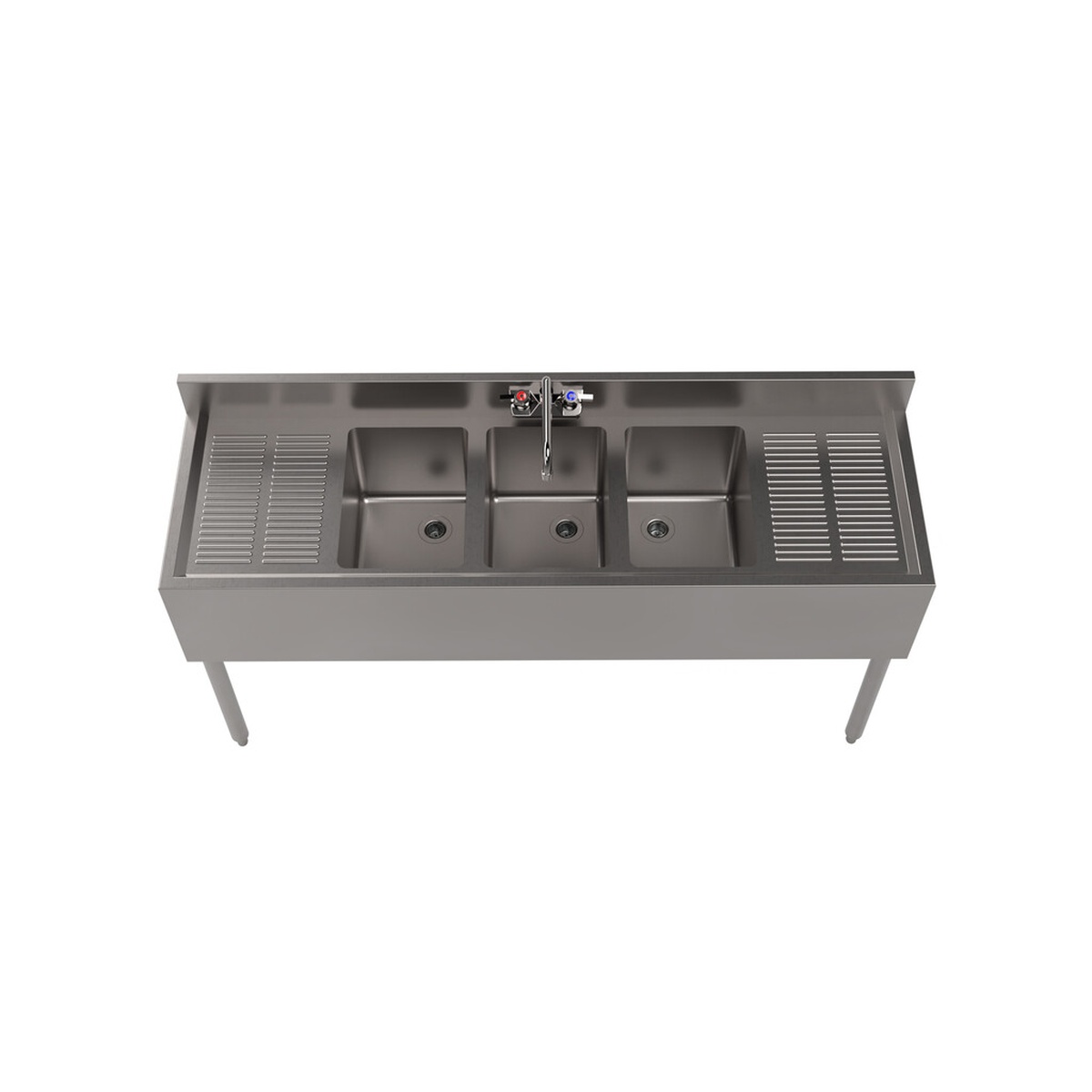

BK Resources UB4-18-360TS underbar sink top-down view showing three compartments, two stamped drainboards, and center-mounted faucet

Dual Drainboards and Centered Faucet

The top-down layout makes the workflow obvious: stamped drainboards flank both sides for drying space, while the three wash compartments sit center-stage with the splash-mount faucet positioned for easy reach.

(2) 13-1/2" stamped and pitched drainboards - left and right
4-1/2"H backsplash with 4" OC splash-mount faucet holes
Includes BKF-W2-10-G lead-free swing-spout faucet (10" spout)
BKDR-2 basket drains included for each compartment

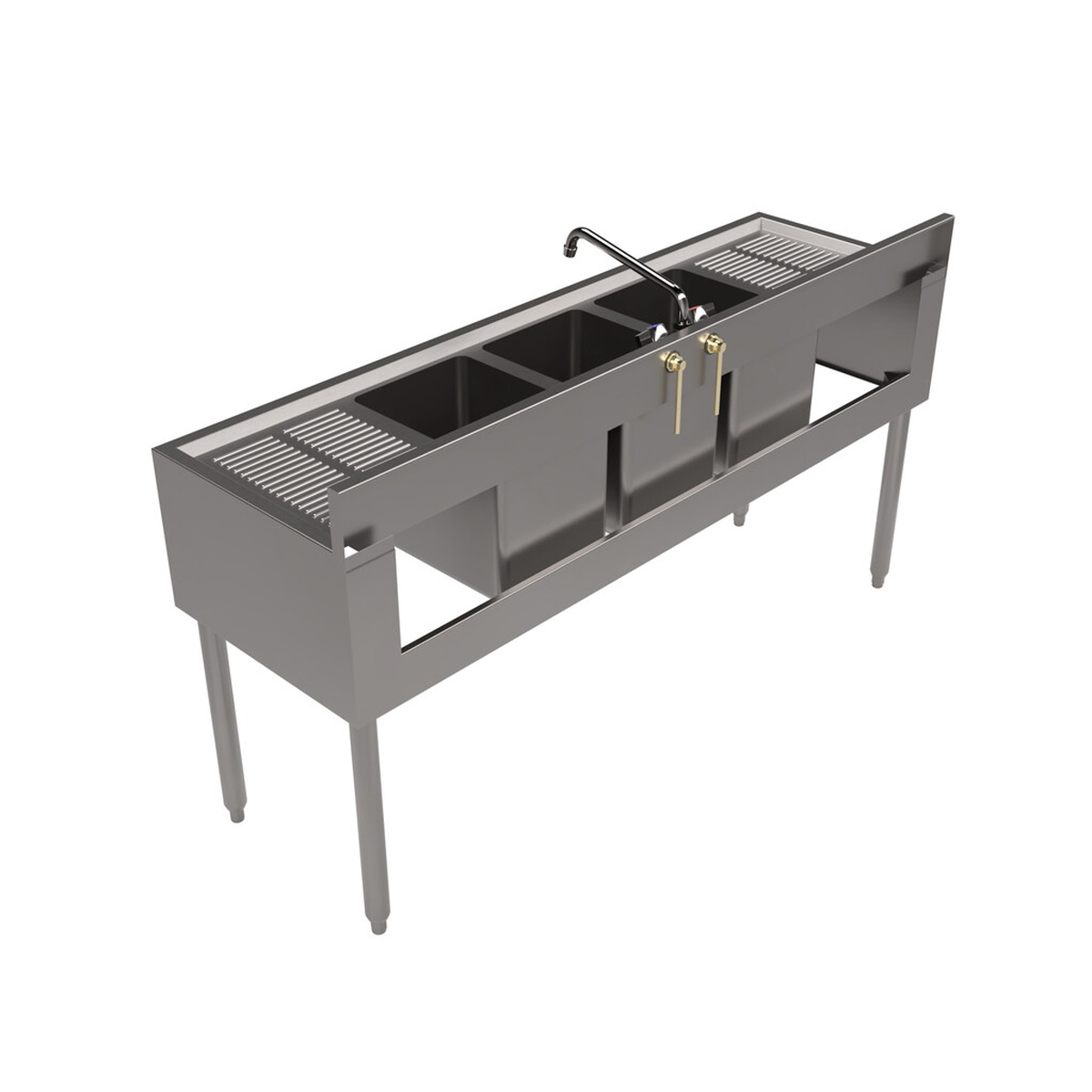

BK Resources UB4-18-360TS underbar sink rear angled view showing overflow standpipes, stainless legs, and adjustable bracing

Complete Kit, Ready to Install

Every component needed for a code-compliant installation is included out of the box. The underside reveals the removable overflow standpipes, adjustable end bracing, and corrosion-resistant feet that keep this sink level and functional for years.

BK-OT-15075 7" removable overflow standpipes included
Adjustable high-impact corrosion-resistant feet
Adjustable end bracing for rigid, secure support
NSF listed - meets health department requirements

Key Specifications

Compartments(3) 10"L x 14"W x 10"D

Overall Size60"W x 18-1/4"D x 32-1/2"H

Steel GradeT-304, 18-gauge stainless steel

Drainboards(2) 13-1/2" stamped, left and right

Backsplash Height4-1/2"H with 4" OC faucet holes

CertificationNSF listed, 1-year warranty

From the Cresco Resco Team

Why You'll Love It

The BK Resources UB4-18-360TS delivers a complete, NSF-certified three-compartment washing solution in a compact slim-line footprint purpose-built for bar and underbar environments.

Ideal for bars, breweries, and high-volume food service operations requiring a wash-rinse-sanitize workflow beneath the counter.
Ships with the faucet, basket drains, and overflow standpipes already included - no separate accessory orders required.
18-ga T-304 stainless construction with adjustable corrosion-resistant feet ensures long-term durability on any floor surface.

Specifications

Model	UB4-18-360TS
Series	Slim-Line
Overall Dimensions	60" W x 18-1/4" D x 32-1/2" H
Number of Compartments	3
Bowl Dimensions (each)	10" L x 14" W x 10" D
Drainboards	(2) 13-1/2" Stamped Drainboards, Left & Right
Backsplash Height	4-1/2"
Material	18 ga. T-304 Stainless Steel
Construction	Stainless Steel Top, Apron Front & Sides
Legs	Stainless Steel with Adjustable Side Bracing
Feet	Adjustable High-Impact Corrosion-Resistant
Faucet Included	Yes - BKF-W2-10-G Lead-Free Workforce Faucet
Faucet Mount	Splash Mount, 4" O.C.
Faucet Spout Type	Swing
Faucet Spout Size	10"
Faucet Finish	Chrome
Includes	BKF-W2-10-G Faucet, BKDR-2 Basket Drains, BK-OT-15075 Removable Overflow Standpipes
NSF Certified	Yes
Warranty	1 Year
Freight Delivery Required	Yes (Truckline Only)
