Maximum Visibility, Minimal Footprint

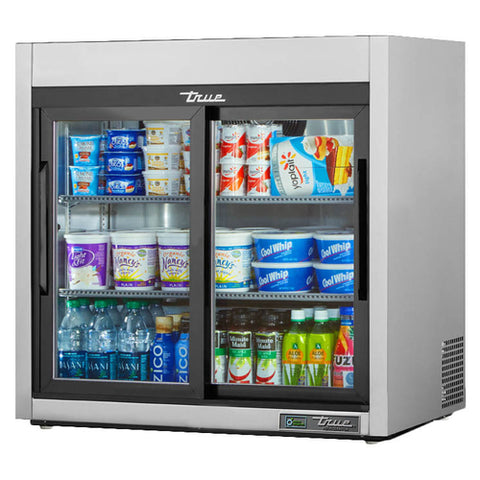

The TSD-09G-HC-LD features two sliding glass doors with "Low-E" double-pane thermal insulation, giving customers a clear, unobstructed view of your chilled products while keeping energy loss to a minimum. Its compact countertop form factor fits seamlessly into convenience stores, cafes, and delis without sacrificing storage capacity.
- 9 cu. ft. capacity for beverages, snacks, and grab-and-go items
- 2 sliding glass doors with 12" handles for easy access
- 3 adjustable PVC-coated wire shelves for flexible merchandising
- LED interior lighting for bright, even product illumination
Key Specifications
Built for Commercial Performance
The entire cabinet structure is foamed-in-place with high-density polyurethane insulation - also rated at zero ozone depletion potential - ensuring superior temperature retention and long-term energy savings. The stainless steel exterior (front, sides, back, and top) paired with an NSF-approved clear-coated aluminum interior liner and stainless steel floor with coved corners makes routine cleaning fast and thorough.
Ideal For
Why You'll Love It
The True TSD-09G-HC-LD delivers commercial-grade refrigerated merchandising in a compact countertop footprint, combining energy efficiency, food safety compliance, and eye-catching product display.
- Perfect for convenience stores, cafes, and delis looking to boost impulse sales with visible, accessible chilled products.
- The self-closing, "Low-E" double-pane sliding glass doors and R290 refrigerant keep operating costs low without sacrificing performance.
- Three adjustable shelves and LED interior lighting make it easy to customize your display and keep products looking their best at all times.
Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:
| Model | TSD-09G-HC-LD |
| Product Type | Reach-In Glass Slide Door Countertop Refrigerator |
| Capacity | 9 cu. ft. |
| Width | 36 in. |
| Depth | 21 in. |
| Height | 35.9 in. |
| Weight | 220 lbs. (100 kg) |
| Number of Doors | 2 |
| Door Style | Sliding Glass |
| Door Glass | "Low-E" Double Pane Thermal Insulated |
| Number of Shelves | 3 |
| Shelf Type | Adjustable PVC-Coated Wire |
| Temperature Range | 33°F to 38°F (0.5°C to 3.3°C) |
| Refrigerant | R290 Hydrocarbon (HC) |
| Refrigeration System | Factory-Engineered, Self-Contained Capillary Tube |
| Horsepower | 1/6 HP |
| Voltage | 115V / 60 Hz / 1 Phase |
| Amps | 1.9 A |
| NEMA Configuration | 5-15P |
| Exterior Finish | Stainless Steel (Front, Sides, Back, and Top) |
| Interior Finish | NSF-Approved Clear Coated Aluminum Liner; Stainless Steel Floor with Coved Corners |
| Insulation | Foamed-In-Place High Density Polyurethane (0 ODP / 0 GWP) |
| Interior Lighting | LED (Safety Shielded) |
| Handle Length | 12 in. (305 mm) |
| Certifications | NSF/ANSI Standard 7, UL Listed, CE Certified |
| ODP / GWP | Zero ODP / 3 GWP |
User manual not available.
