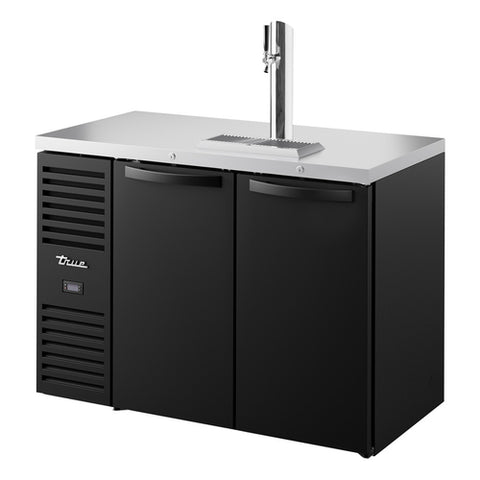

True Mfg. TDR48-RISZ1-L-B-SS-1 48-Inch Refrigerated Draft Bar Cooler with Single Beer Column

$5,310.03 ~~Sale price$11,179.00you save $5,868.97~~

Key Features:

Two-Section Refrigerated Draft Bar Cooler: 48"W two-section design with a left-side mounted self-contained refrigeration system, ideal for high-volume bar and beverage service environments.
Integrated Draft Beer System: Includes one 3" diameter insulated beer column with a single-faucet draft arm and 2-way manifold, plus a 15" surface-mounted drip tray for a ready-to-serve setup right out of the box.
Stainless Steel Countertop and Interior: Stainless steel top, interior sides, and floor deliver long-lasting durability and easy sanitation, while the ABS plastic ceiling reduces weight and resists corrosion.
Black Powder Coated Exterior with Locking Solid Swing Doors: Two solid hinged, locking doors provide secure storage and a sleek bar aesthetic, while the cold-rolled steel black powder coated exterior resists scratches and wear.
High-Density Foamed-In-Place Insulation: The entire cabinet uses high-density polyurethane insulation with zero ozone depletion potential and zero global warming potential, maximizing thermal efficiency and environmental responsibility.
R290 Hydrocarbon Refrigerant: Environmentally friendly R290 refrigerant offers superior energy efficiency and a low environmental impact compared to conventional refrigerants.
Precise Temperature Control: Maintains a standard refrigerator range of 33°F to 38°F (0°C to 3°C), keeping draft beer at optimal serving temperature.
LED Interior Lighting: Energy-efficient LED lighting improves product visibility while reducing heat load inside the cabinet.
High Can Capacity: Accommodates up to 38 six-packs of 12 oz cans, maximizing storage density for busy bar operations.
Low Power Draw: Operates on 115v/60/1-ph at just 1.8 amps with a 1/5 HP motor and NEMA 5-15P plug, making installation straightforward with standard electrical connections.
Industry Certifications and Made in USA: Certified cULus, UL EPH Classified, and NSF 7 rated for open food product storage, with domestic manufacturing ensuring quality control and reliability.
Industry-Leading Warranty: Backed by a 7-year compressor, 7-year parts, and 7-year labor warranty, providing long-term peace of mind for commercial operators.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

True Mfg. TDR48-RISZ1-L-B-SS-1 48-Inch Refrigerated Draft Bar Cooler with Single Beer Column

$5,310.03~~$11,179.00~~

Detailed Description

The True Mfg. TDR48-RISZ1-L-B-SS-1 is a 48-inch two-section refrigerated draft bar cooler built for high-volume commercial bar environments. Featuring a side-mounted, self-contained left refrigeration system, it maintains a precise temperature range of 33°F-38°F to keep kegs at optimal serving temperature. The unit comes equipped with a 3-inch insulated beer column with a single-faucet chrome draft arm, a 2-way manifold, and a 15-inch surface-mounted drip tray for a complete direct-draw dispense solution. Its stainless steel countertop, locking solid hinged doors, and LED interior lighting combine durability with ease of service. Powered by eco-friendly R290 hydrocarbon refrigerant and backed by True's industry-leading 7-year parts, labor, and compressor warranty, this cooler is a long-term investment for any serious bar program.

Product Details

Precise Draft Temperature

Electronic control maintains a consistent 33°F-38°F with an exterior digital display for at-a-glance monitoring.

Ready-to-Dispense Draft Setup

Includes a 3" insulated beer column with a single chrome faucet, 2-way manifold, and 15" surface-mounted drip tray.

7-Year Total Warranty

Backed by a 7-year compressor, parts, and labor warranty - engineered and manufactured in the USA.

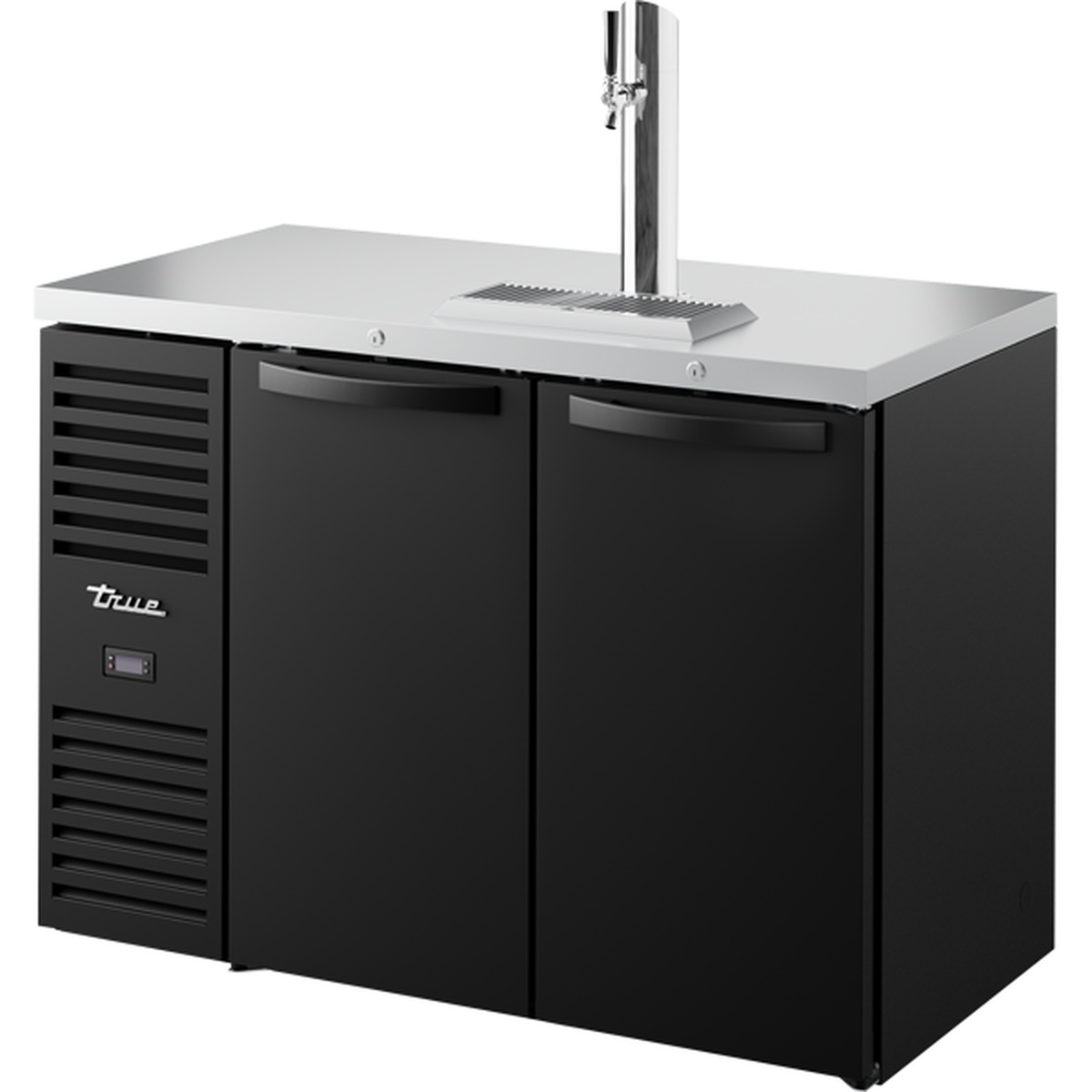

True TDR48-RISZ1-L-B-SS-1 48-inch two-section black refrigerated draft bar cooler with stainless steel countertop and single chrome beer tap column

Professional Draft Bar Cooling in a 48" Footprint

The True TDR48-RISZ1-L-B-SS-1 is a two-section reach-in refrigerated draft bar cooler built for demanding commercial environments. A left-side self-contained refrigeration system delivers reliable performance with zero clearance requirements on sides and back.

Black powder coated cold-rolled steel exterior with stainless steel countertop
Stainless steel interior sides and floor with ABS plastic ceiling
Two solid, lockable hinged doors with field-reversible option
Front air intake and discharge for flexible installation

Key Specifications

Can Capacity38 six-packs (12 oz cans)

Power115v/60/1-ph, 1.8 amps, NEMA 5-15P

RefrigerantR290 Hydrocarbon - zero ODP/GWP

CertificationscULus, UL EPH Classified, NSF/ANSI 7

Dimensions (W x D x H)48" x 24.88" x 34.75"

Horsepower / Weight1/5 HP / 210 lbs

Why Choose the TDR48-RISZ1-L-B-SS-1

33°-38°F

Draft Temp Range

48"

Cabinet Width

7 Yr

Full Warranty

Standard Features at a Glance

RCU Technology White LED Interior Lighting UL Rated for Outdoor Use Zero Clearance Install Field Reversible Doors 3 Interior Access Ports Made in USA

From the Cresco Resco Team

Why You'll Love It

The True TDR48-RISZ1-L-B-SS-1 delivers a complete, bar-ready draft dispensing solution with commercial-grade refrigeration in a space-efficient 48" cabinet.

Ideal for bars, restaurants, and high-volume hospitality operations that demand consistent keg temperatures and reliable draft service.
Arrives ready to pour with an included insulated beer column, single chrome faucet, 2-way manifold, and drip tray - no extras needed to get started.
The zero-clearance design, front air discharge, and UL outdoor rating give operators maximum flexibility in tight or unconventional installations.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model	TDR48-RISZ1-L-B-SS-1
Product Type	Refrigerated Draft Bar Cooler
Sections	2
Doors	2 solid hinged, locking
Width	48 in
Dimensions (H x W x D)	34.75 in x 48.0 in x 24.88 in
Weight	210 lbs (96 kg)
Exterior Finish	Black powder coated cold-rolled steel with stainless steel countertop
Interior	Stainless steel floor and sides with ABS plastic ceiling
Insulation	Foamed-in-place high density polyurethane; zero ozone depletion potential; zero global warming potential
Refrigeration System	Self-contained, left side mounted
Refrigerant	R290 Hydrocarbon
Temperature Range	33°F - 38°F (2°C)
Horsepower	1/5 HP
Voltage	115V / 60Hz / 1-ph
Amps	1.8 A
NEMA Configuration	5-15P
Beer Column	1 x 3 in dia. insulated column with single faucet draft arm and 2-way manifold
Drip Tray	15 in surface mounted drip tray (qty: 1)
Lighting	LED interior
Can Capacity	38 six-packs (12 oz cans)
Floor Access	3 access ports
Certifications	cULus, UL EPH Classified, Made in USA
Warranty	7-year compressor, 7-year parts, 7-year labor
Country of Origin	USA
