True MFG Co.

True Manufacturing TCGG-60-S-HC-LD 60" Stainless Steel Curved Glass Refrigerated Deli Display Case

$6,606.26 ~~Sale price$18,583.00you save $11,976.74~~

Key Features:

Elegant curved, insulated double-pane tempered front glass delivers maximum visibility and superior insulation for enhanced energy efficiency and food safety
High-humidity gravity coil refrigeration system maintains a precise 38°F to 40°F (3.3°C to 4.4°C) operating range, ideal for fresh display of meats, cheeses, and deli products
Factory-engineered, self-contained capillary tube system using R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and a global warming potential (GWP) of only 3
Four (4) adjustable, lighted, cantilevered PVC-coated wire shelves (22-1/2" L x 27-7/8" D) with adjustable angle for optimal merchandising presentation
Low-UV LED lighting enhances product appearance and extends shelf life while reducing energy consumption and interior heat buildup
Entire cabinet structure foamed-in-place with high-density, CFC-free polyurethane insulation featuring zero ODP and zero GWP for outstanding thermal performance
Full stainless steel interior and exterior construction, with coved corners for easy cleaning and long-term durability
Epoxy-coated evaporator resists corrosion for extended service life with minimal maintenance
Two (2) rear sliding doors ride on stainless steel V-channel with stainless steel bearings and feature self-closing, counterbalanced weight systems for smooth, positive closure
NSF/ANSI Standard 7 certified for open food product display, meeting strict food safety requirements
Bottom-mounted 1/2 HP self-contained compressor; operates on 115V/60Hz/1-phase (NEMA 5-15P), drawing 5.3 amps
Industry-leading warranty: 3 years parts and labor, 7 years on the compressor (HC/R290 models)
Made in the USA by True Manufacturing with quality, energy-efficient components including electronically commutated motors

Detailed Description

The True TCGG-60-S-HC-LD is a 60-inch full-service curved glass refrigerated deli display case built for high-volume merchandising of meats, cheeses, and deli products. Its sweeping double-pane tempered curved glass front delivers crystal-clear product visibility while providing superior insulation and energy efficiency. A factory-engineered, self-contained system runs on R290 hydrocarbon refrigerant with zero ozone depletion potential, and the high-humidity gravity coil maintains a consistent 38°F to 40°F for peak food safety. Four adjustable, LED-lit cantilevered PVC-coated wire shelves create a vibrant display, and the all-stainless steel interior and exterior ensure easy sanitation and lasting durability. NSF/ANSI Standard 7 certified and Made in the USA, this case is backed by a 3-year parts and labor warranty with a 7-year compressor warranty.

Product Details

Precise Temperature Holding

High humidity gravity coil system maintains 38°F to 40°F for safe, fresh display of meats, cheeses, and deli products.

4 Adjustable Lighted Shelves

Cantilevered PVC-coated wire shelves with adjustable angle and built-in LED lighting maximize product presentation.

NSF Certified & Eco-Friendly

NSF/ANSI Standard 7 certified with R290 hydrocarbon refrigerant offering zero ozone depletion and a GWP of only 3.

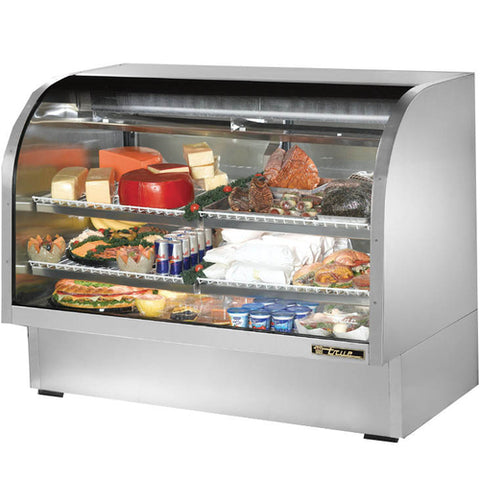

True TCGG-60-S-HC-LD 60-inch stainless steel curved glass refrigerated deli display case with four adjustable shelves

Elegant Curved Glass Design Built for High-Volume Merchandising

The True TCGG-60-S-HC-LD pairs an eye-catching curved glass front with all-stainless-steel construction to create a sophisticated, durable display case purpose-built for full-service deli operations.

Insulated double pane curved front glass, both panes tempered for safety
Stainless steel exterior and interior with coved corners for easy cleaning
"Low-E" rear double pane thermal glass inserts with mitered plastic channel frames
Two rear sliding doors on stainless steel V-channel with stainless steel bearings
Self-closing, counter-balanced doors for smooth, positive closure every time

Key Specifications

Temperature Range38°F to 40°F (3.3°C to 4.4°C)

Electrical115V / 60 Hz / 1 Phase, 5.3 A, NEMA 5-15P

Cabinet Dimensions60.25" W x 35.25" D x 47.75" H

ConstructionAll stainless steel interior and exterior

RefrigerantR290 Hydrocarbon, Self-Contained, 1/2 HP

Doors / Shelves2 Sliding Rear Doors / 4 Adjustable Shelves

Performance at a Glance

60"

Display Width

38-40°F

Holding Temperature

R290

Eco-Friendly Refrigerant

Lighted Shelves

7-Year

Compressor Warranty

NSF-7

Open Food Certified

From the Cresco Resco Team

Why You'll Love It

The True TCGG-60-S-HC-LD is a full-service curved glass deli case that blends commercial-grade refrigeration performance with an attractive stainless steel design, ideal for any high-volume deli, supermarket, or specialty food operation.

Perfect for displaying meats, cheeses, prepared foods, and deli products at safe temperatures with maximum visibility.
Environmentally responsible R290 refrigerant, foamed-in-place CFC-free insulation, and low-UV LED lighting set it apart from standard deli cases.
Backed by a 3-year parts and labor warranty plus a 7-year compressor warranty, delivering long-term reliability and peace of mind.

Specifications

Model	TCGG-60-S-HC-LD
Brand	True Manufacturing
Product Type	Curved Glass Refrigerated Deli Display Case
Width	60.25"
Depth	35.25"
Height	47.75"
Cabinet Dimensions	60 1/4" W x 35 1/4" D x 47 3/4" H
Unit Weight	555 lbs (252 kg)
Crated Weight	600 lbs
Number of Doors	2
Number of Shelves	4
Shelf Dimensions	22 1/2" L x 27 7/8" D (572 mm x 709 mm)
Temperature Range	38°F - 40°F (3.3°C - 4.4°C)
Refrigerant	R290 Hydrocarbon
Refrigeration Type	High Humidity Gravity Coil, Self-Contained
Compressor Location	Bottom Mounted
Horsepower	1/2 HP
Voltage	115V / 60 Hz / 1 Phase
Amperage	5.3 A
NEMA Configuration	5-15P
Cord Length	9 ft
Exterior Finish	Stainless Steel
Interior Finish	Stainless Steel
Glass Style	Curved, Double Pane Tempered (Low-E Insulated)
Lighting	LED (Low UV)
Insulation	Foamed-In-Place High Density Polyurethane (CFC-Free, 0 ODP, 0 GWP)
Service Type	Full Service
Display Case Type	Single Duty
Installation Type	Freestanding
Certifications	NSF/ANSI Standard 7, UL Listed
Warranty	3 Years Parts & Labor; 7 Years Compressor (HC/R290 Models)
Country of Manufacture	USA
