True MFG Co.

True TBB-4PT-S-HC Stainless Steel Pass-Thru Back Bar Cooler with Hydrocarbon Refrigerant

$6,892.88 ~~Sale price$22,809.00you save $15,916.12~~

Key Features:

Pass-Thru Design: Features 3 solid swing doors on the front and 3 on the back, creating a convenient pass-thru configuration that connects front-of-house and back-of-house operations for fast, efficient service.
High-Capacity Storage: Holds up to 152 six-packs of 12-oz cans on 6 adjustable PVC-coated wire shelves, or accommodates 4 half-barrel kegs when shelves are removed.
Heavy-Duty Stainless Steel Construction: Full stainless steel exterior on front, back, sides, and countertop resists corrosion and scratches; galvanized steel interior walls with a stainless steel floor simplify cleaning and ensure long-term durability.
R290 Hydrocarbon Refrigerant: Environmentally friendly R290 refrigerant maintains precise temperatures between 33 and 38 degrees F, reducing environmental impact compared to traditional refrigerants.
Electronically Commutated Fan Motors (ECM): Energy-efficient ECM motors reduce power consumption and heat production, lowering operating costs in busy bar environments.
Slide-Out Condensing Unit: Front-accessible, slide-out condensing unit positioned behind the front grille makes maintenance and servicing fast and hassle-free without moving the unit.
Foamed-In-Place Polyurethane Insulation: Cabinet insulation is injected and cured in place to eliminate gaps, maximizing thermal retention and keeping cold air locked inside.
LED Interior Lighting: Bright LED lighting enhances product visibility and showcases beverage selection without adding excess heat to the cabinet.
Secure, Space-Saving Doors: Each door features a 12-inch recessed handle to preserve aisle clearance, standard door locks to prevent tampering, and magnetic one-piece gaskets that are removable without tools for easy cleaning.
Reinforced Door Threshold: Door threshold is protected against dents during keg and can loading, extending the life of the unit under heavy daily use.
Epoxy-Coated Evaporator: Corrosion-resistant epoxy coating on the evaporator protects against moisture and extends the life of the refrigeration system.
Made in the USA: UL and cULus certified, backed by a 7-year parts and labor warranty and a 7-year compressor warranty for long-term reliability.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

True TBB-4PT-S-HC Stainless Steel Pass-Thru Back Bar Cooler with Hydrocarbon Refrigerant

$6,892.88~~$22,809.00~~

Detailed Description

The True TBB-4PT-S-HC is a three-section, pass-thru back bar cooler built for the demands of high-volume bar and restaurant operations. Its pass-thru design features three solid swing doors on the front and three on the back, enabling bartenders and service staff to access product from both sides and streamline workflow at the point of service. The stainless steel exterior on all sides and countertop pairs with a galvanized steel interior and stainless steel floor, offering exceptional durability and easy sanitation. Six adjustable PVC-coated wire shelves accommodate up to 152 six-packs of 12 oz cans, and with shelves removed, the unit holds four half-barrel kegs. R290 hydrocarbon refrigerant and electronically commutated fan motors deliver energy-efficient, environmentally responsible refrigeration with temperatures maintained between 33°F and 38°F.

Product Details

33-38°F Temperature Range

R290 hydrocarbon refrigerant with ECM fan motors maintains precise, consistent cooling.

High-Capacity Storage

Holds 152 six-packs of 12-oz. cans or 4 half-barrel kegs with shelves removed.

Commercial-Grade Construction

Stainless steel exterior front, back, sides, and countertop with a durable stainless steel floor.

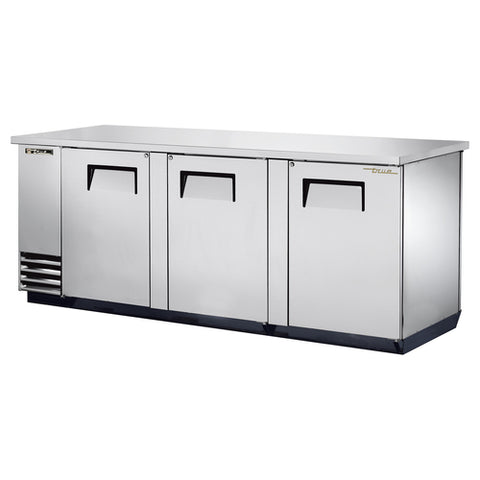

True TBB-4PT-S-HC stainless steel pass-thru back bar cooler with three solid swing doors and recessed handles

Pass-Thru Design for Seamless Bar Service

The TBB-4PT-S-HC features 3 solid swing doors on the front and 3 on the back, creating a pass-thru configuration that bridges the front of house and back of house for faster, more efficient service.

12-inch recessed handles save aisle space
Door locks standard on all 6 doors to prevent tampering
Magnetic door gaskets create an airtight seal to retain cold air
Door threshold protection guards against dents when loading kegs or cans

Key Specifications

Capacity32.8 cu. ft. | 152 six-packs or 4 half-barrel kegs

Temperature Range33 - 38°F

Dimensions90-3/8" W x 31" D x 37" H

Electrical115V / 60 Hz / 1 ph | 8.8A | 1/2 HP | NEMA 5-15P

Shelving6 adjustable PVC-coated wire shelves

CertificationsUL, cULus | Made in USA

Built for High-Volume Bar Operations

152

6-Packs of 12-oz. Cans

Half-Barrel Kegs (shelves removed)

Solid Swing Doors (3 front / 3 back)

Ideal For

Full-service bars High-volume restaurants Nightclubs and lounges Sports bars Breweries and taprooms

From the Cresco Resco Team

Why You'll Love It

The True TBB-4PT-S-HC is a workhorse pass-thru back bar cooler built to keep beverages cold and service moving in any commercial bar environment.

Perfect for bars that need fast front-to-back access without sacrificing cold storage capacity.
R290 hydrocarbon refrigerant and ECM fan motors deliver efficient, environmentally responsible cooling with a slide-out condensing unit for easy service.
Pairs with a stainless steel countertop for drink prep and garnish work right at the bar station.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model	TBB-4PT-S-HC
Type	Pass-Thru Back Bar Cooler
Number of Sections	3
Number of Doors	6 (3 front / 3 back)
Door Type	Solid Swing
Exterior Material	Stainless Steel (front, back, sides, and countertop)
Interior Material	Heavy Gauge Galvanized Steel Walls / Stainless Steel Floor
Number of Shelves	6 Adjustable PVC-Coated Wire Shelves
Shelf Dimensions (Right & Left, each)	23-1/2 in. W x 21-1/4 in. D
Shelf Dimensions (Middle, each)	28-1/4 in. W x 21-1/4 in. D
Can Capacity	152 Six-Packs of 12 oz. Cans
Keg Capacity (Shelves Removed)	4 Half-Barrel Kegs
Cubic Feet	32.8 cu. ft.
Width	90-3/8 in.
Depth	31 in.
Height	37 in.
Weight	545 lbs.
Temperature Range	33°F - 38°F
Refrigerant	R290 Hydrocarbon
Voltage	115V / 60 Hz / 1 Phase
Amperage	8.8 A
Horsepower	1/2 HP
Cord Length	7 ft.
NEMA Configuration	5-15P
Compressor Location	Left
Insulation	Foamed-In-Place Polyurethane
Interior Lighting	LED
Door Locks	Standard
Base	Frame
Certifications	UL, cULus
Origin	Made in USA
Warranty	7-Year Parts & Labor; 7-Year Compressor
Series	TBB Series
Also Known As	TBB-4PT-S
