Key Specifications
Why Choose This Model
Versatile Cooking Applications

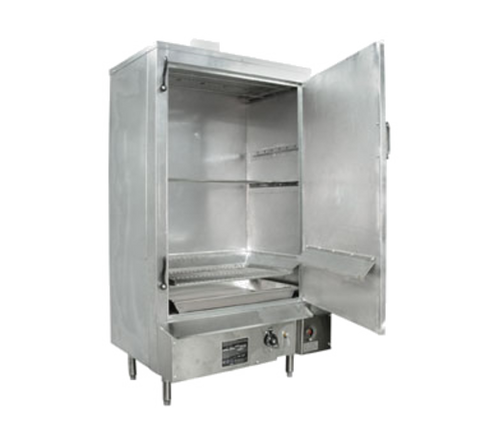

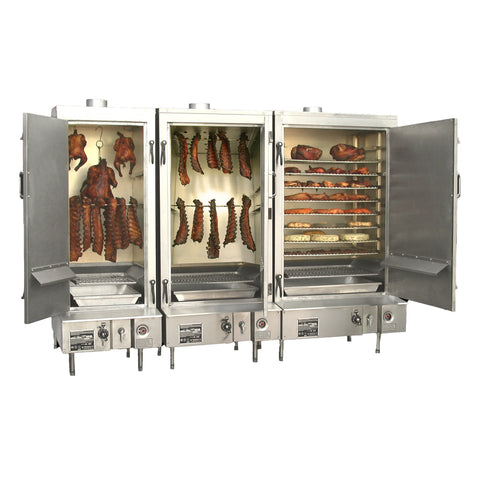

The MasterRange smokehouse blends Asian and Western techniques to handle diverse menu items. Smoke fish, meat, sausage, cheese, or jerky with authentic cold-smoke flavor. Hang fowl or suckling pig using included skewers, or place roasts on optional racks for traditional barbecue.
- Perforated top baffle ensures even heat distribution throughout the cabinet
- Stainless steel drip pan prevents shrinkage when filled with water
- Drip shield generates smoke while controlling drip flow
- Right-hinged, double-wall insulated door retains heat efficiently
Ideal For
Why You'll Love It
This commercial smokehouse combines authentic Asian smoking traditions with modern thermostatically controlled precision, delivering juicy, flavorful results every time.
- Perfect for restaurants specializing in smoked meats, barbecue, or traditional Chinese roasted items.
- Fully insulated cabinet with adjustable stainless steel legs provides stability and consistent cooking performance.
- Cast iron swivel latches and comfortable tubular door handle make operation smooth during busy service periods.
| Model Number | SM-36-R-SS-N |
| Series | MasterRange® |
| Manufacturer | Town |
| Type | Commercial Smoker Oven |
| Gas Type | Natural Gas |
| BTU Rating | 75,000 BTU |
| Temperature Range | 125-550°F |
| Temperature Control | Thermostatic (Dial) |
| Burners | 5 aluminum tubular burners |
| Overall Dimensions | 36"W x 31"D x 70 3/4"H |
| Interior Dimensions | 34"W x 22"D |
| Weight | 550 lbs |
| Exterior Construction | Stainless steel front & sides, galvanized top & rear |
| Cabinet Construction | Fully insulated |
| Door | Right-hinged, double-wall, insulated with cast iron swivel latches |
| Door Handle | Stainless steel tubular |
| Skewers | 6 stainless steel skewers with 2 levels of skewer rests |
| Drip Pan | Stainless steel water pan |
| Top Baffle | Easy-to-remove, perforated for even heat distribution |
| Legs | 7-3/4" adjustable stainless steel legs |
| Clearance Required | 6" on sides and back from combustible surfaces |
| Certifications | NSF, ETL |
| Warranty | 1-year Limited Against Material Defects |
User manual not available.
