CMA DISHMACHINES

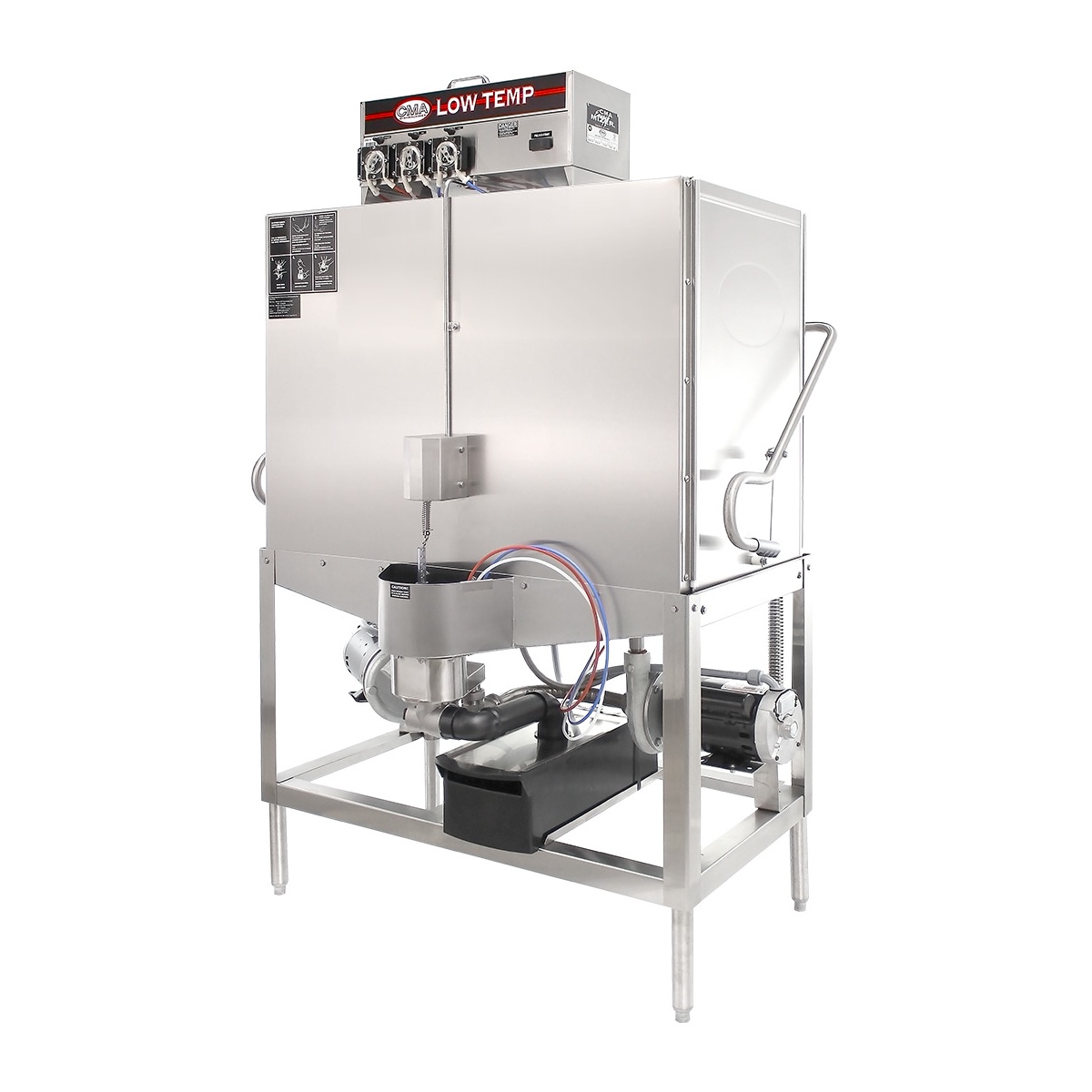

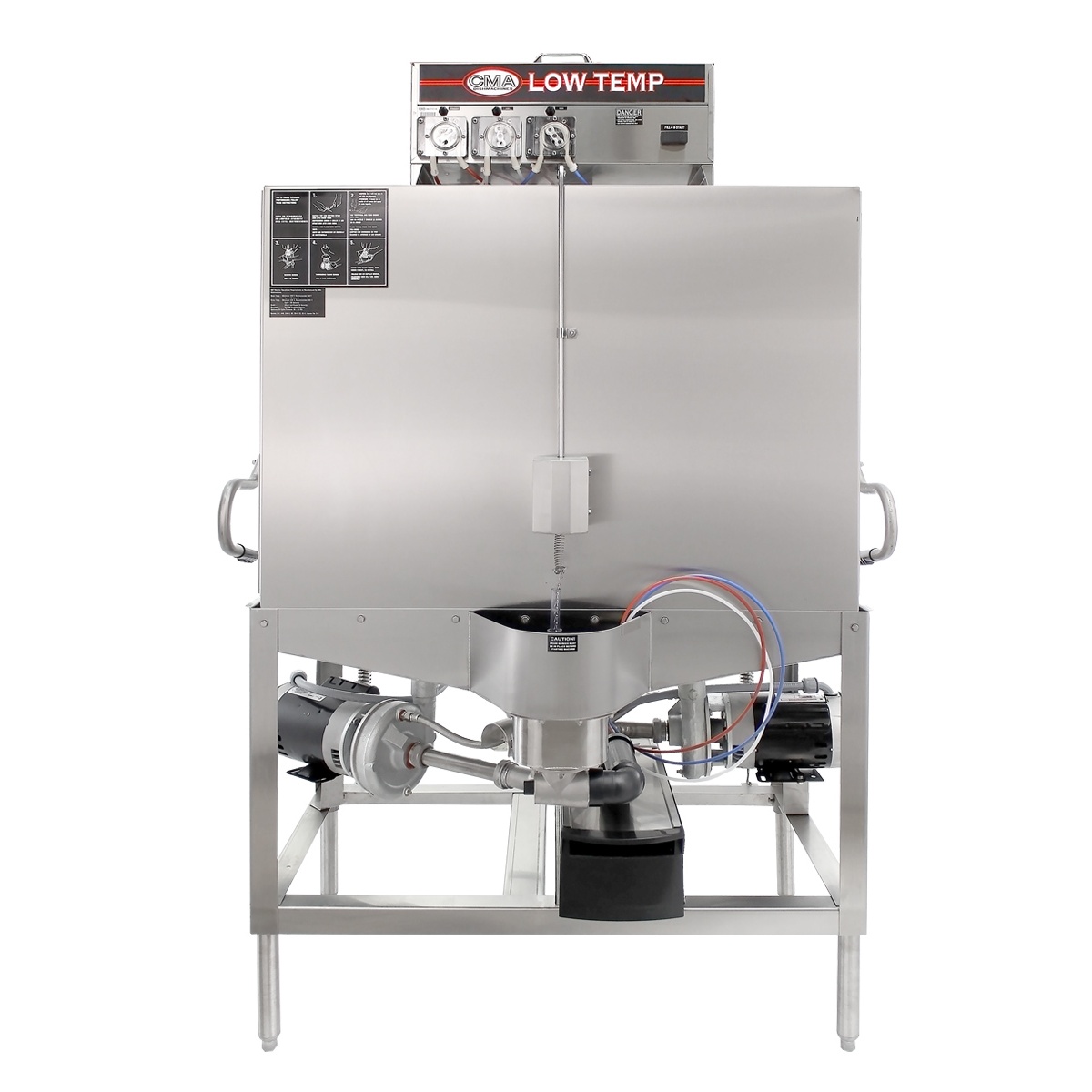

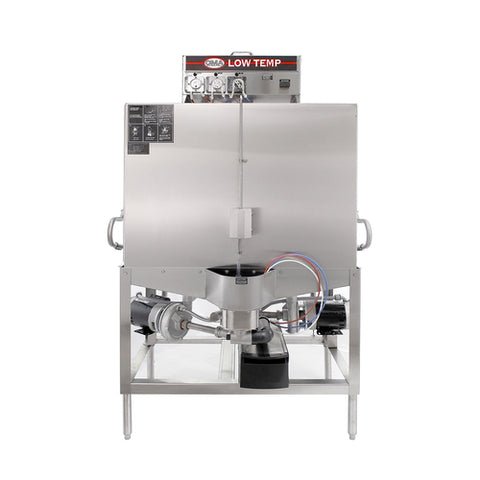

CMA Dishmachines S-B Scullery Low-Temp Double Rack Pot and Pan Dishwasher
Regular price
$9,758.00
Sale price$16,263.00you save $6,505.00
CMA Dishmachines S-B Scullery Low-Temp Double Rack Pot and Pan Dishwasher
$9,758.00$16,263.00
Detailed Description
The CMA Dishmachines S-B is a low-temperature, chemical-sanitizing scullery dishwasher designed for high-volume pot and pan and sheet pan washing. Its straight-through, double rack configuration and 90-second cycle help keep busy dish rooms moving while maintaining consistent results. Built with all stainless steel construction, it also features chemical pumps, top-mounted controls, and a delime switch for streamlined daily operation. A Poly Pro scrap accumulator and removable stainless steel wash arms support cleaner wash water and easier maintenance.
Product Details
Double Rack Throughput
Tall, straight-through design produces up to 80 racks per hour.
Built-In Chemical Control
Top-mounted controls with chemical pumps, priming switches, and a delime switch.
All Stainless Steel Build
Stainless steel construction and reinforced wash arm end caps for long service life.
Made for Pots, Pans, and Sheet Pans
The tall chamber delivers the clearance you need for bulky ware, while a fast cycle keeps prep and dish areas moving.
- Up to 27 inch maximum dish clearance
- 90-second wash cycle
- Low temperature, chemical sanitizing operation
Cleaner Wash Water, Easier Maintenance
Designed to reduce soil carryover and simplify cleaning between shifts with removable wash arms and integrated scrap handling.
- Poly Pro scrap accumulator helps keep the wash tank cleaner
- Upper and lower stainless wash arms with pull-pins for easy removal
- Pump purging system helps eliminate soil and chemical carryover
Key Specifications
Output
Up to 80 racks per hour
Cycle Time
90 seconds
Interior Clearance
27 inches
Water Use
3 gallons per rack
Electrical
115V, 1 phase, 60 Hz
Overall Size (W x D x H)
44 1/4 in x 25 1/4 in x 66 to 67 in
From the Cresco Resco Team
Why You'll Love It
A tall, double rack pot and pan dishwasher built to keep up with high-volume kitchens using low temperature chemical sanitizing.
- Great for busy prep kitchens handling pots, pans, and sheet pans.
- Top-mounted controls with chemical pumps help support consistent results.
- Scrap accumulation and removable wash arms streamline daily cleaning.
Specifications
| Manufacturer | CMA Dishmachines |
| Model | S-B |
| Dishwasher Type | Low temperature, chemical sanitizing pot and pan dishwasher |
| Configuration | Tall, double rack, straight through design |
| Rack Capacity | 80 racks/hour |
| Wash Cycle Time | 90 seconds |
| Maximum Dish Clearance | 27 in |
| Water Usage | 3 gal per rack |
| Wash Tank Capacity | 3 gal |
| Electrical | 115V, 60Hz, 1 phase |
| Amperage | 30A |
| Motor | 1 hp |
| Overall Dimensions (W x D x H) | 44 1/4 in x 25 1/4 in x 66 to 67 in |
| Water Inlet Size | 3/4 in |
| Minimum Water Inlet Temperature | 120°F (140°F recommended) |
| Control Location | Top mounted |
| Construction | All stainless steel |
| Wash Arms | Upper and lower stainless steel wash arms with reinforced end caps; pull-pin removal |
| Soil Removal | Poly Pro scrap accumulator; pump purging system |
| Chemical System | Built-in chemical pumps with priming switches; delime switch |
| Start/Stop | Automatic start/stop |
| Plug Type | Hardwire |
