Wells RCP-200SL Slim Line 2-Pan Drop-In Refrigerated Cold Food Well Unit

$10,380.00 ~~Sale price$18,872.00you save $8,492.00~~

Key Features:

Slim-Line Drop-In Design: Narrow footprint (46-1/4" W x 17-3/8" D) with a 44-3/4" x 15-7/8" counter cut-out makes it ideal for tight buffet lines, makeline counters, and space-constrained serving areas.
Self-Contained Refrigeration: 1/4 HP air-cooled condensing unit mounts directly beneath the pan well, eliminating the need for remote refrigeration lines and simplifying installation to a simple drop-in, plug-in operation.
Two Full-Size Pan Capacity: Accommodates (2) 12" x 20" hotel pans up to 6" deep; recessed ledge provides positive pan support for colder, fresher product presentation. Fractional pans supported via adapter bars.
Individual Thermostatic Controls: Each well features its own thermostat for precise, independent temperature management, plus a lighted master ON/OFF switch for easy operation during service.
Heavy-Duty Stainless Steel Construction: 18-gauge stainless steel one-piece top flange and coved-corner interior liner for maximum strength, durability, and ease of cleaning; corrosion-resistant heavy-gauge steel exterior body.
CFC-Free Foamed-In-Place Insulation: Full insulation throughout the unit maintains safe cold holding temperatures while minimizing energy consumption; uses R-134A (or 404A) CFC-free refrigerant with wrapped coil construction on both sides and bottom.
1" IPS Center Drain: Center-positioned drain with nipple simplifies end-of-day cleanout and routine maintenance.
Plug-and-Play Electrical: Ships with an 8 ft. cord and NEMA 5-15P plug; operates on standard 115V/60Hz/1-ph at 4.9A -- no special electrical work required.
Serviceable Refrigeration System: Features a sight glass, easy-access service valves, filter/dryer, and receiver; condensing unit can be fully removed for service without disrupting the countertop installation.
NSF & cULus Listed: Meets NSF Standard 2 and cULus safety certifications; Made in the USA. Includes a 1-year parts and labor warranty with a 5-year compressor warranty option available.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

Wells RCP-200SL Slim Line 2-Pan Drop-In Refrigerated Cold Food Well Unit

$10,380.00~~$18,872.00~~

Detailed Description

The Wells RCP-200SL is a slim-line, self-contained drop-in refrigerated cold food well engineered for tight buffet lines and narrow makeline countertops where maximizing every inch matters. It accommodates two standard 12 x 20 full-size hotel pans and features individual thermostatic controls along with a lighted on/off master switch for precise, zone-by-zone temperature management. Construction centers on an 18-gauge stainless steel inner liner, top, and flange paired with CFC-free foamed-in-place insulation to maintain safe holding temperatures while minimizing energy draw. The 1/4 HP air-cooled condensing unit mounts beneath the well, and the unit ships with an 8-ft cord and NEMA 5-15P plug for true plug-and-play installation on any standard 115V circuit. NSF and cULus certified and proudly made in the USA, the RCP-200SL delivers professional-grade cold holding in a compact footprint.

Product Details

Individual Thermostatic Controls

Dedicated thermostat per well plus a lighted on/off master switch for precise cold-holding management.

Easy-Clean 1" Center Drain

1" IPS center drain with nipple speeds end-of-day clean-up and keeps the well hygienic.

NSF & cULus Certified

Meets NSF Standard 2 and cULus safety requirements for worry-free commercial operation.

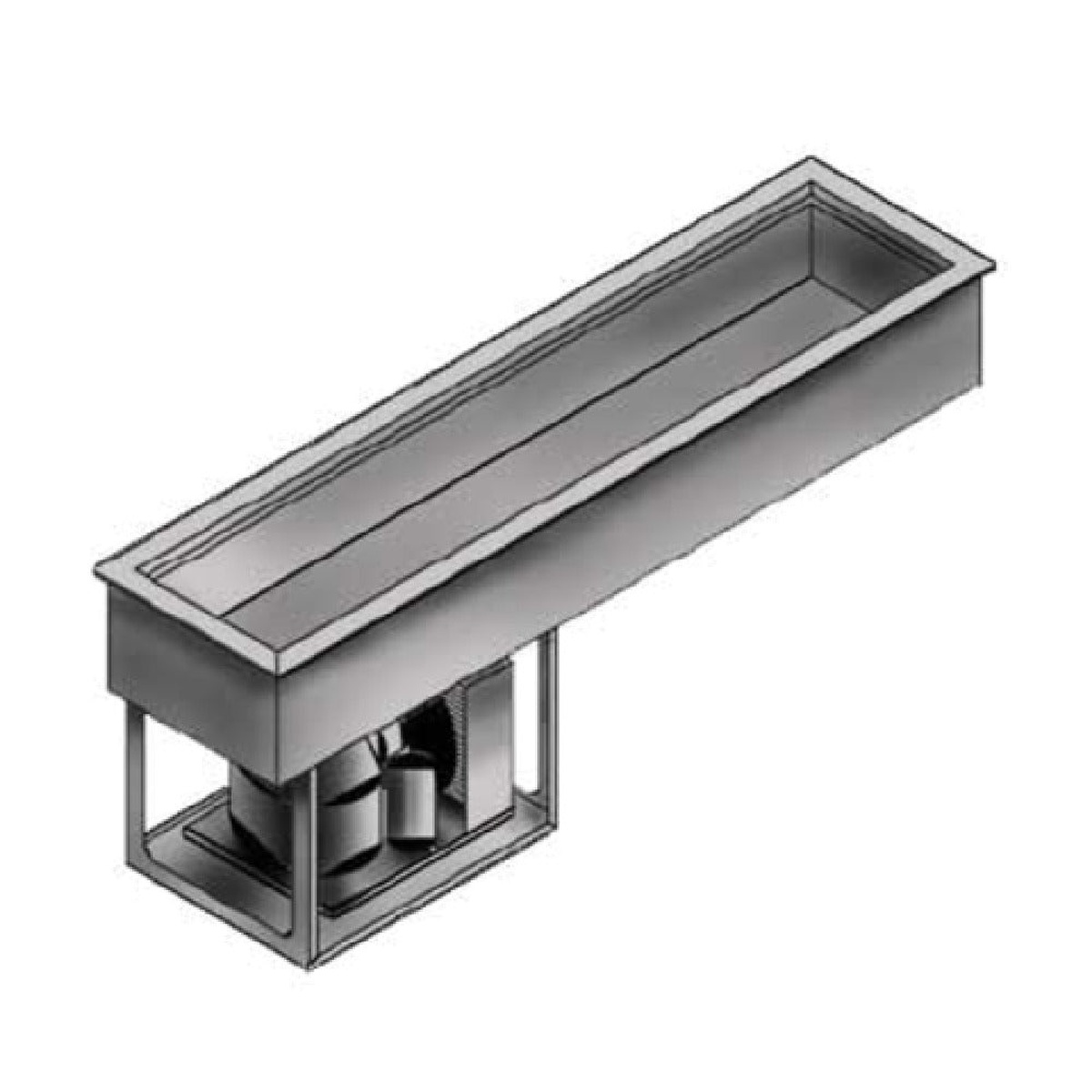

Wells RCP-200SL slim-line drop-in refrigerated cold food well with self-contained condensing unit below the pan

Slim-Line Drop-In Design Built for Tight Counters

The Wells RCP-200SL drops into narrow buffet and makeline counters with ease. Its self-contained condensing unit is mounted directly beneath the pan, keeping the footprint compact without sacrificing capacity.

Fits counter cut-out of 44-3/4" W x 15-7/8" D
Holds (2) standard 12" x 20" full-size hotel pans (6" max depth)
Fractional pans supported with included adapter bars
Stainless steel inner liner, top, and flange for durability and easy cleaning
Ships with 8 ft cord and NEMA 5-15P plug for true plug-and-play installation

Key Specifications

Pan Capacity(2) 12" x 20" full-size pans

Compressor1/4 HP, air-cooled, R-134A

Electrical115V / 60 Hz / 1-ph, 4.9 A

Overall Dimensions46-1/4" W x 17-3/8" D x 24-1/2" H

Interior Well Size40-3/4" W x 11-7/8" D x 11-7/8" H

CertificationsNSF, cULus | Made in the USA

Performance at a Glance

2-Pan

Full-Size Capacity

1/4 HP

Self-Contained Compressor

115V

Standard Plug-and-Play

Ideal For

Buffet serving lines Salad bars Sandwich and deli makelines Dessert stations Catering operations Narrow counter installations

From the Cresco Resco Team

Why You'll Love It

The Wells RCP-200SL delivers reliable, self-contained refrigeration in a slim-line drop-in format that fits where standard cold wells cannot.

Ideal for restaurants, caterers, and food service operations needing cold-holding in tight countertop spaces.
CFC-free foamed-in-place insulation keeps food cold and fresh all shift long while minimizing energy use.
Quick-service sight glass, easy service valves, and a removable condensing unit simplify routine maintenance.

Specifications

Product Type	Cold Food Well Unit, Drop-In, Refrigerated (Slim Line)
Pan Capacity	(2) 12" × 20" full-size hotel pans (6" max depth)
Pan Size	Full-size (12" × 20")
Layout	Narrow / Slim Line
Overall Dimensions (W × D × H)	46-1/4" × 17-3/8" × 24-1/2" (1175 × 441 × 622 mm)
Counter Cut-Out (W × D)	44-3/4" × 15-7/8" (1137 × 403 mm)
Interior Well Size (W × D × H)	40-3/4" × 11-7/8" × 11-7/8"
Construction - Inner Liner	18-gauge stainless steel
Construction - Top & Flange	Stainless steel
Construction - Exterior Body	Heavy-gauge galvanized/corrosion-resistant steel
Insulation	CFC-free, foamed-in-place insulation throughout
Refrigeration System	Self-contained, air-cooled condensing unit mounted below the pan
Refrigerant	R-134A (CFC-free)
Compressor	1/4 HP
Electrical	115 V / 60 Hz / 1-phase
Amperage	4.9 A
Plug Type	NEMA 5-15P
Cord Length	8 ft.
Controls	Lighted ON/OFF master switch with individual thermostatic controls
Drain	1" IPS center drain with nipple
Installed Weight	176 lb (80 kg)
Shipping Weight	182 lb
Certifications	NSF, cULus
Warranty	1-year parts & labor (5-year compressor option available)
Model Number	RCP-200SL
Brand	Wells (Middleby)
