Jackson WWS

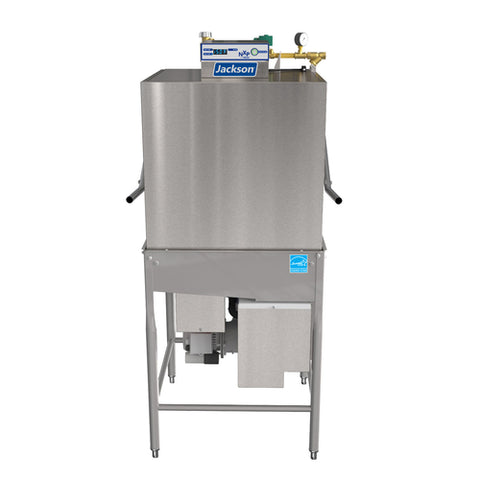

Jackson WWS NXP-HTD High-Temperature Door-Type Dishwasher

$8,760.00 ~~Sale price$16,862.00you save $8,102.00~~

Key Features:

High temperature, door-type commercial dishwasher with electric tank heat and built-in booster heater featuring Sani-Sure final rinse system to help ensure proper sanitization every cycle
High output, low water use performance: cleans up to 63 (58)* racks per hour using only 0.89 gallons of water per rack; single 57-second automatic cycle
Operator-friendly design with automatic tank fill, door-actuated start, top-mounted controls, digital temperature display, and integrated delime cycle
17.25 inch vertical chamber clearance; uses standard 20 inch x 20 inch racks; interchangeable upper and lower wash/rinse arms with 1 hp stainless steel wash pump motor
Energy-saving vent fan control shuts the vent fan off when the machine is idle; includes large scrap basket, single point utility connections, and adjustable bullet feet
ETL listed (cETLus) and ETL sanitation listed; Energy Star certified

Detailed Description

The Jackson WWS NXP-HTD is a high-temperature, door-type dishwasher built for fast, consistent warewashing in demanding commercial dishrooms. Its built-in booster heater with Sani-Sure final rinse helps ensure proper sanitizing temperatures every cycle, while a single 57-second automatic cycle keeps throughput high. Features like automatic tank fill, door-actuated start, digital temperature display, and a delime cycle support straightforward daily operation. With a 17.25 inch chamber clearance and standard 20 inch x 20 inch rack compatibility, it is designed to fit common workflows and racks.

Product Details

Fast Single-Cycle Washing

Single 57-second automatic cycle supports up to 63 racks per hour.

High-Temp Sanitizing Rinse

Built-in booster heater with Sani-Sure final rinse system and digital temperature display.

Efficient, Electric Heat

Electric tank heat with vent fan control that shuts off when the machine is idle.

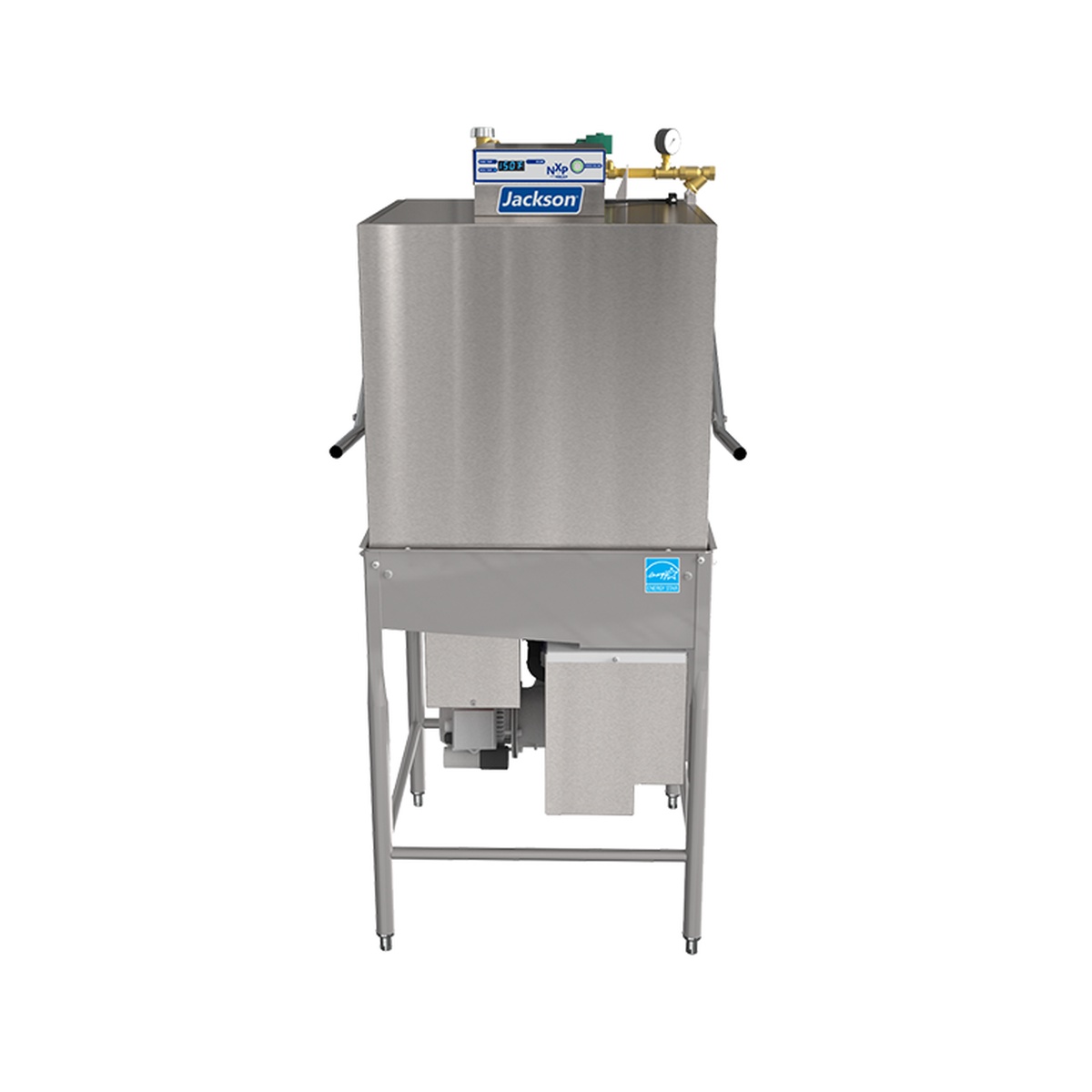

Jackson NXP-HTD door-type dishwasher front view

Built for Busy Dishrooms

The Jackson NXP-HTD is a high temperature, door-type dishwasher designed for consistent cleaning and sanitation with simple, operator-friendly controls.

Automatic tank fill and door-actuated start
17.25 inch vertical chamber clearance
Uses standard 20 inch x 20 inch racks

Why Choose the NXP-HTD

57 sec

Automatic Cycle

0.89 gal

Water per Rack

17.25 in

Chamber Clearance

Operational Details

Top mounted controls for ease of operation
Delime cycle for removing hard water buildup
Interchangeable upper and lower wash and rinse arms
Large scrap basket and adjustable bullet feet
Hi-limit thermostat and low water protection
1-year parts and labor warranty

From the Cresco Resco Team

Why You'll Love It

A fast, high temperature door-type dishwasher with built-in sanitizing support and practical features that keep service moving.

Great for restaurants, cafés, and any operation running standard 20 inch x 20 inch racks.
Sani-Sure final rinse system plus digital temperature display for confidence every cycle.
Efficient water use and vent fan idle shut-off help control operating costs.

Specifications

Manufacturer	Jackson WWS
Model	NXP-HTD
Dishwasher Type	Door-Type, High-Temperature Sanitizing
Rack Capacity	Up to 63 racks/hour (58 racks/hour noted in some listings)
Water Consumption	0.89 gallons per rack
Cycle Time	Single 57-second automatic cycle
Vertical Chamber Clearance	17.25 in
Rack Size Accepted	20 in x 20 in
Heat	Electric tank heat; built-in booster heater with Sani-Sure final rinse system
Overall Dimensions (W x D x H)	30.625 in x 29 in x 64 in
Weight	263 lb
Controls	Top-mounted; digital temperature display
Start	Door-actuated
Utilities	Single-point connections for all utilities
Convertible Configuration	Field convertible straight-through to corner (kit required); field phase conversion capable (kit required)
Certifications	cETLus Listed; ETL Sanitation Listed; ENERGY STAR
Warranty	1-year parts and labor
Electrical (examples from resellers)	208-230V, 3-phase (Model: NXP-HTD-A-7); also listed as 208V, 1-phase (MPN: NXP-HTD 208/1)
