Frymaster

Frymaster LHD165 100 lb. Decathlon Natural Gas Floor Fryer with Thermatron Controller - 105,000 BTU

$13,619.00 ~~Sale price$28,977.00you save $15,358.00~~

Key Features:

Thermo-Tube Frypot Design: Features an additional 2" of tube height and 36% more heat transfer surface area compared to standard designs, reducing heat per square inch on oil by 22% for more efficient heat transfer and extended oil life.
100 lb. Oil Capacity with Large Frying Area: Single full frypot with a generous 18" x 18" x 5-3/4" frying area accommodates high-volume production, including large foods like bone-in chicken and freshly breaded products.
105,000 BTU/hr. Gas Input: High-output burner system delivers fast heat-up and quick recovery times, keeping pace with the demands of high-volume commercial kitchens.
Thermatron Controller with Pinpoint Temperature Accuracy: Easy-to-use temperature dial with melt cycle and boil-out options responds instantly to changing load conditions, ensuring consistent oil temperature and repeatable fry results every time.
ENERGY STAR Qualified: Low flue temperatures (under 550°F/287°C) and controlled flow diffusers minimize idle costs and ambient heat output, qualifying this unit for energy-saving rebates.
Built-In Manual Filtration with 8 GPM Filter Pump: Integrated filtration system with a high-capacity pump simplifies oil maintenance and extends usable oil life without requiring a separate filtration unit.
Wide Cold Zone: Keeps sediment and food particles separated from usable oil, protecting oil quality and reducing waste between filter cycles.
Dual Baskets with Basket Hangers and Support Racks: Included basket hangers with flue deflectors allow oil to drain safely while basket support racks prevent baskets from falling into the cold zone during frying.
All-Stainless Steel Construction: Frypot, door, and cabinet sides are constructed of heavy-duty stainless steel for corrosion resistance, durability, and easy cleaning in demanding commercial environments.
Drain Safety Switch and 3" Drain Valve: Safety switch prevents accidental oil release, while the large 3" drain with 1-1/2" drain valve and drain flush feature streamline oil disposal and cleaning.
Casters Included: Heavy-duty casters provide easy mobility for cleaning, repositioning, and kitchen reconfiguration without additional hardware.
11" Plate Shelf with Marine Edge: Integrated stainless steel plate shelf provides convenient workspace adjacent to the fryer, with a marine edge to prevent items from sliding off.

Detailed Description

The Frymaster LHD165 is a heavy-duty, single-vat natural gas floor fryer purpose-built for high-volume commercial kitchens that demand consistent output and reliable oil management. Its proprietary Thermo-Tube frypot design increases heat transfer surface area by 36% and reduces heat per square inch on the oil by 22%, delivering faster heat-up and recovery while significantly extending oil life. The Thermatron controller provides intuitive temperature management with a built-in melt cycle and boil-out function, ensuring pinpoint oil temperature accuracy for a consistent product every fry cycle. At 105,000 BTU/hr with a low flue temperature below 550°F, this ENERGY STAR qualified fryer minimizes ambient heat and idle energy costs without sacrificing cooking power. With a spacious 100 lb. oil capacity, dual baskets, built-in manual filtration with an 8 GPM pump, and an all-stainless steel construction, the LHD165 is an ideal choice for operators frying bone-in chicken, breaded products, and other high-demand menu items.

Product Details

105,000 BTU High-Output Power

Thermo-Tube design drives energy directly into the oil for rapid heat-up and fast recovery during peak service.

Thermatron Temperature Control

Responds instantly to changing load conditions with pinpoint accuracy, melt cycle, and boil-out options.

Built-In Manual Filtration

8-GPM filter pump paired with a wide cold zone separates sediment from usable oil, extending oil life.

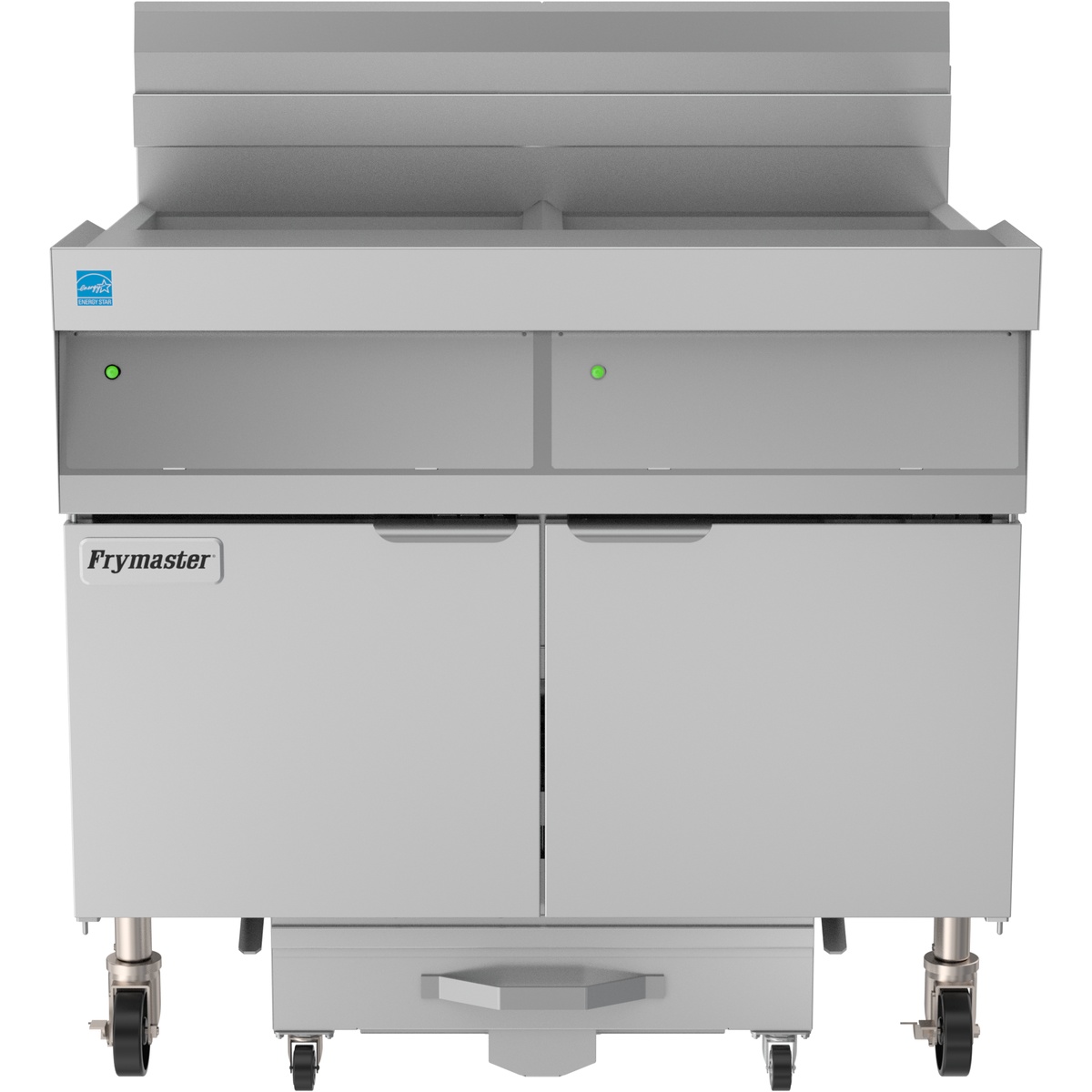

Frymaster LHD165 large-vat gas floor fryer, stainless steel, front view with doors closed and casters

Large-Vat Gas Fryer Built for Demanding Kitchens

The Frymaster LHD165 is a 100 lb. oil capacity floor fryer engineered to handle high-volume frying of bone-in chicken, freshly breaded products, and more. Its stainless steel frypot, doors, and cabinet sides deliver lasting durability in the toughest commercial environments.

100 lb. oil capacity with an 18" x 18" x 5-3/4" frying area
Stainless steel frypot, doors, and cabinet sides for long-lasting resilience
Mounted on casters for easy repositioning and cleaning access
11" plate shelf with marine edge for convenient staging
ENERGY STAR qualified, eligible for energy-saving rebates

Key Specifications

Oil Capacity100 lb.

BTU Output105,000 BTU/hr

Flue TemperatureLess than 550°F / 287°C

Filter Pump8 GPM

Overall Dimensions20"W x 36-1/4"D x 43"H

Frying Area18" x 18" x 5-3/4"

Ideal For

High-volume restaurants Bone-in chicken programs Freshly breaded products Fast-casual kitchens Large-batch frying operations

From the Cresco Resco Team

Why You'll Love It

The Frymaster LHD165 combines a massive 100 lb. oil capacity with ENERGY STAR efficiency, making it the go-to large-vat fryer for kitchens that cannot afford downtime.

Perfect for high-volume operations frying large format items like bone-in chicken and breaded proteins.
The Thermo-Tube design reduces heat per square inch on oil by 22%, extending oil life and lowering operating costs.
Built-in manual filtration with an 8-GPM pump, drain safety switch, and wide cold zone simplify daily maintenance and protect oil quality.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Brand	Frymaster
Model	LHD165
Energy Type	Gas
BTU Input	105,000 BTU/hr (30.2 kW)
Controller	Thermatron
Number of Fry Pots	1
Frypot Style	Tube Type
Oil Capacity	100 lb (50 L)
Number of Baskets	2
Frying Area	18" x 18" x 5-3/4" (46 x 46 x 15 cm)
Overall Width	20"
Overall Depth	36-1/4"
Overall Height	43"
Net Weight	260 lb
Gas Supply Connection	3/4" NPT
Incoming Gas Pressure	6" W.C. - 11" W.C.
Filter Pump Flow Rate	8 GPM
Drain Size	3" drain with 1-1/2" drain valve
Plate Shelf	11" with marine edge
Flue Temperature	<550°F (287°C)
Construction	Stainless steel frypot, door, and cabinet sides
Mobility	Casters included
Filtration	Built-in manual filtration
Ignition	Electronic
ENERGY STAR Qualified	Yes
Warranty	1-year Parts & Labor; 5-year Frypot Parts
