Vulcan FEG

Vulcan LG500 70 lb. LG Series Gas Freestanding Commercial Floor Fryer

$1,664.00 ~~Sale price$4,271.00you save $2,607.00~~

Key Features:

70 lb Oil Capacity Single Tank: Generously sized 19-1/2" x 14" fry tank holds 65-70 lbs of oil, delivering approximately 90 lbs of french fries per hour for high-volume production.
150,000 BTU Tube-Style Burner: High-output gas burner design ensures rapid heat recovery, keeping pace with continuous demand in busy commercial kitchens.
Snap-Action Millivolt Controls: User-friendly millivolt thermostat adjusts temperature from 200 to 400 degrees Fahrenheit without requiring an external electrical connection, ideal for kitchens seeking simplified installation.
Hi-Limit Safety Shutoff: Automatically cuts the gas connection and standing pilot if oil temperature exceeds safe limits, protecting both operators and oil quality.
Large V-Shaped Cold Zone: Deep cold zone at the bottom of the fry tank captures food debris and crumbs, preventing them from burning and significantly extending oil life while maintaining food quality.
Stainless Steel Fry Tank with Galvanized Exterior: Front, tank, and door are constructed of durable stainless steel; back and sides feature a non-corrosive galvanized finish for long-lasting performance under heavy commercial use.
1-1/4" Full-Port Ball-Style Drain Valve: Oversized drain valve allows fast, complete oil removal for efficient cleaning and oil changeouts, minimizing downtime.
Twin Fry Baskets with Comfort Handles: Includes a set of twin baskets (9-1/2" w x 13-1/4" d x 6" h each) with plastic-coated handles for operator comfort; removable basket hanger simplifies thorough tank cleaning.
Four Adjustable Nickel-Plated Legs: Heavy-duty legs provide stable, level support on uneven floors, with earth magnet ensuring secure door closure during operation.
Bankable Design with Optional Accessories: Compatible with connecting kits to bank multiple fryers side by side; optional accessories include 6" casters (2 locking/2 non-locking), stainless steel tank cover doubling as a work surface, splash guard, and Frymate dump station.
CSA and NSF Certified: Meets applicable U.S. and Canadian safety and sanitation standards, supporting health inspection compliance in commercial foodservice environments.

Detailed Description

The Vulcan LG500 is a high-output, 65-70 lb. capacity gas floor fryer built for demanding commercial kitchens. Delivering 150,000 BTU through a tube-style burner design, it produces a large V-shaped cold zone at the bottom of the tank to trap crumbs and debris, extending oil life and protecting food quality. The fry tank and front are constructed of durable stainless steel, while the back and sides feature a corrosion-resistant galvanized finish. Snap-action millivolt controls provide precise temperature adjustment from 200 to 400 degrees Fahrenheit, and a hi-limit safety device automatically shuts off the gas and pilot if oil temperatures exceed safe limits. A 1-1/4 full-port ball-style drain valve simplifies oil removal, and the removable basket hanger makes cleanup fast and thorough.

Product Details

150,000 BTU Output

Tube-style burners deliver intense, consistent heat for rapid recovery between loads.

Precise Temperature Control

Snap-action millivolt controls hold oil temperature accurately between 200 and 400 degrees Fahrenheit.

Easy Oil Management

A 1-1/4" full port drain valve and V-shaped cold zone extend oil life and simplify maintenance.

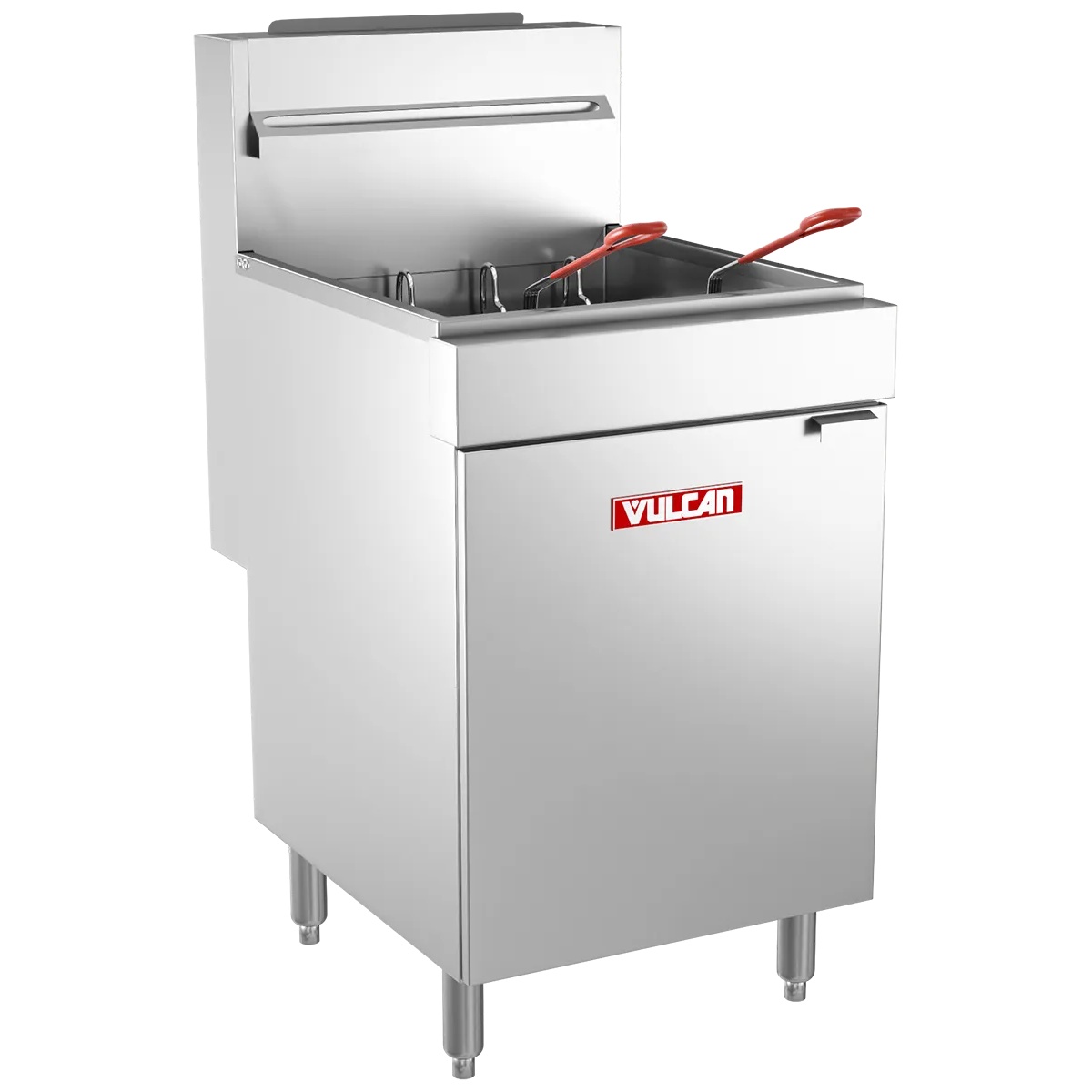

Vulcan LG500 stainless steel freestanding gas floor fryer with twin red-handled baskets and nickel-plated legs

Built for High-Volume Commercial Kitchens

The Vulcan LG500 is a freestanding gas floor fryer engineered for busy foodservice operations. Its stainless steel tank, front, and door deliver lasting durability, while galvanized back and sides resist corrosion in demanding environments.

70 lb oil capacity handles heavy continuous frying loads
19-1/2" x 14" frying area accommodates twin or single large basket configurations
Stainless steel construction on tank, front, and door for long-lasting reliability
Four adjustable nickel-plated legs provide stable, level installation
NSF and CSA certified for commercial use

Key Specifications

Oil Capacity65 to 70 lb.

Power Output150,000 BTU/hr, Natural Gas

Temperature Range200 to 400 degrees Fahrenheit

ControlsSnap-action millivolt controls

Dimensions (W x D x H)21" x 29-3/4" x 34-5/8"

Fry Tanks1 tank, frying area 19-1/2" x 14"

Performance at a Glance

70 lb

Oil Capacity

150K

BTU Output

~90 lb

Fries per Hour

Ideal For

High-volume restaurants Fast-casual kitchens Cafes and bistros Bars and pubs Catering operations

From the Cresco Resco Team

Why You'll Love It

The Vulcan LG500 delivers the power, capacity, and operator-friendly features that busy commercial kitchens depend on day in and day out.

Perfect for restaurants, cafes, and high-volume operations that need reliable, consistent frying output.
The V-shaped cold zone and hi-limit safety shutoff protect both oil quality and staff simultaneously.
Includes twin fry baskets with comfort-grip plastic handles, ready to produce the moment installation is complete.

Specifications

Model	LG500
Type	Gas Freestanding Floor Fryer
Power Source	Natural Gas
BTU/hr	150,000
Oil Capacity	65-70 lbs.
Number of Tanks	1
Tank / Frying Area Size	19 1/2" W x 14" D
Fryer Style	Tube-Style
Overall Dimensions (W x D x H)	21" x 29 3/4" x 46 5/8"
Temperature Range	200°F - 400°F
Controls	Snap Action Millivolt
Cold Zone	V-Shaped
Drain Valve	1 1/4" Full Port Ball Valve
Gas Connection	1/2" and 3/4"
Construction	Stainless Steel (front, tank, door); Galvanized Steel (back and sides)
Legs	4 Nickel-Plated Adjustable Legs
Included Baskets	Twin Fry Baskets with Plastic-Coated Handles
Hi-Limit Protection	Yes - Auto Shuts Off Gas and Pilot if Oil Overheats
Certifications	NSF, CSA (US and Canada)
Approximate Fry Output	~90 lbs. of french fries/hour
