MANITOWOC

Manitowoc JCF0900-261 Vertical Discharge Remote Ice Machine Condenser, 208-230V

$1,368.00 ~~Sale price$3,145.00you save $1,777.00~~

Key Features:

Vertical discharge, air-cooled remote condenser designed specifically for Manitowoc Indigo NXT iF0600N and iF0900N ice machines
Dissipates heat away from the ice machine, improving efficiency, conserving energy, and maximizing ice-making output while keeping staff and patron areas more comfortable
Wide operating temperature range of -20°F to 120°F, suitable for both indoor and outdoor installation
Flexible installation with up to 20" of bottom clearance supported, accommodating a variety of site configurations
Requires a 208/230V hardwired electrical connection, which can be supplied directly from the ice machine (recommended) or from a separate power source
Compact footprint of 24.5" W x 28" D x 38" H, with a raised leg frame visible in product imagery for easy placement and airflow
Holds AHRI, cULus, and CE certifications for quality, safety, and compliance assurance
Backed by a 3-year parts and labor warranty from Manitowoc Ice
Remote tubing line kit sold separately, allowing flexible placement of the condenser away from the ice machine

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

Manitowoc JCF0900-261 Vertical Discharge Remote Ice Machine Condenser, 208-230V

$1,368.00~~$3,145.00~~

Detailed Description

The Manitowoc JCF0900-261 is a vertical discharge, air-cooled remote condenser engineered specifically for use with Manitowoc Indigo NXT iF0600N and iF0900N remote ice machines. By relocating heat dissipation away from the ice machine, this unit lowers ambient temperatures at the point of ice production, boosting efficiency and maximizing ice-making output. The condenser operates across a wide temperature range of -20°F to 120°F, making it suitable for both indoor and outdoor installations, and can be mounted with up to 20 inches of bottom clearance. Requiring a 208/230V hardwired electrical connection, it can draw power directly from the ice machine or from a dedicated circuit. Remote tubing line kits are sold separately for a complete installation.

Product Details

Vertical Discharge Airflow

Top-discharge design efficiently expels heat away from the ice machine, indoors or outdoors.

Wide Operating Range

Functions reliably from -20°F to 120°F, handling even the most demanding ambient conditions.

Triple-Certified Quality

AHRI, cULus, and CE certified for verified performance, safety, and compliance.

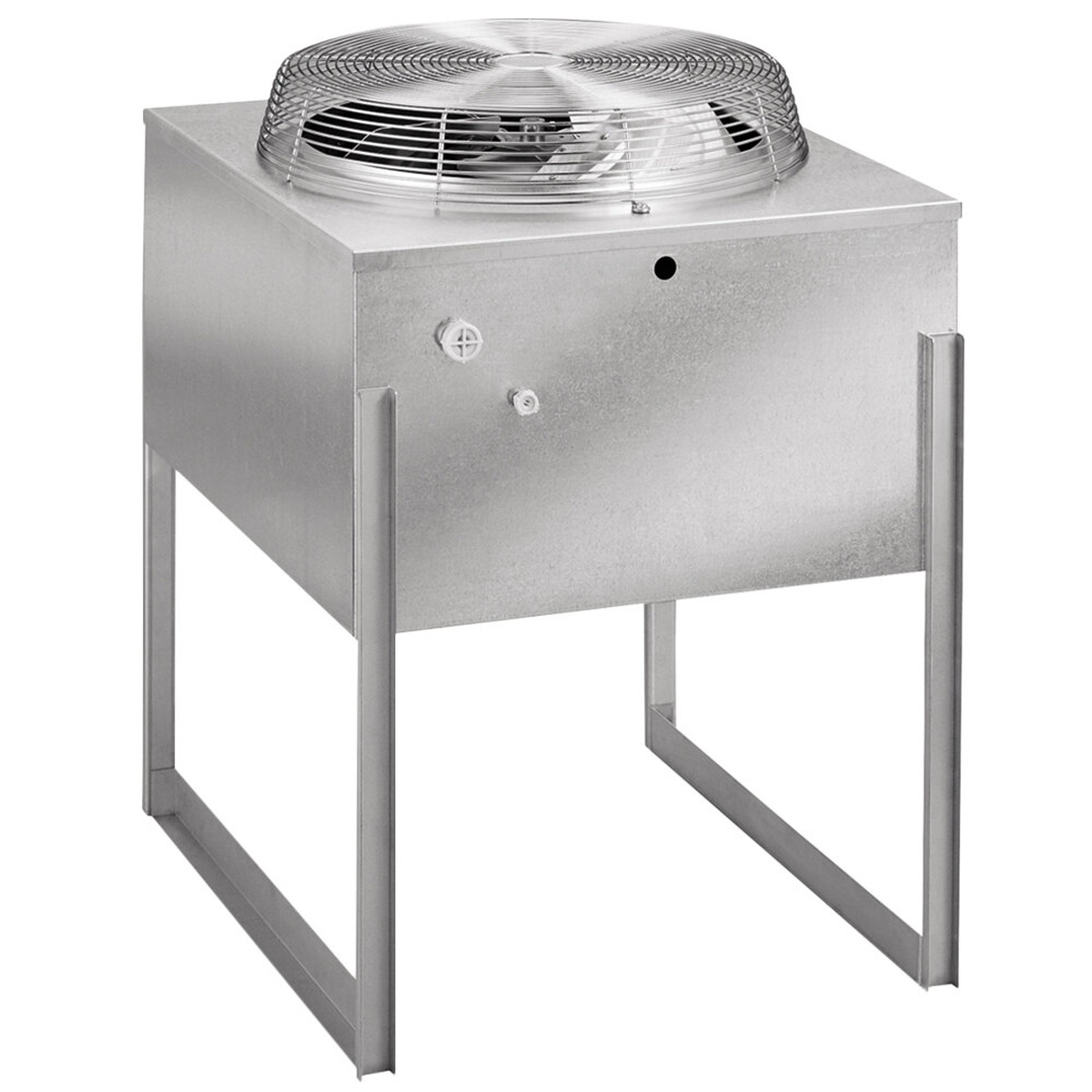

Manitowoc JCF0900-261 vertical discharge remote ice machine condenser with top fan and metal stand

Remote Heat Dissipation Built for Manitowoc Indigo NXT

The Manitowoc JCF0900-261 is a vertical discharge, air-cooled remote condenser engineered to work seamlessly with Manitowoc Indigo NXT iF0600N and iF0900N ice machines. By relocating heat rejection away from the ice-making unit, it improves efficiency and creates a more comfortable workspace.

Compatible with Manitowoc Indigo NXT iF0600N and iF0900N remote ice machines
Installs indoors or outdoors with up to 20" of bottom clearance
Connects via remote tubing line kit (sold separately)
Requires 208/230V hardwire electrical connection

Key Specifications

Operating Range-20°F to 120°F

Voltage208/230V, Single Phase, Hardwire

Dimensions (W x D x H)24.5" x 28" x 38"

Warranty3 Year Parts & Labor

CertificationsAHRI, cULus, CE

Condenser TypeAir-Cooled, Vertical Discharge

Ideal For

Restaurants and Food Service Operations Hotels and Hospitality Venues Healthcare Facilities High-Volume Commercial Kitchens Indoor and Outdoor Installations

From the Cresco Resco Team

Why You'll Love It

The Manitowoc JCF0900-261 is the purpose-built remote condenser solution for Indigo NXT ice machine operators who need reliable heat dissipation without compromising workspace comfort or ice-making output.

Perfect for commercial kitchens where reducing ambient heat near the ice machine boosts both efficiency and staff comfort.
Vertical discharge design and a -20°F to 120°F operating range make it versatile for indoor and outdoor installations year-round.
Backed by a 3-year parts and labor warranty and AHRI, cULus, and CE certifications for long-term peace of mind.

Specifications

Model Number	JCF0900-261
Type	Remote Condenser Unit
Condenser Type	Air Cooled
Discharge Direction	Vertical
Compatible Ice Machines	Manitowoc Indigo NXT IF0600N, IF0900N
Voltage	208/230V
Phase	Single Phase
Connection Type	Hardwire
Operating Temperature Range	-20°F to 120°F
Max Bottom Clearance	20"
Width	24.5"
Depth	28"
Height	38"
Weight	78 lb
Certifications	AHRI, cULus, CE
Warranty	3 Year Parts & Labor
