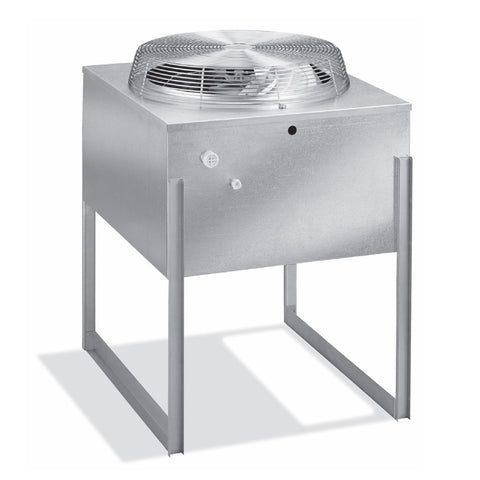

Manitowoc JCF0500-161 Air Cooled Vertical Discharge Remote Condensing Unit for IF-0500N Series

$1,260.00 ~~Sale price$2,897.00you save $1,637.00~~

Key Features:

Vertical discharge air-cooled remote condensing unit compatible with Manitowoc Indigo NXT Series ice cube machines, including the iF0500N, iF0600N, and iF0900N models
Supports flexible installation indoors or outdoors with a wide operating temperature range of -20 to 120 degrees F, making it suitable for diverse commercial environments
All components arrive pre-charged with R404A refrigerant and feature quick-connect fittings for fast, simplified installation
Generous line set flexibility with a maximum line length of 100 ft., a vertical rise of up to 35 ft. above the ice machine, and a vertical drop of up to 15 ft. below
Relocates heat dissipation away from the ice machine, lowering ambient temperature at the machine to improve efficiency and maximize ice production capacity
Can be installed with up to 20" of bottom clearance, providing adaptable placement options in tight mechanical spaces
Operates on a 115V/60Hz/1-phase electrical connection at 1.82A, with the option to power from the ice machine or a separate electrical source
AHRI, cULus, and CE certified, confirming compliance with rigorous commercial performance and safety standards

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

Manitowoc JCF0500-161 Air Cooled Vertical Discharge Remote Condensing Unit for IF-0500N Series

$1,260.00~~$2,897.00~~

Detailed Description

The Manitowoc JCF0500-161 is an air-cooled, vertical discharge remote condensing unit purpose-built for Indigo NXT Series ice cube machines, including the iF0500N, iF0600N, and iF0900N models. By relocating heat rejection away from the ice machine, it lowers ambient temperatures near the unit, improving ice-making efficiency and providing a more comfortable environment for staff and guests. The unit is engineered for flexible installation, operating reliably in temperatures ranging from -20 to 120 degrees Fahrenheit, and can be placed indoors or outdoors with up to 20 inches of bottom clearance. All components arrive pre-charged with R404A refrigerant and feature quick-connect fittings, significantly reducing installation time. With a maximum line length of 100 feet and support for up to 35 feet of vertical rise, this condenser integrates smoothly into a wide range of facility layouts.

Product Details

Vertical Discharge Airflow

Top-discharge fan design optimizes heat dissipation for consistent, reliable performance indoors or outdoors.

Ready-to-Install Design

All components pre-charged with R404A refrigerant and equipped with quick-connect fittings for straightforward setup.

Durable Commercial Build

AHRI, cULus, and CE certified construction handles demanding environments with an operating range of -20 to 120 degrees F.

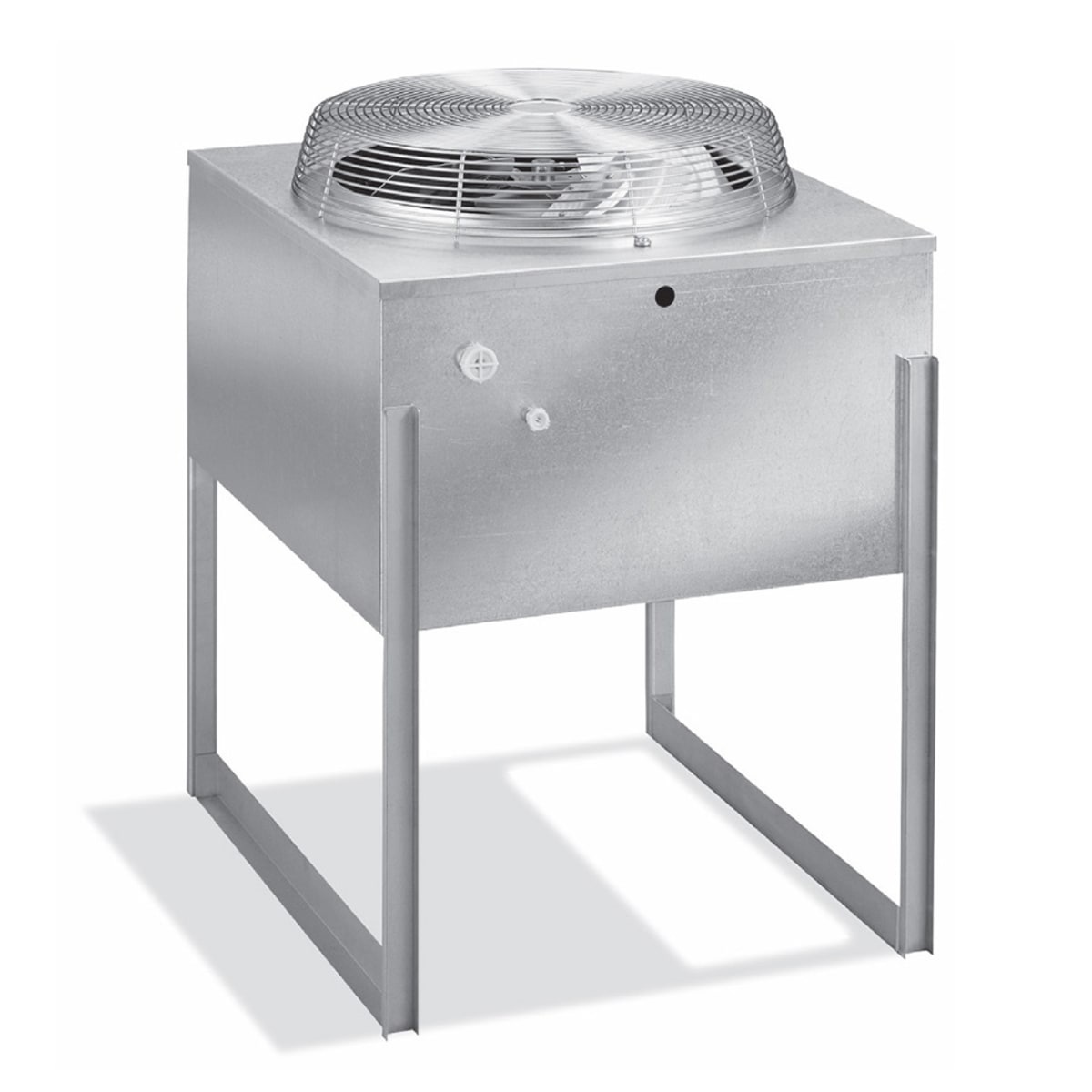

Manitowoc JCF0500-161 vertical discharge air-cooled remote condensing unit on leg stand with top fan guard

Remote Cooling Built for Indigo NXT Series Ice Machines

The Manitowoc JCF0500-161 is an air-cooled remote condensing unit engineered specifically for Indigo NXT Series ice cube machines. By relocating heat rejection away from the ice machine, it reduces ambient temperatures in your kitchen, improving ice-making efficiency and staff comfort.

Compatible with iF0500N, iF0600N, and iF0900N models
Supports indoor or outdoor installation
Maximum refrigerant line length of 100 ft. for flexible placement
Requires a 115V / 60Hz / 1-phase electrical connection

Key Specifications

RefrigerantR404A, pre-charged

Dimensions (W x D x H)24.5" x 28" x 38"

Electrical115V / 60Hz / 1-phase, 1.82A

Operating Temp Range-20 to 120 degrees F

Flexible Installation Parameters

100 ft.

Max Line Length

35 ft.

Max Vertical Rise Above Ice Machine

15 ft.

Max Vertical Drop Below Ice Machine

Ideal For

High-volume restaurants Commercial kitchens with limited ventilation Rooftop or outdoor condenser setups Healthcare and food service facilities Manitowoc Indigo NXT iF0500N / iF0600N / iF0900N owners

From the Cresco Resco Team

Why You'll Love It

The Manitowoc JCF0500-161 delivers purpose-built remote condensing performance that keeps heat away from your ice machine and your staff.

Perfect for operators running Indigo NXT Series machines who need improved efficiency and reduced ambient heat in the kitchen.
Pre-charged refrigerant and quick-connect fittings make installation fast and straightforward with minimal downtime.
AHRI, cULus, and CE certified for confidence in both indoor and outdoor commercial deployments.

Specifications

Type	Air-Cooled Remote Condensing Unit
Discharge Direction	Vertical
Compatible Ice Machines	Manitowoc Indigo NXT Series: iF0500N, iF0600N, iF0900N
Installation Location	Indoor or Outdoor
Operating Temperature Range	-20°F to 120°F
Refrigerant	R404A
Voltage	115V
Frequency	60 Hz
Phase	1
Amperage	1.82 A
Width	24.5"
Depth	28"
Height	38"
Weight	78 lbs
Maximum Line Length	100 ft
Maximum Vertical Rise	35 ft above ice machine
Maximum Vertical Drop	15 ft below ice machine
Pre-Charged with Refrigerant	Yes
Quick-Connect Fittings	Yes
Certifications	AHRI, cULus, CE
