STAR MFG.

Star Manufacturing HPDE1H High-Performance Heated Peristaltic Single Condiment Dispenser, 120V/1PH

$2,352.00 ~~Sale price$4,276.00you save $1,924.00~~

Key Features:

Patented 165 RPM Peristaltic Pump: Engineered to evacuate at least 95% of product directly from the pouch, drastically reducing waste and maximizing yield on every 6 lb. pouch of cheese or condiment.
Efficient Pouch Management: Dispenses from one active 6 lb. (2.72 kg) pouch while simultaneously preheating a second reserve pouch, minimizing downtime and keeping service moving during peak volume.
Patented Forced Air Heating System: Delivers precise, uniform temperature distribution throughout the chamber for consistent product quality from the first ounce to the last.
Adjustable Digital Temperature Control: Factory preset at 145 degrees F with fully adjustable digital controls, giving operators the flexibility to dial in the exact serving temperature for any pouched condiment or cheese product.
Optional Portion Control System: Pressure-sensitive switch delivers approximately 0.75 oz (22 ml) per second with up to 2.5 oz (74 ml) per cycle, supporting cost control and consistent portioning in high-throughput concession environments.
Low-Profile Compact Design: At just 27.1 inches (688 mm) tall, the unit fits comfortably on counters even in tight concession stands or busy kitchen lines without sacrificing capacity.
Heavy-Duty Construction: High-impact plastic panels resist the rigors of heavy commercial use, while stainless steel supports and base provide long-lasting structural stability.
820W Motor with Standard Electrical: Runs on 120V/60Hz/1 ph with a 6-ft. cord and NEMA 5-15P plug for straightforward installation; 6.8 A draw fits standard commercial circuits.
Ideal for Concession and Foodservice Applications: Purpose-built for nacho cheese, ketchup, mustard, and other popular pouched condiments, making it a versatile workhorse for stadiums, theaters, and quick-service operations.

Detailed Description

The Star Manufacturing HPDE1H is a high-performance heated peristaltic single dispenser engineered to serve nacho cheese, sauces, and other pouched condiments with precision and minimal waste. Its patented 165 RPM peristaltic pump evacuates at least 95% of product directly from the pouch, cutting down on costly waste in high-volume concession environments. A patented forced air heating system delivers uniform, consistent temperature throughout the chamber, backed by adjustable digital temperature control factory preset at 145°F. Built with high-impact plastic panels and stainless steel supports, this dispenser is designed to withstand the rigors of busy concession and foodservice operations. Its low-profile 27.1-inch height makes it easy to place even in tight kitchen or counter spaces.

Product Details

Precise Temperature Control

Adjustable digital thermostat factory preset at 145°F for consistent, flexible operation.

High-Performance Motor

820W, 165 RPM peristaltic pump delivers powerful, reliable dispensing every use.

Maximum Product Evacuation

Patented pump design evacuates at least 95% of product directly from the pouch.

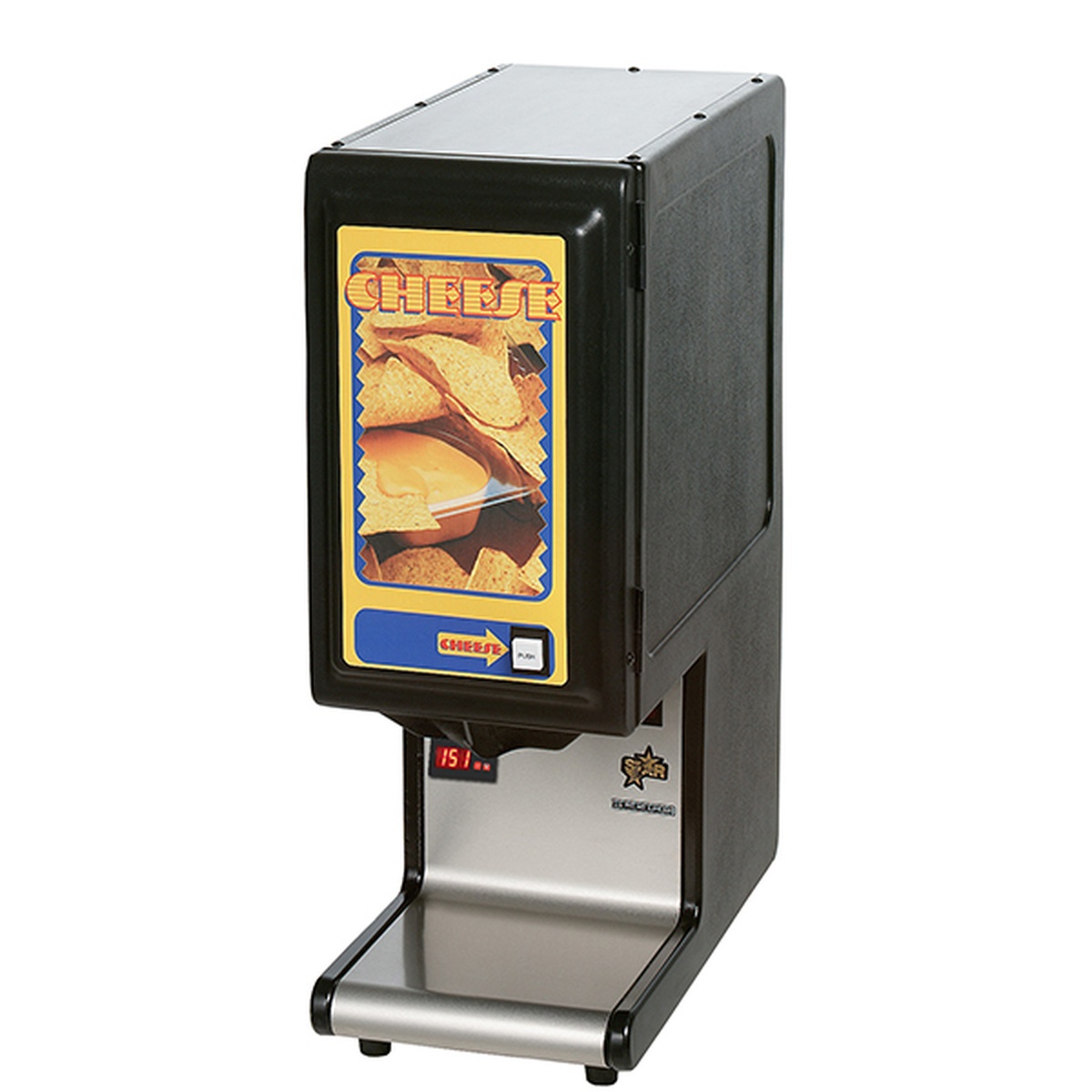

Star HPDE1H single heated peristaltic condenser dispenser with digital temperature display and stainless steel base

Professional Condiment Dispensing for High-Volume Kitchens

The Star HPDE1H is engineered for efficient, mess-free dispensing of nacho cheese, condiments, and other pouched toppings. Its patented forced air heating system circulates heat uniformly throughout the chamber, keeping product at the ideal serving temperature from the first ounce to the last.

Dispenses from one 6-lb. pouch with two 6-lb. pouches held in reserve for preheating
Low-profile 27.1-inch design fits even tight counter and concession setups
High-impact plastic panels and stainless steel supports built to withstand heavy daily use

Key Specifications

Power820W / 6.8A / 120V / 60Hz / 1 ph

Preset Temperature145°F (adjustable digital control)

Pouch Capacity1 active + 2 reserve x 6 lb. pouches

Dimensions9 2/5" W x 21" D x 27 1/10" H

Warranty1-Year Limited Parts & Labor

Motor Speed165 RPM peristaltic pump

Why Choose the HPDE1H

95%

Minimum Product Evacuation

6 lb

Active Pouch Capacity

27.1"

Low-Profile Height

Ideal For

Concession Stands Sports Arenas & Stadiums Movie Theaters Quick-Service Restaurants Nacho Cheese & Hot Condiments

From the Cresco Resco Team

Why You'll Love It

The Star HPDE1H delivers restaurant-grade condiment dispensing in a compact, durable package built for non-stop concession environments.

Perfect for high-traffic venues that need consistent, waste-free dispensing of nacho cheese, ketchup, and other pouched toppings.
The patented peristaltic pump and forced air heating system work together to minimize product waste and maintain precise serving temperatures.
Pair with compatible 6-lb. pouches and a 120V outlet for immediate plug-and-play operation right out of the box.

Specifications

Model	HPDE1H
Voltage	120V
Phase	1 PH
Frequency	60 Hz
Wattage	820W
Amperage	6.8 A
Motor Speed	165 RPM
Cord Length	6 ft.
Plug Type	NEMA 5-15P
Active Pouch Capacity	1 x 6 lb. (2.72 kg) pouch
Reserve Pouch Capacity	1 x 6 lb. pouch (for preheating)
Product Evacuation Rate	At least 95%
Factory Preset Temperature	145°F
Temperature Control	Adjustable Digital
Heating System	Patented Forced Air
Dispenser Type	Peristaltic, Single
Portion Control	Optional (approx. 0.75 oz/sec; up to 2.5 oz per cycle)
Construction	Stainless Steel supports; High-impact plastic panels
Overall Dimensions (W x D x H)	9 2/5 in. W x 21 in. D x 27 1/10 in. H
Height	27.1 in. (688 mm)
Clearance Required	9 1/2 in. on right side (door opening)
Weight	45 lbs.
Warranty	1-Year Limited Parts & Labor
