T&S Brass

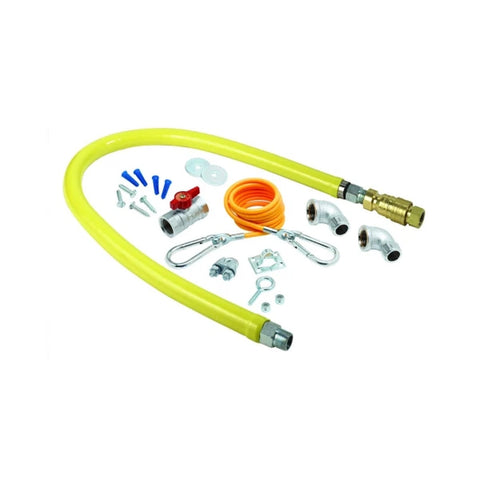

T&S Brass HG-4D-60K 60" Coated Gas Appliance Connector Hose with Quick Disconnect and Installation Kit

$250.96 ~~Sale price$473.50you save $222.54~~

Key Features:

60" coated gas appliance connector hose constructed from extruded coated stainless steel braids for durability and long service life
Safe-T-Link FreeSpin 360° fittings with fully rotatable hex nut provide optimum torsional relief, improving safety and extending connector life
Includes quick disconnect with 3/4" NPT female socket that automatically acts as a shut-off valve when the plug and socket are separated, enhancing job-site safety
3/4" NPT male freespin inlet and outlet connections simplify installation and reduce stress on fittings during appliance movement
160,000 BTU/hr minimum flow rate ensures efficient, full gas flow for high-demand commercial cooking equipment
Rated for maximum pressure of 0.5 psi (0.03 bar) and maximum temperature of 350°F (176.67°C), suitable for commercial foodservice environments
Adjustable restraining cable (3' to 5') included to limit appliance movement and protect the hose connection
Complete installation kit includes ball valve, street elbow, and all required hardware for a ready-to-install solution
Certified to ANSI Z21.69/CSA 6.16 and NSF 2, meeting rigorous commercial foodservice safety and sanitation standards
Backed by a 5-year limited warranty from T&S Brass

T&S Brass HG-4D-60K 60" Coated Gas Appliance Connector Hose with Quick Disconnect and Installation Kit

$250.96~~$473.50~~

Detailed Description

The T&S Brass HG-4D-60K is a 60 Safe-T-Link coated gas appliance connector hose engineered for demanding commercial foodservice environments. Constructed from extruded coated stainless steel braids, it features FreeSpin 360-degree rotatable fittings that provide optimum torsional relief, extending connector life and reducing wear during daily appliance movement. The 3/4 NPT male connections pair with a female quick-disconnect socket that doubles as a shut-off valve when uncoupled, adding a critical layer of safety in busy kitchen operations. With a minimum flow rate of 160,000 BTU/hr, a 350-degree F maximum temperature rating, and certifications to ANSI Z21.69/CSA 6.16 and NSF 2, this hose meets the rigorous demands of code-compliant commercial installations. The included installation kit bundles a ball valve, street elbow, and an adjustable restraining cable ranging from 3 to 5 feet, making it a complete, ready-to-install solution backed by a 5-year limited warranty.

Product Details

High-Capacity Gas Flow

160,000 BTU/hr minimum flow rate for demanding commercial applications.

Durable Coated Construction

Extruded coated stainless steel braids with a 360° rotatable freespin fitting for long service life.

Certified Safe

Certified to ANSI Z21.69/CSA 6.16 and NSF 2, backed by a 5-Year Limited Warranty.

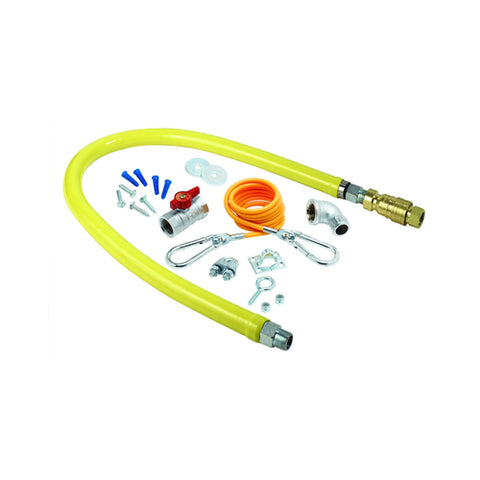

T&S Brass HG-4D-60K 60-inch yellow coated gas hose kit with quick disconnect, ball valve, street elbow, restraining cable, and installation hardware

Complete Installation Kit, Ready to Connect

The T&S Brass HG-4D-60K is a 60" Safe-T-Link movable gas hose kit designed for commercial foodservice appliances. Everything needed for a safe, code-compliant installation is included right out of the box.

3/4" NPT male freespin inlet and outlet connections
3/4" NPT female quick-disconnect socket acts as a shut-off valve when disconnected
Ball valve, street elbow, and adjustable restraining cable (3' to 5') included
Max temperature: 350°F | Max pressure: 0.5 psi

Key Specifications

MaterialExtruded coated stainless steel braids

Flow Rate160,000 BTU/hr minimum

CertificationsANSI Z21.69/CSA 6.16, NSF 2

Connection Thread3/4" NPT

Max Temperature350°F (176.67°C)

Hose Length60 Inches

Performance at a Glance

60"

Hose Length

160K

BTU/hr Min. Flow

5 yr

Limited Warranty

From the Cresco Resco Team

Why You'll Love It

The T&S Brass HG-4D-60K delivers a complete, certified gas connection solution for commercial kitchens that demand reliability and safety.

Ideal for restaurants, cafeterias, and foodservice operations connecting movable gas appliances.
The Safe-T-Link FreeSpin 360° fitting design provides optimum torsional relief, extending connector life and improving safety.
Includes all installation hardware, ball valve, street elbow, and adjustable restraining cable for a code-compliant, hassle-free setup.

Specifications

Model	HG-4D-60K
Brand	T&S Brass
Type	Gas Appliance Connector Hose with Quick Disconnect
Length	60 in
Diameter	3/4 in
Thread Size	3/4 in NPT
Connection Design	1 Male Freespin Inlet / 1 Male Freespin Outlet with Quick Disconnect
Material	Extruded Coated Stainless Steel Braids
Max Pressure	0.5 psi (0.03 bar)
Max Temperature	350°F (176.67°C)
Minimum Flow Rate	160,000 BTU/hr
Restraining Cable Range	Adjustable 3 ft to 5 ft
Includes	FreeSpin 360° fittings, quick disconnect, ball valve, street elbow, adjustable restraining cable, installation kit hardware
Certifications	ANSI Z21.69/CSA 6.16, NSF 2
Warranty	5 Year Limited
UPC	671262229784
