T&S Brass

T&S Brass HG-4D-48K Safe-T-Link 48" Coated Gas Connector Kit with Quick-Disconnect

$232.67 ~~Sale price$439.00you save $206.33~~

Key Features:

48" Coated Gas Appliance Connector: Full 48-inch length with extruded plastic-coated stainless steel braided construction for flexible, durable connections between gas supply lines and commercial cooking equipment.
3/4" NPT Freespin Male Connections: Both inlet and outlet feature 3/4" NPT male freespin fittings with a 360-degree rotatable hex nut that rotates completely and freely, providing optimum torsional relief to improve safety and extend connector service life.
Integrated Quick-Disconnect: Includes a 3/4" NPT female quick-disconnect socket that automatically acts as a shut-off valve when the plug and socket are separated, enabling safe and fast appliance removal without additional tools.
High-Capacity Gas Flow: Rated for a minimum of 180,000 BTU/hr, supporting the full demands of heavy-duty commercial cooking appliances while delivering efficient, unrestricted gas flow.
Fusible Link Thermal Shut-Off: Rated for up to 350°F (176.67°C) with a built-in Fusible Link Thermal Shut-off, providing an automatic safety response in the event of excessive heat or fire.
Low-Pressure Design: Engineered for low-pressure systems with a maximum operating pressure of 0.5 psi (0.03 bar), conforming to standard commercial kitchen gas supply requirements.
Complete Installation Kit: Ships as a full installation kit including a street elbow, restraining cable with hardware, and all necessary mounting accessories for a code-compliant, ready-to-install setup.
Dual Certification: Certified to ANSI Z21.69/CSA 6.16 and NSF 2, meeting rigorous safety and sanitation standards required for professional foodservice environments.
Safe-T-Link Series: Part of T&S Brass's trusted Safe-T-Link line, purpose-built for commercial foodservice gas appliance connections with a focus on reliability, longevity, and operator safety.

Denver

Usually ready in 2-4 days

Las Vegas

Usually ready in 2-4 days

T&S Brass HG-4D-48K Safe-T-Link 48" Coated Gas Connector Kit with Quick-Disconnect

$232.67~~$439.00~~

Detailed Description

The T&S Brass HG-4D-48K Safe-T-Link is a 48-inch coated gas appliance connector designed for demanding commercial kitchen environments. Constructed from extruded coated stainless steel braids, it delivers reliable, full gas flow with a minimum capacity of 180,000 BTU/hr and a maximum operating temperature of 350°F via a built-in fusible link thermal shut-off. The 3/4 NPT male freespin connections feature 360-degree rotatable hex nuts for optimum torsional relief, extending connector life and improving overall safety. This complete installation kit includes a quick-disconnect socket that functions as a shut-off valve when disconnected, a street elbow, restraining device, and all necessary hardware for a code-compliant installation. Certified to ANSI Z21.69/CSA 6.16 and NSF 2, it meets the rigorous standards required for professional foodservice operations.

Product Details

Complete Installation Kit

Includes quick-disconnect valve, street elbows, ball valve, restraining cable, and all mounting hardware.

Certified Safety Standards

Certified to ANSI Z21.69/CSA 6.16 and NSF 2 with a fusible link thermal shut-off for added protection.

High-Capacity Gas Flow

Delivers a minimum of 180,000 BTU/hr for efficient, full gas flow to commercial appliances.

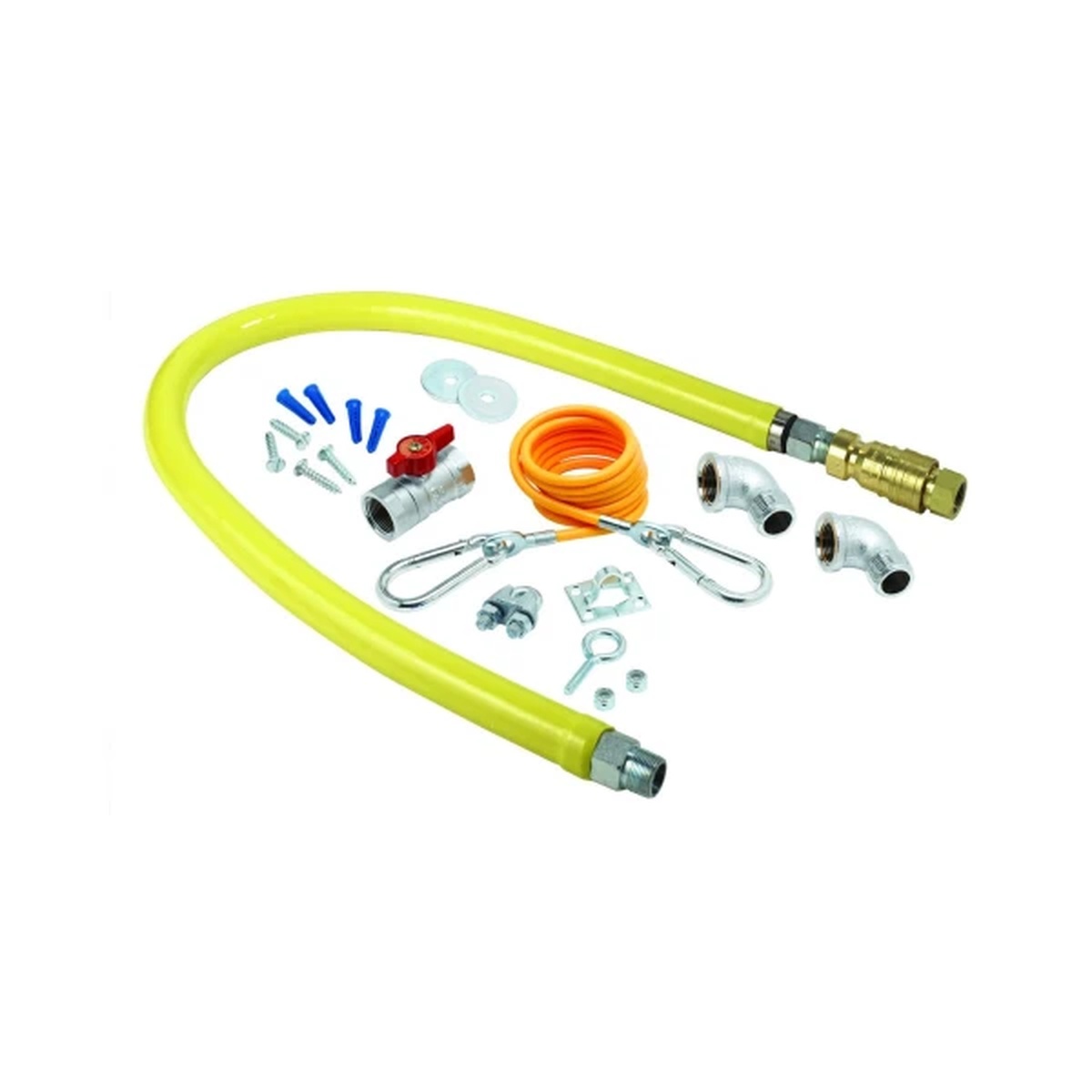

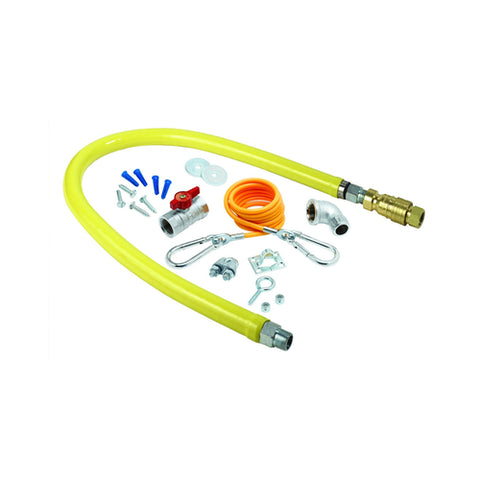

T&S Brass HG-4D-48K Safe-T-Link 48-inch coated gas connector hose kit with quick-disconnect, ball valve, street elbows, restraining cable, and mounting hardware

48" Safe-T-Link Gas Connector Hose Kit

The T&S Brass HG-4D-48K is a 48-inch coated gas appliance connector built for demanding commercial kitchen environments. Constructed from extruded coated stainless steel braids, it delivers lasting durability and reliable gas delivery.

3/4" NPT male freespin inlet and outlet for easy installation
360-degree rotatable hex nut for optimum torsional relief
Quick-disconnect socket acts as a shut-off valve when disconnected
Rated up to 350°F maximum operating temperature

Key Specifications

Capacity180,000 BTU/hr minimum

Max Temperature350°F (176.67°C)

Max Pressure0.5 psi (0.03 bar)

Connection Size3/4" NPT male, 48"L

MaterialExtruded coated stainless steel braids

CertificationsANSI Z21.69/CSA 6.16, NSF 2

Ideal For

Commercial restaurants Gas range installations Cafeteria kitchens Food service appliance connections High-volume cooking operations

From the Cresco Resco Team

Why You'll Love It

The T&S Brass HG-4D-48K Safe-T-Link is a complete, code-compliant gas connector kit engineered for safe and efficient appliance connections in commercial kitchens.

Perfect for foodservice professionals requiring a reliable, certified gas hose solution with everything needed for a complete installation.
The 360-degree rotatable hex nut and torsional relief design extend connector life while improving overall safety.
Pair with T&S Brass gas appliances for a fully integrated, NSF 2 and ANSI-certified gas supply system.

Specifications

Model Number	HG-4D-48K
Brand	T&S Brass
Series	Safe-T-Link
Connector Type	Gas
Hose Length	48 in
Connection Size	3/4 in NPT
Inside Diameter	3/4 in
Connector Hose Design	1 Male - 1 Quick-Disconnect (QD)
Inlet Connection	3/4 in NPT Male Freespin
Outlet Connection	3/4 in NPT Female Quick-Disconnect
Material	Extruded Coated Stainless Steel Braids
Maximum Pressure	0.5 psi (0.03 bar)
Maximum Temperature	350°F (176.67°C)
Minimum Gas Capacity	180,000 BTU/hr
Thermal Shut-Off	Fusible Link
Restraining Device	Included
Kit Includes	Installation Kit (Street Elbow, Quick-Disconnect Valve, Restraining Cable, Mounting Hardware)
Certifications	ANSI Z21.69/CSA 6.16, NSF 2
Weight	6.4 lbs
UPC	0671262229777
