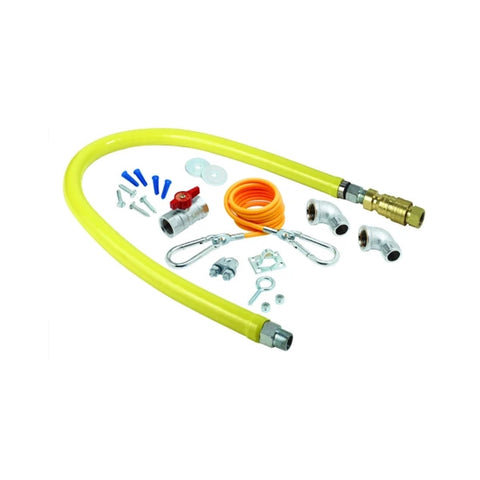

T&S Brass HG-4D-36K Safe-T-Link 36" Quick Disconnect Gas Appliance Connector with 3/4" NPT and Installation Kit

$217.83 ~~Sale price$411.00you save $193.17~~

Key Features:

36" Safe-T-Link Gas Appliance Connector: Coated flexible hose designed for commercial gas appliance connections, rated for a minimum 220,000 BTU/hr capacity to support high-demand foodservice equipment.
Quick-Disconnect Fitting: One end features a 3/4" NPT male quick-disconnect (QD) that functions as an automatic shut-off valve when the plug and socket are separated from the appliance, enhancing safety during service and equipment moves.
FreeSpin Wall-End Connector: The opposite end incorporates a 3/4" NPT male FreeSpin fitting that allows full 360-degree rotation, reducing torsional stress on the hose and extending connector service life.
Stainless Steel Braid with Extruded Coating: Durable stainless steel braid construction paired with an extruded protective coating delivers flexibility, resistance to damage, and long-term reliability in demanding commercial kitchen environments.
Welded Fitting Connections: Welded end fittings provide a secure, leak-resistant seal, ensuring consistent gas-tight performance throughout the hose's service life.
K Model Installation Kit Included: Comes with a complete installation kit featuring a 90-degree street elbow, a CSA-certified foodservice gas ball valve, a 5' SureLink restraining cable, and all necessary hardware for a complete, code-compliant installation.
Dual Certification: Certified to ANSI Z21.69/CSA 6.16 and NSF 2, meeting stringent safety and sanitation standards required for commercial foodservice applications.
Rated for High-Temperature, Low-Pressure Environments: Handles operating temperatures up to 350°F (176.67°C) and a maximum pressure of 0.5 psi (0.03 bar), suitable for standard commercial gas supply lines.

Detailed Description

The T&S Brass HG-4D-36K is a 36 Safe-T-Link coated gas appliance connector engineered for demanding commercial foodservice environments, certified to ANSI Z21.69/CSA 6.16 and NSF 2. One end features a 3/4 NPT quick-disconnect fitting that doubles as a built-in shut-off valve when the plug and socket are separated, while the other end uses a FreeSpin connector that rotates a full 360 degrees to relieve stress and extend service life at the wall connection. The stainless steel braid construction with extruded coating delivers lasting flexibility and protection, rated for up to 350°F and a minimum capacity of 220,000 BTU/hr. A complete K-model installation kit is included, featuring a CSA certified gas ball valve, a 90-degree street elbow, a 5-foot SureLink restraining cable, and all necessary hardware for a code-compliant, ready-to-install gas connection.

Product Details

Complete Installation Kit

Includes a CSA certified gas ball valve, 90° street elbow, 5' SureLink restraining cable, and all necessary hardware.

Safety Certified

Certified to ANSI Z21.69/CSA 6.16 and NSF 2 for reliable, code-compliant commercial gas connections.

Durable Construction

Stainless steel braid with extruded coating delivers flexibility, protection, and extended service life.

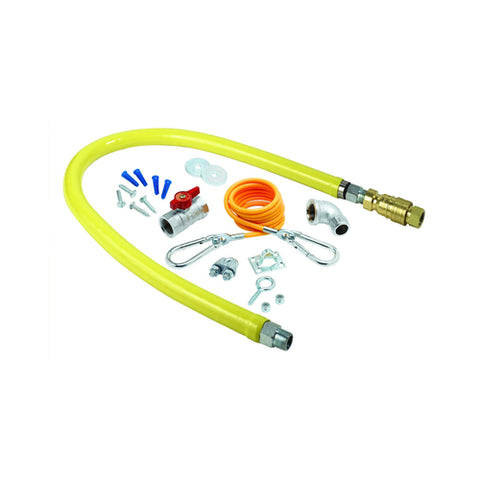

T&S Brass HG-4D-36K 36-inch yellow coated gas appliance connector hose with quick-disconnect and installation kit components

36" Safe-T-Link Quick Disconnect Gas Connector

The HG-4D-36K is a 36" coated gas appliance connector hose engineered for commercial foodservice environments. One end features a quick-disconnect fitting that doubles as a built-in shut-off valve when disconnected, while the other end uses T&S's FreeSpin connector for a full 360 degrees of rotation to reduce stress on the fitting and extend connector life.

3/4" NPT male connections on both ends
Quick-disconnect acts as a shut-off valve when plug and socket are separated
FreeSpin end allows 360° rotation at the wall connection
Rated for up to 350°F and 0.5 psi max pressure

Key Specifications

Connection Size3/4" NPT Male

BTU Capacity220,000 BTU/hr (min)

Max Temperature350°F (176.67°C)

Max Pressure0.5 psi (0.03 bar)

Hose Length36 Inches

CertificationsANSI Z21.69/CSA 6.16, NSF 2

Ideal For

Commercial restaurants Foodservice gas appliances Schools and institutional kitchens OEM replacement installations

From the Cresco Resco Team

Why You'll Love It

The T&S Brass HG-4D-36K delivers a complete, code-compliant gas connection solution in one package for demanding commercial kitchens.

Perfect for foodservice operators needing a certified, ready-to-install gas connector with all components included.
The integrated quick-disconnect acts as a built-in safety shut-off, reducing risk during appliance servicing.
The FreeSpin end and stainless steel braid construction minimize wear, making it a long-lasting replacement or new installation choice.

Specifications

Model Number	HG-4D-36K
Brand	T&S Brass
Connector Type	Gas Appliance Connector
Hose Length	36 in.
Thread Size	3/4 in. NPT
Connection Design	1 Male (FreeSpin) / 1 Quick Disconnect (QD)
Hose Construction	Stainless steel braid with extruded coating
Color	Yellow
Gas Capacity (Minimum)	220,000 BTU/hr
Maximum Pressure	0.5 psi (0.03 bar)
Maximum Temperature	350°F (176.67°C)
Certifications	ANSI Z21.69/CSA 6.16, NSF 2
Includes Installation Kit	Yes - (1) 90° Street Elbow, (1) CSA Certified Gas Ball Valve, (1) 5 ft. SureLink Restraining Cable, and all necessary hardware
Weight	7.0 lbs
UPC	671262229760
