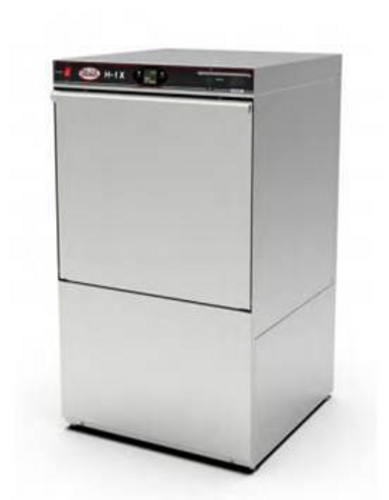

CMA Dishmachines H-1X Undercounter High Temperature Dishwasher/Glasswasher (Dump & Fill)

$5,533.00 ~~Sale price$9,221.00you save $3,688.00~~

Key Features:

High temperature undercounter dishwasher and glasswasher with unique Dump and Fill cycle that fully drains wash water every cycle and refills with fresh, high temperature water to rinse and sanitize.
Safe-T-Temp feature helps ensure the final rinse reaches sanitizing temperature.
Built-in booster heater and pumped wash and rinse for consistent water pressure and results.
Up to 24 racks per hour capacity; accommodates standard 20 in x 20 in racks with approximately 14 1/2 in interior clearance.
Durable stainless steel construction with removable spray arms for easier cleaning and maintenance.
Top-mounted LCD information display with simple, easy-to-understand controls.
Pumped drain supports flexible installation and does not require a floor drain.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

CMA Dishmachines H-1X Undercounter High Temperature Dishwasher/Glasswasher (Dump & Fill)

$5,533.00~~$9,221.00~~

Detailed Description

The CMA Dishmachines H-1X is an undercounter, high-temperature dishwasher and glasswasher designed for fast, sanitary results in tight back-of-house spaces. Its unique Dump and Fill cycle drains wash water every cycle and refills with fresh high-temperature water to rinse and sanitize. A Safe-T-Temp system helps ensure proper sanitizing rinse temperatures, while the LCD display and simple controls make operation straightforward. Stainless steel construction, removable spray arms, and a pumped drain support durability and flexible installation without a floor drain.

Product Details

High-Temp Sanitizing Rinse

Safe-T-Temp helps ensure a high temperature sanitizing rinse every cycle.

Dump and Fill Fresh Water Cycles

Unique cycle drains wash water each run and refills with fresh, high temperature water.

Fast Throughput

Designed to handle up to 24 racks per hour with short cycle times.

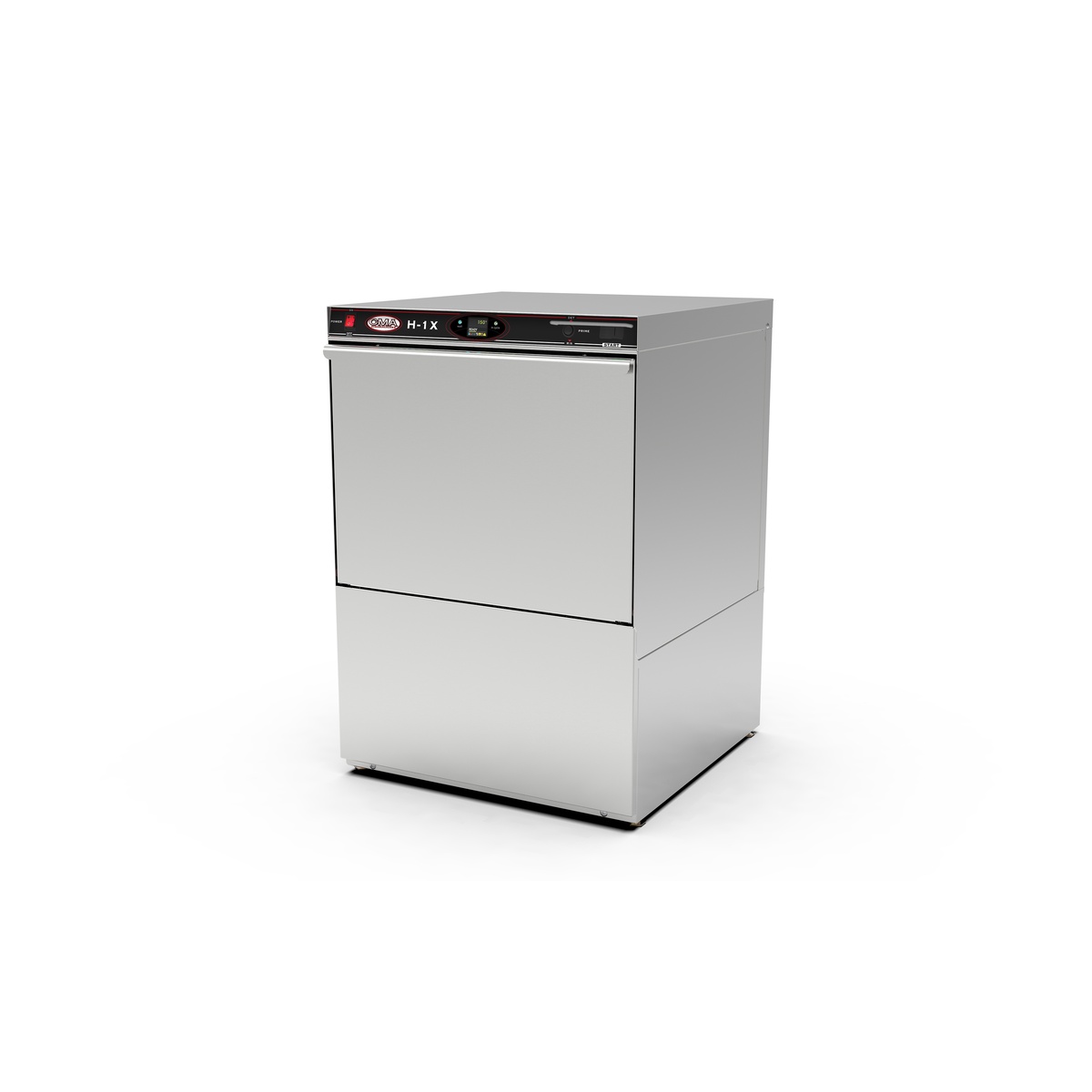

CMA Dishmachines H-1X undercounter high temperature dishwasher front view

Undercounter High-Temp Dishwasher and Glasswasher

The CMA Dishmachines H-1X is built for high temperature cleaning and sanitizing in compact undercounter spaces, with easy-to-understand controls and an LCD information display.

For dishware and glassware
Stainless steel construction for daily commercial use
Pumped drain supports flexible installation and can eliminate the need for a floor drain

Key Specifications

Capacity

Up to 24 racks per hour (20 in. x 20 in. racks)

Cycle Time

150 seconds

Wash Tank

1.4 gal capacity

Dimensions

23 7/8 in W x 25 in D x 33 1/2 to 34 1/2 in H

Max Item Height

14 1/2 in interior clearance

Water Use

1.4 gal per rack

Designed for Simple Operation and Consistent Results

Built-in automation and service-friendly components support smooth day-to-day performance.

LCD information display with straightforward controls
Removable spray arms for easier cleaning
Built-in chemical pumps and automatic fill

From the Cresco Resco Team

Why You'll Love It

A compact, high temperature undercounter washer that refreshes wash water every cycle to help keep results consistent during busy service.

Great for bars, cafes, and kitchens that need both glassware and dishware throughput.
Dump and fill cycle plus Safe-T-Temp helps support high temperature sanitizing performance.
Pairs well with standard 20 in. x 20 in. racks for easy integration.

Specifications

Manufacturer	CMA Dishmachines
Model	H-1X
Type	Undercounter high-temperature dishwasher/glasswasher
Operation	Fill and dump (dump & fill) cycle; pumped wash and pumped rinse; pumped drain (no floor drain required)
Construction	Stainless steel
Controls/Display	LCD display
Capacity	24 racks per hour (standard 20 in x 20 in racks); up to 96 covers per hour
Number of Wash Cycles	2
Wash Cycle Time	150 seconds (2 min 30 sec)
Maximum Item/Chamber Clearance	14 1/2 in
Wash Tank Capacity	1.4 gal
Water Usage	1.4 gal per rack
Wash Temperature	150 to 160 F
Rinse Temperature	180 to 195 F
Minimum Water Inlet Temperature	110 F
Water Inlet Connection	3/4 in
Electrical	208V (see review note), 1 phase, 60 Hz; 22 A; 1 hp motor
Plug Type	Hardwire
Overall Dimensions (W x D x H)	23 7/8 in x 25 in x 33 1/2 in to 34 1/2 in
Weight	165 lb
Included Accessories	(1) dishrack
