AllPoints 511475 24-Inch Pilot Tube with Head, Nut and Ferrule

$15.95

Key Features:

Complete pilot tubing assembly includes pilot head, nut, and ferrule for a ready-to-install replacement
24" length with 3/16" OD, providing the reach needed for commercial range pilot light configurations
Constructed of copper clad steel for durability and reliable gas-tight performance in high-heat kitchen environments
Slotted-track pilot head design fits most commercial ranges, maximizing cross-equipment compatibility
Direct cross-reference for multiple OEM part numbers including Marsal K-134, Mavrik MVR41212, and Commercial Parts CPD-105
Lightweight at 0.33 lbs, simplifying handling and installation during service calls

Fresno

Usually ready in 2-4 days

Las Vegas

Usually ready in 2-4 days

AllPoints 511475 24-Inch Pilot Tube with Head, Nut and Ferrule

$15.95

Detailed Description

The AllPoints 511475 is a 24-inch pilot tube assembly built for commercial range and cooking equipment maintenance. Constructed from copper-clad steel, this complete kit includes the pilot head, nut, and ferrule for a straightforward, single-part replacement. The 3/16-inch outer diameter tube features a slotted track design engineered to fit most commercial range pilot systems. It cross-references with Marsal K-134, Mavrik MVR41212, and Commercial Parts CPD-105, making it a versatile solution for multi-brand service operations.

Product Details

Copper Clad Steel Construction

3/16" OD copper clad steel tubing delivers reliable durability in demanding commercial range applications.

Complete Ready-to-Install Assembly

Comes fully assembled with pilot head, nut, and ferrule - everything needed for a straightforward replacement.

Wide Commercial Compatibility

Slotted track pilot head design fits most commercial range pilot systems, making it a versatile replacement part.

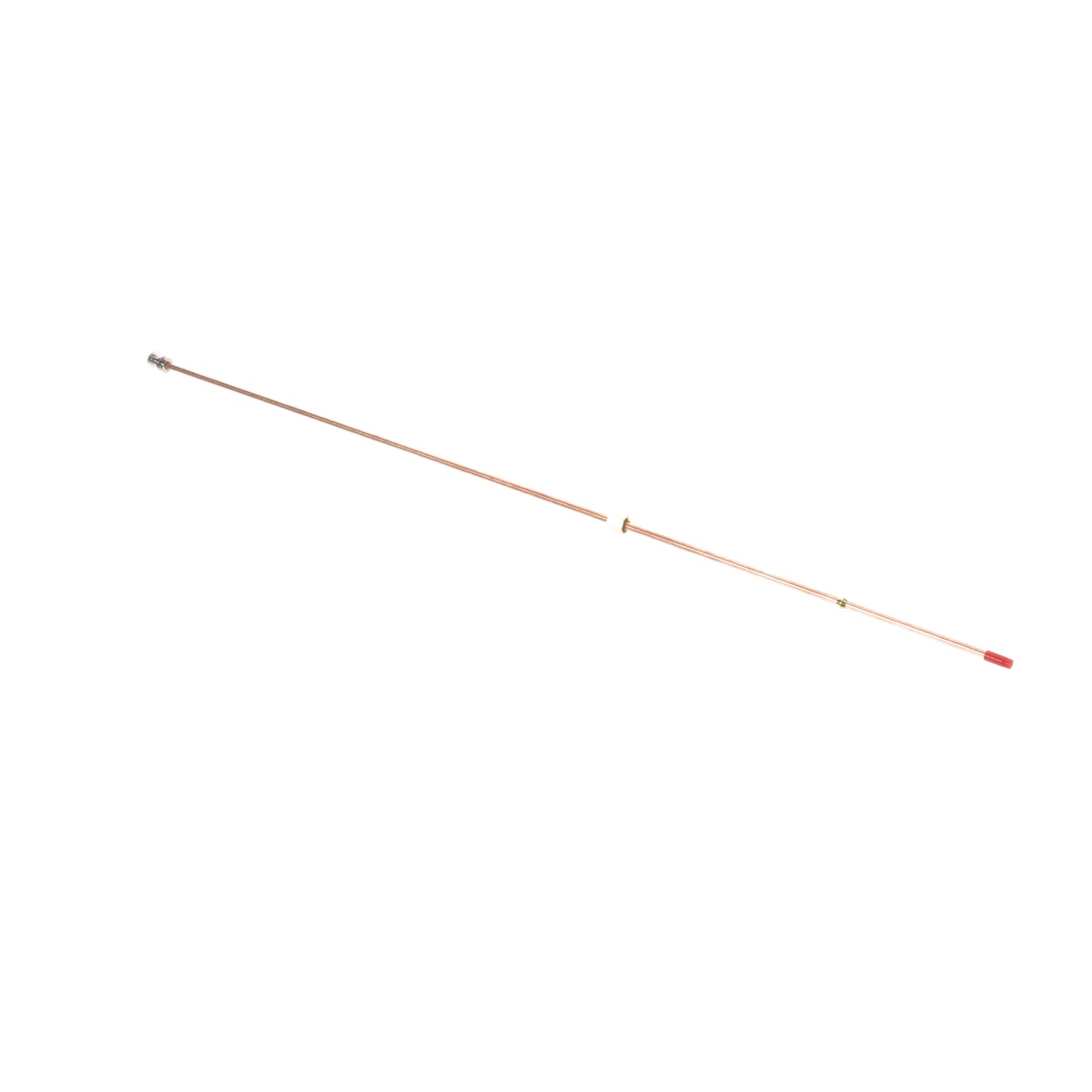

AllPoints 511475 copper clad steel pilot tube with pilot head and red-capped ferrule end, diagonal view

Precision-Fit Pilot Tubing for Commercial Ranges

The AllPoints 511475 is a 24-inch pilot tube assembly designed as a direct replacement for pilot systems on commercial ranges. Built from copper clad steel with a 3/16" outer diameter, it combines workable flexibility with the structural integrity needed for long-term service.

24 in length, 3/16 in OD copper clad steel tube
Pilot head with slotted track for broad equipment compatibility
Nut and ferrule included for secure, leak-resistant connections

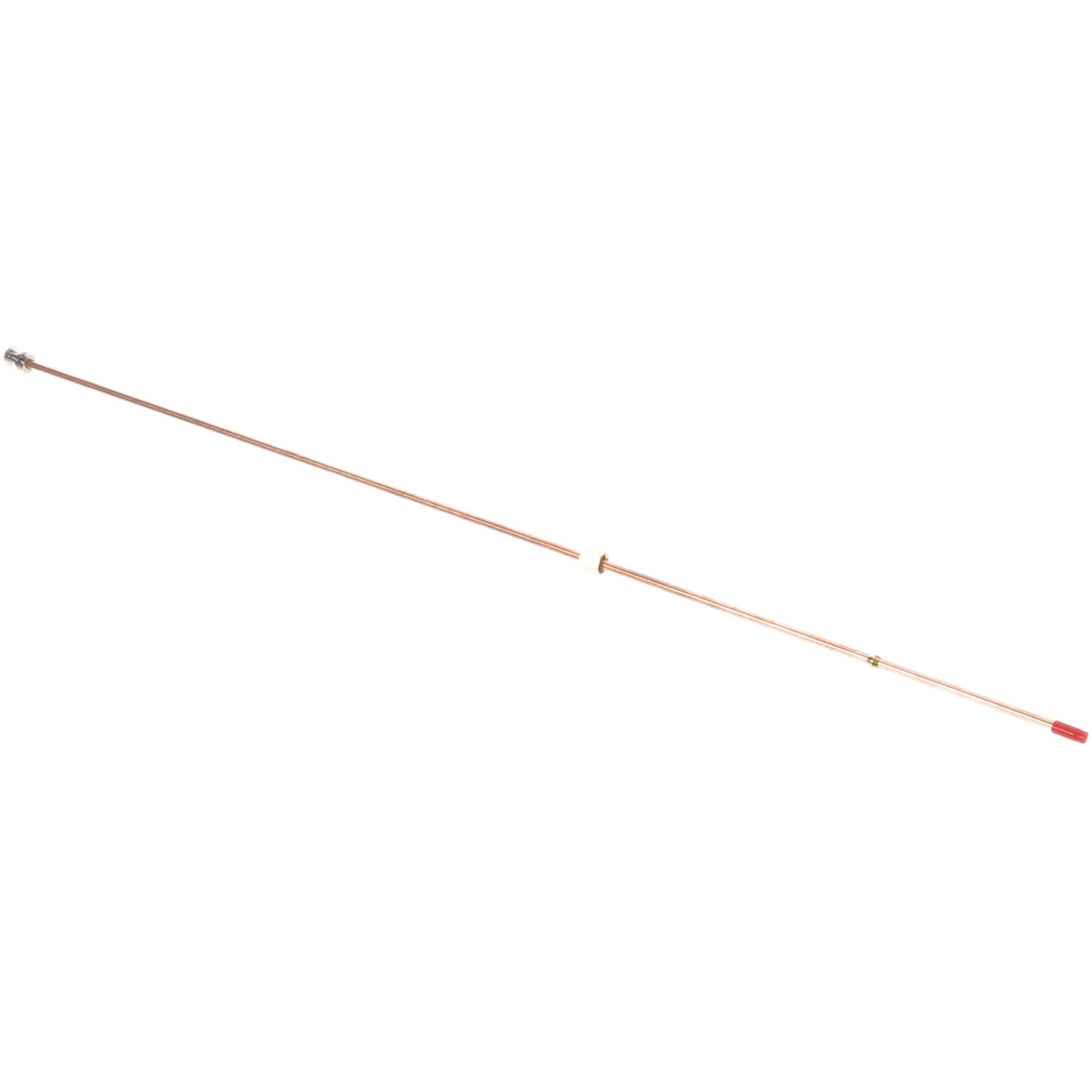

AllPoints 511475 24-inch copper pilot tube assembly showing full length with head, nut, and ferrule components

Full Assembly at a Glance

Each component of this pilot tube kit works together to ensure a proper gas pilot connection. The nut threads securely onto the valve, the ferrule creates a gas-tight seal, and the slotted pilot head positions accurately against the burner for reliable ignition performance.

Ferrule provides a compression-style seal at the connection point
Slotted pilot head positions the flame at the burner tube
Fully assembled and ready to install out of the box

Cross-Compatible Replacement Part

This pilot tube is a recognized cross-reference replacement for multiple OEM part numbers, making it a dependable choice when sourcing service parts for a wide variety of commercial cooking equipment brands.

Cross-references: Marsal K-134, Mavrik MVR41212
Also referenced as: Commercial Parts CPD-105
Suitable for most standard commercial range pilot systems

Key Specifications

MaterialCopper clad steel

OD Diameter3/16 in

Length24 in

IncludesPilot head, nut, ferrule

From the Cresco Resco Team

Why You'll Love It

A reliable, ready-to-install pilot tube assembly that keeps commercial range pilot systems running without the hassle of sourcing individual components.

Ideal for foodservice technicians and maintenance teams servicing commercial ranges and cooking equipment.
Copper clad steel construction and included hardware ensure a complete, durable replacement in one part.
Broad cross-reference compatibility makes this a smart stock item for high-volume service operations.

Specifications

AllPoints Part #	511475
Type	Pilot Part
Description	Pilot Tubing with Head, Nut & Ferrule
Length	24 in
Overall Length (with Head)	25 in
Outer Diameter (OD)	3/16 in
Material	Copper Clad Steel
Plating	Copper Clad Steel
Ship Weight	0.33 lbs
Pilot Head	Slotted Track, Fits Most
Cross Reference - Commercial Parts	CPD-105
Cross Reference - Marsal	K-134
Cross Reference - Mavrik	MVR41212
