GSW USA FM1509S 36" Super Power Commercial Air Curtain - Metal White Case with Magnetic Switch

$599.00 ~~Sale price$988.80you save $389.80~~

Key Features:

2-Speed Operation: High-speed mode delivers powerful airflow for high-traffic or tall entryways, while low-speed mode conserves energy during lighter use periods - ideal for balancing performance and operating costs in commercial kitchens and dining areas.
Fireproof, Anti-Erosive Metal Case: Durable white metal housing resists corrosion and meets fire resistance standards, making it well-suited for the demanding conditions of food service environments.
Magnetic Door Switch Included: Ships with a 12V DC normally open magnetic door switch that automatically activates the air curtain when the door opens, maximizing energy efficiency and climate control without manual intervention.
300-Watt Strengthened Blower: High-performance motor provides robust, consistent airflow to effectively block insects, dust, and outside air infiltration across the full door opening.
36" Coverage Width / 84" Max Installation Height: Covers a 35.5" span and engineered to deliver an effective air barrier for doorways up to 7 ft tall - suitable for standard commercial entry points in restaurants, cafeterias, delis, and convenience stores.
Standard Electrical Connection: Operates on 110-120V AC, 60Hz, single-phase power with a standard plug-in cord for straightforward installation with no special wiring required.
Slim Profile for Easy Maintenance: Compact body design (8.63" depth x 10.38" height) simplifies above-door-frame mounting and allows for quick, hassle-free cleaning - a practical advantage in high-sanitation food service facilities.
UL Certified: Meets UL safety standards, ensuring compliance for commercial installations and satisfying health department and insurance requirements.
Un-Heated, Indoor Use Only: Optimized for interior commercial applications; un-heated design focuses airflow performance without adding heat load to the space.
Sold individually (each).

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

GSW USA FM1509S 36" Super Power Commercial Air Curtain - Metal White Case with Magnetic Switch

$599.00~~$988.80~~

Detailed Description

The GSW USA FM1509S is a 36-inch super power commercial air curtain built with a fireproof, anti-erosive white metal case engineered to withstand the rigors of demanding food service environments. Operating on 110-120V AC, 60Hz single-phase power at 300 watts, its two-speed blower system offers a high-speed mode for powerful airflow at busy, high-traffic entryways and a low-speed mode for energy-conscious operation during quieter periods. Covering a 35.5-inch span with an effective installation height of up to 84 inches, this unit is well-suited for standard commercial doorways in restaurants, cafeterias, delis, and convenience stores. The included 12V DC normally open magnetic door switch automatically activates the curtain when the door opens, ensuring consistent climate control and pest exclusion without manual intervention. UL certified and designed for indoor use only, the FM1509S combines a slim, easy-to-clean profile with robust performance to serve as a reliable air barrier solution in professional foodservice settings.

Product Details

Powerful 2-Speed Airflow

High-speed mode blocks insects and outside air; low-speed mode conserves energy during lighter use.

UL Certified & Fire-Resistant

Fireproof, anti-erosive white metal case meets UL safety standards for demanding commercial environments.

Auto Magnetic Door Switch

Included 12V DC normally open switch activates the curtain automatically when the door opens.

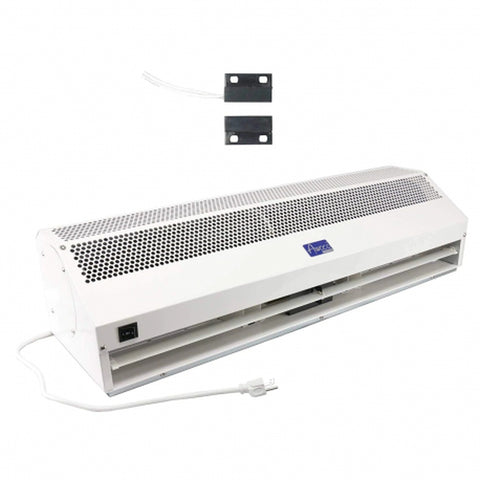

GSW USA FM1509S 36-inch white metal commercial air curtain unit with magnetic door switch components

36" Super Power Commercial Air Curtain

The FM1509S delivers a robust, unheated air barrier across a 36" coverage width, sealing standard commercial doorways against insects, dust, and outside air infiltration. Its slim white metal profile installs neatly above door frames and is built to withstand the rigors of food service facilities.

36" coverage width (35.5" unit width) for standard commercial doorways
300-watt strengthened blower motor for high-performance airflow
Slim 8.63" depth x 10.38" height profile for easy above-door mounting
Sold individually

Key Specifications

Coverage Width36" (35.5" unit width)

Power300 Watts, 110-120V AC, 60Hz, 1-Ph

Fan Speeds2 (High & Low)

CertificationUL Certified

Dimensions (W x D x H)35.5" x 8.63" x 10.38"

Max Installation Height84" (7 ft)

Ideal For

Engineered for indoor commercial applications where maintaining climate control and hygiene at entryways is essential.

Restaurants & Cafeterias Delis & Food Service Facilities Convenience Stores Commercial Kitchens Standard Commercial Doorways

From the GSW USA Team

Why You'll Love It

The FM1509S is a reliable, no-nonsense air curtain that brings commercial-grade performance to any standard indoor entryway without complex installation or wiring.

Perfect for food service operators who need to block insects and outside air at busy, high-traffic entry points.
The included magnetic door switch automates operation, ensuring the curtain only runs when needed for maximum energy savings.
Fireproof, anti-erosive metal construction and UL certification provide long-term peace of mind in demanding commercial settings.

Specifications

Model	FM1509S
Brand	Awoco / GSW USA
Type	Un-Heated
Coverage Width	36"
Unit Width	35.5"
Unit Depth	8.63"
Unit Height	10.38"
Weight	40 lb
Voltage	110-120V AC, 60Hz, 1-Phase
Power	300 Watts
Fan Speeds	2
Max Door/Window Opening Height	7 ft (84")
Case Material	Fireproof, Anti-Erosive Metal
Case Color	White
Magnetic Door Switch	Included (12V DC, Normally Open)
Installation	Indoor Use Only
Certifications	UL
Sale Unit	Sold Individually
