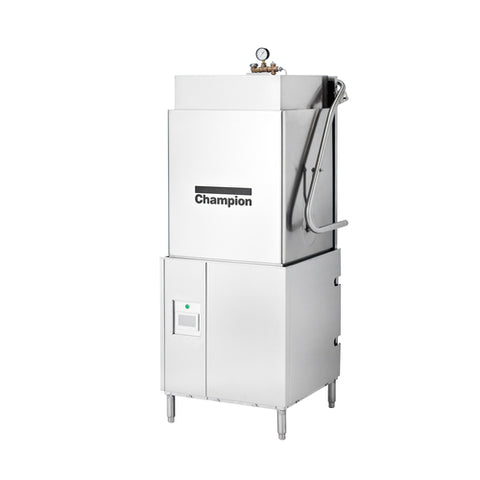

Champion Industries DH6000T-VHR Ventless Heat Recovery Door-Type Tall Hood Dishwasher

$17,404.80 ~~Sale price$25,610.00you save $8,205.20~~

Key Features:

Ventless heat recovery door-type dishwasher with extended tall hood (27 inch clearance) to handle larger wares like trays, pans, and mixing bowls.
High-temperature sanitizing operation with Rinse Sentry that extends the wash cycle until the booster reaches the correct final-rinse temperature.
Throughput and efficiency: up to 40 racks per hour and 0.73 gallons per rack.
Intuitive touchscreen HMI with condition alerts, multilingual cleaning and operation guidance, and enhanced onboard diagnostics to reduce downtime.
Four selectable wash cycles (1, 2, 4, and 6 minutes) plus Auto Start when the door is closed; includes cycle counter.
NSF dual rated for dish machine and pot and pan applications.
Energy-saving programmable sleep mode and ENERGY STAR certification.
High-efficiency 2 HP wash pump and heavy-duty automatic drain valve (gear-driven, full-port ball valve with stainless and brass construction).
Field convertible electrical (3 phase to 1 phase) and field convertible feed orientation for front load, corner, or pass-through installations.

Detailed Description

The Champion DH6000T-VHR is a high temperature, door-type dishmachine built for fast, consistent warewashing in busy kitchens. Its ventless heat recovery design captures heat and vapor to improve efficiency and reduce the need for external ventilation. Operators get guided operation and troubleshooting through an advanced touchscreen with on-board diagnostics and programmable energy-saving modes. With selectable cycle times and NSF dual rating for dish and pot and pan applications, it is designed for flexible, high-output cleaning.

Product Details

High-Temp Sanitizing

Built-in booster and rinse management help deliver a sanitizing final rinse.

Ventless Heat Recovery

Recovers heat and vapor to reduce venting needs and support efficient operation.

Fast Throughput

Designed for high-volume warewashing with multiple selectable cycles.

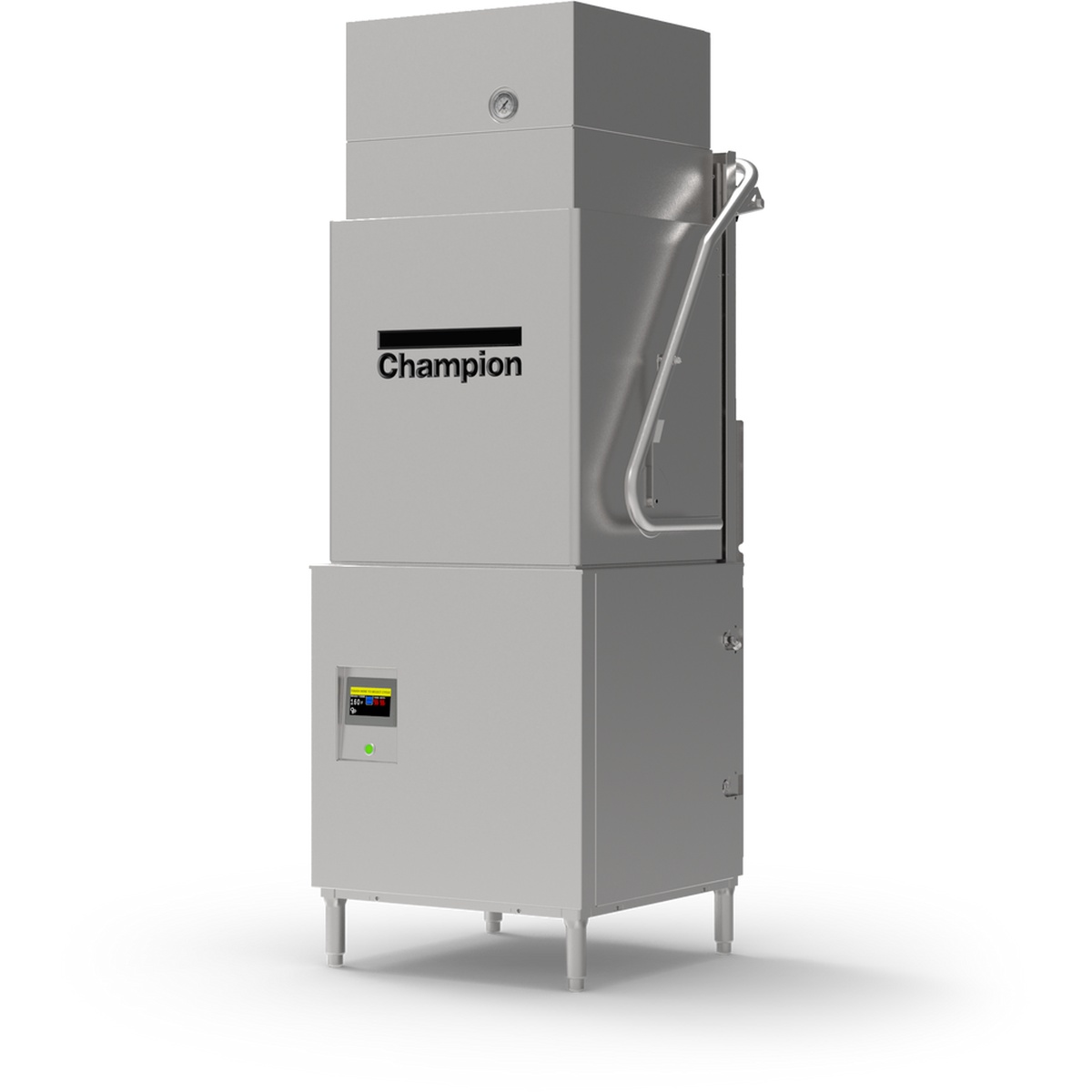

Champion DH-6000T door-type dishwasher front view

Built for Tall, Bulky Wares

Extended hood clearance helps accommodate larger items while keeping operation simple and consistent.

27 inch extended hood clearance
NSF dual rated for dish machine and pot and pan machine
Stainless steel construction

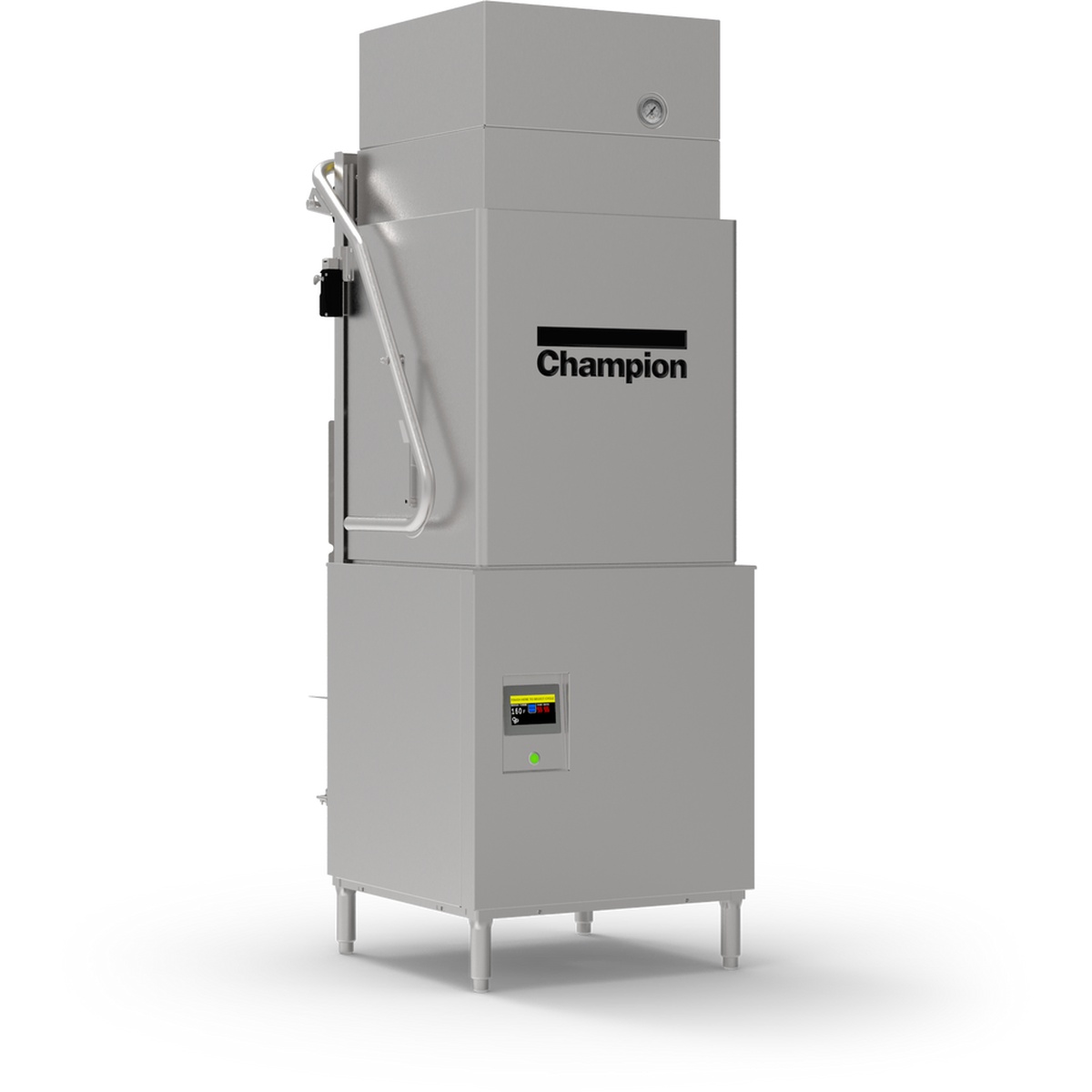

Champion DH-6000T door-type dishwasher angled view

Smarter Operation, Less Downtime

Touchscreen guidance and on-board diagnostics help staff run the machine confidently and address issues faster.

Advanced touchscreen display with operational and cleaning guidance
Enhanced visual on-board diagnostics
Auto start when the door is closed

Key Specifications

Performance

Up to 60 racks per hour; 0.73 gallons per rack

Wash Cycles

Four selectable wash cycles: 1, 2, 4, and 6 minutes

Configuration Flexibility

Field convertible feed orientation; convertible electrical (3 phase to 1 phase)

Efficiency and Ratings

Energy Star certified; NSF dual rated

From the Cresco Resco Team

Why You'll Love It

A high-temperature, door-type dishwasher built to move racks quickly while supporting efficient, ventless operation.

Great for busy kitchens that need consistent sanitizing performance and fast cycles.
Ventless heat recovery helps reduce the need for traditional ventilation setups.
Touchscreen guidance and diagnostics support smoother training and day-to-day use.

Specifications

Manufacturer	Champion Industries
Series / Model	DH6000T-VHR
Type	Door-type, ventless heat recovery
Sanitizing Type	High temperature
Vent Option	Ventless
NSF Rating	Dual rated: dish machine and pot & pan machine
Racks per Hour	40 racks/hour
Water Consumption	0.73 gallons per rack
Wash Pump	2 HP
Wash Cycle Options	Four user-selectable wash cycles: 1, 2, 4, and 6 minutes
Electrical	208-480V (field convertible 3-phase to 1-phase)
Energy Certification	ENERGY STAR certified
Clearance	27 inch extended hood clearance (tall hood)
Overall Dimensions (H x W x D)	79-1/16 in x 21-3/8 in x 24-3/4 in
Warranty	1 year parts and labor (limited)
