CROWN VERITY INC.

Crown Verity CV-RF-1 5.1 Cu. Ft. Outdoor Undercounter Refrigerator

$1,847.00 ~~Sale price$2,174.00you save $327.00~~

Key Features:

5.1 Cu. Ft. Undercounter Capacity: Generous storage volume in a compact, counter-depth footprint (23 5/8" W x 23 5/8" D x 34 1/8" H) designed for seamless built-in installation in outdoor kitchens and commercial prep stations.
304 Stainless Steel Exterior with Hammered Aluminum Interior: Heavy-gauge 304 stainless construction resists corrosion and outdoor elements, while the hammered aluminum interior is easy to clean and built to hold up under continuous commercial use.
Front-Breathing, Bottom-Mounted Refrigeration System: Self-contained, front-venting compressor system with forced-air cooling allows true flush built-in installation without rear clearance requirements.
R600a Hydrocarbon Refrigerant with Foam Insulation: Eco-friendly R600a refrigerant paired with foam insulation maintains cabinet temperatures across a wide 23-68°F range, even in ambient conditions up to 113°F - ideal for hot outdoor environments.
Digital Controls with Automatic Defrost: Precise digital temperature management eliminates manual defrost cycles, reducing maintenance demands in fast-paced commercial settings.
3 Adjustable Chrome Wire Shelves: Configurable interior shelving accommodates varying product sizes, from beverage bottles to food pans, maximizing storage flexibility.
Field-Reversible, Self-Closing Door with Lock and Alarm: The solid stainless door can be re-hinged on-site for flexible installation, closes automatically to protect temperature integrity, locks with a key for secure holding, and triggers an open-door alarm to prevent product loss.
Energy Star Compliant at 120V/60Hz/1-Phase: Low 1.3-amp draw and Energy Star certification reduce operating costs, making this unit well-suited for permanent outdoor kitchen installations.
Outdoor and Food-Safe Rated: UL-approved and food-safety certified for commercial use, this unit is built to meet the demands of professional outdoor catering, restaurant patios, and hospitality environments.

Detailed Description

The Crown Verity CV-RF-1 is a 5.1 cu. ft. undercounter outdoor refrigerator purpose-built for permanent outdoor kitchen installations and commercial applications. Its 304 stainless steel exterior resists the elements while the hammered aluminum interior provides a durable, cleanable food-safe environment with three adjustable chrome shelves. The front-breathing, bottom-mounted compressor system runs on R-600a hydrocarbon refrigerant and maintains cabinet temperatures between 23 and 68°F across an ambient operating range up to 113°F. Digital controls allow precise temperature management, and the field-reversible solid door with integrated lock and door alarm ensures product security and operational flexibility. At just under 24 inches wide, this counter-depth unit drops cleanly into standard outdoor kitchen cutouts, rounding out any high-performance outdoor cooking station.

Product Details

Variable Temperature Control

Digital controls maintain a 23-68°F range for precise food and beverage storage.

5.1 Cu. Ft. Capacity

Three adjustable chrome shelves maximize storage for food and drinks in any outdoor setup.

Outdoor-Rated Durability

304 stainless steel exterior and foam insulation built to withstand all outdoor conditions.

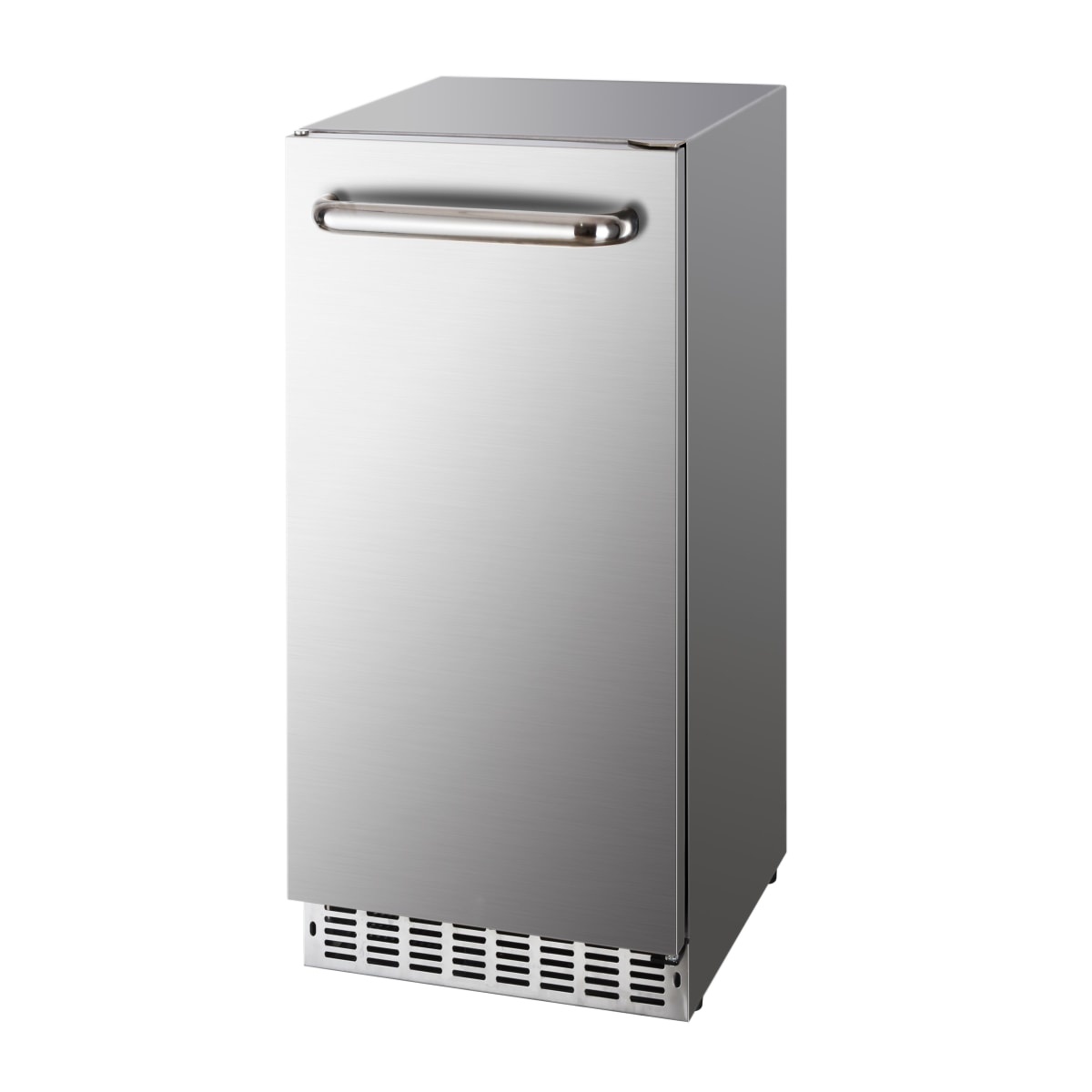

Crown Verity CV-RF-1 24-inch stainless steel outdoor undercounter refrigerator with front vent grille and bar handle

Built for the Outdoor Kitchen

The Crown Verity CV-RF-1 is a front-breathing, undercounter refrigerator engineered specifically for outdoor installations. Its 304 stainless steel exterior resists the elements while the hammered aluminum interior keeps contents cool and clean.

Front-venting design for seamless built-in installation
Self-contained, bottom-mounted compressor system
R600a hydrocarbon refrigerant for efficient, eco-friendly cooling
Automatic defrost keeps maintenance minimal
Energy Star compliant for year-round outdoor use

Key Specifications

Capacity5.1 Cu. Ft.

Temperature Range23-68°F

Adjustable Shelves3 Chrome Shelves

Exterior Material304 Stainless Steel

Dimensions (W x D x H)23.625" x 23.625" x 34.125"

Electrical120V / 60Hz / 1.3A

Security, Convenience, and Smart Design

Lock + Key

Secure reversible solid door

Door Alarm

Alerts when left ajar

Field Reversible

Flexible hinge configuration

Ideal For

Outdoor kitchens Built-in installations Commercial patios Barbecue stations Undercounter food storage

From the Cresco Resco Team

Why You'll Love It

The Crown Verity CV-RF-1 delivers professional-grade outdoor refrigeration in a compact, front-venting undercounter package that fits seamlessly into any built-in outdoor kitchen design.

Perfect for outdoor entertainers and commercial patio setups requiring reliable, weather-resistant cold storage.
304 stainless steel construction paired with foam insulation ensures lasting durability and consistent temperature performance.
Field-reversible door, digital controls, and an open-door alarm make daily use effortless and secure.

Specifications

Model	CV-RF-1
Capacity	5.1 Cu. Ft.
Configuration	Built-In / Undercounter
Overall Dimensions (W x D x H)	23 5/8" W x 23 5/8" D x 34 1/8" H
Cutout Dimensions (W x H x D)	24" W x 34 1/4" H x 22" D
Weight	99 lbs
Exterior Material	304 Stainless Steel
Interior Material	Hammered Aluminum
Insulation	Foam
Number of Shelves	3 (Adjustable)
Shelf Material	Chrome Wire
Door Type	Solid Stainless Steel, Self-Closing, Reversible, with Lock & Key
Door Alarm	Yes
Hinge Configuration	Field Reversible
Temperature Range	23 - 68°F
Ambient Temperature Range	50 - 113°F
Cooling System	Compressor, Forced Air
Compressor Location	Bottom-Mounted
Venting	Front Venting
Defrost Type	Automatic
Refrigerant	R-600a (Hydrocarbon)
Control Type	Digital
Voltage	120V / 60 Hz / 1 Phase
Amperage	1.3 A
Outdoor Rated	Yes
Energy Star Compliant	Yes
UL Approved	Yes
Food Safety Certified	Yes
Collection	Infinite Series
Warranty	1-Year Limited Parts & Labor
UPC	849712003561
