HOSHIZAKI WESTERN

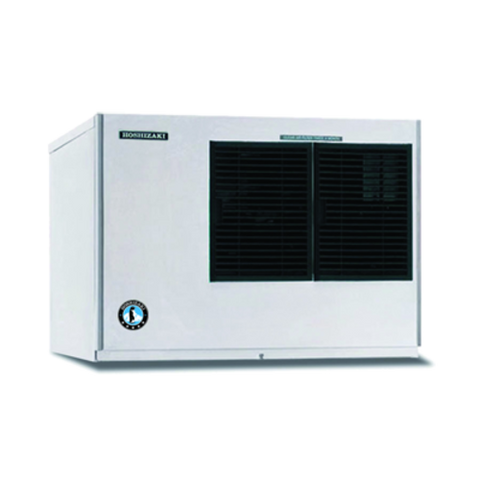

Hoshizaki KML-500MAJ Crescent Cuber Ice Machine Head, Air-Cooled, 442 lbs/Day

$4,610.00 ~~Sale price$8,700.00you save $4,090.00~~

Key Features:

High-Output Crescent Cube Production: Produces up to 442 lbs of ice per day (400 lbs AHRI-certified) in a distinctive crescent cube shape measuring 1-1/8" x 1-1/2" x 1/2" - ideal for restaurants, bars, and hotel vending applications where slow-melting, beverage-friendly ice is essential.
CycleSaver Design: Proprietary technology reduces the number of freeze cycles without sacrificing ice output, delivering measurable savings in both energy (5.55 kWh per 100 lbs) and water consumption (16 gallons of potable water per 100 lbs) at 90/70 conditions.
EverCheck Alert System: Built-in diagnostic alert system uses distinct beep patterns to identify specific operational issues, enabling faster troubleshooting and reducing downtime in demanding commercial environments.
H-Guard Plus Antimicrobial Protection: Interior surfaces are treated with an H-Guard Plus antimicrobial agent that inhibits bacterial growth, helping maintain sanitary ice production and supporting food safety compliance.
Stainless Steel Construction: Corrosion-resistant stainless steel exterior and evaporator provide long-term durability and easy cleaning, critical for high-use commercial kitchens.
Air-Cooled Self-Contained Condenser: Front-venting, air-cooled condenser design with removable access panels simplifies routine maintenance and service without requiring remote or water-cooled infrastructure.
Flexible Electrical Configuration: Operates on single-phase 115V/60Hz/1-phase (7.6A, 104-127V range), hardwired at site; compatible with a 20A max fuse/HACR breaker for straightforward installation.
Wide Operating Range: Designed to perform reliably in ambient temperatures from 45-100°F and with incoming water temperatures of 45-90°F at 10-113 PSI, making it suitable for a variety of installation environments.
Industry-Leading Warranty: Backed by a 3-year parts and labor warranty on the entire machine and a 5-year parts and labor warranty on the evaporator, reflecting Hoshizaki's confidence in long-term durability.
Broad Bin and Dispenser Compatibility: Compatible with a wide range of Hoshizaki bins and dispensers (B-250 through B-1650, DB-200H, DM-200B), allowing flexible system configurations to match storage requirements.
Compact Footprint: Measures 30" W x 27-3/8" D x 22" H and weighs approximately 185 lbs shipped, offering a space-efficient ice-making head that stacks cleanly on compatible Hoshizaki bins.

Hoshizaki KML-500MAJ Crescent Cuber Ice Machine Head, Air-Cooled, 442 lbs/Day

$4,610.00~~$8,700.00~~

Detailed Description

The Hoshizaki KML-500MAJ is an air-cooled crescent cube ice machine head producing up to 442 lbs of ice per day (400 lbs AHRI-certified), making it a dependable high-output solution for busy restaurants, hotels, and foodservice operations. Hoshizaki's proprietary CycleSaver design reduces the number of freeze cycles required, lowering both energy and water consumption without sacrificing production capacity. The unit features H-Guard Plus antimicrobial protection on ice-contact surfaces to maintain sanitation, and the EverCheck alert system provides distinct audible patterns to quickly identify and diagnose operational issues. A corrosion-resistant stainless steel exterior and stainless steel evaporator ensure lasting durability, while removable panels allow convenient access to internal components. This head unit requires a compatible ice storage bin or dispenser, sold separately.

Product Details

High-Volume Output

Produces up to 442 lbs of crescent ice daily for busy environments.

CycleSaver Efficiency

Reduces energy and water consumption by cutting down on cycles.

Antimicrobial Protection

H-Guard Plus agent slows bacteria growth for cleaner ice.

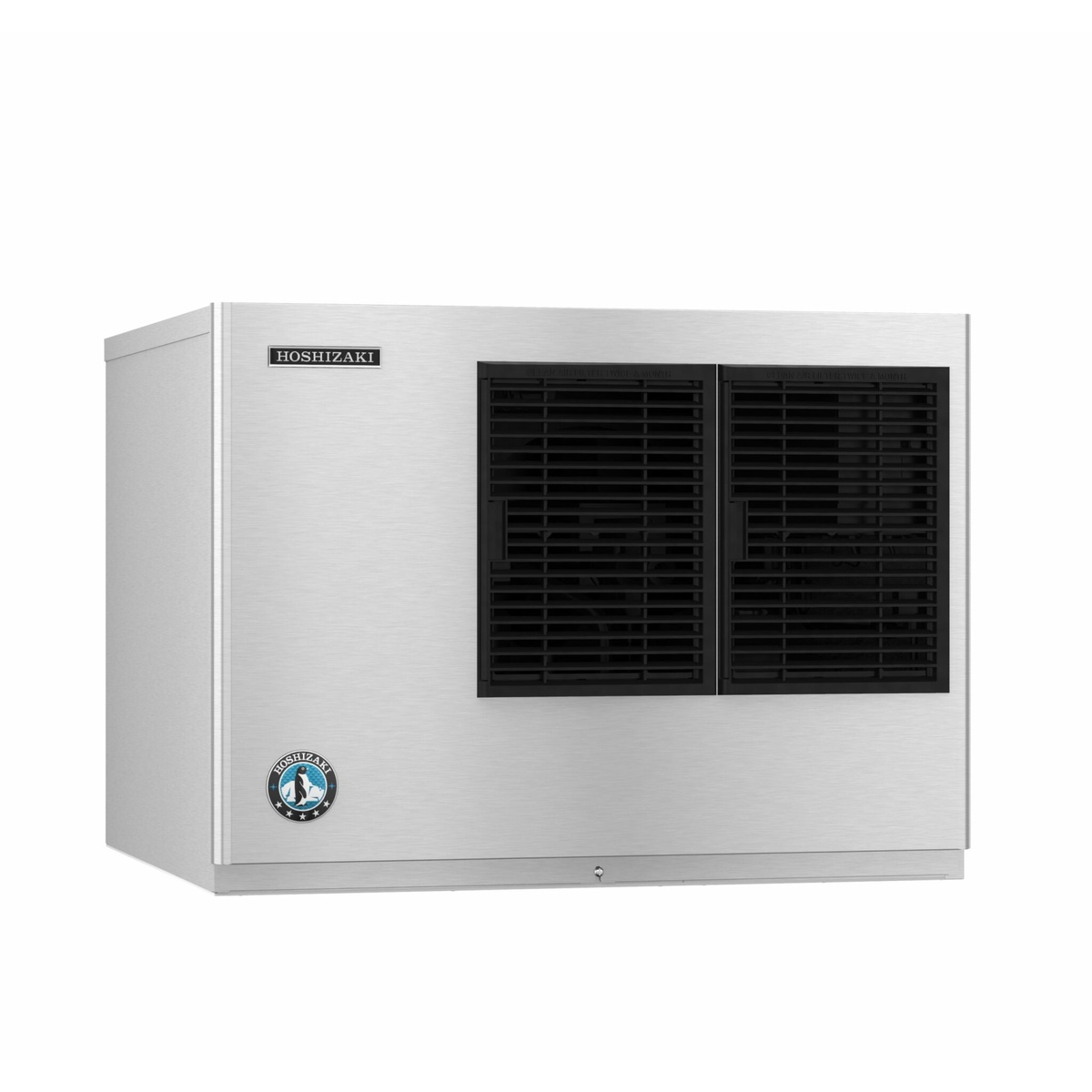

Hoshizaki KML-500MAJ Ice Machine Head showing stainless steel exterior and front ventilation

Professional Ice Production

The KML-500MAJ is engineered for reliability in demanding commercial kitchens and hospitality settings.

Produces up to 442 lbs of ice per 24 hours
Durable stainless steel exterior and evaporator
Air-cooled condenser for efficient operation

Glasses of water with crescent ice and lemon slices on a restaurant table

Signature Crescent Ice

Hoshizaki's unique crescent ice shape is designed to enhance the beverage experience while improving efficiency.

Slow-melting design preserves drink flavor
Unique shape allows liquid to flow gently, reducing splashes
Excellent displacement for higher profit margins per drink

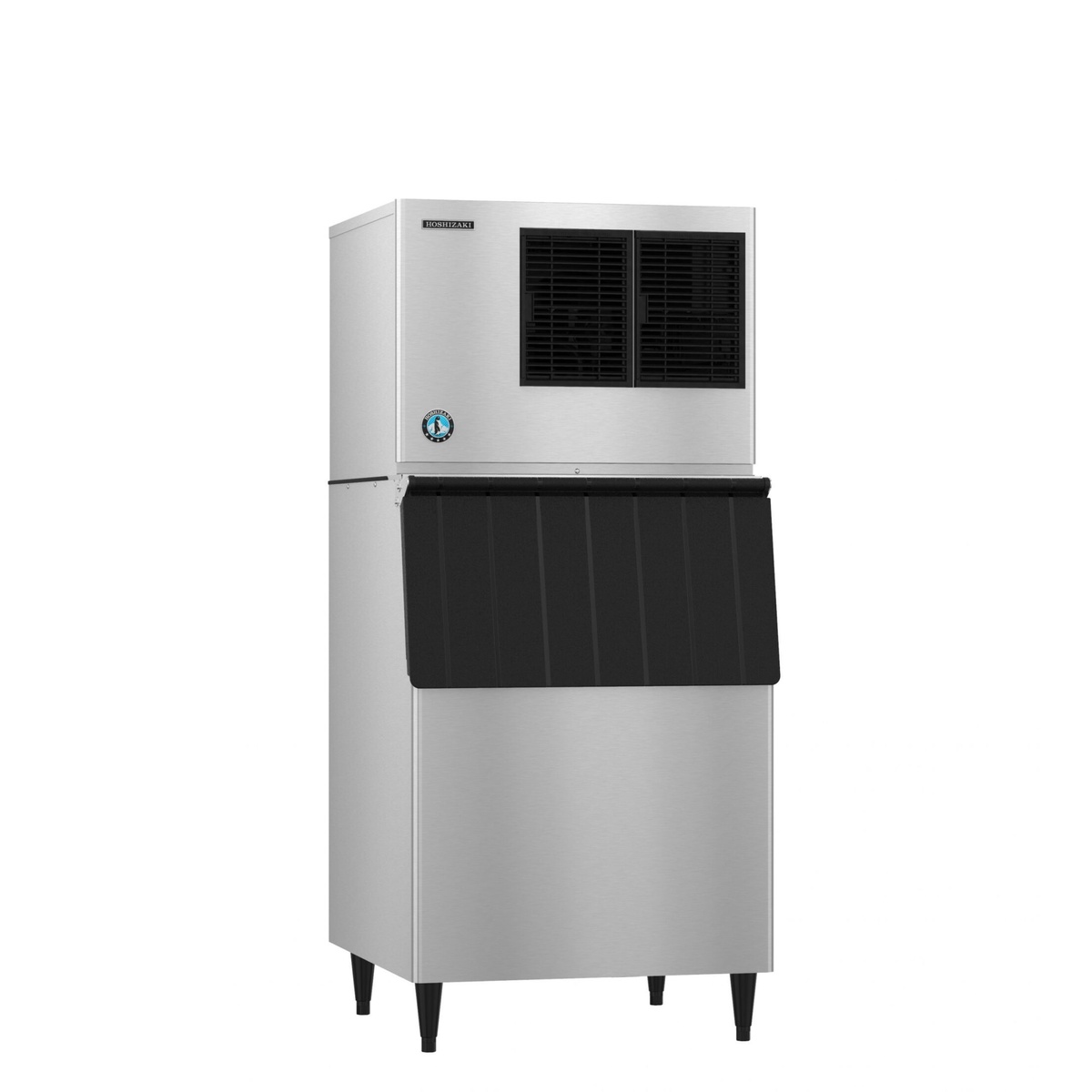

Hoshizaki KML-500MAJ ice machine head mounted on a compatible storage bin

Smart Design and Maintenance

Equipped with advanced monitoring systems to ensure consistent performance and easy servicing.

EverCheck alert system with audible beep patterns for troubleshooting
Removable panels provide quick access to internal components
Compatible with a wide range of Hoshizaki storage bins

Iced coffee with crescent ice cubes next to a plate of donuts

Versatile Application

From morning coffee service to evening cocktails, this machine provides the volume and quality needed for any time of day.

Ideal for restaurants, hotels, and vending areas
Compact 30 inch width fits standard kitchen footprints
Reliable performance in ambient temperatures up to 100 degrees F

From the Cresco Resco Team

Why You'll Love It

The Hoshizaki KML-500MAJ combines high-capacity production with a space-saving design that fits perfectly in busy commercial environments.

Great for high-volume restaurants needing consistent, slow-melting ice.
CycleSaver technology helps lower utility costs without sacrificing output.
Pair it with a B-500 bin for a complete, reliable ice storage solution.

Specifications

Model	KML-500MAJ
Ice Type	Crescent Cube
Ice Cube Dimensions	1-1/8" x 1-1/2" x 1/2"
Max Daily Ice Production	442 lbs
AHRI Certified Daily Production	400 lbs
Condenser Type	Air-Cooled
Dimensions (W x D x H)	30" x 27-3/8" x 22"
Shipping Weight	185 lbs
Electrical	115V / 60Hz / 1-Phase, 3-Wire + Ground (Hardwired, no cord/plug included)
Amperage	7.6 A
Max Fuse / HACR Breaker	20 A
Voltage Range	104 - 127V
Refrigerant	R-404A (1 lb. 10.5 oz. / 750 g)
Ambient Temperature Range	45 - 100°F
Water Temperature Range	45 - 90°F
Water Pressure Range	10 - 113 psig
Energy Consumption	5.55 kWh per 100 lbs @ 90°F/70°F
Water Consumption	16 gal per 100 lbs @ 90°F/70°F
Water Inlet Connection	1/2" FPT (Minimum 1/4" Nominal ID Copper Tubing or Equivalent)
Drain Outlet Connection	3/4" FPT (Minimum 3/4" Nominal ID Hard Pipe or Equivalent)
Required Clearances	6" at top, rear, and sides
Energy Star Certified	No
Warranty	3 Years Parts & Labor (entire machine); 5 Years Parts & Labor (evaporator)
Compatible Bins & Dispensers (Sold Separately)	B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, DB-200H, DM-200B
