MANITOWOC

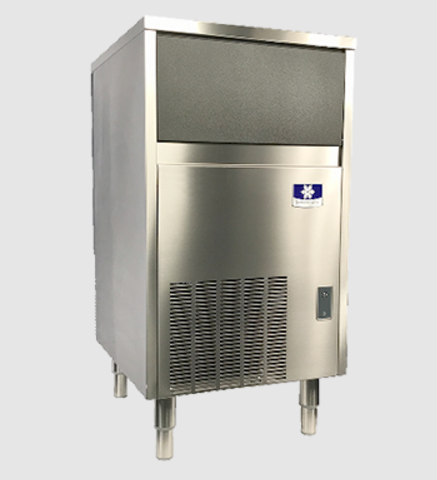

Manitowoc USP0100A-161 CrystalCraft Undercounter Air-Cooled Square Cube Ice Machine with 38 lb. Bin

$2,963.00 ~~Sale price$6,812.00you save $3,849.00~~

Key Features:

Premium CrystalCraft Gourmet Ice: Produces crystal-clear, 1"x1" square cubes (22.5g each) that melt slowly, preserving drink flavor and integrity -- ideal for premium cocktails, high-end spirits, and upscale bar programs.
High Daily Ice Production: Generates up to 100 lbs (45.4 kg) of square cube ice per day, with a built-in 38 lb (17.2 kg / 868 cubes) storage bin to keep up with bar demand.
Undercounter Self-Contained Design: Compact 20" wide footprint (19.68" W x 22.83" D x 37.5" H) fits beneath standard bar counters and in tight spaces, making it an efficient solution for underbar or back-of-house installations.
Innovative Swing-Up Door: The door swings up and completely out of the way, providing unrestricted access to the ice bin and maximizing workflow efficiency during service.
Air-Cooled with Eco-Friendly R290 Refrigerant: The self-contained air-cooled system uses R290 refrigerant, offering an environmentally responsible footprint without requiring remote condensing components.
Energy Efficient Operation: Rated at 9.62 kWh per 100 lbs of ice produced, balancing high-output performance with responsible energy consumption.
Heavy-Duty Stainless Steel Cabinet: Corrosion-resistant stainless steel construction ensures long-term durability in demanding commercial environments and simplifies routine cleaning.
Adjustable Leveling Legs: Standard legs adjust from 4-1/2" to 6", allowing easy fit under existing counters and bar installations regardless of floor variation.
Commercial-Grade Certifications: AHRI, ETL, and UL certified, confirming compliance with industry safety and performance standards for commercial foodservice operations.
3-Year Commercial Warranty: Backed by a 3-year parts and labor warranty for commercial use, providing confidence in long-term reliability and reduced total cost of ownership.
Includes Ice Scoop: An ice scoop is included for sanitary and convenient ice retrieval right out of the box.
115V / 60Hz / 1Ph Electrical Connection: Standard single-phase power requirement simplifies installation without the need for dedicated high-voltage circuits.

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

Manitowoc USP0100A-161 CrystalCraft Undercounter Air-Cooled Square Cube Ice Machine with 38 lb. Bin

$2,963.00~~$6,812.00~~

Detailed Description

The Manitowoc CrystalCraft USP0100A-161 is a premium undercounter ice machine purpose-built for cocktail bars, restaurants, and high-end beverage programs that demand quality ice. It produces up to 100 lbs of crystal-clear 1x1 gourmet square cubes per day, with a 38 lb (868-cube) storage bin to keep pace with service demand. The slow-melting, optically clear cubes preserve drink integrity and deliver a sophisticated visual presentation that elevates cocktail offerings above the ordinary. An innovative door that swings up and out of the way provides unrestricted access to the ice supply, while adjustable stainless steel legs (4-1/2 to 6) accommodate tight undercounter installations. Powered by an eco-friendly R-290 refrigerant system at 115V, this self-contained unit balances efficiency, performance, and refined design in a compact 20 footprint.

Product Details

100 lb Daily Production

Up to 100 lb of gourmet square ice per day with a 38 lb storage bin holding 868 cubes.

Crystal Clear Gourmet Cubes

Crystal-clear 1"x1" square cubes melt slowly to preserve drink flavor and presentation.

Commercial-Grade Durability

Heavy-duty stainless steel cabinet with AHRI, ETL, and UL certifications and a 3-year commercial warranty.

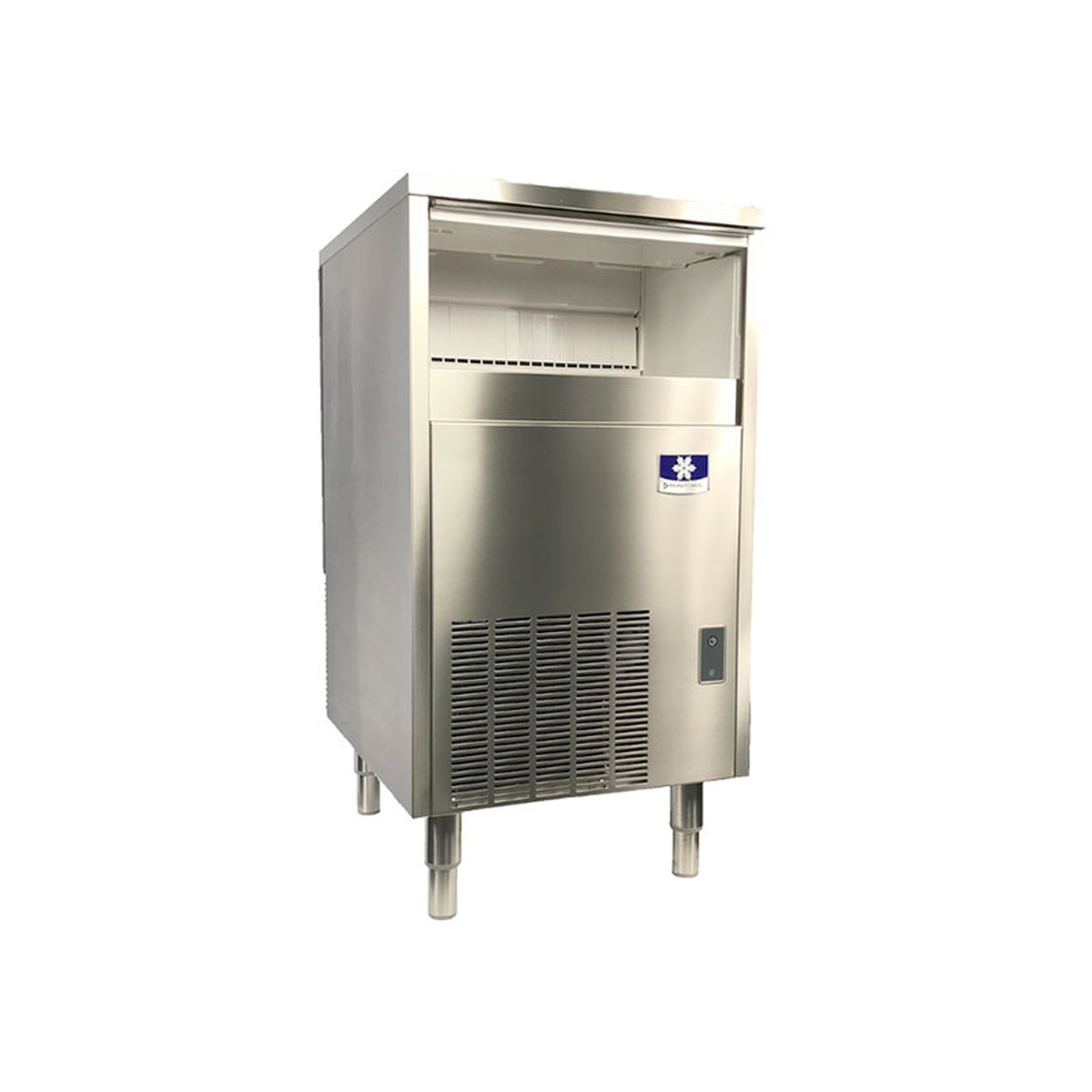

Manitowoc USP0100A CrystalCraft undercounter ice machine with door open revealing ice bin interior

Space-Smart Undercounter Design

Built to fit where space is at a premium, the USP0100A slides neatly under the bar or counter while delivering serious ice production for cocktail-focused operations. The innovative door swings up and completely out of the way for unrestricted access to the ice bin.

Up to 100 lb of ice per day
38 lb bin capacity (868 cubes)
Adjustable legs from 4-1/2" to 6" for a perfect fit
Ice scoop included for sanitary retrieval

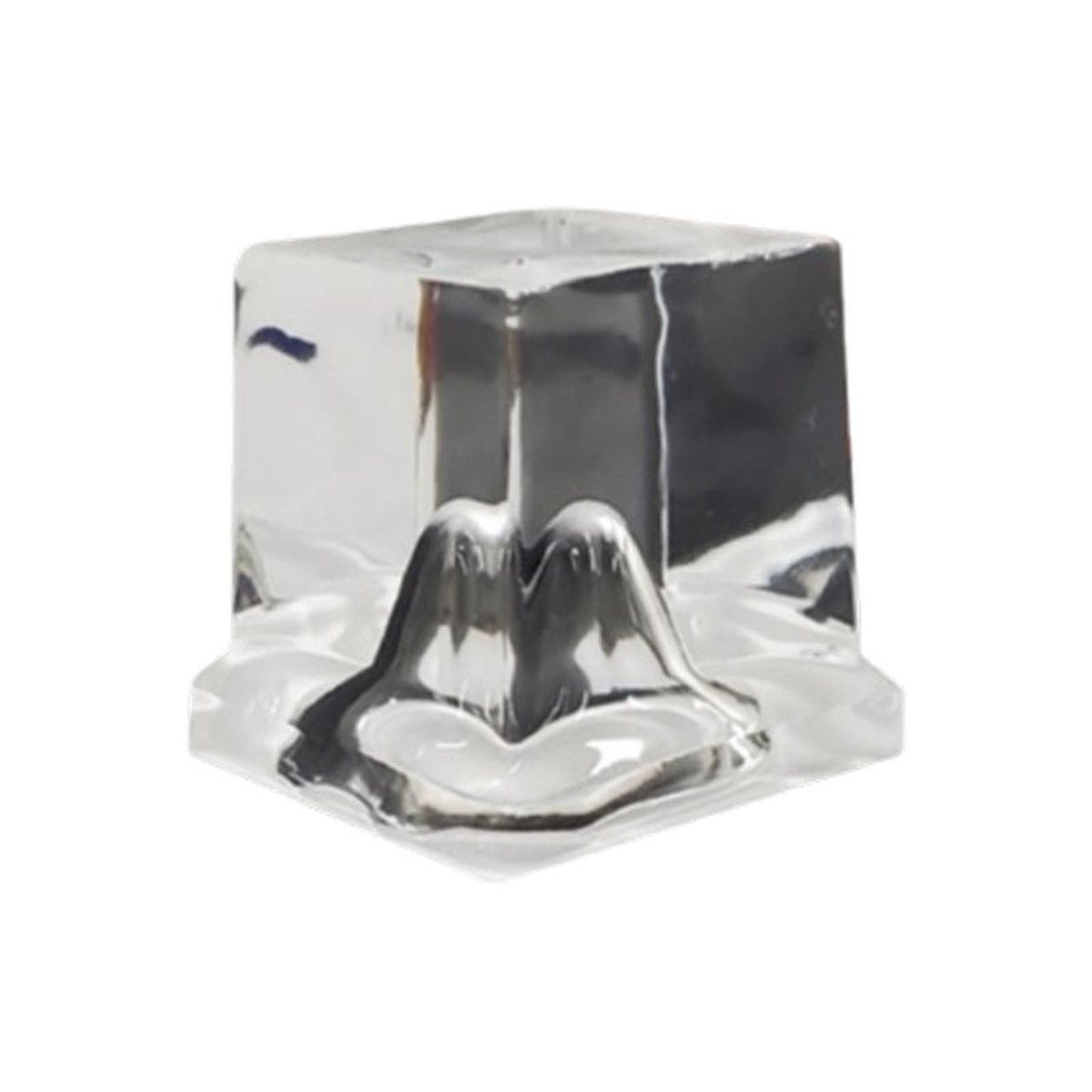

Close-up of a single crystal-clear 1x1 inch CrystalCraft square gourmet ice cube

Premium Ice That Elevates Every Cocktail

CrystalCraft gourmet cubes are individually formed, perfectly square, and optically clear. Their slow melt rate keeps drinks chilled longer without diluting flavor, making them the ideal choice for high-end bars, craft cocktail programs, and premium beverage service.

1"x1" full cube weighing 22.5g each
Crystal-clear appearance for premium drink presentation
Slow melt preserves flavor integrity
Differentiates your cocktail lineup from the competition

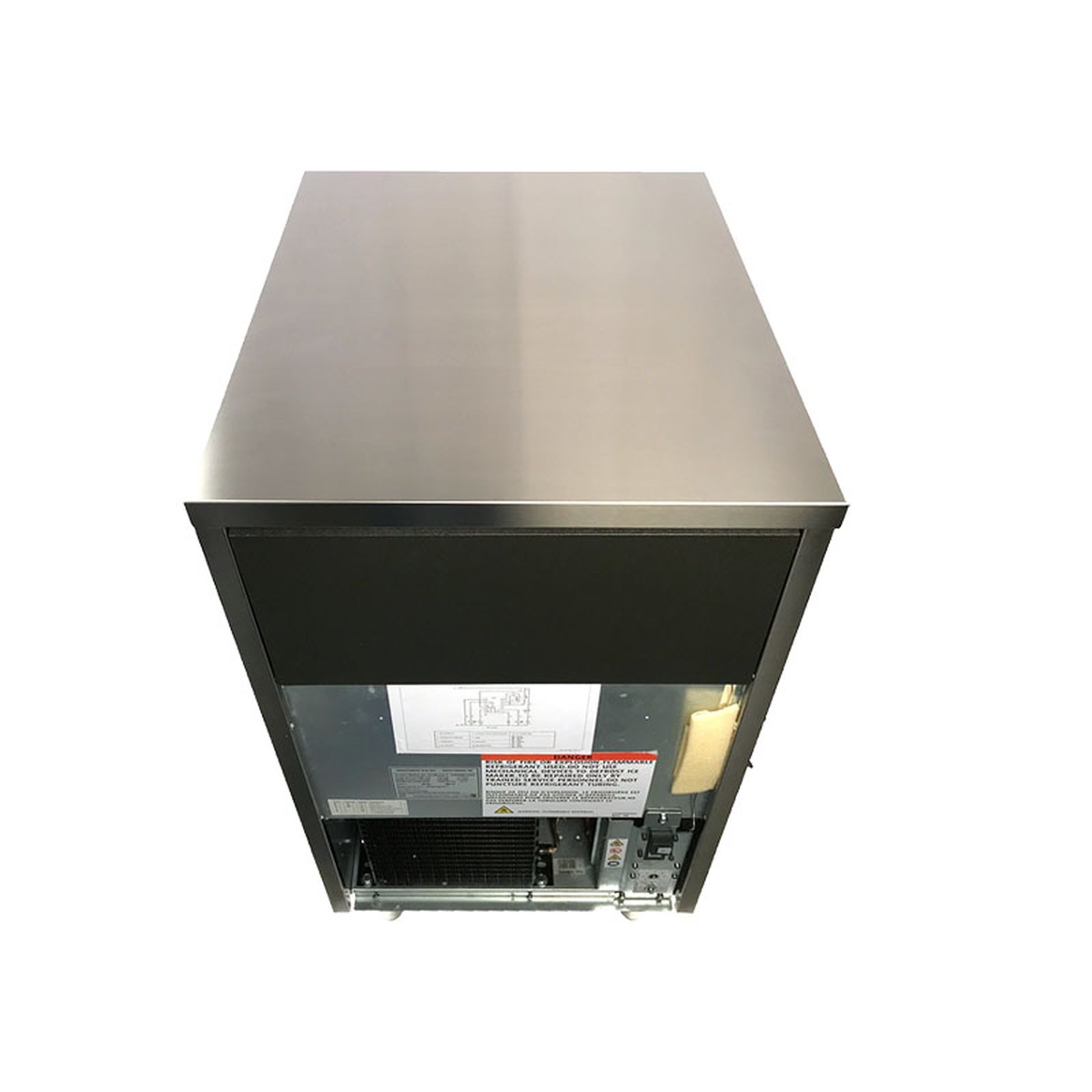

Rear view of Manitowoc USP0100A CrystalCraft undercounter ice machine showing compressor and refrigeration components

Efficient, Eco-Friendly Refrigeration

The USP0100A is engineered with a self-contained air-cooled refrigeration system and an eco-responsible R290 refrigerant. It runs on a standard 115V connection, making installation straightforward in virtually any bar or kitchen environment.

R290 eco-friendly refrigerant
1/3 hp compressor for reliable performance
9.62 kWh per 100 lb of ice produced
115V / 60 Hz / 1 Ph electrical requirement
Dimensions: 19.68"W x 22.83"D x 37.5"H

From the Cresco Resco Team

Why You'll Love It

The Manitowoc USP0100A CrystalCraft is the definitive undercounter ice machine for bars and restaurants that refuse to compromise on presentation or quality.

Ideal for craft cocktail bars, upscale restaurants, and boutique cafes where premium ice is part of the experience.
Produces optically clear, slow-melting 1"x1" gourmet cubes that enhance both the look and taste of every drink.
Backed by AHRI, ETL, and UL certifications and a 3-year commercial parts and labor warranty for total peace of mind.

Specifications

General
Brand	Manitowoc
Model	USP0100A-161
Product Line	CrystalCraft
Configuration	Self-Contained Undercounter Ice Machine
Installation Type	Undercounter / Free Standing
Ice Production & Storage
Daily Ice Production	100 lb (45.4 kg)
Ice Storage Capacity	38 lb (17.2 kg) / 868 cubes
Ice Type	Gourmet Square Cube (Full Cube)
Cube Size	1" x 1"
Cube Weight	22.5 g per cube
Electrical & Refrigeration
Voltage	115V / 60Hz / 1 Ph
Cord Length	72"
Condenser Type	Air Cooled
Refrigerant	R-290
Compressor	1/3 HP
Energy Use	9.62 kWh per 100 lb of ice
Dimensions & Weight
Width	19 11/16" (19.68")
Depth (Front to Back)	22 13/16" (22.83")
Height	37 1/2" (37.5")
Nominal Dimensions (W x D x H)	20" x 23" x 38"
Product Weight	209 lb
Connections
Drain Connection	0.5"
Water Inlet Diameter	0.375"
Drain Required	Yes
Construction & Features
Cabinet Material	Stainless Steel
Leveling Legs	Yes, adjustable 4 1/2" to 6"
With Casters	No
Includes Scoop	Yes
Pump Included	No
Air Filter Included	No
Supply Lines Included	No
Certifications & Compliance
Certifications	AHRI, ETL, UL
Energy Star	No
ADA Compliant	No
Approved for Commercial Use	Yes
Outdoor Approved	No
Warranty
Warranty	3 Year Commercial (Parts & Labor); 1 Year Limited Residential
