T&S Brass

T&S Brass B-0594 Wall Mount Pot Filler Faucet with 24-Inch Double-Joint Nozzle and Insulated On-Off Control

$274.45 ~~Sale price$499.00you save $224.55~~

Key Features:

Wall Mount, Single-Hole Installation: Mounts directly to the wall with a single-hole configuration, keeping the work area clean and unobstructed for high-volume commercial kitchen use.
24" Double-Joint Swing Nozzle: The double-jointed, 24" nozzle provides extensive reach and full 360-degree swing, allowing pots and kettles of all sizes to be positioned and filled with ease.
Insulated On-Off Control at Outlet: Heat-resistant insulated grip on the on-off volume control outlet protects staff from burns when handling the nozzle in hot kitchen environments.
1/4-Turn Compression Cartridge with Spring Check: Delivers fast, positive shut-off and includes an integrated spring check valve to prevent backflow and cross-contamination.
High Flow Rate: Rated at 4.24 GPM (16.05 L/min) for rapid pot and kettle filling, reducing downtime during busy service periods.
4-Arm Cross Handle: Ergonomic 4-arm (cross) handle allows for easy, one-handed operation even with wet or greasy hands common in commercial kitchen conditions.
1/2" NPT Female Inlet: Standard 1/2" NPT female connection for straightforward integration with existing plumbing systems.
Wide Operating Range: Supports water temperatures from 40°F to 140°F (4.44-60°C) and pressures from 20 to 125 psi (1.38-8.62 bar), accommodating a broad range of commercial plumbing conditions.
Polished Chrome-Plated Brass Construction: Durable brass body with a polished chrome finish resists corrosion and is easy to clean, meeting the demands of daily commercial use.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372, ensuring compliance with health, safety, and lead-free requirements for commercial foodservice installations.
Made in the USA: Manufactured domestically, reflecting T&S Brass's long-standing commitment to quality and reliability in the foodservice industry.

T&S Brass B-0594 Wall Mount Pot Filler Faucet with 24-Inch Double-Joint Nozzle and Insulated On-Off Control

$274.45~~$499.00~~

Detailed Description

The T&S Brass B-0594 is a single-temperature, wall-mounted pot filler faucet engineered for the demands of professional kitchens. It features a 24-inch double-joint swing nozzle that articulates with precision, allowing operators to position the spout directly over large stock pots and kettles without lifting or moving them. The polished chrome-plated brass body is built to T&S's exacting standards, with a 1/4-turn compression cartridge and spring check valve ensuring consistent, reliable performance over years of heavy use. An insulated grip on the on-off volume control outlet at the nozzle end protects kitchen staff from burns when shutting off hot water flow. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372, this pot filler meets the compliance requirements expected in commercial foodservice installations.

Product Details

Insulated On-Off Control

Heat-resistant outlet grip allows safe, precise water flow management at the nozzle tip.

Polished Chrome Brass Body

Durable brass construction with a polished chrome finish built for demanding commercial use.

Certified Commercial Grade

Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 standards.

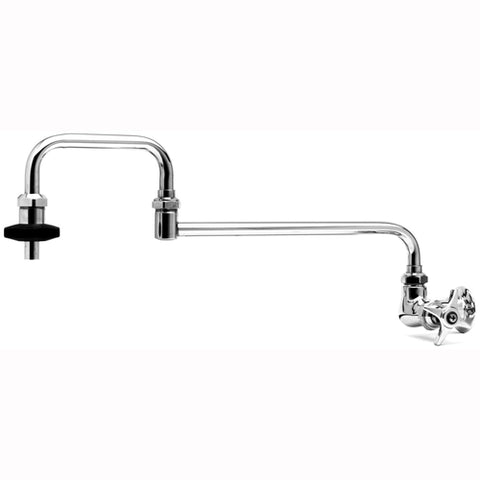

T&S Brass B-0594 wall mount pot filler faucet with 24-inch double-joint chrome swing nozzle and 4-arm cross handle

24-Inch Double-Joint Swing Nozzle

The B-0594 features a 24-inch double-jointed swing nozzle that delivers full articulation over large pots and kettles. The two pivot joints allow effortless repositioning, keeping the spout exactly where you need it.

24-inch (609.6 mm) total nozzle reach
Double-joint design for wide coverage
4.24 GPM (16.05 L/min) flow rate
4-arm cross handle for easy operation

Key Specifications

Mount TypeWall Mount, Single Hole

Inlet Connection1/2 in NPT Female

Cartridge Type1/4 Turn Compression w/ Spring Check

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Temperature Range40°F - 140°F (4.44°C - 60°C)

Flow Rate4.24 GPM (16.05 L/min)

Ideal For

Commercial Kitchens Pot and Kettle Filling Restaurants and Cafeterias High-Volume Food Service Institutional Kitchens

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0594 is a precision-built wall-mount pot filler engineered for the rigors of commercial food service, combining convenience, durability, and compliance in a single unit.

Perfect for busy commercial kitchens that need reliable, high-volume pot and kettle filling.
The insulated on-off outlet control and double-jointed 24-inch nozzle provide both safety and reach right at the point of use.
Made in the USA and backed by ASME, NSF 61, and NSF 372 certifications for long-lasting peace of mind.

Specifications

Model Number	B-0594
Brand	T&S Brass
Product Type	Pot Filler Faucet
Mount Type	Wall Mount
Body Configuration	Single Hole
Material	Polished Chrome Plated Brass
Nozzle	24 in Double-Joint Swing Nozzle (two 12 in sections)
Nozzle Outlet Type	Heat Resistant / Insulated On-Off Control
Flow Rate	4.24 GPM (16.05 L/min)
Inlet Connection	1/2 in NPT Female
Cartridge / Spindle	1/4 Turn Compression with Spring Check
Handle Style	4-Arm (Cross)
Max Pressure	125 psi (8.62 bar)
Min Pressure	20 psi (1.38 bar)
Max Temperature	140°F (60°C)
Min Temperature	40°F (4.44°C)
Item Weight	4.5 lbs
Product Dimensions	3.75 x 10.25 x 15.44 in
Country of Origin	United States of America
Certifications	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372
