T&S Brass B-0592 Wall Mount Pot Filler with 18" Double Joint Nozzle

$253.28 ~~Sale price$460.50you save $207.22~~

Key Features:

Wall Mount Pot Filler with 18" Double Joint Swing Nozzle: Chrome-plated brass body mounts to a single wall hole with a double-jointed nozzle that folds and pivots for precise positioning over pots, kettles, and cooking vessels.
Insulated On-Off Control Grip at Nozzle Tip: Heat-resistant insulated grip located at the end of the nozzle allows operators to start and stop flow right at the point of fill, minimizing reaching over hot cookware.
1/4 Turn Compression Cartridge with Spring Check: Provides fast, reliable water shut-off and includes a spring check valve to prevent backflow, supporting compliance in commercial kitchen environments.
4-Arm (Cross) Handle with Single Control: Ergonomic four-arm cross handle delivers easy, positive flow control with a single-handle design for straightforward operation during busy kitchen service.
High Flow Rate of 4.24 GPM: Delivers 4.24 GPM (16.05 L/min) to fill large stockpots and kettles quickly, reducing downtime and improving kitchen efficiency.
Wide Operating Pressure and Temperature Range: Rated from 20 to 125 psi (1.38 to 8.62 bar) and 40°F to 140°F (4.44°C to 60°C), suitable for demanding commercial water supply conditions.
1/2" NPT Female Inlet: Standard 1/2" NPT female wall connection ensures straightforward installation with typical commercial plumbing rough-in configurations.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372, meeting lead-free and potable water safety requirements for commercial foodservice installations.

Detailed Description

The T&S Brass B-0592 is a heavy-duty wall-mounted pot filler designed for the rigorous demands of commercial kitchens. Featuring a chrome-plated brass body and an 18-inch double joint swing nozzle, it provides exceptional reach and flexibility for filling large stockpots and kettles. The nozzle is equipped with an insulated on-off control grip, ensuring safe operation even with high-temperature water. Built for longevity, it includes a quarter-turn Eterna compression cartridge with a spring check to prevent water cross-flow.

Product Details

18-Inch Double Joint Nozzle

Provides extensive reach and flexibility for filling large pots across the range.

Insulated Control Grip

Heat-resistant on-off volume control at the nozzle tip for safe, precise handling.

Durable Brass Body

Chrome-plated brass construction designed for heavy-duty commercial use.

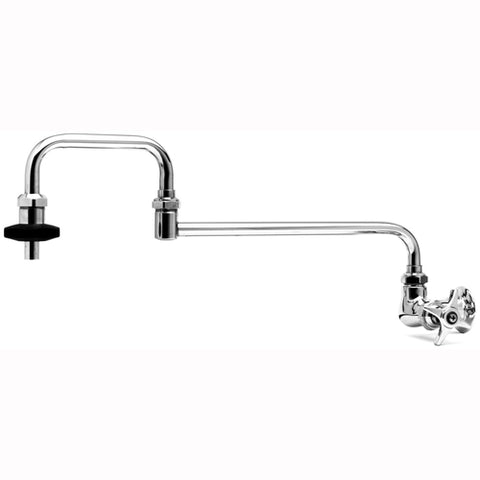

T&S Brass B-0592 wall mount pot filler with 18-inch double joint nozzle and chrome finish.

Extended Reach for Busy Kitchens

The 18-inch double joint swing nozzle allows for effortless positioning over multiple burners or large kettles, streamlining your workflow.

18-inch total reach for large equipment
Double jointed for maximum flexibility
Folds away when not in use to save space

Side view of the T&S Brass B-0592 pot filler showing the insulated on-off control and 4-arm handle.

Precision Control at Your Fingertips

Equipped with a single control wall mount design and an additional insulated on-off grip at the nozzle tip for immediate water management.

Insulated heat-resistant grip for safety
4-arm handle for easy manual operation
1/2-inch NPT female inlet for standard installation

Key Specifications

Reach18-inch Double Joint

Flow Rate4.24 GPM

Temp Range40-140°F

CertificationNSF/ANSI 61

From the Cresco Resco Team

Why You'll Love It

This pot filler combines professional-grade durability with the flexibility needed for high-capacity cooking environments.

Perfect for commercial ranges and kettle stations.
Insulated tip prevents burns during high-temperature use.
Double-jointed arm folds flat against the wall to clear your workspace.

Specifications

Mounting	Wall Mount
Body Type	Single Hole
Nozzle Type	18 inch Double Joint Swing Nozzle
Handle Type	4-Arm (Cross) Handle
Cartridge Type	1/4 Turn Compression with Spring Check
Inlet Size	1/2 inch NPT Female
Outlet Type	Insulated On-Off Control Grip (Heat Resistant)
Flow Rate	4.24 GPM (16.05 L/min)
Pressure Range	20 to 125 psi (1.38 to 8.62 bar)
Temperature Range	40 to 140 F (4.44 to 60 C)
Material	Chrome Plated Brass
Certifications	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372
