T&S Brass

T&S Brass B-0579 Wall Mount Range Faucet with Aerator and 4-Inch Wrist Handle

$296.18 ~~Sale price$538.50you save $242.32~~

Key Features:

Wall Mount, Single Hole Installation: Mounts directly to the wall with a slip flange, ideal for wok ranges and heavy-duty commercial cooking stations where deck space is at a premium.
Polished Chrome Plated Brass Body: Heavy-duty brass construction with a polished chrome finish delivers long-lasting corrosion resistance in demanding commercial kitchen environments.
13 1/8" Swivel Nozzle with 2.2 GPM Aerator: Extended swing nozzle provides ample reach for large woks and stock pots, while the aerator outlet delivers a controlled 2.2 GPM (8.33 L/min) flow rate.
1/4 Turn Compression Cartridge with Spring Check: Quarter-turn operation ensures fast, precise on/off control, and the built-in spring check helps prevent backflow for added safety and code compliance.
4" Wrist-Action Handle: Oversized 4-inch wrist handle allows effortless operation with wet or gloved hands, reducing operator fatigue during high-volume service.
1/2" BSPT Female Inlet: British Standard Pipe Thread inlet for straightforward connection in commercial installations requiring BSPT fittings.
Wide Operating Range: Rated for pressures from 20 to 125 psi (1.38 to 8.62 bar) and temperatures from 40°F to 140°F (4.44°C to 60°C), accommodating a broad range of commercial plumbing systems.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 (low-lead), and meets ADA ANSI/ICC A117.1 requirements for compliance-sensitive commercial installations.

T&S Brass B-0579 Wall Mount Range Faucet with Aerator and 4-Inch Wrist Handle

$296.18~~$538.50~~

Detailed Description

The T&S Brass B-0579 is a heavy-duty wall mount range faucet engineered for commercial wok and Chinese range applications where high-volume, fast-fill performance is critical. Its polished chrome-plated brass body delivers lasting durability in demanding kitchen environments, while the 13 1/8-inch swivel nozzle provides the extended reach needed to fill large woks and stock pots with ease. A 1/4-turn compression cartridge with spring check valve ensures precise flow control and backflow prevention, and the 4-inch wrist-action handle allows effortless single-hand operation even with wet or gloved hands. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372, this faucet meets ADA requirements and is built to the rigorous standards expected in professional foodservice settings.

Product Details

2.2 GPM Aerator Nozzle

13 1/8 in. swivel nozzle with aerator delivers 2.2 GPM for fast, efficient filling of large woks and stock pots.

Heavy-Duty Brass Construction

Polished chrome plated brass body with low-lead construction built to withstand demanding commercial kitchen environments.

Wrist-Action Handle Control

4 in. wrist-action handle with 1/4-turn compression cartridge and spring check for smooth, precise operation even with wet or gloved hands.

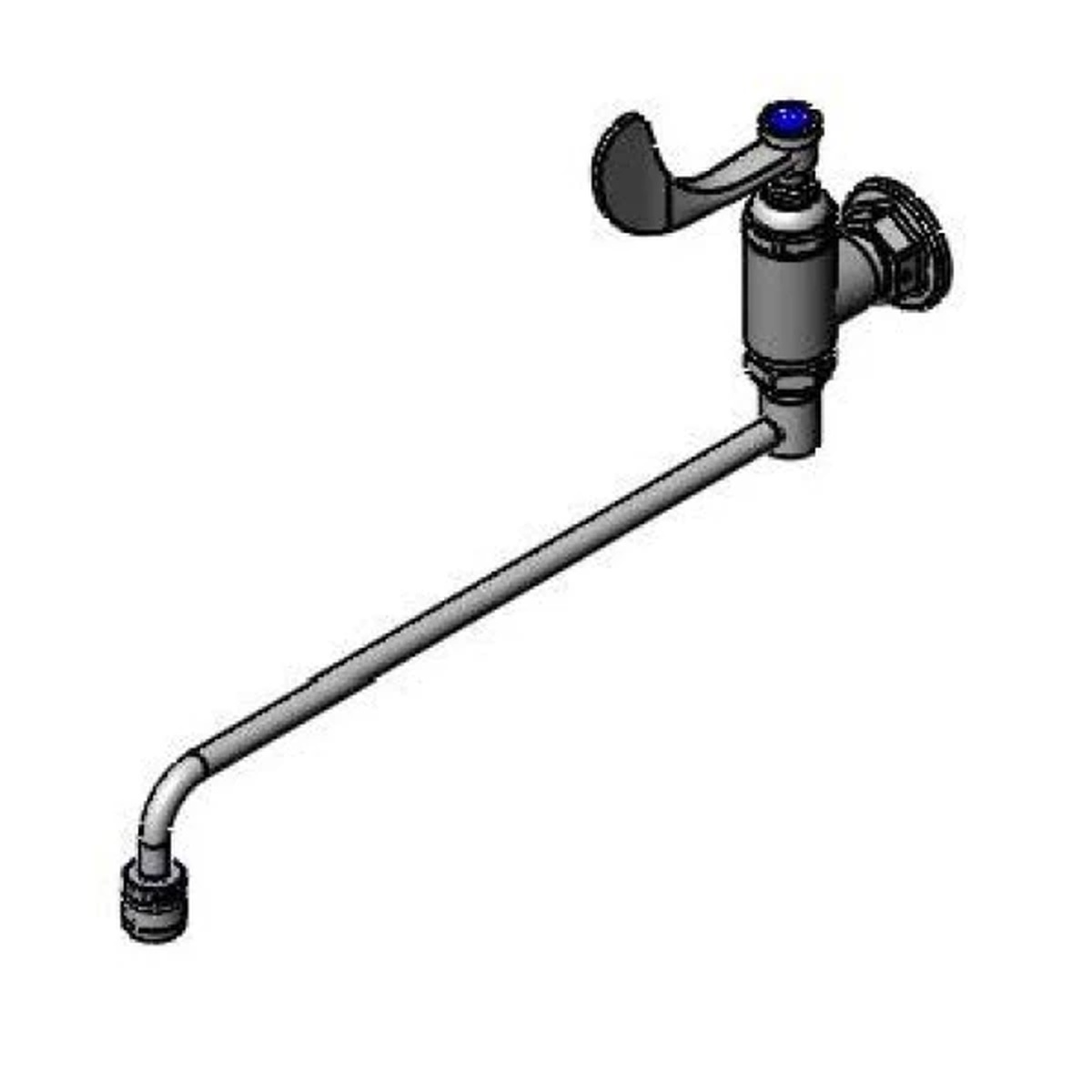

T&S Brass B-0579 wall mount range faucet with 13-inch swing nozzle and 4-inch wrist-action handle

Wall Mount Range Faucet Built for Commercial Kitchens

The T&S Brass B-0579 is a wall mount range faucet engineered for high-demand foodservice environments. It mounts via a slip flange and accepts a 1/2 in. BSPT female inlet for straightforward installation on Chinese range and wok stations.

Wall mount with slip flange for secure installation
1/2 in. BSPT female inlet for standard hookup
Single-hole body with compression cartridge and spring check valve
Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372
Meets ADA ANSI/ICC A117.1 requirements

Key Specifications

Nozzle Flow Rate2.2 GPM (8.33 L/min)

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Nozzle Length13 in. (330.2 mm) swivel

Temperature Range40°F - 140°F (4.44°C - 60°C)

Inlet Connection1/2 in. BSPT Female

CertificationsASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ADA

Ideal For

Chinese range stations Wok cooking lines Stock pot filling Commercial restaurants High-volume foodservice kitchens

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0579 delivers reliable, high-volume performance with the durability and compliance certifications commercial kitchens demand.

Purpose-built for wok ranges and pot-filling stations where reach and ease of operation are critical.
Spring check valve and 1/4-turn compression cartridge provide dependable flow control and backflow protection.
NSF 61, NSF 372, and ADA compliance ensure it meets the standards of regulated commercial foodservice environments.

Specifications

Model	B-0579
Brand	T&S Brass
Faucet Type	Wall Mount Range Faucet
Material	Brass (Polished Chrome Plated)
Body Configuration	Single Hole
Mount Type	Wall
Cartridge / Spindle	1/4 Turn Compression
Handle	4 in Wrist Action (101.6 mm)
Nozzle Length	13 in (330.2 mm), Swivel
Nozzle Outlet Type	Aerator
Flow Rate	2.2 GPM (8.33 L/min)
Inlet Connection	1/2 in BSPT Female
Special Feature	Spring Check
Max Pressure	125 psi (8.62 bar)
Min Pressure	20 psi (1.38 bar)
Max Temperature	140°F (60°C)
Min Temperature	40°F (4.44°C)
Finish	Polished Chrome
Weight	2.2 lbs
Certifications	ASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, ADA ANSI/ICC A117.1
Warranty	1-Year Limited Against Defects in Material & Workmanship
