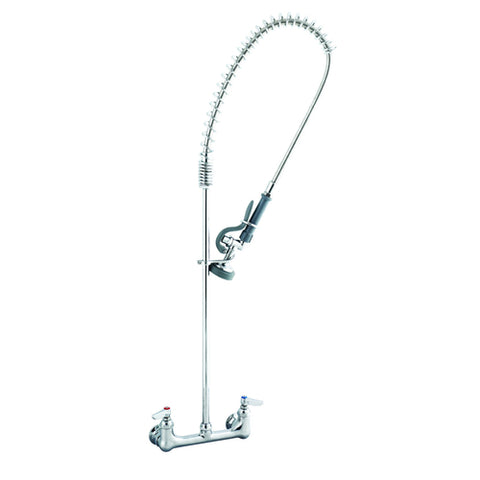

T&S Brass B-0133-CR EasyInstall Pre-Rinse Unit, Spring Action, Wall Mount, 8-Inch Centers

$421.85 ~~Sale price$767.00you save $345.15~~

Key Features:

EasyInstall 18" Riser: Simplified installation with a dedicated 18" riser designed to reduce setup time and complexity in commercial kitchen environments.
Polished Chrome Plated Brass Construction: Full brass body, riser, and spray valve body with a polished chrome finish deliver lasting durability and a professional appearance.
44" Flexible Stainless Steel Hose: Extra-long flexible hose with a heat-resistant gray handle and hold-down ring provides broad reach and operator comfort during heavy-use rinse operations.
1.15 GPM Spray Valve (B-0107): Water-efficient spray valve meets 2019 DOE PRSV Class II requirements, helping reduce water consumption without sacrificing rinse performance.
Quarter-Turn Cerama Cartridges with Check Valves: Ceramic cartridges offer smooth, precise quarter-turn control while built-in check valves prevent cross-flow contamination between hot and cold water supplies.
Wall Mount Base with 8" Centers: Wall-mounted configuration with 8" centers (adjustable from 7-3/4" to 8-1/4") and 1/2" NPT female eccentric inlets with 2" flanges allow flexible installation to suit a variety of sink configurations.
Lever Handles with Color-Coded Indexes: Ergonomic lever handles with hot/cold color-coded indicators enable quick, intuitive temperature adjustment during fast-paced service.
Overhead Spring and Spray Valve Holder Included: Spring-action retraction keeps the hose organized and off the work surface, improving workflow efficiency and reducing clutter.
Operating Range: Rated for water temperatures of 40°F to 140°F and pressures from 20 to 125 psi, accommodating standard commercial plumbing systems.
Multi-Standard Certified: Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9, and NSF 372 (lead-free compliance), meeting rigorous safety and performance standards for foodservice use.

Denver

Usually ready in 2-4 days

Reno

Usually ready in 2-4 days

T&S Brass B-0133-CR EasyInstall Pre-Rinse Unit, Spring Action, Wall Mount, 8-Inch Centers

$421.85~~$767.00~~

Detailed Description

The T&S Brass B-0133-CR is a professional-grade EasyInstall pre-rinse unit engineered for demanding commercial kitchen environments. Built around an 8-inch wall mount mixing faucet with a polished chrome-plated brass body, it features an 18-inch riser for simplified installation and a 44-inch flexible stainless steel hose paired with a 1.15 GPM spray valve and overhead spring for intuitive, retractable use. Quarter-turn Cerama cartridges with integrated check valves prevent cross-flow contamination, while lever handles with color-coded indexes provide fast, precise temperature control. This unit is certified to ASME A112.18.1/CSA B125.1, NSF 61 Section 9, and NSF 372, and is 2019 DOE PRSV Class II compliant, making it a code-ready choice for any professional foodservice installation.

Product Details

EasyInstall Design

18" riser enables quick, straightforward installation right out of the box.

Efficient Spray Performance

1.15 GPM spray valve with 44" flexible stainless steel hose for controlled, effective rinsing.

Commercial-Grade Build

Polished chrome plated brass body with quarter-turn Cerama cartridges built to withstand heavy use.

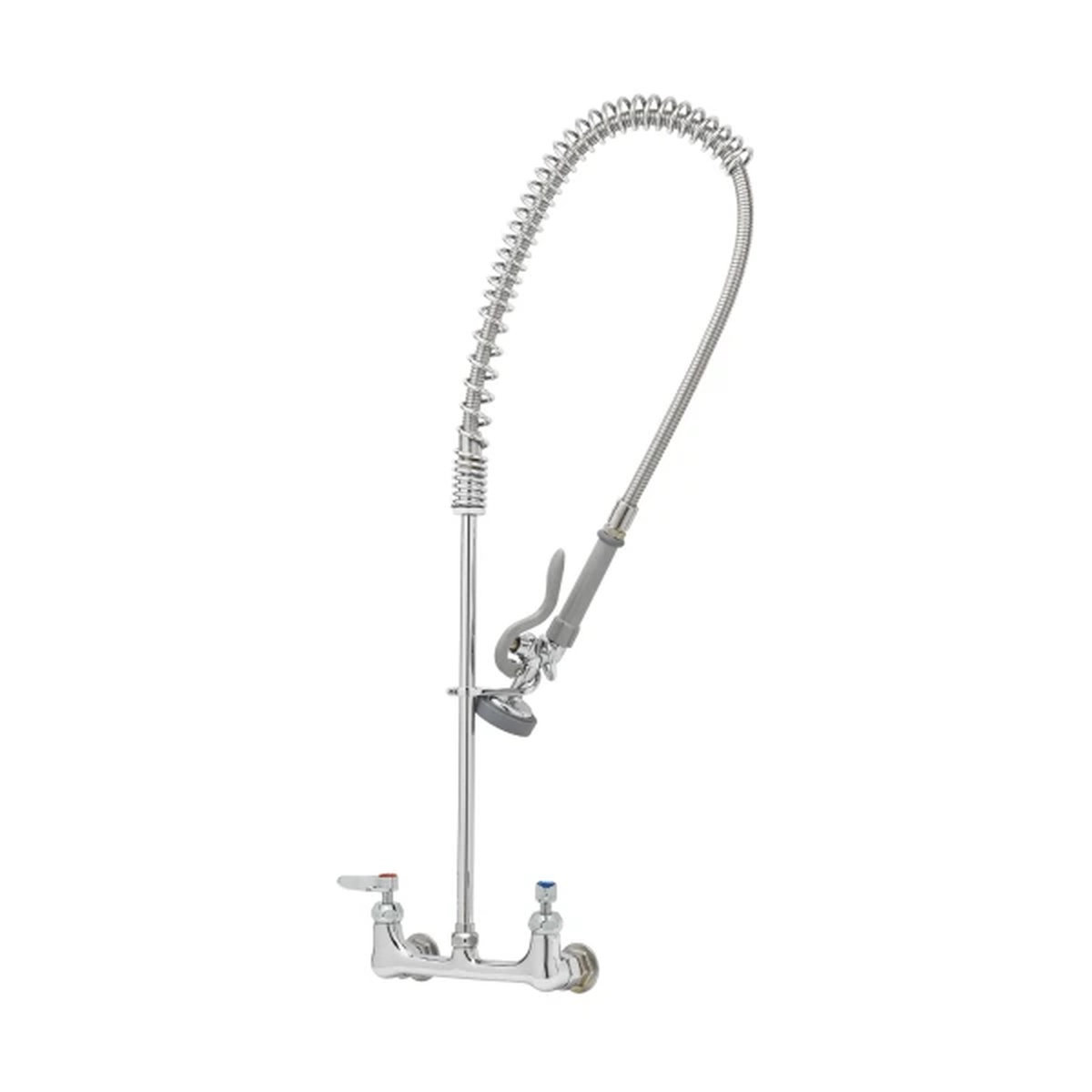

T&S Brass B-0133-CR EasyInstall pre-rinse unit with wall mount base, 18-inch riser, overhead spring, 44-inch flexible stainless steel hose, and spray valve in polished chrome

Spring-Action Pre-Rinse Unit Built for Commercial Kitchens

The T&S Brass B-0133-CR is a wall-mount, spring-action pre-rinse unit designed for demanding foodservice environments. Its overhead spring automatically retracts the hose, keeping the workspace clear and reducing wear on the hose assembly.

8" wall mount mixing faucet with polished chrome plated brass body
Overhead spring with spray valve holder for automatic hose retraction
44" flexible stainless steel hose with heat-resistant handle and hold-down ring
Lever handles with color-coded indexes for hot and cold identification

Key Specifications

Spray Valve Flow Rate1.15 GPM (4.35 L/min)

Adjustable Centers7 3/4" to 8 1/4"

Temperature Range40°F – 140°F (4.44°C – 60°C)

Water Pressure Range20 – 125 psi (1.38 – 8.62 bar)

Inlet Connection1/2" NPT Female with 2" flanges

CertificationsASME A112.18.1/CSA B125.1, NSF 61-Section 9, NSF 372, 2019 DOE PRSV Class II

Performance at a Glance

1.15

GPM Spray Valve

44"

Flexible Stainless Steel Hose

125 psi

Max Water Pressure

Ideal For

Commercial Restaurants Cafeteria Dishwashing Stations Hotel & Banquet Kitchens High-Volume Food Service Operations Institutional Kitchens

From the Cresco Resco Team

Why You'll Love It

The T&S Brass B-0133-CR brings together reliable performance, durable materials, and smart engineering in a wall-mount pre-rinse unit built to handle the rigors of commercial kitchen life.

Perfect for high-volume kitchens that need a dependable, quick-setup pre-rinse solution with the EasyInstall 18" riser.
Quarter-turn Cerama cartridges with built-in check valves prevent cross-flow contamination and ensure long-lasting, smooth operation.
NSF-certified and DOE 2019 PRSV Class II compliant, meeting strict standards for safety, lead content, and water conservation.

Specifications

Model Number	B-0133-CR
Brand	T&S Brass
Type	EasyInstall Pre-Rinse Unit, Spring Action
Mount Type	Wall Mount
Centers	8 in (203.2 mm); Adjustable 7 3/4" to 8 1/4"
Body Material	Polished Chrome Plated Brass
Finish	Polished Chrome
Handle Type	Lever with Color-Coded Indexes
Cartridge / Spindle	Quarter-Turn Cerama (Ceramic)
Check Valves	Yes (prevents water cross flow)
Inlet Connection	1/2 in NPT Female Eccentric Inlets with Ø 2" Flanges
Riser	18 in EasyInstall Riser
Hose	44 in Flexible Stainless Steel Hose with Heat-Resistant Handle and Hold-Down Ring
Spray Valve Model	B-0107
Spray Valve Flow Rate	1.15 GPM (4.35 L/min)
Pressure Range	20 - 125 psi (1.38 - 8.62 bar)
Temperature Range	40°F - 140°F (4.44°C - 60°C)
Weight	11.1 lbs
Faucet Height	33 5/16 in
Faucet Width	12 5/8 in
Certifications	ASME A112.18.1/CSA B125.1, NSF 61 Section 9, NSF 372, 2019 DOE PRSV Class II Compliant
