American Range

American Range AR-36G-4B 60" Heavy Duty Gas Restaurant Range with 4 Open Burners, 36" Griddle, and Dual Standard Ovens

$8,721.00 ~~Sale price$18,360.00you save $9,639.00~~

Key Features:

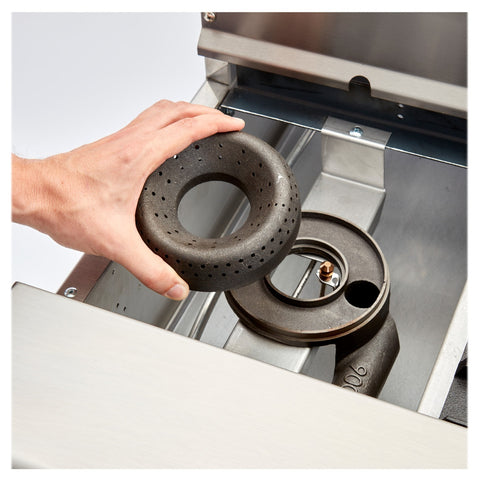

4 High-Output Open Burners at 32,000 BTU/hr Each: Heavy-duty sectioned cast iron top grates deliver even heat distribution, while the two-piece anti-clog lift-off burner heads simplify cleaning and maintenance without tools.
36" Highly Polished Thick Steel Griddle (20,000 BTU/hr per Zone): One steel tube burner for every 12" of griddle surface, each individually controlled by a manual valve, with a stainless steel spatula-width grease trough, landing ledge, and 3" wide grease drawer.
Dual Standard Ovens at 35,000 BTU/hr Each: Porcelain enamel interior on bottom, sides, back, and door liner for easy cleaning; oven cavity measures 26-1/2"W x 22-1/2"D x 13-1/2"H and comes with two racks per oven; thermostat adjusts from 250°F to 500°F.
100% Safety Gas Shut-Off with Matchless Push-Button Ignition: Standing pilot with push-button ignition provides instant, reliable light-off while the 100% safety pilot prevents dangerous gas buildup in the oven.
All Stainless Steel Exterior with Heavy Gauge Welded Frame: Durable stainless steel front, sides, and 6" deep front landing ledge resist corrosion and simplify sanitation in demanding commercial kitchen environments.
Flexible Back Riser Configuration: Choose from a high back with shelf, high back only, or 6" stub back at no additional charge to match your kitchen's ventilation and workspace setup.
Removable Stainless Steel Oven Door & Full-Width Drip Pan: Pull-off oven door enables thorough deep cleaning, while the removable full-width drip pan under the open burners captures grease and debris for fast cleanup.
6" Adjustable Chrome-Plated Legs: Allow precise leveling on uneven floors; optional swivel casters (two with front brakes) available for added mobility.
Total Output of 258,000 BTU (76 kW): Engineered for continuous heavy-duty service, with cETLus and ETL-Sanitation certifications; Made in USA.
Two-Year Limited Warranty, Parts and Labor: Backed by American Range's industry-leading two-year parts and labor warranty for commercial peace of mind.

Detailed Description

The American Range AR-36G-4B is a 60-inch heavy-duty gas restaurant range engineered for continuous, high-volume commercial kitchen use, combining a 36-inch manual-control griddle with four 32,000 BTU/hr open burners for a total output of 258,000 BTU (76 kW). The 1-inch thick highly polished steel griddle plate features one 20,000 BTU/hr tube burner per 12 inches of surface, individually controlled by manual valves, while heavy-duty sectioned cast iron top grates with two-piece anti-clog lift-off burner heads round out the cooking suite. Beneath the cooking surface sit two standard ovens at 35,000 BTU/hr each, lined with porcelain enamel interiors measuring 26-1/2W x 22-1/2D x 13-1/2H, outfitted with removable pull-off stainless steel doors, two racks per oven, and matchless push-button ignition with 100% safety gas shut-off. Built on a heavy gauge welded steel frame with an all-stainless exterior, 6-inch adjustable chrome-plated legs, and a choice of back riser configurations, this cETLus and ETL-Sanitation certified, Made in USA range is backed by a two-year limited parts and labor warranty.

Product Details

258,000 BTU Total Output

Four 32,000 BTU open burners plus 20,000 BTU/hr griddle burners deliver serious commercial firepower.

Precise Oven Temperature Control

Oven thermostat adjusts from 150°F to 500°F with two standard ovens each supplied with racks.

Heavy-Duty Commercial Construction

Heavy gauge welded frame, all stainless steel exterior, and cast iron top grates built for continuous rugged use.

Key Specifications

Total BTU258,000 BTU (76.0 kW)

Overall Dimensions60"W x 28-1/2"D x 56"H

Oven Interior26-1/2"W x 22-1/2"D x 13-1/2"H

Oven Temp Range150°F to 500°F

Burners4 open burners at 32,000 BTU each

Warranty2-Year Limited Parts and Labor

CertificationscETLus, ETL-Sanitation, Made in USA

Griddle36" griddle, 1" thick plate, manual controls

Performance at a Glance

258K

Total BTU Output

36"

Griddle Plate Width

60"

Overall Width

Open Burners

Standard Ovens

500°F

Max Oven Temp

Ideal For

High-volume restaurants Fast-casual kitchens Diners and cafeterias Hotels and banquet halls Catering operations Busy commercial kitchens

From the Cresco Resco Team

Why You'll Love It

The American Range AR-36G-4B is a 60-inch heavy-duty commercial gas range that delivers unmatched output and versatility for demanding kitchen environments.

Built for high-traffic restaurants and professional kitchens that need continuous, reliable performance.
The combination of a 36" manual-control griddle and four 32,000 BTU open burners on a single unit maximizes cooking versatility without sacrificing footprint.
cETLus and ETL-Sanitation certified with a 2-year limited warranty, backed by an all-stainless exterior and Made in USA quality.

Specifications

Model	AR-36G-4B
Brand	American Range
Series	Heavy Duty Restaurant Range
Overall Dimensions	60" W x 28-1/2" D x 56" H
Cooking Surface Height	36"
Fuel Type	Gas (Natural Gas or Liquid Propane)
Total BTU/hr	258,000
Total kW	76.0 kW
Gas Inlet Size	3/4"
Installation Type	Freestanding
Controls	Manual
Number of Open Burners	4
Open Burner BTU/hr (each)	32,000
Burner Type	Open, two-piece lift-off anti-clog design
Burner Grates	Heavy-duty sectioned cast iron
Griddle Width	36"
Griddle Plate Thickness	1"
Griddle BTU/hr (per burner)	20,000 (one burner per 12")
Griddle Grease Drawer Width	3" (76 mm)
Number of Ovens	2 Standard Ovens
Standard Oven BTU/hr (each)	35,000
Oven Interior Dimensions	26-1/2" W x 22-1/2" D x 13-1/2" H
Oven Thermostat Range	250°F - 500°F
Oven Interior Finish	Porcelain enamel (bottom, sides, back, and door liner)
Oven Door	Removable stainless steel, pull-off for easy cleaning
Oven Racks Included (per oven)	2
Rack Positions per Oven	5
Oven Ignition	Matchless push-button ignition (standing pilot); 100% safety gas shut-off
Exterior	Stainless steel front, sides, and 6" deep front landing ledge
Frame	Heavy gauge welded steel
Legs	6" adjustable chrome-plated legs
Back Riser Options	6" stub back, high riser, or high riser with shelf (no charge)
Drip Pan	Removable full-width
Base Options	Standard oven, convection oven, or storage base
Certifications	cETLus, ETL-Sanitation
Origin	Made in USA
Warranty	2-Year Limited Parts & Labor
