American Range

American Range AR-24G-2B Commercial Range

$4,806.00 ~~Sale price$10,118.00you save $5,312.00~~

Key Features:

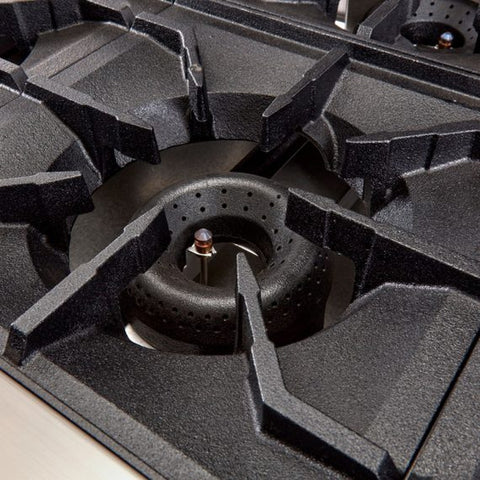

(2) 32,000 BTU/hr Open Burners with anti-clog lift-off burner heads and heavy-duty 12" x 12" cast iron top grates for reliable, high-output cooking across a wide range of cookware
24" Griddle with Dual 20,000 BTU Burners featuring a 1" thick steel plate for even heat distribution, individual manual control valves, and a 3" grease trough for quick cleanup
35,000 BTU Standard Oven with a spacious 26-1/2"W x 22-1/2"D x 13-1/2"H porcelain enamel interior, two chrome-plated racks, and a thermostat adjustable from 250°F to 500°F
139,000 Total BTU Output across burners, griddle, and oven, making this unit well-suited for high-volume commercial kitchen environments
Durable Stainless Steel Construction on the front, sides, back riser, and shelf, with a front landing ledge for quick access and mess containment between service
Spring-Assisted Counterbalanced Oven Door provides smooth, controlled opening and closing, reducing operator fatigue and improving safety during high-tempo service
Cool-to-the-Touch Burner Knobs and a manual gas shut-off valve enhance operational safety for kitchen staff
3/4" Rear Gas Connection with Pressure Regulator and standing pilots for both burners and oven ensure consistent, dependable ignition and fuel delivery
6" Adjustable Chrome-Plated Legs and a full-width removable drip pan simplify leveling and routine cleaning
Flexible Back Riser Options including high back with shelf, high back only, or 6" stub back to match your hood and ventilation setup
ETL, cETLus, and NSF Certified to meet applicable U.S. and Canadian electrical, sanitation, and food safety standards
2-Year Limited Warranty covering both parts and labor for added long-term peace of mind

American Range AR-24G-2B Commercial Range

$4,806.00~~$10,118.00~~

Detailed Description

The American Range AR-24G-2B is a 36 natural gas commercial range engineered for high-volume kitchens that demand both open-flame and flat-top cooking in a single, space-efficient unit. It pairs two 32,000 BTU open burners fitted with anti-clog lift-off heads and heavy-duty 12 x 12 cast iron grates with a 24 wide, 1-thick griddle plate powered by dual 20,000 BTU burners, delivering a combined 139,000 BTU of total output. A 35,000 BTU standard oven rounds out the package, offering a spacious 26.5W x 22.5D x 13.5H porcelain enamel interior, two chrome-plated racks, and a thermostat adjustable from 250 to 500 degrees Fahrenheit. Built for durability and ease of service, the unit features stainless steel construction throughout, a spring-assisted counterbalanced oven door, a full-width removable drip pan, and four 6 adjustable chrome-plated legs, all backed by a 2-year limited parts and labor warranty and certified to ETL, NSF, cETLus, and ETL-Sanitation standards.

Product Details

139,000 BTU Total Output

Two 32,000 BTU open burners plus a 40,000 BTU combined griddle and a 35,000 BTU standard oven deliver serious commercial cooking power.

Precise Oven Temperature Control

Oven thermostat adjusts from 250°F to 500°F, giving you the flexibility to bake, roast, and hold across a wide temperature range.

Commercial-Grade Construction

Stainless steel front, sides, and back riser with a porcelain enamel oven interior built to withstand the demands of a busy kitchen.

Key Specifications

Total BTU139,000 BTU/hr.

Oven Temp Range250°F to 500°F

Oven Interior26.5"W x 22.5"D x 13.5"H

Oven Racks2 chrome-plated racks included

Griddle24" wide, 1" thick plate, 2 x 20,000 BTU

Warranty2-year limited parts & labor

Performance at a Glance

139K

Total BTU/hr.

24"

Griddle Width

36"

Overall Width

Open Burners

35K

Oven BTU/hr.

450 lb

Unit Weight

What Makes This Range Stand Out

This American Range AR-24G-2B is engineered with the features that commercial kitchens rely on most:

Anti-clog lift-off burner heads make cleaning and maintenance fast and straightforward
Heavy-duty 12" x 12" cast iron top grates support a wide range of cookware
Spring-assisted, counterbalanced oven door opens and closes smoothly with minimal effort
Full-width removable drip pan simplifies grease and spill cleanup
Cool-to-the-touch burner knobs help keep operators safe during service
3" grease trough on the griddle channels runoff for faster cleanup
Four 6" adjustable chrome-plated legs for level installation on virtually any floor
Manual gas shut-off valve and 3/4" rear gas connection with pressure regulator
Certifications: ETL, NSF, cETLus, ETL-Sanitation

Ideal For

Full-service restaurants High-volume diners Breakfast and brunch kitchens Catering operations Fast-casual restaurants

From the Cresco Resco Team

Why You'll Love It

The American Range AR-24G-2B packs a versatile combination of open-burner and griddle cooking into a compact 36" footprint, backed by 139,000 BTU of total output and built to commercial standards.

Perfect for kitchens that need both open-flame and flat-top cooking in a single unit without sacrificing counter space.
Stainless steel construction, porcelain enamel oven interior, and NSF/ETL certifications make it a dependable long-term investment.
Pair with a compatible hood system and consider optional back riser configurations -- high back with shelf, high back, or 6" stub back -- to customize your line setup.

Specifications

Model	AR-24G-2B
Brand	American Range
Gas Type	Natural Gas
Overall Width	36"
Overall Depth	28 1/2"
Overall Height	56"
Weight	450 lbs
Total BTU/hr	139,000 BTU
Number of Open Burners	2
Open Burner BTU/hr (each)	32,000 BTU
Burner Type	Open, Lift-Off
Burner Grates	Heavy-duty cast iron, 12" x 12"
Griddle Width	24"
Griddle BTU/hr	2 x 20,000 BTU (manual control valve per burner)
Griddle Plate Thickness	1"
Griddle Grease Trough	3"
Number of Ovens	1 (Standard)
Standard Oven BTU/hr	35,000 BTU
Oven Interior Dimensions	26 1/2"W x 22 1/2"D x 13 1/2"H
Oven Temperature Range	250°F - 500°F
Oven Racks Included	2 (chrome-plated)
Rack Positions per Oven	5
Oven Interior	Porcelain enamel
Controls	Manual
Ignition	Standing pilots
Gas Inlet Size	3/4" (rear connection)
Legs	6" adjustable chrome-plated legs
Construction	Stainless steel front, sides, back riser, and shelf
Back Riser	High back with shelf
Installation Type	Freestanding
Application	Heavy Duty
Certifications	ETL, NSF, cETLus, ETL-Sanitation
Warranty	2-Year Limited Parts & Labor
