ADVANCE TABCO

Advance Tabco 93-63-54-18L 83-Inch Three Compartment Sink with Left Drainboard

$5,632.00 ~~Sale price$9,274.00you save $3,642.00~~

Key Features:

3-compartment fabricated sink constructed from 16 gauge, Type 304 stainless steel for durability and corrosion resistance in demanding commercial kitchen environments
18" drainboard on the left side provides dedicated workspace for pre-rinse and post-wash staging, with a tile edge for seamless countertop installation
One-piece deep drawn sink bowls with integral splash and a large, liberal 3" radius for thorough cleaning and simplified sanitation
All TIG welded construction with welded areas blended to match adjacent surfaces and finished to a consistent satin finish, meeting NSF standards
Stainless steel gussets welded to a die-embossed reinforcing channel, plus welded leg assembly placement that delivers direct column load support for maximum stability under heavy use
1 5/8" diameter tubular stainless steel legs with 1" stainless steel adjustable bullet feet for precise leveling on uneven floors
Plumbing-ready configuration: faucet holes on 8" centers, 1/2" IPS hot and cold supply connections, and 1 1/2" IPS stainless steel basket-type waste drains
Overall dimensions of 83" L x 31" W x 42" H, making it suitable for standard commercial warewashing station layouts

Detailed Description

The Advance Tabco 93-63-54-18L is a heavy-duty three compartment fabricated sink designed for demanding commercial kitchens. Constructed from 16 gauge type 304 stainless steel with an 8-inch high backsplash, it delivers long-lasting corrosion resistance and a professional satin finish. The one-piece deep drawn sink bowls feature a large 3-inch radius for easy cleaning, and the 18-inch left-hand drainboard provides generous workspace for pre-rinsing and dish staging. All-TIG welded construction with blended seams ensures structural integrity, while 1-5/8-inch tubular stainless steel legs with adjustable bullet feet offer solid, level support on any floor. NSF certified, this sink meets the hygiene and sanitation standards required for food service operations.

Product Details

All-TIG Welded 304 Stainless Steel

16 gauge type 304 stainless steel with TIG-welded joints blended to a satin finish for seamless durability.

Deep-Drawn Sink Bowls

One-piece deep drawn bowls with a large 3" radius and tile edge for easy cleaning and fast drainage.

NSF Certified Commercial Grade

NSF-listed and built to commercial standards, making it ideal for professional foodservice operations.

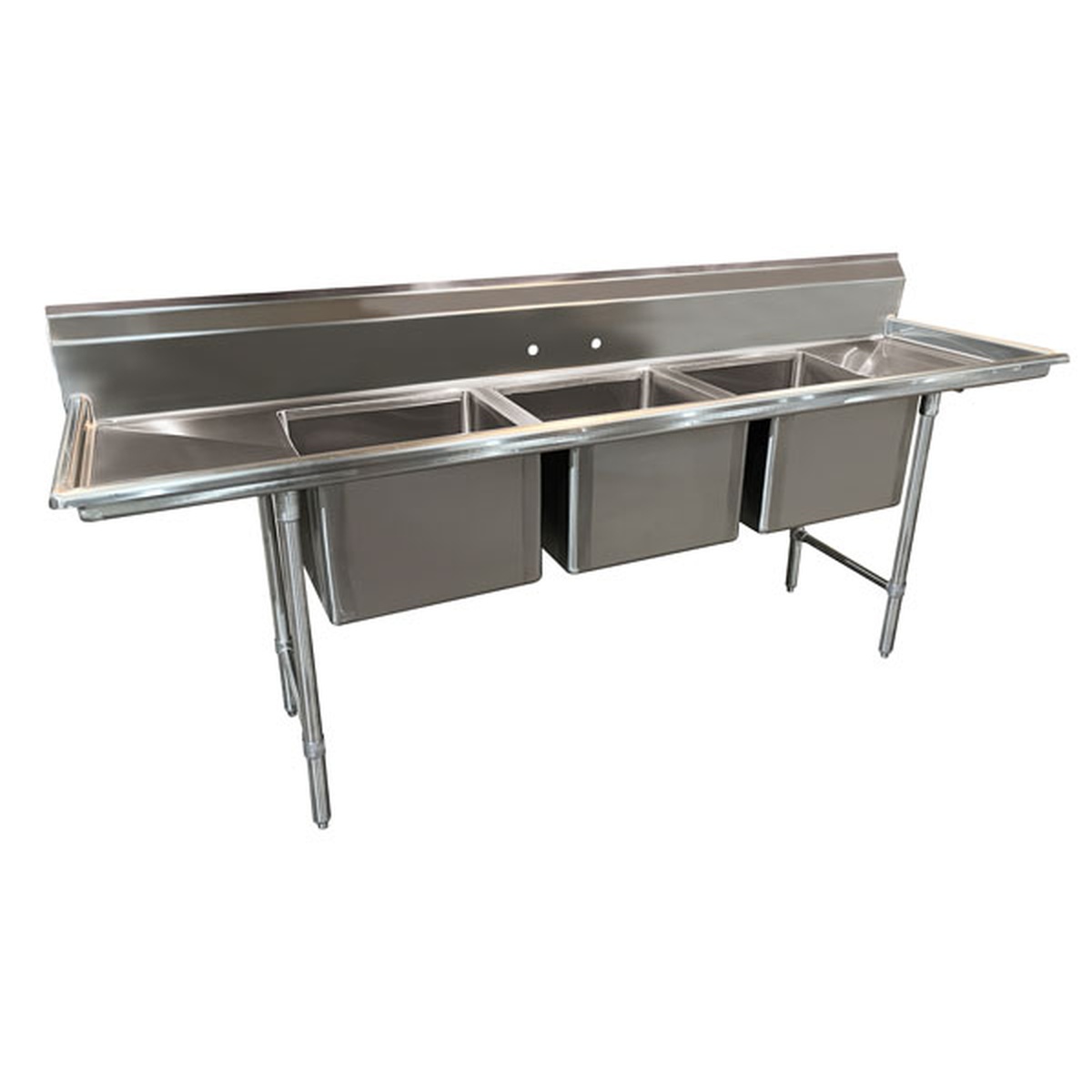

Advance Tabco 3-compartment stainless steel sink with drainboard, tubular legs, and backsplash

Built for Demanding Commercial Kitchens

The Advance Tabco 93-63-54-18L is a heavy-duty 3-compartment sink constructed from 16 gauge type 304 stainless steel. With an 18" left-hand drainboard and an 8" high backsplash, it delivers the workspace and sanitation capacity required in high-volume foodservice environments.

16 gauge, type 304 stainless steel throughout
8" high backsplash for splash protection
18" drainboard positioned on the left side
Overall dimensions: 31" front-to-back x 83" left-to-right x 42" height

Key Specifications

Compartments3 compartments

Gauge16 gauge, type 304 stainless steel

Overall Dimensions83"L x 31"W x 42"H

Drainboard18" left-hand drainboard

Connections1/2" IPS hot & cold, faucet holes on 8" centers

Drain1-1/2" IPS stainless steel basket type waste drain

Ideal For

Restaurants & Cafeterias Bars & Breweries Catering Kitchens School & Institutional Kitchens Healthcare Foodservice

Construction Highlights

Tile edge design for ease of installation against walls or counters
Stainless steel gussets welded to a die-embossed reinforcing channel for added rigidity
1-5/8" diameter tubular stainless steel legs with 1" adjustable bullet feet for leveling on uneven floors
Welded leg assembly placement ensures stability and direct support of column load
All welded areas blended to match adjacent surfaces and finished to a satin appearance

From the Cresco Resco Team

Why You'll Love It

The Advance Tabco 93-63-54-18L delivers professional-grade, NSF-certified sanitation infrastructure built to handle the daily demands of any commercial kitchen.

Perfect for high-volume operations that require a durable, code-compliant 3-compartment sink with integrated drainboard workspace.
All-TIG welded 16 gauge type 304 stainless steel construction ensures longevity and a sanitary, easy-to-clean surface.
Pairs seamlessly with commercial faucets via standard 8" center faucet holes and 1/2" IPS hot and cold water connections.

Specifications

Brand	Advance Tabco
Model	93-63-54-18L
Series	Regaline
Type	3-Compartment Fabricated Sink
Number of Compartments	3
Drainboard Location	Left
Drainboard Size	18"
Overall Length (Left to Right)	83"
Overall Width (Front to Back)	31"
Overall Height	42"
Backsplash Height	8"
Material	Type 304 Stainless Steel
Gauge	16
Construction	TIG Welded
Leg Diameter	1 5/8" Tubular Stainless Steel
Adjustable Feet	1" Stainless Steel Bullet Feet
Drain	1 1/2" IPS Stainless Steel Basket Type Waste Drain
Water Connections	1/2" IPS Hot & Cold
Faucet Hole Centers	8"
Weight	271 lbs
Certification	NSF
