ADVANCE TABCO

Advance Tabco 93-3-54-18L Regaline 3-Compartment Deep Drawn Sink with 18" Left-Hand Drainboard

$4,918.00 ~~Sale price$8,097.00you save $3,179.00~~

Key Features:

Regaline 3-Compartment Design with Left-Hand Drainboard: Features three 16"W x 20" front-to-back x 12" deep sink bowls with an 18" left-hand drainboard, delivering a total overall footprint of 27" F/B x 77" L/R for efficient high-volume warewashing workflows.
16 Gauge Type 304 Stainless Steel Construction: Built from heavy-duty 16 gauge 304 stainless steel throughout for exceptional corrosion resistance and long-term durability in demanding commercial kitchen environments.
One-Piece Deep Drawn Sink Bowls: Seamless, one-piece deep drawn bowls with integrated splash eliminate crevices and seams that trap debris, simplifying sanitation and reducing maintenance time.
All TIG Welded Construction: Fully TIG welded joints are blended and finished to a satin sheen to match adjacent surfaces, ensuring structural integrity and a clean, professional appearance.
Reinforced Leg Assembly for Superior Stability: Welded 1 5/8" diameter tubular stainless steel legs, positioned to directly support column load requirements, are reinforced with stainless steel gussets welded to a die-embossed reinforcing channel for maximum rigidity.
8"H Backsplash with Tile Edge: Tall 8" backsplash protects walls from water and splash, while the tile edge design simplifies installation against tiled surfaces.
Convenient Plumbing Features: Includes 1/2" IPS hot and cold water connections, faucet holes on 8" centers, and a 1 1/2" IPS stainless steel basket-type waste drain for straightforward plumbing hookup.
1" Adjustable Bullet Feet: Stainless steel adjustable bullet feet with 1" adjustment range provide leveling flexibility on uneven floors and maintain sanitary clearance from the floor.
Large 3" Interior Radius: Generously radiused corners inside each bowl minimize food and soil buildup, making cleaning faster and more thorough.
NSF Certified: Meets NSF standards, satisfying health code requirements for commercial foodservice operations.

Detailed Description

The Advance Tabco 93-3-54-18L is a heavy-duty Regaline series three-compartment sink built for demanding commercial warewashing operations. Constructed from 16-gauge type 304 stainless steel, it features one-piece deep drawn sink bowls with an integrated 8 backsplash for a seamless, hygienic surface. The 18 left-hand drainboard and open stainless steel leg frame with side crossrails provide a stable, space-efficient footprint measuring 77 overall left-to-right. All TIG-welded construction with blended, satin-finished seams ensures long-lasting durability and NSF compliance for food service environments.

Product Details

Heavy-Duty Construction

All TIG welded 16 gauge, type 304 stainless steel with welded areas blended to a satin finish.

NSF Certified

Meets commercial foodservice sanitation standards for professional kitchen environments.

Deep Drawn Sink Bowls

One-piece deep drawn bowls with 12" depth and a large 3" radius for thorough cleaning.

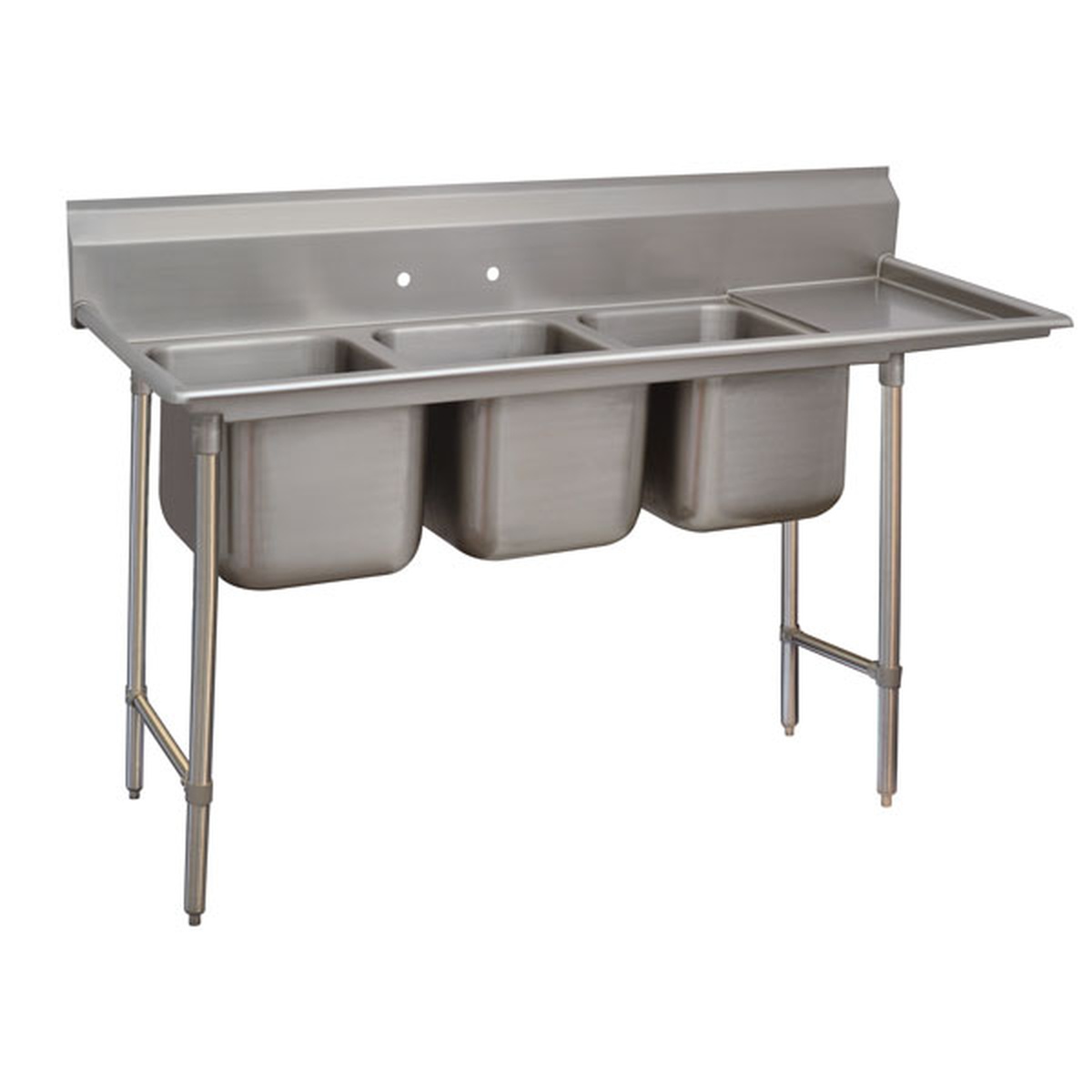

Advance Tabco 93-3-54-18L three-compartment stainless steel Regaline sink with drainboard and open tubular leg base

Regaline 3-Compartment Sink with Left-Hand Drainboard

The Advance Tabco 93-3-54-18L is a professional-grade 3-compartment Regaline sink built for demanding commercial kitchens. Featuring one-piece deep drawn sink bowls, a tile edge for ease of installation, and an 18" left-hand drainboard, this unit is designed for efficient dishwashing workflows.

16 gauge, type 304 stainless steel throughout
Three 20" front-to-back x 16"W x 12" deep sink compartments
18" left-hand drainboard
8" high backsplash for splash protection
Overall dimensions: 27" F/B x 77" L/R x 42"H

Key Specifications

Compartments3 bowls, 16"W x 20"D x 12" deep

Drainboard18", left-hand position

Gauge / Material16 gauge, 304 stainless steel

Base & FeetOpen frame with side crossrails, 1" adjustable bullet feet

Backsplash Height8" high

Overall Dimensions77"L x 27"D x 42"H

Ideal For

Full-service restaurants Commercial cafeterias Institutional kitchens High-volume dishwashing stations NSF-required food facilities

Plumbing & Installation Details

Tile edge design for ease of installation against walls
Faucet holes on 8" centers
1/2" IPS hot and cold water connections
1 1/2" IPS stainless steel basket-type waste drain
1 5/8" diameter tubular stainless steel legs for solid support
Stainless steel gussets welded to die-embossed reinforcing channel for added rigidity

From the Cresco Resco Team

Why You'll Love It

The Advance Tabco 93-3-54-18L delivers NSF-certified, commercial-grade performance in a thoroughly engineered 3-compartment sink built to handle the rigors of daily professional kitchen use.

A top choice for restaurants and institutions requiring a compliant, multi-bay warewashing station.
One-piece deep drawn bowls with a large 3" radius and all TIG welded seams for lasting hygiene and durability.
Left-hand 18" drainboard and adjustable bullet feet allow flexible, precise installation in any commercial layout.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Model Number	93-3-54-18L
Number of Compartments	3
Drainboard Location	Left-Hand
Drainboard Size	18"
Compartment Size (W x F/B)	16" x 20"
Sink Depth (Rim to Drain)	12"
Backsplash Height	8"
Overall Dimensions (L x D x H)	77" x 27" x 42"
Material	Type 304 Stainless Steel
Gauge	16 Gauge
Construction Style	Deep Drawn (One-Piece Bowls with Splash)
Welding Type	TIG Welded
Base Type	Open Frame with Side Crossrails
Leg Diameter	1-5/8" Tubular Stainless Steel
Feet	1" Adjustable Bullet Feet
Water Connections	1/2" IPS Hot & Cold
Faucet Hole Spacing	8" Centers
Drain Type	1-1/2" IPS Stainless Steel Basket-Type Waste Drain
Weight	173 lbs
Certifications	NSF
