Vulcan FEG

Vulcan 2TR45AF PowerFry3 2-Unit Natural Gas Floor Fryer System with Solid State Analog Controls and KleenScreen Filtration, 140,000 BTU

$36,384.00 ~~Sale price$75,970.00you save $39,586.00~~

Key Features:

2-Unit Fryer System with High-Capacity Output: Dual 45-50 lb fry tanks deliver a combined 90-100 lb oil capacity, backed by 140,000 total BTU (70,000 BTU per fryer) across a 14" x 14" frying area per unit - built for high-volume, sustained production.
Exclusive ThreePass Heat Transfer System: Vulcan's proprietary ThreePass technology passes heat to the oil three times for rapid, efficient heating, achieving 60.9% cooking efficiency and 72% thermal efficiency with flue temperatures under 750°F at maximum output.
Solid State Analog Controls with Dual Melt Modes: User-friendly analog control knob adjusts temperature from 200-390°F and maintains within 2°F of the set point for fast, consistent recovery. Two selectable melt modes per tank protect cold or solid shortening from thermal shock.
SoftStart Ignition System for Extended Oil Life: Gradually heats oil to protect shortening integrity, reducing degradation and lowering operating costs. Idle mode draws as little as 4,318 BTU per fryer, conserving energy during hold periods.
KleenScreen Built-In Filtration System: Integrated filtration circulates up to 8 gallons of oil per minute through a dual-sided mesh screen, removing sediment and impurities to extend oil life and maintain food quality. A ball-type drain valve prevents blockage, and an interlock switch automatically cuts burner power during draining for added safety.
Hi-Limit Safety Shutoff: Automatically cuts gas supply and standing pilot if oil temperatures exceed safe limits, protecting both equipment and kitchen staff.
Large V-Shaped Cold Zone: Deep cold zone at the base of each fry tank collects crumbs and food particles below the active frying area, preventing debris from burning and significantly extending shortening life.
Heavy-Duty Stainless Steel Construction: Cabinet, fry tanks, and filter pan are all fabricated from commercial-grade stainless steel for durability and easy sanitation in demanding kitchen environments.
ENERGY STAR Certified: Meets ENERGY STAR efficiency standards, reducing operating costs and qualifying for potential utility rebates.
Mobile and Serviceable Design: Mounted on four 6" casters for easy repositioning and cleaning access. Includes 4 fry baskets, a tank brush, and a clean-out rod. A 1-1/4" full-port drain valve enables fast, hassle-free oil removal.
Strong Warranty Coverage: Backed by a 1-year limited parts and labor warranty plus a 10-year fry tank warranty for long-term reliability assurance.

Detailed Description

The Vulcan 2TR45AF PowerFry3 is a two-unit natural gas floor fryer system engineered for high-volume commercial kitchens, pairing dual 45-50 lb. fry tanks for a combined 90-100 lb. oil capacity and 140,000 total BTU of output across two 14 x 14 frying areas. Vulcan's exclusive ThreePass heat transfer technology passes heat through the oil three times per cycle, achieving 60.9% cooking efficiency and 72% thermal efficiency, while the SoftStart ignition system gradually heats oil to extend shortening life and reduce operating costs. Solid state analog controls maintain precise temperatures between 200-390°F, reacting within 2°F of the set point, and two selectable melt modes per tank protect oil from thermal shock during startup. The integrated KleenScreen filtration system circulates up to 8 gallons of oil per minute through a dual-sided mesh screen, removing sediment to preserve oil quality and food consistency, complemented by a hi-limit safety shutoff and a large V-shaped cold zone that prevents debris from burning in the fry tank. Built from heavy-duty stainless steel and mounted on 6 casters for easy mobility, the 2TR45AF is backed by a 1-year limited parts and labor warranty and a 10-year fry tank warranty.

Product Details

140,000 BTU Total Output

Two 70,000 BTU tube-style burners deliver rapid heat recovery for high-volume frying.

Precise Temperature Control

Solid state analog controls maintain 200-390°F, reacting within 2°F of the set temperature.

KleenScreen Filtration

Built-in filtration system circulates 8 gal. of oil per minute, extending oil life and food quality.

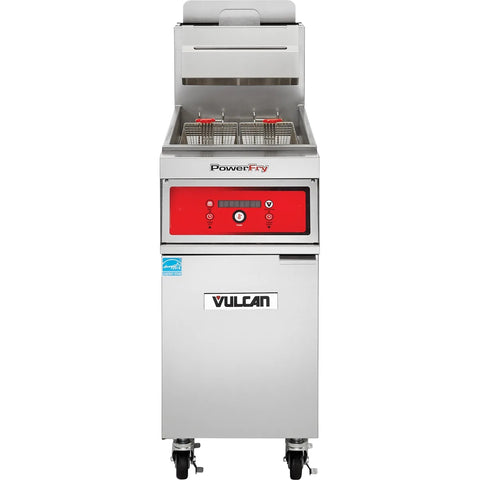

Vulcan PowerFry3 single gas fryer unit front view with digital controls and twin fry baskets

ThreePass Heat Transfer Technology

Vulcan's exclusive ThreePass system passes heat through the oil three times per cycle, yielding 60.9% cooking efficiency and 72% thermal efficiency - keeping flue temperatures below 750°F at maximum production.

SoftStart ignition gradually heats oil to preserve shortening life
Idle mode operates at just 4,318 BTU per fryer to conserve energy
Hi-limit safety shut-off cuts gas if oil temperatures exceed safe levels
Large V-shaped cold zone captures crumbs to prevent burning

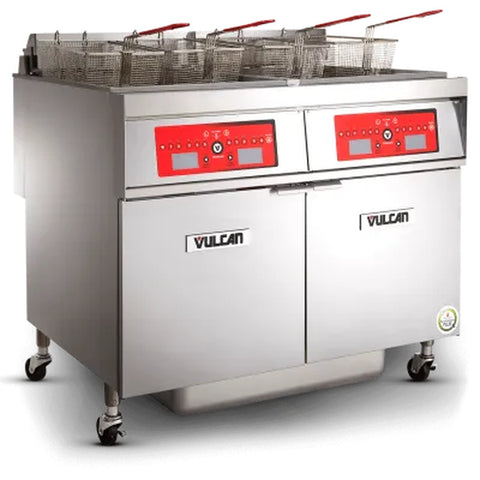

Vulcan 2TR45AF 2-unit PowerFry3 gas floor fryer system with dual control panels and four fry baskets

2-Unit Fryer System for Commercial Kitchens

The 2TR45AF pairs two PowerFry3 fryers into one integrated floor system, delivering 90-100 lb. of total oil capacity and 4 fry baskets ready to handle the demands of a busy service.

45-50 lb. oil capacity per fry pot (90-100 lb. total)
14" x 14" frying area per tank for generous batch sizes
Includes 4 fry baskets with rubber-coated handles
6" casters on both fryer and filtration system for easy mobility
1 1/4" full port drain valve for fast, hassle-free oil removal

Key Specifications

Total BTU140,000 BTU (70,000 per fryer)

Temperature Range200-390°F

Oil Capacity90-100 lb. total (45-50 lb. per unit)

Frying Area (per unit)14" x 14"

ControlsSolid State Analog with 2 Melt Modes

Overall Dimensions31" W x 30 1/8" D x 47 1/8" H

Why Choose the 2TR45AF

100 lb

Total Oil Capacity

140K

Total BTU Output

72%

Thermal Efficiency

From the Cresco Resco Team

Why You'll Love It

The Vulcan 2TR45AF PowerFry3 is a high-performance, two-unit natural gas fryer system engineered for busy commercial kitchens that demand consistent output and efficient operation.

Ideal for high-volume restaurants, fast-casual operations, and institutional foodservice that need reliable, back-to-back frying capacity.
The ThreePass heat transfer system and SoftStart ignition work together to maximize efficiency and extend oil life - reducing operating costs over time.
Pair with Vulcan's optional FRYMATE-VX15 add-on or connecting kit accessories to expand your frying lineup further.

Specifications

Model	2TR45AF
Series	PowerFry3™ TR Series
Type	Gas Floor Fryer, 2-Unit System
Power Source	Natural Gas
Total BTU	140,000 BTU
BTU Per Fryer	70,000 BTU
Burner Style	Tube Type
Number of Fry Pots	2
Oil Capacity (Per Unit)	45-50 lb.
Total Oil Capacity	90-100 lb.
Frying Area (Per Unit)	14" x 14"
Controls	Solid State Analog with 2 Selectable Melt Modes
Temperature Range	200-390°F
Number of Fry Baskets	4 (2 twin sets, one per fryer)
Filtration System	KleenScreen Plus Built-In Filtration
Filter Flow Rate	8 gal./min.
Filter Pan Capacity	70 lb.
Cabinet Material	Stainless Steel
Overall Dimensions (W x D x H)	31" x 30 1/8" x 50 3/4"
Weight	530 lb.
Electrical	120V / 60 Hz / 1 Phase / 6A
NEMA Plug Type	5-15P
Casters	(4) 6" Casters
Warranty	1-Year Limited Parts & Labor; 10-Year Fry Tank
