Vulcan 2TR45AF-LP PowerFry3 Liquid Propane 2-Unit Gas Floor Fryer System - 140,000 BTU

$36,384.00 ~~Sale price$75,970.00you save $39,586.00~~

Key Features:

2-Unit PowerFry3 System: Dual fryer configuration delivers a combined 90-100 lb. total oil capacity (45-50 lb. per tank) with a 14" x 14" frying area per unit, maximizing high-volume output in a 31" wide footprint.
140,000 BTU Liquid Propane Power: High-output LP gas burners provide rapid heat recovery, reacting within 2 degrees Fahrenheit of the set temperature for consistent frying performance during peak service.
Exclusive ThreePass Heat Transfer System: Vulcan's proprietary ThreePass technology circulates heat through the oil three times, yielding 60.9% cooking efficiency and 72% thermal efficiency while keeping flue temperatures below 750°F.
Solid State Analog Controls with Melt Modes: User-friendly analog control knob adjusts from 200-390°F with 2 selectable melt cycles per tank to gradually heat oil, extending shortening life and reducing energy consumption.
SoftStart Ignition System: Energy-saving electronic ignition gradually brings oil up to temperature, preserving oil quality and reducing BTU consumption during idle - each fryer idles at only 4,318 BTU.
KleenScreen PLUS Built-In Filtration: Integrated filtration system removes food particles and impurities from the oil to improve fry quality, extend oil life, and streamline daily maintenance. Includes a 1-1/4" full-port drain valve for quick oil removal.
Large V-Shaped Cold Zone: Cold zone at the bottom of each fry tank captures crumbs and debris away from the heat source, preventing premature oil degradation and reducing the frequency of oil changes.
Hi-Limit Safety System: Automatic hi-limit indicator shuts off the gas supply and standing pilot if oil temperatures exceed safe levels, protecting staff and equipment.
All Stainless Steel Construction: Stainless steel cabinet, front, sides, and fry tanks are built to withstand the demands of a heavy-duty commercial kitchen environment.
Mobile on 6" Casters: Adjustable casters (2 swivel locking, 2 non-locking) allow easy repositioning and cleaning access behind the unit.
ENERGY STAR Certified: Meets ENERGY STAR efficiency standards, helping operators reduce utility costs in high-volume frying applications.
Industry Certifications: CSA and NSF certified, ensuring compliance with commercial foodservice safety and sanitation standards.
Twin Fry Baskets Included: Each fryer comes equipped with twin fry baskets, ready for immediate production upon installation.

Detailed Description

The Vulcan 2TR45AF-LP PowerFry3 is a high-efficiency liquid propane floor fryer system built for demanding, high-volume commercial kitchens. It features two independent stainless steel fry vats with 45-50 lb. oil capacity each (90-100 lb. total), delivering 140,000 BTU through Vulcan's exclusive ThreePass heat transfer system for 60.9% cooking and 72% thermal efficiency. Solid state analog controls offer precise temperature management with fast recovery within 2 degrees Fahrenheit of set point, while the SoftStart ignition system extends oil life and conserves energy through selectable melt modes. The integrated KleenScreen PLUS filtration system removes impurities to improve food quality and reduce oil costs, and the rugged stainless steel cabinet and fry tanks are built to withstand the rigors of a busy professional kitchen.

Product Details

140,000 BTU High Output

ThreePass heat transfer system delivers 60.9% cooking and 72% thermal efficiency for rapid, consistent recovery.

Solid State Analog Control

Adjustable from 200 to 390 degrees Fahrenheit with fast recovery that reacts within 2 degrees of the set temperature.

KleenScreen PLUS Filtration

Built-in filtration removes oil impurities, extends shortening life, and keeps fried food quality at its peak.

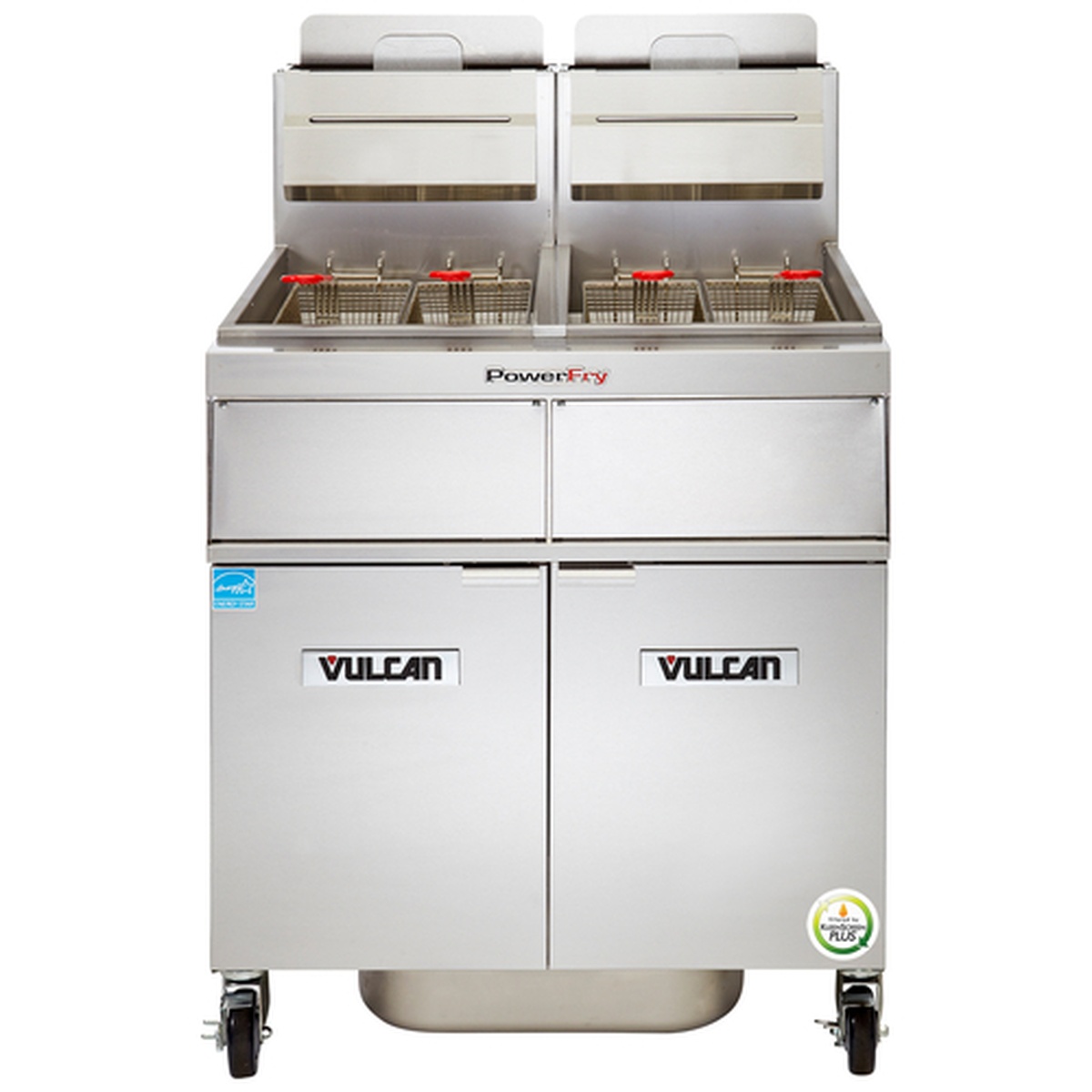

Vulcan 2TR45AF-LP PowerFry3 two-unit gas fryer system with twin baskets, stainless steel cabinet, and casters

Dual-Vat Power for High-Volume Kitchens

The Vulcan PowerFry3 2TR45AF-LP is a liquid propane, 2-unit floor fryer system designed for relentless commercial use. With two independent vats running simultaneously, it handles demanding output without sacrificing consistency.

45 to 50 lb oil capacity per vat (90 to 100 lb total system capacity)
Two twin fry baskets included per fryer for immediate use
Stainless steel cabinet and fry tanks built to endure busy kitchen environments
ENERGY STAR certified, CSA and NSF listed

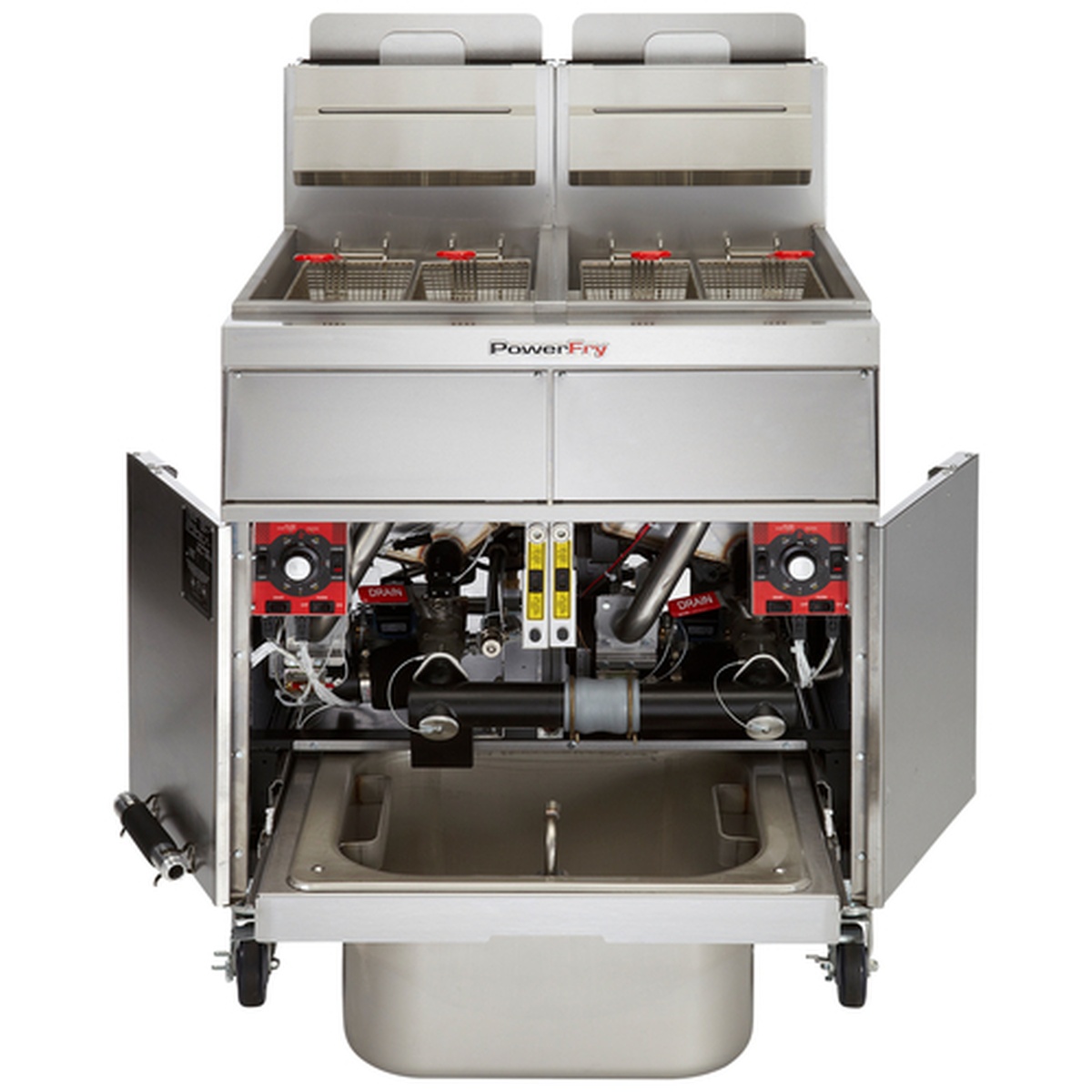

Vulcan 2TR45AF-LP fryer with cabinet doors open revealing internal KleenScreen filtration system and drain components

Engineered for Efficiency and Easy Maintenance

Open the cabinet doors and you will find a thoughtfully designed interior. The built-in KleenScreen PLUS filtration system and 1 1/4 inch full-port drain valve make oil management straightforward and fast.

SoftStart ignition gradually heats oil to preserve shortening life and reduce BTU consumption
Large V-shaped cold zone traps crumbs, preventing debris from burning and degrading oil
Hi-limit safety indicator shuts off gas if oil temperature exceeds safe thresholds
6-inch casters (2 swivel locking, 2 non-locking) enable easy repositioning for cleaning

Key Specifications

BTU Output140,000 BTU (LP)

Oil Capacity45-50 lb per vat / 90-100 lb total

Temperature Range200 to 390 degrees Fahrenheit

Dimensions (W x D x H)31" x 30 1/8" x 47 1/8"

Frying Area (per unit)14" x 14"

CertificationsENERGY STAR, CSA, NSF

From the Cresco Resco Team

Why You'll Love It

The Vulcan 2TR45AF-LP PowerFry3 combines commercial-grade durability with intelligent efficiency features that protect your oil investment and keep your kitchen moving at full speed.

Ideal for high-volume restaurants, quick-service operations, and busy commercial kitchens requiring maximum fried food output.
The proprietary ThreePass heat transfer system and SoftStart ignition set this unit apart by extending oil life while maximizing throughput.
Pairs seamlessly with Vulcan's filtration accessories and comes ready to fry with twin baskets included per fryer.

Specifications

Brand	Vulcan
Model	2TR45AF-LP
Product Type	Gas Floor Fryer System
Fuel Type	Liquid Propane (LP)
Total BTU	140,000 BTU
Number of Fryer Units	2
Oil Capacity (per unit)	45-50 lb.
Total Oil Capacity	90-100 lb.
Frying Area (per unit)	14" x 14"
Controls	Solid State Analog
Temperature Range	200°F - 390°F
Ignition	SoftStart Electronic Ignition
Heat Transfer System	ThreePass
Cooking Efficiency	60.9%
Thermal Efficiency	72%
Filtration System	KleenScreen PLUS (Built-In)
Drain Valve	1 1/4" Full Port
Fry Pot Material	Stainless Steel
Exterior Finish	Stainless Steel Front & Sides
Voltage	120V
Amperage	6A
Phase	1-Phase
Hertz	60 Hz
Height	47 1/8"
Width (Left to Right)	31"
Depth (Front to Back)	30 1/8"
Weight	530 lb.
Casters	6" Casters (2 Swivel Locking, 2 Non-Locking)
Certifications	ENERGY STAR, CSA, NSF
