Vulcan FEG

Vulcan 1GR35M-LP 35-40 lb. Liquid Propane Floor Gas Fryer - 90,000 BTU

$4,031.00 ~~Sale price$10,778.00you save $6,747.00~~

Key Features:

35-40 lb. Oil Capacity with 14" x 14" Frying Area: Single fry pot handles high-volume loads across a spacious frying surface, ideal for french fries, onion rings, chicken wings, and other breaded products.
90,000 BTU Liquid Propane Operation: Tube-style burner configuration delivers rapid heat recovery to maintain consistent frying temperatures during continuous back-to-back production, with no electrical hookup required.
200-400°F Temperature Range via Millivolt Snap-Action Thermostat: User-friendly millivolt controls operate independently of any electrical connection, providing reliable and precise temperature adjustment in both Fahrenheit and Celsius.
Full Stainless Steel Fry Tank and Cabinet Construction: Both the frypot and exterior cabinet are built from stainless steel for long-term durability and easy sanitation in demanding commercial kitchen environments.
V-Shaped Cold Zone for Extended Oil Life: The deep cold zone at the base of the fry tank captures crumbs and sediment away from the heat source, preventing burning and preserving oil quality over time.
Hi-Limit Safety Shutoff with Combination Gas Valve and Pilot Safety System: Automatic hi-limit shutoff cuts gas flow and the standing pilot if oil temperatures exceed safe levels, protecting both staff and equipment.
Twin Fry Baskets with Removable Stainless Steel Basket Hanger: Two baskets with plastic-coated handles allow simultaneous cooking of two different products, and the removable hanger lets food drain before plating.
Six 6" Adjustable Swivel Casters (2 Locking): Heavy-duty casters allow easy repositioning for cleaning and maintenance, while two locking casters secure the unit during operation; 36 1/4" working height suits standard kitchen configurations.
Flue Deflector and Earth Magnet Door-Closing Mechanism: The flue deflector prevents grease splash-back, while the earth magnet door closure keeps the cabinet securely shut during operation.
Includes Maintenance Accessories: Ships with a tank brush, crumb scoop, and clean-out rod to support routine cleaning and extend equipment service life.
1-Year Limited Parts and Labor Warranty; 10-Year Fry Tank Warranty: Long-term fry tank coverage reflects the durability of Vulcan's stainless steel construction and provides operators with confidence in their investment.

Detailed Description

The Vulcan 1GR35M-LP is a floor-model liquid propane gas fryer engineered for high-volume commercial kitchens that demand consistent output and long-term reliability. Its all-stainless-steel fry tank and cabinet house 90,000 BTU tube-style burners, delivering rapid heat recovery across a 200-400°F temperature range suitable for frying everything from french fries to bone-in chicken. The millivolt snap-action thermostat requires no electrical hookup, and a V-shaped cold zone at the base of the fry tank collects sediment away from the heat source to extend oil life and preserve food quality. Twin fry baskets, a removable stainless steel basket hanger, and included accessories (tank brush, crumb scoop, and clean-out rod) simplify both operation and daily maintenance, while four 6-inch swivel casters with two locking wheels keep the unit mobile yet stable on the line.

Product Details

90,000 BTU Output

Liquid propane tube burners deliver rapid heat recovery for high-volume frying.

Precise Temperature Control

Millivolt snap-action thermostat holds temperatures from 200 to 400 degrees F with no electric hook-up required.

Commercial-Grade Construction

Stainless steel fry tank and cabinet are built to endure the demands of a busy commercial kitchen.

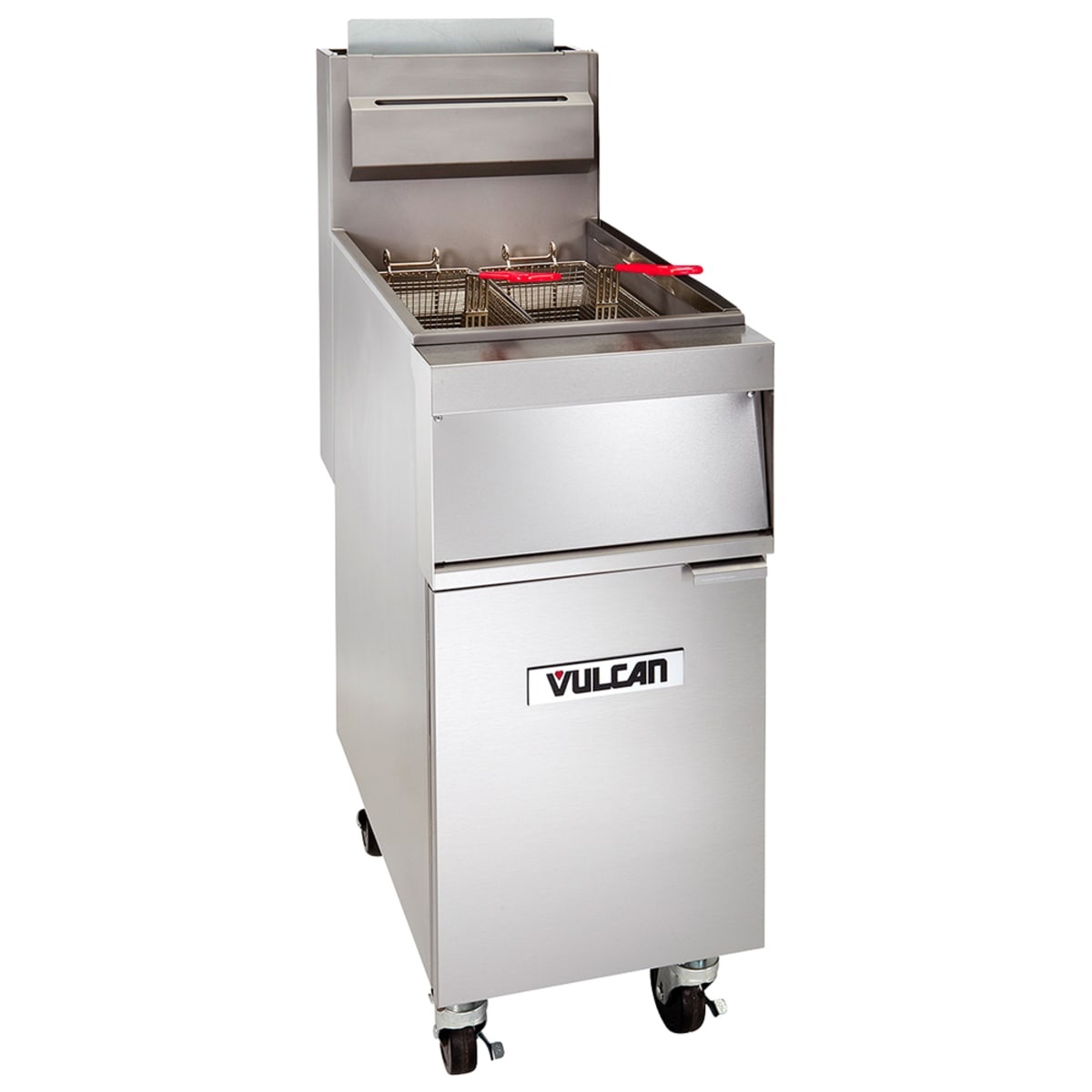

Vulcan 1GR35M-LP liquid propane floor fryer angled view with twin fry baskets on casters

Built for Back-of-House Performance

The Vulcan 1GR35M-LP is a freestanding liquid propane floor fryer engineered for consistent, high-output frying. Its 35-40 lb. oil capacity and 90,000 BTU tube-style burners keep production moving during the busiest rushes.

35-40 lb. oil capacity with 14" x 14" frying area
Twin fry baskets with plastic-coated handles included
Six-inch swivel casters for easy repositioning (2 locking, 2 non-locking)
36 1/4" working height for operator comfort

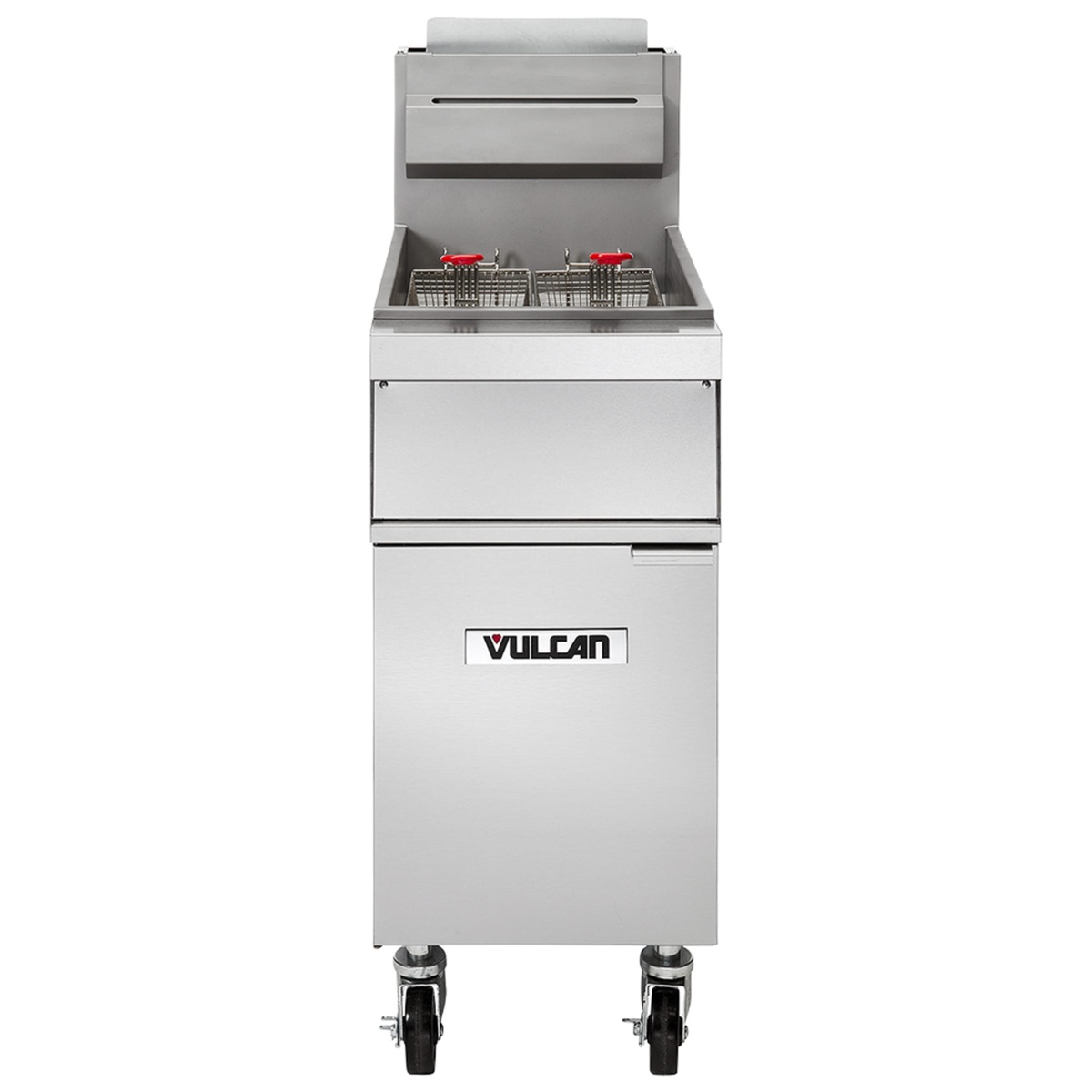

Vulcan 1GR35M-LP floor fryer front view showing dual fry baskets and stainless steel cabinet

Oil Life Extended, Food Quality Protected

A V-shaped cold zone at the base of the fry tank captures crumbs and sediment before they can burn, preserving oil quality and keeping every batch tasting its best.

V-shaped cold zone collects debris away from heat tubes
Flue deflector prevents splash back
Removable stainless steel basket hanger for drip-draining
Tank brush, crumb scoop, and clean-out rod included

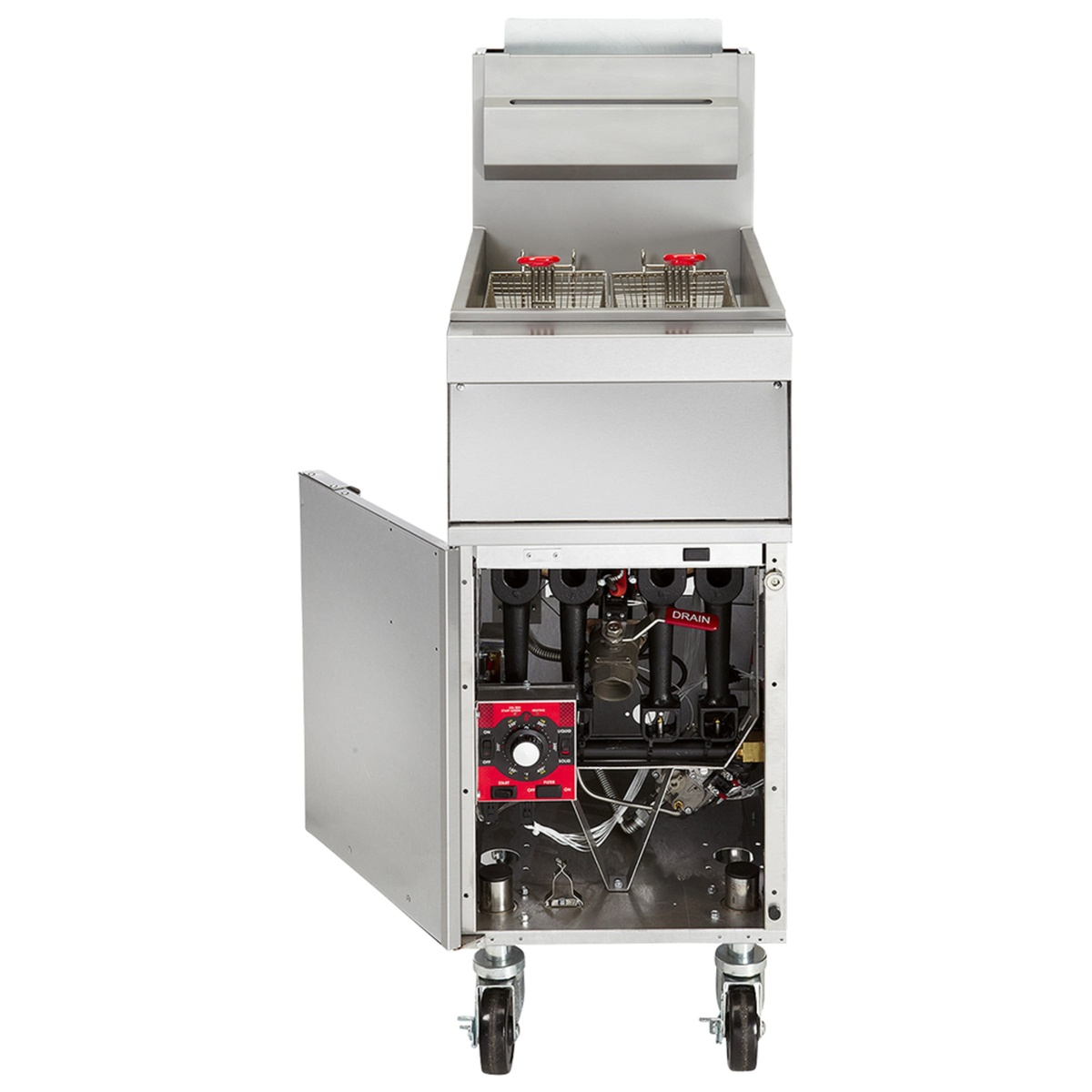

Vulcan 1GR35M-LP fryer with cabinet door open revealing millivolt controls, tube burners, and drain valve

Safety and Simplicity in Every Detail

Millivolt snap-action controls require no electrical connection, and a hi-limit shutoff automatically cuts the gas supply if oil temperatures climb too high. A combination gas shut-off valve and pilot safety system add another layer of operator protection.

Hi-limit shutoff shuts off gas and standing pilot if overheating occurs
Combination gas shut-off valve and pilot safety system
Earth magnet door-closing mechanism for a secure cabinet seal
Temperature readings available in both Fahrenheit and Celsius

Key Specifications

Oil Capacity35-40 lb.

BTU Output90,000 BTU

Temperature Range200-400°F

Fry Pots / Baskets1 pot / 2 twin baskets

ConstructionStainless steel tank and cabinet

Overall Dimensions15.5" W x 30.25" D x 47.125" H

From the Cresco Resco Team

Why You'll Love It

The Vulcan 1GR35M-LP delivers reliable, high-output propane frying in a compact, well-equipped floor model designed to handle the rigors of commercial kitchen operation.

Ideal for restaurants, fast-casual kitchens, and food service operations requiring consistent high-volume frying output.
Millivolt controls need no electrical connection, simplifying installation in LP-gas kitchens of any size.
Ships with twin fry baskets, a tank brush, crumb scoop, and clean-out rod so you can start frying right away.

Specifications

Brand	Vulcan
Model	1GR35M-LP
Type	Floor Model Gas Fryer
Gas Type	Liquid Propane (LP)
BTU Output	90,000 BTU
Oil Capacity	35-40 lb.
Temperature Range	200°F - 400°F
Fry Pot Style	Tube Type
Number of Fry Pots	1
Number of Fry Baskets	2 (Twin)
Split Pot	No
Controls	Millivolt Snap-Action Thermostat
Safety Features	Hi-Limit Shutoff; Combination Gas Shut-Off Valve & Pilot Safety System
Construction	Stainless Steel Fry Tank & Cabinet
Overall Dimensions (W x D x H)	15-1/2" W x 30-1/4" D x 47-1/8" H
Tank / Frying Area	14" W x 14" D
Basket Dimensions (W x D x H)	6-1/2" W x 13-1/4" D x 6" H
Working Height	36-1/4"
Casters	6" Adjustable Swivel Casters (2 Locking, 2 Non-Locking)
Gas Connection Size	1/2" and 3/4"
Drain Valve	1-1/4" Full Port
Basket Lifts	None
Filtration	None
Included Accessories	Tank Brush, Crumb Scoop, Clean-Out Rod, Removable Stainless Steel Basket Hanger
Warranty	1-Year Limited Parts & Labor; 10-Year Fry Tank
