CMA DISHMACHINES

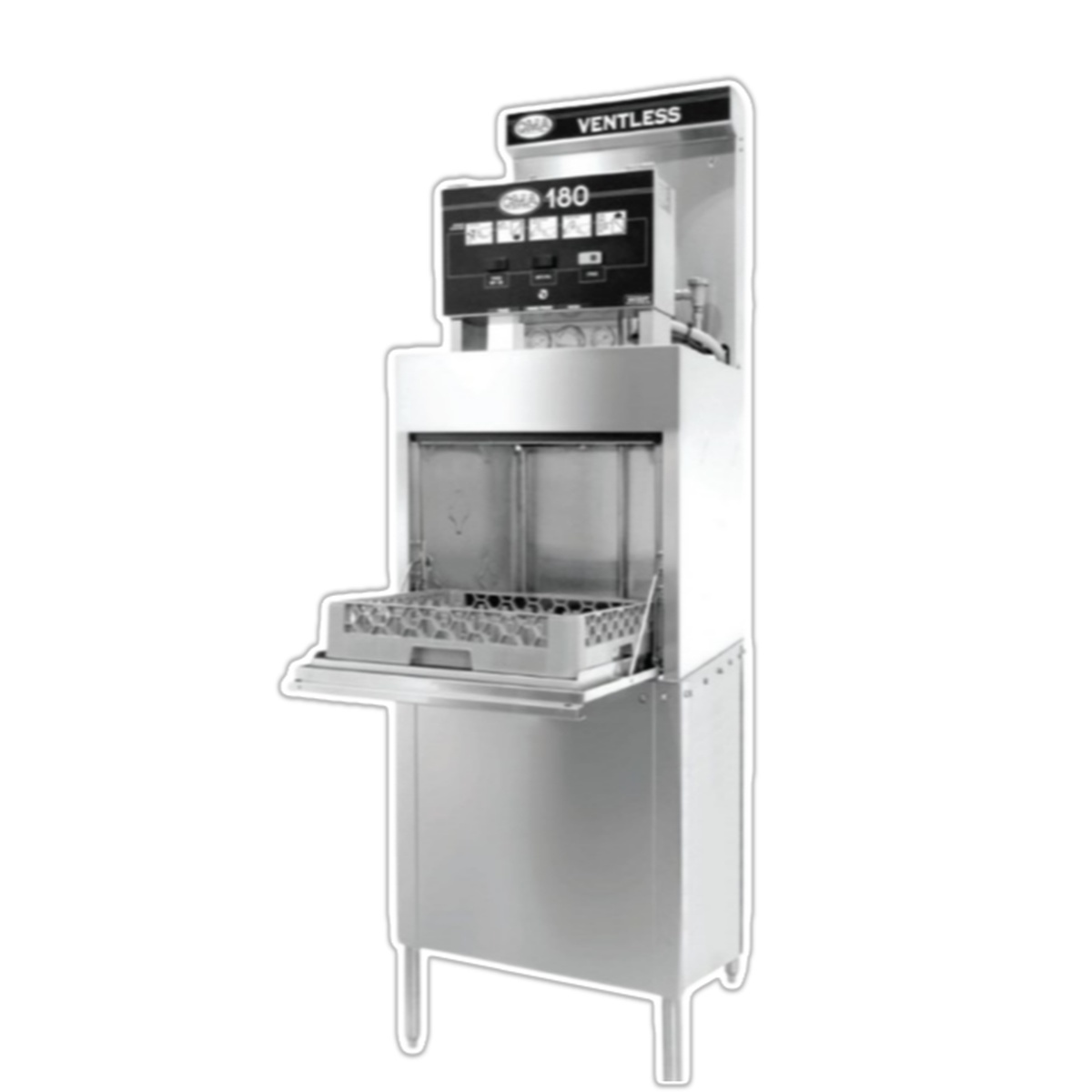

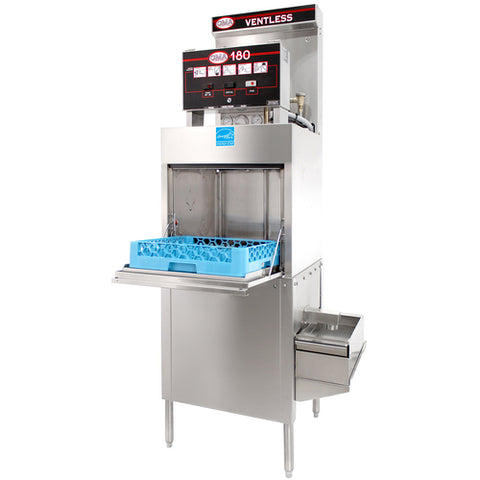

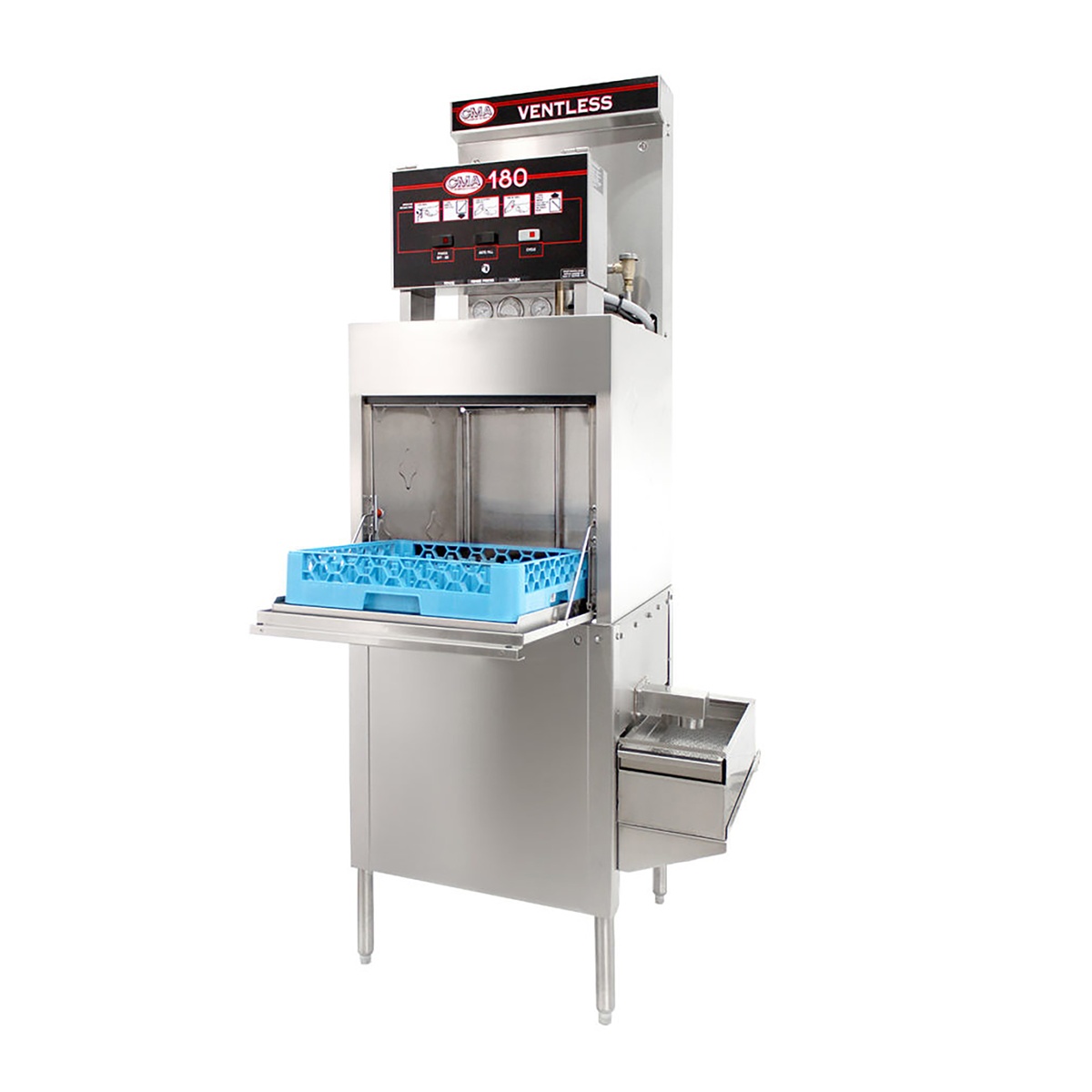

CMA Dishmachines 180-VL-FL Ventless High-Temp Door-Type Dishwasher with Built-In Booster
Regular price
$16,282.00
Sale price$27,137.00you save $10,855.00
CMA Dishmachines 180-VL-FL Ventless High-Temp Door-Type Dishwasher with Built-In Booster
$16,282.00$27,137.00
Detailed Description
The CMA Dishmachines 180-VL-FL is a ventless, front-loading high-temperature door-type dishwasher designed to deliver sanitizing results without a traditional exhaust hood (check local codes). Its heat recovery and condensation removal system helps reduce energy use while keeping steam under control. A built-in 12 kW booster heater and Safe-T-Temp rinse feature support consistent 180°F sanitizing performance. With a 16-inch dish clearance and 21 racks per hour capacity, it is built for efficient, everyday warewashing in busy kitchens.
Product Details
Ventless Heat Recovery
Condensation removal helps reduce the need for a dedicated vent hood where allowed.
Built-In Electric Boost
12 kW booster heater supports high-temperature sanitizing rinse performance.
Safety-First Operation
Safe-T-Temp rinse feature and door safety interlock support reliable cycles.
Ventless Design for Flexible Placement
Designed to conserve energy, water, and chemicals while delivering sparkling results in a compact, front-loading footprint.
- Ventless heat recovery and condensation removal
- Front-loading, lift-up door for ergonomic loading
- Stainless steel construction
High-Temp Cleaning for Busy Shifts
A single-tank, high-temperature dishmachine built for throughput and consistent cycle results.
- 21 racks per hour capacity
- 170-second cycle (wash, rinse, and steam evacuation)
- 16-inch maximum dish clearance
Key Specifications
Capacity
21 racks per hour
Dish clearance
16 in
Heating
12 kW booster, 6 kW wash tank heater
Approx. dimensions
25.5 in W x 29 in D x 86.3 in H
Includes one open rack and one peg rack.
From the Cresco Resco Team
Why You'll Love It
A ventless, high-temperature door-type dishwasher that delivers dependable rack throughput with built-in heat recovery.
- Great for operations that need flexible placement and a compact footprint.
- Built-in 12 kW booster and Safe-T-Temp feature support consistent sanitizing rinse performance.
- Pair with standard 20 inch x 20 inch racks to keep the dish area moving during peak service.
Specifications
| Manufacturer | CMA Dishmachines |
| Model | 180-VL FL (CMA-180-VL-FL) |
| Dishwasher type | Door-type, front-loading (lift-up door) |
| Sanitizing type | High temperature |
| Ventilation | Ventless (heat recovery and condensation removal) |
| Capacity | 21 racks/hour (standard 20 in x 20 in racks) |
| Max dish clearance | 16 in |
| Cycle time | 170 seconds (60 sec wash/rinse + 110 sec steam evacuation) |
| Booster heater | Built-in electric booster, 12.0 kW |
| Wash tank heater | 6.0 kW |
| Wash pump motor | 1 HP |
| Controls | Top-mounted controls |
| Construction | Stainless steel |
| Included racks | (1) open rack and (1) peg rack |
| Water use | 0.89 gal/cycle |
| Overall dimensions (W x D x H) | 25.5 in x 29 in x 86.3 in |
| Electrical (example configuration) | 208V, 3 phase, 60 Hz |
| Certifications | ENERGY STAR, NSF, cULus |
| Warranty | 1-year limited parts and labor |
| Approx. weight | 520 lb |
Brochure
Spec Sheet
Warranty Info
User Manual
Certifications
