T&S Brass 002714-40 Eterna Spindle Assembly Right Hand Hot with Lever Handle

$49.56 ~~Sale price$90.10you save $40.54~~

Key Features:

Genuine OEM Eterna spindle assembly designed for right-hand (hot) applications, with lever handle and red index screw included for straightforward identification and installation
Compression cartridge-spindle with quarter-turn Eterna technology and spring checks, delivering reliable shut-off and long service life in demanding commercial environments
Universal compatibility -- fits all T&S Brass faucets, making it a go-to replacement part for operators across foodservice, healthcare, education, and institutional facilities
High-flow capacity rated at 18.77 GPM (71.04 L/min), supporting pressure ranges of 20-125 psi (1.38-8.62 bar) and temperatures from 40°F to 140°F (4.44°C-60°C)
Chrome-plated finish over brass construction provides corrosion resistance and a professional appearance consistent with T&S faucet aesthetics
Certified to NSF 61-Section 9 and NSF 372 (low lead compliance), and meets ADA ANSI/ICC A117.1 accessibility requirements -- suitable for regulated commercial and public installations
Backed by a one-year limited warranty against defects in materials and workmanship

Denver

Usually ready in 2-4 days

Fresno

Usually ready in 2-4 days

T&S Brass 002714-40 Eterna Spindle Assembly Right Hand Hot with Lever Handle

$49.56~~$90.10~~

Detailed Description

The T&S Brass 002714-40 is an Eterna compression spindle assembly designed for right-hand (hot) service on T&S faucets, making it a go-to OEM replacement part across commercial foodservice, healthcare, and institutional environments. The assembly ships complete with a lever handle, red index button, and mounting screw, so installation is straightforward without sourcing additional hardware. Its quarter-turn Eterna cartridge with spring checks delivers consistent performance across a wide operating range of 20-125 psi and 40-140°F. Chrome-plated over a solid brass body, the unit meets NSF 61-Section 9, NSF 372, and ADA ANSI/ICC A117.1 requirements, satisfying the compliance demands of professional kitchen and plumbing applications.

Product Details

OEM-Grade Construction

Chrome-plated finish over a solid brass body built to T&S Brass original specifications.

Compression Cartridge Design

Eterna compression spindle handles 20-125 psi and temperatures from 40°F to 140°F.

Certified Compliance

NSF 61-Section 9, NSF 372 certified and meets ADA ANSI/ICC A117.1 requirements.

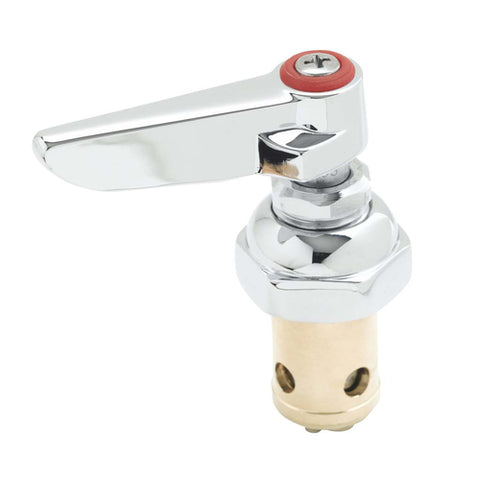

T&S Brass 002714-40 Eterna spindle assembly with chrome lever handle and brass body on white background

Right Hand (Hot) Eterna Spindle Assembly

The T&S Brass 002714-40 is a direct OEM replacement spindle assembly designed for right-hand (hot) faucet positions. It ships complete with a chrome-plated lever handle, red index, and mounting screw - everything needed for a straightforward swap.

Fits all T&S Brass faucets for broad compatibility
Lever handle with red index identifies hot supply at a glance
Compact dimensions: 3.125" H x 2.188" W x 1.25" D
Weighs just 8.3 oz for easy handling during installation

Key Specifications

Cartridge TypeCompression (Eterna)

HandleLever, Chrome Plated

Pressure Range20 - 125 psi (1.38 - 8.62 bar)

Temperature Range40°F - 140°F (4.44°C - 60°C)

Nozzle Flow Rate18.77 GPM @ 60 psi

CertificationsNSF 61-Sec. 9, NSF 372, ADA

At a Glance

125 psi

Max Operating Pressure

18.77 GPM

Max Flow Rate

1 Year

Limited Warranty

From the Cresco Resco Team

Why You'll Love It

The T&S Brass 002714-40 Eterna Spindle Assembly delivers a reliable, code-compliant OEM replacement for hot-side faucet maintenance in commercial and institutional settings.

Ideal for maintenance teams in restaurants, hospitals, schools, and public facilities using T&S Brass faucets.
Comes complete with lever handle, red index, and screw - no additional parts required for installation.
Backed by NSF 61-Section 9, NSF 372, and ADA compliance certifications for peace of mind in regulated environments.

📞 Have Questions About This Product?

Our experienced sales team is ready to answer any questions or concerns you may have. Give us a call at any of our retail locations:

Fresno, CA 559-233-3700

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Sacramento, CA 916-446-3300

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Reno, NV 775-786-6565

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Las Vegas, NV 702-387-1977

Mon-Fri 8am-5pm, Sat 10am-2pm PT

Denver, CO 303-343-3333

Mon-Fri 8am-5pm, Sat 10am-2pm MT

Specifications

Part Number	002714-40
Brand	T&S Brass
Hand Orientation	Right Hand (Hot)
Cartridge / Spindle Type	Compression (Eterna)
Handle Type	Lever
Included Components	Eterna spindle, lever handle, red index, and screw
Compatibility	Fits all T&S faucets
Flow Rate	18.77 GPM (71.04 L/min) @ 60 psi
Pressure Range	20 - 125 psi (1.38 - 8.62 bar)
Temperature Range	40°F - 140°F (4.44°C - 60°C)
Finish	Chrome Plated
Assembled Dimensions (H x W x D)	3.125 in x 2.188 in x 1.25 in
Item Weight	8.3 oz (0.505 lbs)
Country of Origin	China
UPC	671262040495
Certifications	NSF 61-Section 9, NSF 372, ADA ANSI/ICC A117.1
Warranty	One Year (Limited)
