MANITOWOC

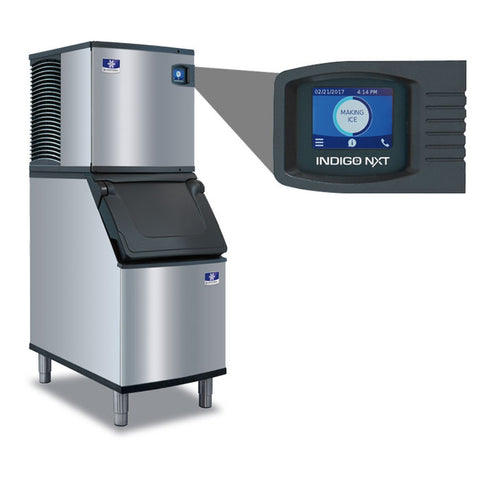

Manitowoc IYT0420W Indigo NXT 22" Water Cooled Half Dice Ice Machine Head

$4,357.00 ~~Sale price$10,016.00you save $5,659.00~~

Key Features:

Up to 470 lb. Half Dice Ice Per Day: This 22" wide water-cooled modular ice machine head produces up to 470 pounds of half dice ice in a 24-hour period, ideal for smaller-footprint high-demand operations.
Indigo NXT easyTouch Display: Features a 2.8-inch icon-based full-color touchscreen with a startup wizard, one-touch access to asset information, cleaning reminders, service menus, and real-time operating status indicators for intuitive daily management.
Intelligent 24-Hour Diagnostics: State-of-the-art preventative maintenance and diagnostic feedback system runs continuously to flag issues before they cause downtime, enabling faster and more accurate service calls.
Outstanding Energy and Water Efficiency: Compared to previous Indigo models, this unit reduces energy consumption by an average of 41%, potable water usage by 21%, and condenser water usage by 34%, with an energy use rating of 4.24 kWh/100 lbs of ice.
Customizable Ice Production Scheduling: Programmable On/Off Time or Ice Volume settings allow operators to tailor ice production to fluctuating daily demand, supporting energy cost management during peak pricing periods.
Acoustical Ice Sensing Probe: Detects harvest readiness independent of water conditions, ensuring consistent, reliable ice production regardless of local water quality.
Front-Accessible Foodzone for Easy Cleaning: A hinged front door swings open for direct access to the removable water trough, distribution tube, curtain, and sensing probes. Select components are manufactured with Alpha San antimicrobial material for superior sanitation compliance.
Isolated Front-Accessible Control Box: Keeps all electrical components outside the foodzone, improving operator safety and simplifying service access.
DuraTech Exterior: Hard clear-coat finish over an aluminum alloy provides exceptional corrosion resistance while resisting fingerprints and scratches for a lasting professional appearance.
Firmware Upgrades via USB: The control board USB port allows functional firmware updates in the field, keeping the machine current without costly service visits.
Compact Modular Design: At just 21.5" H x 22" W x 24.5" D and 135 lb., this space-saving head pairs with a variety of Manitowoc bins, fitting tight back-of-house configurations while maintaining high output capacity.
115V Single-Phase Power: Standard 115V/60Hz/1PH electrical requirements simplify installation without the need for specialized high-voltage wiring.

Detailed Description

The Manitowoc IYT0420W is a 22-inch wide modular water-cooled ice machine head from the Indigo NXT series, engineered to produce up to 470 pounds of half dice ice per day. Its 2.8-inch icon-based easyTouch color display delivers 24-hour preventative maintenance alerts, operating status indicators, and cleaning reminders, making day-to-day management straightforward for any operator. Compared to previous Indigo models, this unit cuts energy consumption by an average of 41%, potable water use by 21%, and condenser water use by 34%, delivering meaningful operating cost savings. The DuraTech exterior combines a hard clear-coat layer over an aluminum alloy for superior corrosion resistance, scratch protection, and effortless cleaning. A front-accessible foodzone with a hinged door and select Alpha San antimicrobial components ensures fast, compliant sanitation routines.

Product Details

Up to 470 lb. Daily Output

Produces up to 470 lb. of half dice ice per day for high-demand commercial environments.

easyTouch Programmable Controls

2.8-inch icon-based display with startup wizard, status indicators, and customizable ice production scheduling.

Easy-Clean Foodzone

Hinged front door and front-facing evaporator give quick access to removable components and Alpha San antimicrobial surfaces.

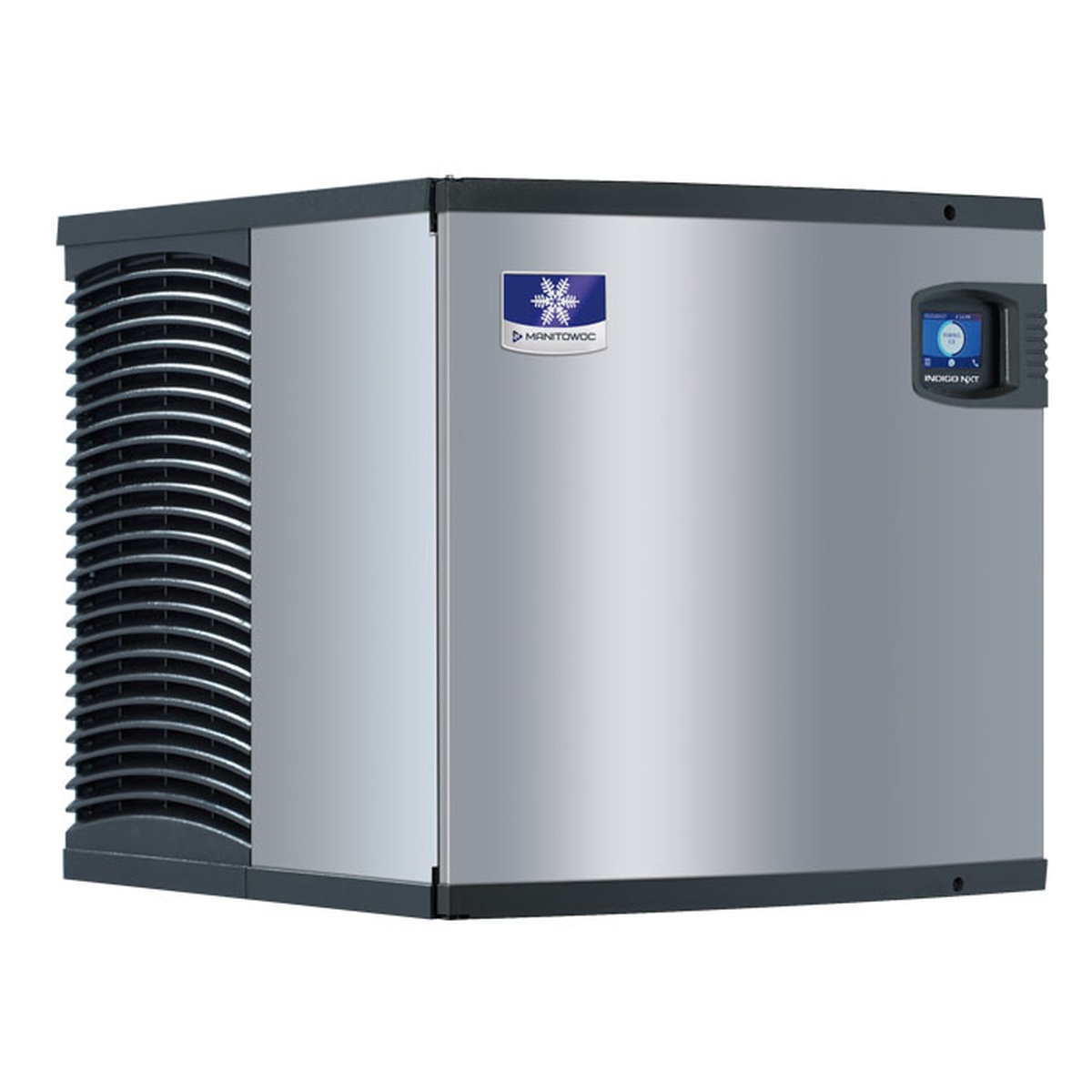

Manitowoc IYT0420W Indigo NXT 22-inch water-cooled ice machine head with DuraTech stainless exterior and easyTouch display

Intelligent Diagnostics Built In

The Manitowoc IYT0420W is part of the Indigo NXT series, engineered to deliver 24-hour preventative maintenance feedback and real-time diagnostic data directly on its 2.8-inch easyTouch display. Operators can monitor operating status, receive cleaning reminders, and access asset information at a glance.

Firmware upgrades easily applied via USB port on the control board
Front-accessible, isolated control box keeps electricity outside the foodzone
One-touch access to service provider finder and display lock feature
Compatible with personal device alerts for energy price-based shutoff scheduling

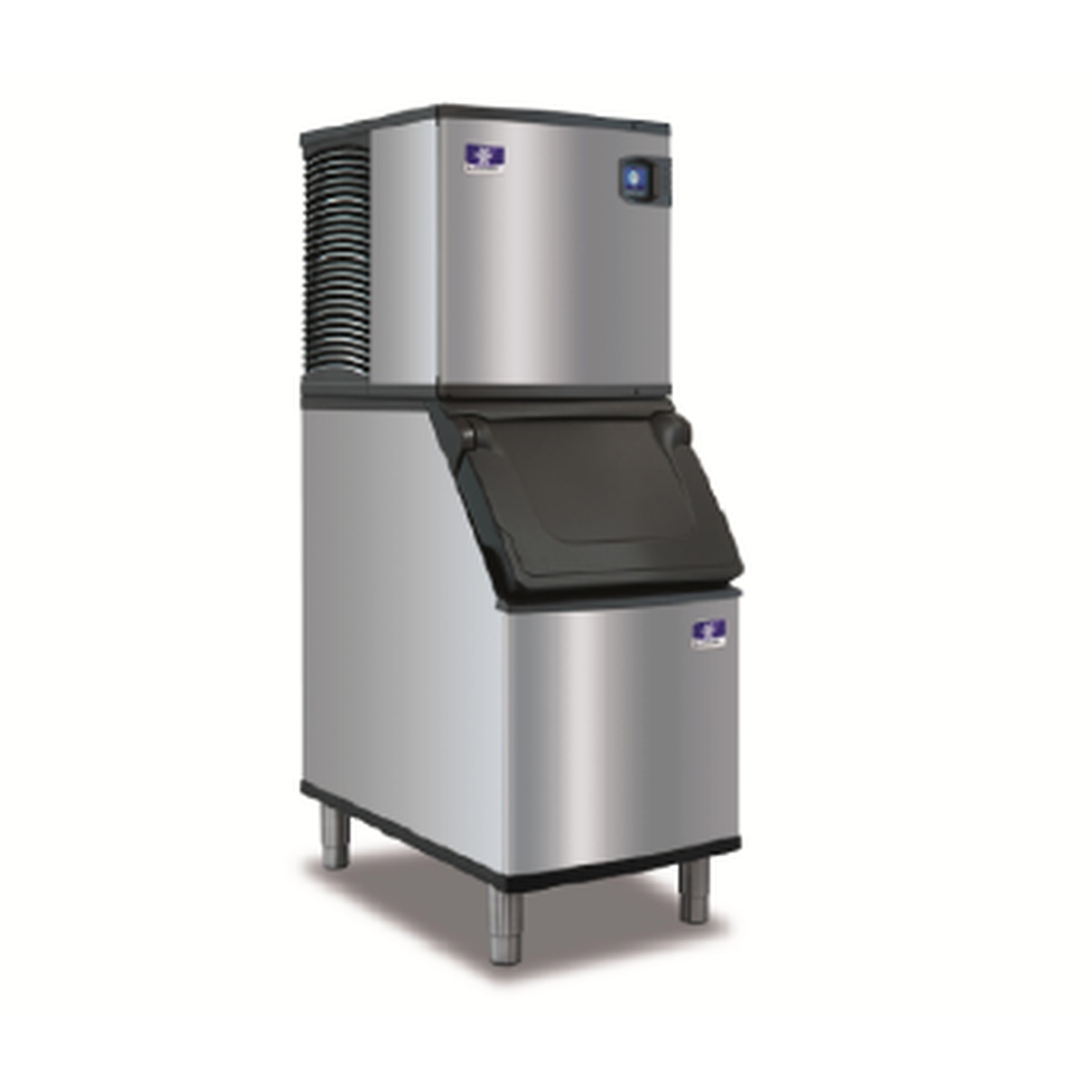

Manitowoc IYT0420W Indigo NXT ice machine head mounted on a stainless ice storage bin

Durable Design for Demanding Kitchens

The IYT0420W features a DuraTech exterior -- a hard, clear-coat layer over an aluminum alloy -- delivering superior corrosion resistance, fingerprint protection, and scratch resistance. Its compact 22-inch footprint makes it ideal for space-constrained environments without sacrificing output.

DuraTech exterior resists corrosion, fingerprints, and scratches
Acoustical ice sensing probe detects harvest readiness regardless of water conditions
Water-cooled design with significant efficiency gains over previous Indigo models
115V / 60 Hz / 1 PH electrical connection; dimensions 22" W x 24.5" D x 21.5" H

Efficiency Gains vs. Previous Indigo Models

41%

Less Energy Consumption

21%

Less Potable Water Usage

34%

Less Condenser Water Usage

Key Specifications

Daily Ice ProductionUp to 470 lb. (half dice)

Power Input115V / 60 Hz / 1 PH

Cooling TypeWater Cooled

Dimensions (W x D x H)22" x 24.5" x 21.5"

Weight135 lb (61.2 kg)

Ice TypeHalf Dice Cube

From the Cresco Resco Team

Why You'll Love It

The Manitowoc IYT0420W delivers smart, efficient, high-capacity ice production in a compact 22-inch water-cooled design built for commercial demands.

Ideal for restaurants, bars, and food service operations that need reliable, high-volume half dice ice output.
The easyTouch display and Indigo NXT intelligent diagnostics reduce downtime with 24-hour preventive maintenance alerts and simplified cleaning workflows.
Pairs with a compatible Manitowoc ice storage bin for a complete, space-saving ice station.

Specifications

Brand	Manitowoc
Model	IYT0420W
Series	Indigo NXT
Product Type	Modular Ice Machine Head
Ice Type	Half Dice
Cooling Type	Water Cooled
Daily Ice Production	Up to 470 lb (213 kg)
Width	22" (55.9 cm)
Depth	24 1/2" (62.2 cm)
Height	21 1/2" (54.6 cm)
Weight	135 lb (61.2 kg)
Voltage	115-120V
Frequency	60 Hz
Phase	1 PH
Power Input Type	Electric
Energy Use	4.24 kWh / 100 lb of ice
Display	2.8" easyTouch® icon-based touchscreen
Exterior Finish	DuraTech™ (aluminum alloy with clear-coat layer)
