Turbo Air

Turbo Air TBB-4SG-N Three-Section Back Bar Cooler with Glass Doors

$5,379.48 ~~Sale price$14,097.00you save $8,717.52~~

Key Features:

Self-Cleaning Condenser: Automatically brushes the condenser daily to prevent dust accumulation, reducing the risk of system failure and protecting stored product from temperature-related damage.
Three-Section Glass Door Design: Features three double-pane Low-E glass doors with individual locks, maximizing product visibility while maintaining superior thermal efficiency and security.
Eco-Friendly R-290 Hydrocarbon Refrigerant: Utilizes EPA SNAP-approved R290 refrigerant with zero ozone depletion potential (ODP-0) and an extremely low global warming potential (GWP-3), meeting DOE Energy Conservation Standards and earning ENERGY STAR certification.
Side-Mount Compressor with Front Breathing: Compressor is positioned on the side of the unit, allowing front-only air intake for efficient operation in tight undercounter or bar spaces, with full serviceability without moving the unit.
Forced Air Cooling System: Delivers rapid, balanced temperature distribution throughout the cabinet, maintaining an ideal holding range of 33 degrees F to 38 degrees F for optimal beverage preservation.
Durable Interior and Exterior Construction: Stainless steel countertop pairs with a black vinyl-coated galvanized steel exterior; the interior features painted galvanized steel walls and a reinforced stainless steel floor for easy cleaning and long-term durability.
External Digital Temperature Controller: Easily accessible external panel allows quick temperature adjustments and includes integrated defrost control for simplified day-to-day management.
LED Interior Lighting: Energy-efficient LED lighting enhances product visibility inside the cabinet, ideal for high-traffic bar environments.
8 PE-Coated Adjustable Wire Shelves: Heavy-duty polyethylene-coated shelves resist corrosion and are fully adjustable to accommodate bottles, cans, and kegged beverages of varying sizes.
High-Density Polyurethane Insulation: HCFC-free, foamed-in-place insulation throughout the entire cabinet structure ensures maximum thermal retention and energy efficiency.
Anti-Corrosion Coated Evaporator: Extends the service life of internal components and maintains consistent refrigeration performance in demanding commercial bar environments.
36.47 Cu.Ft. Capacity in a Three-Section Footprint: Measures 90-3/8"W x 27-1/4"D x 37-1/8"H, providing substantial storage volume suited for high-volume bar operations.
Industry Certifications: cETLus, ETL-Sanitation, and ENERGY STAR certified for compliance, safety, and energy performance across commercial foodservice applications.
5-Year Parts and Labor / 7-Year Compressor Warranty: Industry-leading warranty coverage provides long-term peace of mind and reduced total cost of ownership.

Turbo Air TBB-4SG-N Three-Section Back Bar Cooler with Glass Doors

$5,379.48~~$14,097.00~~

Detailed Description

The Turbo Air TBB-4SG-N is a heavy-duty, three-section back bar cooler built for high-volume beverage service environments. Spanning 90-3/8 inches wide with 36.47 cu.ft. of capacity, it features three double-pane Low-E glass doors with locks and LED interior lighting for maximum product visibility. The side-mount compressor and front-breathing design allow flexible bar installation without the need to pull the unit for servicing. Equipped with Turbo Air's patented self-cleaning condenser and eco-friendly R290 hydrocarbon refrigerant, the TBB-4SG-N is certified ENERGY STAR and delivers outstanding efficiency along with precise 33 degrees F to 38 degrees F temperature holding for optimal beverage preservation.

Product Details

Precise Temperature Control

Digital controller maintains 33°F to 38°F for optimal beverage preservation.

Forced Air Cooling System

Fast, balanced temperature distribution throughout the entire cabinet.

Self-Cleaning Condenser

Automatically brushes daily to prevent dust buildup and system failure.

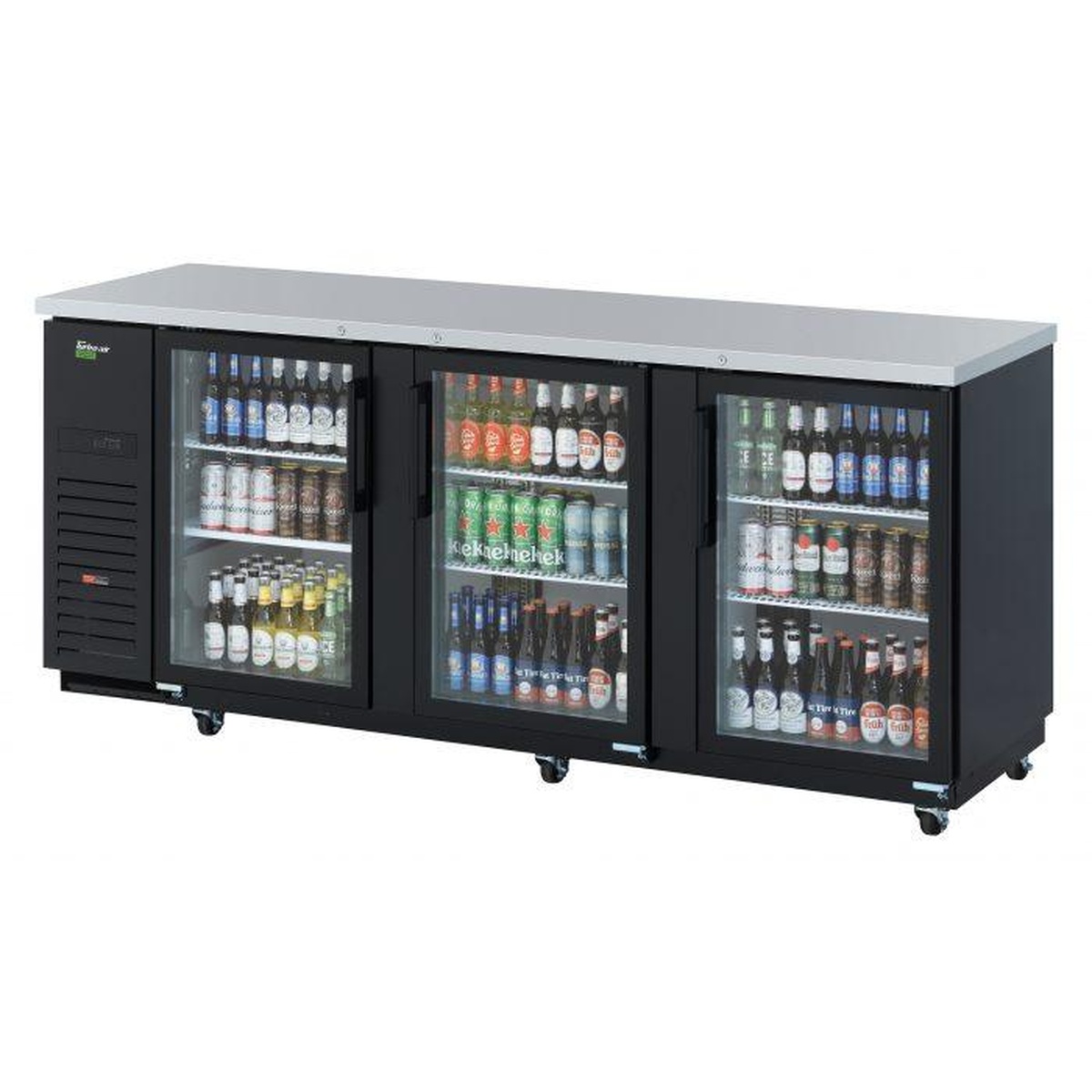

Turbo Air TBB-4SG-N three-section back bar cooler with three glass doors, stainless steel top, black exterior, and adjustable wire shelves stocked with bottles and cans

Three-Section Back Bar Cooler Built for High-Volume Service

The Turbo Air TBB-4SG-N delivers 36.47 cu.ft. of refrigerated storage across three glass-door sections in a 90-3/8" wide footprint. Double-pane Low-E glass doors with locks provide maximum product visibility while maintaining efficient cold retention.

3 glass doors with double-pane Low-E glass and individual locks
8 PE coated adjustable wire shelves across three sections
LED interior lighting for clear product visibility
Stainless steel countertop with black vinyl coated exterior
2.5" swivel casters with front locks for mobility and stability

Key Specifications

Capacity36.47 cu.ft.

Power1/3 HP, 115V/60/1-ph, 3.3 amps

Dimensions90-3/8"W x 27-1/4"D x 37-1/8"H

CertificationscETLus, ETL-Sanitation, ENERGY STAR

RefrigerantR290 Hydrocarbon (ODP-0, GWP-3)

CompressorSide mount, front breathing

Performance at a Glance

36.47

Cu.Ft. Capacity

33-38°F

Temp Range

Adjustable Shelves

Ideal For

Bars and nightclubs Restaurants and lounges High-volume beverage service Hotels and event venues Commercial back bar setups

From the Cresco Resco Team

Why You'll Love It

The Turbo Air TBB-4SG-N is a commercial-grade back bar cooler engineered for reliability, efficiency, and maximum beverage display in demanding environments.

Perfect for busy bars and restaurants that need high-capacity, easy-access beverage refrigeration in a sleek, space-efficient design.
The patented self-cleaning condenser and eco-friendly R290 refrigerant reduce maintenance demands while lowering environmental impact.
Backed by a 5-year parts and labor warranty plus a 7-year compressor warranty for long-term peace of mind.

Specifications

Model	TBB-4SG-N
Type	Back Bar Cooler, Three-Section
Number of Doors	3
Door Type	Double Pane Glass with Locks, Low-E Glass
Capacity	36.47 cu. ft.
Width	90-3/8"
Depth	27-1/4"
Height	37-1/8"
Weight	485 lbs
Voltage	115V / 60Hz / 1-Phase
Amperage	3.3 Amps
Horsepower	1/3 HP
Refrigerant	R-290 Hydrocarbon
Compressor Location	Side Mount (Left)
Condenser	Self-Cleaning, Front Breathing
Number of Shelves	8 (PE Coated, Adjustable Wire)
Temperature Range	33°F - 38°F
Interior Lighting	LED
Exterior Finish	Black Vinyl Coated (Laminated)
Top	Stainless Steel
Interior	Painted Galvanized Steel Walls, Stainless Steel Floor
Insulation	High-Density HCFC-Free Polyurethane (Foamed-in-Place)
Casters	2.5" Diameter Swivel, Front Locks
Power Cord	NEMA 5-15P
Certifications	cETLus, ETL-Sanitation, ENERGY STAR®
Warranty	See Review Note
