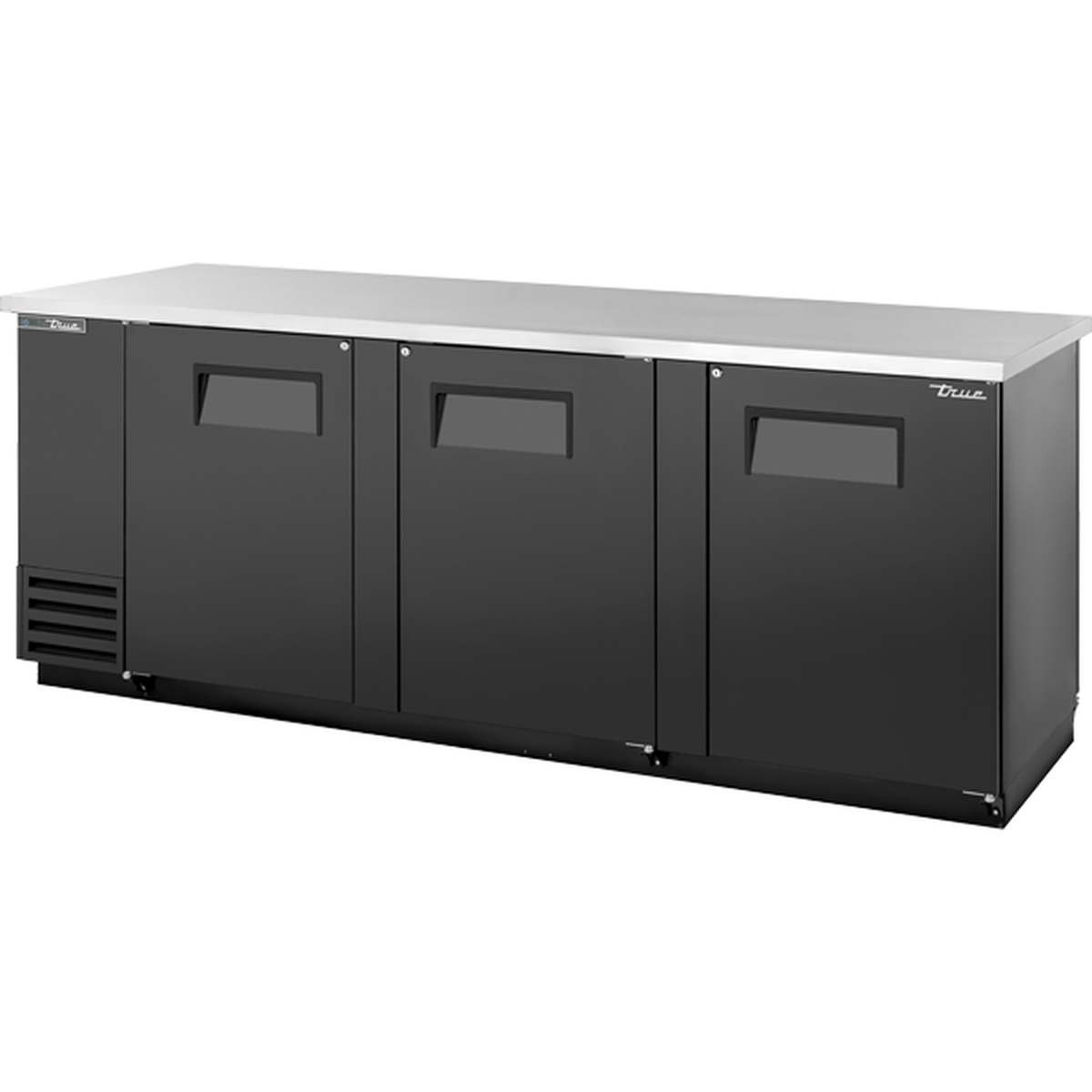

True Manufacturing TBB-4PT-HC Pass-Thru Back Bar Cooler, 3-Section, Solid Doors, Black, 115V

$5,471.94 ~~Sale price$18,107.00you save $12,635.06~~

Key Features:

Pass-Thru Three-Section Design: Features 3 solid swing doors on both the front and back (6 total), allowing seamless service from either side of the bar and ideal placement between front and back of house.
High-Capacity Storage: Holds up to 152 six-packs of 12 oz. cans on 6 adjustable black PVC-coated wire shelves (adjustable in 1/2-in. increments), or accommodates 4 half-barrel kegs when shelves are removed.
Eco-Friendly R290 Hydrocarbon Refrigerant: Operates between 33-38°F using environmentally responsible R290 refrigerant, paired with electronically commutated fan motors that minimize heat production and energy consumption.
Durable Interior Construction: Galvanized steel walls and a quick-cleaning stainless steel floor provide corrosion resistance and long-term durability; epoxy-coated evaporator adds further protection against corrosion.
Sleek, Wear-Resistant Exterior: Black vinyl front and sides with heavy-duty aluminum back; stainless steel top surface adds durability and a polished look for the bar environment.
Foamed-in-Place Polyurethane Insulation: Maximizes thermal efficiency to retain cold air and reduce energy costs in demanding commercial environments.
Convenient Condensing Unit Access: Slide-out condensing unit accessible behind the front grille simplifies routine maintenance without disrupting service.
Secure, Tool-Free Door Hardware: Each door features a 12-in. recessed foamed-in-place handle, one-piece magnetic gaskets removable without tools for easy cleaning, and standard door locks to protect inventory.
Keg-Load Impact Protection: Reinforced door threshold guards against damage during keg loading and unloading.
Interior LED Lighting: Bright LED illumination enhances product visibility and aids quick inventory checks.
Certified and Made in the USA: cULus listed and UL EPH Classified; backed by a 7-year parts, labor, and compressor warranty.
Electrical: 115V/60Hz/1-ph, 8.8A, 1/2 HP, NEMA 5-15P plug with 7-ft. cord; overall dimensions 90-3/8" W x 31" D x 37" H.

Detailed Description

The True Manufacturing TBB-4PT-HC is a three-section, pass-thru back bar cooler built for high-volume bar and restaurant operations. Its pass-thru configuration features three solid swing doors on both the front and back, allowing seamless product access from either side of the bar. Six adjustable, black PVC-coated wire shelves accommodate up to 152 six-packs of 12 oz cans, or the shelves can be removed entirely to store four half-barrel kegs. The unit runs on eco-friendly R290 hydrocarbon refrigerant paired with electronically commutated fan motors, maintaining a temperature range of 33-38 degrees F while minimizing energy consumption. Manufactured in the USA and cULus listed, the TBB-4PT-HC is a reliable workhorse for any commercial beverage program.

Product Details

High-Volume Capacity

Holds 152 six-packs of 12-oz. cans or 4 half-barrel kegs when shelves are removed.

Consistent Temperature Control

Operates between 33 and 38°F with eco-friendly R290 hydrocarbon refrigerant.

Secure Pass-Thru Design

Six solid swing doors with standard locks on both front and back for full pass-thru access.

Three-Section Pass-Thru Back Bar Cooler

The True Manufacturing TBB-4PT-HC is engineered for high-traffic bar environments where speed and access matter. With three solid swing doors on both the front and back, product can be stocked from one side and retrieved from the other without interrupting service.

90-3/8" wide three-section cabinet fits standard back bar installations
Six adjustable black PVC-coated wire shelves in 1/2-in. increments
Stainless steel top provides a durable, easy-clean work surface
Interior LED lighting keeps stored product clearly visible
Foamed-in-place polyurethane insulation retains cold air efficiently

Key Specifications

Capacity152 six-packs or 4 half-barrel kegs

Temperature Range33 to 38°F

Doors6 solid swing doors with locks (3 front / 3 back)

Shelves6 adjustable PVC-coated wire shelves

Electrical115V / 60 Hz / 1-ph, 8.8A, 1/2 HP, NEMA 5-15P

CertificationscULus Listed, UL EPH Classified, Made in USA

Dimensions90-3/8" W x 31" D x 37" H

RefrigerantR290 Hydrocarbon (eco-friendly)

Ideal For

High-volume bars and nightclubs Restaurants with front and back-of-house service Hotel and resort beverage programs Sports venues and entertainment facilities Craft beer bars storing half-barrel kegs

From the Cresco Resco Team

Why You'll Love It

The True Manufacturing TBB-4PT-HC delivers the storage capacity, access convenience, and build quality that demanding commercial bar operations require.

Perfect for busy bars and restaurants needing simultaneous front and back access to refrigerated beverages.
Flexible interior accommodates both canned beverages and full half-barrel kegs, adapting to your operation's needs.
Eco-friendly R290 refrigerant and electronically commutated fan motors help reduce energy consumption and environmental impact.

Specifications

Model	TBB-4PT-HC
Type	Pass-Thru Back Bar Cooler
Sections	3
Doors	6 solid swing doors (3 front / 3 back) with locks
Shelves	6 adjustable black PVC-coated wire shelves (adjustable in 1/2 in. increments)
Capacity	152 six-packs of 12 oz. cans; or 4 half-barrel kegs (shelves removed)
Width	90-3/8 in.
Depth	31 in.
Height	37 in.
Interior Volume	32.8 cu. ft.
Temperature Range	33°F - 38°F
Refrigerant	R290 Hydrocarbon (HC)
Voltage	115V / 60 Hz / 1-phase
Amperage	8.8 A
Horsepower	1/2 HP
NEMA Configuration	5-15P
Cord Length	7 ft.
Compressor Location	Left
Exterior Finish	Black vinyl front and sides; heavy-duty aluminum back
Interior	Galvanized steel walls; stainless steel floor
Top Surface	Stainless steel
Insulation	Foamed-in-place polyurethane
Lighting	LED interior lighting
Weight	565 lbs.
Certifications	cULus Listed; UL EPH Classified
Country of Origin	USA
Warranty	7-year Parts & Labor; 7-year Compressor
