Vulcan FEG

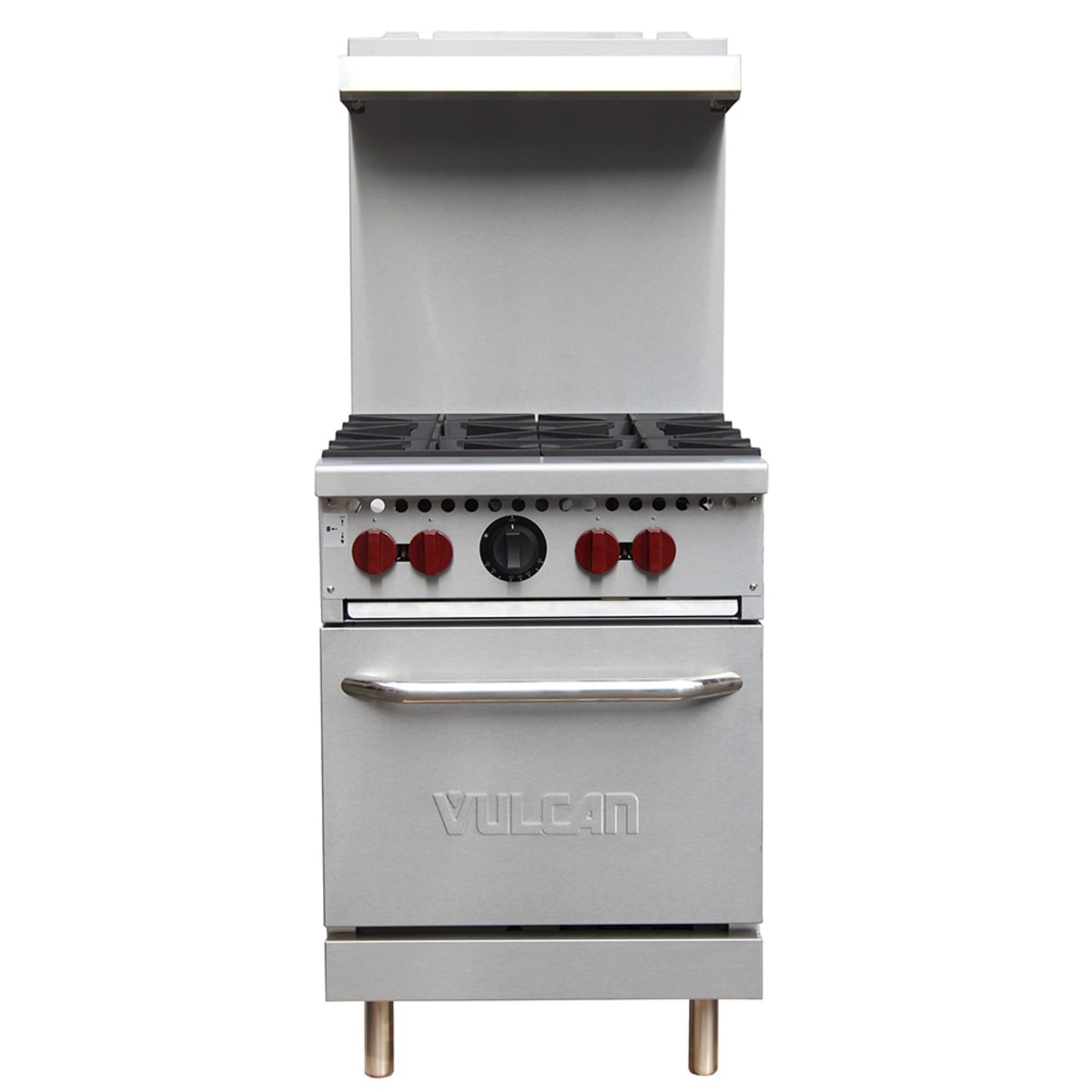

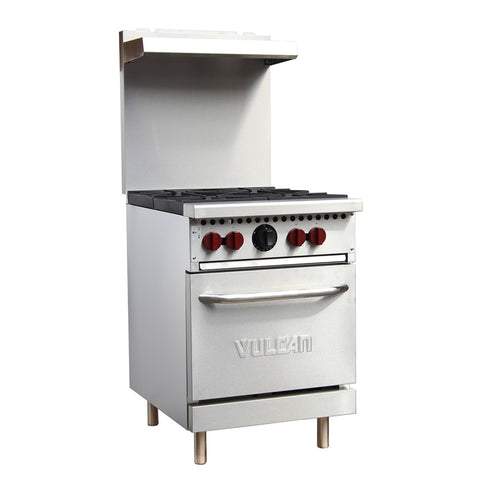

Vulcan SX24-4BP 24 in 4-Burner Propane Gas Range with Space Saver Oven
Regular price
$2,512.00
Sale price$5,812.00you save $3,300.00
Detailed Description
The Vulcan SX24-4BP is a 24-inch commercial gas range built for high-output cooking in a compact footprint. Four 28,000 BTU open burners with lift-off heads deliver strong, service-ready heat while simplifying cleanup. The integrated space saver oven provides thermostatic control from 250 to 500°F for consistent baking and roasting. Stainless steel construction plus adjustable legs make it a durable, practical choice for busy restaurant lines.
Product Details
142,000 BTU Total Output
Four 28,000 BTU open burners plus a 30,000 BTU space saver oven for busy service.
Consistent Oven Cooking
Thermostatic control with a 250 to 500b0F range and four rack positions.
Built for Commercial Use
Stainless steel construction with lift-off burner heads for easier cleaning.
Four Open Burners, Compact 24-inch Footprint
Designed for line cooking where space is tight, with heavy-duty cast top grates and lift-off burner heads to simplify cleanup.
- (4) open top burners, 28,000 BTU each
- 12 inch by 12 inch cast top grates
- Shrouded flash tube pilot system (one pilot per two burners)
Space Saver Oven for Everyday Baking and Roasting
Keep a steady bake in a compact oven cavity with flexible racking for sheet pans and small roasts.
- 30,000 BTU/hr oven
- 250 to 500b0F thermostat range
- One rack with four rack positions
Quick Specs at a Glance
24 in
Overall width
142,000
Total BTU
250 to 500b0F
Oven temperature range
Dimensions: 24 in W x 32.5 in D x 60.3 in H (freestanding on adjustable legs). Fuel type: LP (propane).
Ideal For
Restaurants with limited line space Concession stands and snack bars Catering prep kitchens Propane installations
From the Cresco Resco Team
Why You'll Love It
A compact, high-output propane range that gives you four powerful open burners and a practical space saver oven in one durable footprint.
- Great for fast-paced cooking lines that need reliable burner performance.
- Lift-off burner heads and stainless construction help speed end-of-shift cleanup.
- Pairs well with tight kitchen layouts that still need baking, roasting, and holding capacity.
Specifications
| Manufacturer | Vulcan |
| Model | SX24-4BP |
| Series | SX Series |
| Range Type | Commercial gas range with space saver oven |
| Installation Type | Freestanding |
| Fuel Type | Liquid propane (LP) |
| Cooktop Configuration | (4) open top burners with lift-off heads |
| Number of Burners | 4 |
| BTU per Burner | 28,000 BTU/hr |
| Total BTU (Range) | 142,000 BTU/hr |
| Oven Type | Space saver oven |
| Oven Input | 30,000 BTU/hr |
| Oven Temperature Range | 250 to 500°F |
| Oven Cavity Dimensions (W x D x H) | 20.6 in x 25.5 in x 13.7 in |
| Oven Racks | 1 rack, 4 positions |
| Grate Size | 12 in x 12 in cast top grates |
| Pilot System | Shrouded flash tube pilot (one pilot per two burners) |
| Exterior Material | Stainless steel front and sides; backriser with lift-off high shelf |
| Oven Interior | Porcelain door liner and oven bottom |
| Legs | 6 in adjustable stainless steel legs |
| Gas Connection | 3/4 in rear gas connection (gas pressure regulator included) |
| Overall Dimensions (W x D x H) | 24 in x 32.5 in x 60.3 in |
| Approximate Weight | 350 lb |
| Warranty | 1-year limited parts and labor |
Brochure
Spec Sheet
Warranty Info
User Manual
User manual not available.
