True MFG Co.

True Manufacturing GDM-23W-HC~TSL01 27" Single-Section Wine Merchandiser Refrigerator

$4,319.95 ~~Sale price$14,295.00you save $9,975.05~~

Key Features:

R290 Hydrocarbon Refrigerant with Self-Contained System: Operates on environmentally responsible R290 refrigerant with a capillary tube control system, maintaining a precise temperature range of 33-38°F for optimal wine preservation.
20-Second Reversing Condenser Fan Motor: The condensing fan motor automatically reverses for 20 seconds at compressor startup to purge dirt and debris from the condensing coil, reducing energy consumption and extending unit lifespan with minimal maintenance intervention.
Electronically Commutated (EC) Fan Motors: Both condenser and evaporator fan motors use EC technology for high efficiency, consistent performance, and reduced energy draw compared to conventional motors.
Bottom-Mounted Condensing Unit: Positions the condenser at floor level for easy access during service and raises merchandise to a more visible and accessible height for customers.
Epoxy-Coated Evaporator: Corrosion-resistant epoxy coating on the evaporator protects against moisture and extends the refrigeration system's service life.
Low-E Double-Pane Thermal Glass Door: Self-closing, thermally insulated swing door minimizes cold air loss, features a removable magnetic gasket (no tools required), an integrated door lock for loss prevention, and a 12-inch extruded handle for a sturdy grip.
106-Bottle Capacity with Adjustable Storage: Includes 4 adjustable wine racks and 1 adjustable wine shelf to accommodate a variety of bottle sizes and display configurations across 20.8 cubic feet of interior space.
Premium Interior Construction: Black aluminum interior sides and top, stainless steel floor, and a mirrored back wall maximize product presentation and reflect LED lighting for enhanced visual merchandising impact.
LED Interior Lighting and Illuminated Exterior Sign Panel: Energy-efficient LED lighting showcases products inside while the backlit "WINE" sign panel on top draws customer attention from a distance.
Durable Exterior and Polyurethane Foam Insulation: Black powder-coated steel exterior resists chipping and peeling; cabinet is foamed in place with high-density polyurethane insulation for superior thermal retention.
Built-In Floor Drain: Simplifies routine cleaning and maintenance without requiring the unit to be moved.
Energy Star Certified and Made in USA: Meets Energy Star efficiency standards and is manufactured domestically, backed by a 7-year parts, labor, and compressor warranty.
Optional Specialty Thermostats: Available with red wine, white wine, or chocolate thermostat controls to dial in precise temperature zones for specialized merchandise.

Detailed Description

The True GDM-23W-HC~TSL01 is a 27-inch single-section commercial wine merchandiser refrigerator built for high-traffic retail and foodservice environments. It uses a self-contained R290 hydrocarbon refrigeration system with a bottom-mounted condensing unit, maintaining product temperatures between 33 and 38 degrees Fahrenheit for optimal wine preservation. Inside, four adjustable wine racks and one wire shelf accommodate up to 106 bottles, all visible through a low-E double-pane glass door with self-closing function and an integrated lock. A black laminated vinyl exterior resists chipping and peeling, while LED interior lighting and an illuminated exterior sign panel draw customer attention to the display. Electronically commutated fan motors and a 20-second reversing condenser fan keep the coil clean and operation efficient for years of reliable service.

Product Details

Precise Temperature Control

Maintains a consistent 33-38°F range to keep wine perfectly chilled in one dedicated zone.

Commercial-Grade Reliability

Backed by a 7-year parts, labor, and compressor warranty. Made in the USA with Energy Star certification.

Easy Cleaning & Maintenance

Built-in floor drain simplifies cleanup, and a bottom-mounted condenser provides quick, accessible service.

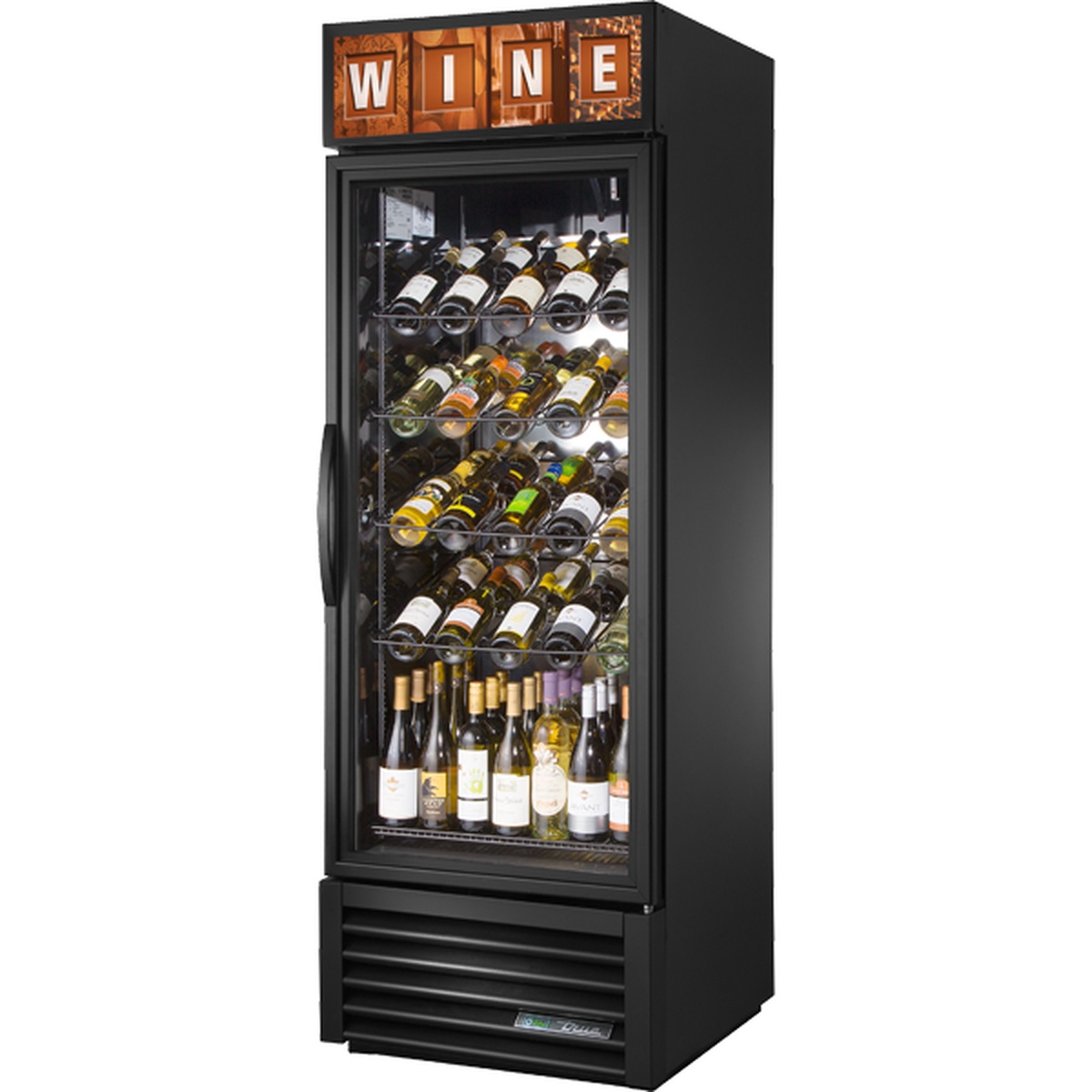

True GDM-23W-HC~TSL01 black wine merchandiser refrigerator with glass door displaying wine bottles on angled racks and an illuminated WINE sign panel on top

Maximum Visibility, Maximum Sales

The GDM-23W-HC~TSL01 is a 27-inch single-section wine merchandiser engineered to showcase your wine selection while keeping every bottle at ideal serving temperature. The self-closing, low-E double-pane thermal glass door offers full product visibility and keeps cold air locked in, while an illuminated exterior sign panel draws customers in from across the floor.

106-bottle capacity with 4 wine racks and 1 adjustable wine shelf
Self-closing glass door with lock and removable magnetic gasket
Illuminated exterior sign panel and LED interior lighting
Mirrored back wall enhances product presentation

Key Specifications

Bottle Capacity106 bottles (4 wine racks + 1 shelf)

Temperature Range33-38°F (one zone)

ConstructionBlack laminated vinyl exterior, black aluminum interior, stainless steel floor, mirrored back wall

Electrical115V / 60Hz / 1ph, 5.4A, NEMA 5-15P, 9-ft cord

Dimensions27" W x 29.88" D x 78.63" H

RefrigerantR290 Hydrocarbon (eco-friendly)

Performance at a Glance

106

Bottle Capacity

7-Year

Parts, Labor & Compressor Warranty

33-38°F

Operating Temperature

Advanced Refrigeration System

R290 hydrocarbon refrigerant with capillary tube system for efficient, eco-conscious operation
Electronically commutated condenser and evaporator fan motors for high performance and consistency
20-second reversing condenser fan motor automatically clears dirt and debris from the coil at startup
Epoxy-coated evaporator resists corrosion and extends unit lifespan
Bottom-mounted condensing unit for convenient access during maintenance
Polyurethane foam-in-place insulation maintains stable cabinet temperatures

Ideal For

Wine Shops & Boutiques Restaurants & Bars Grocery & Specialty Food Retailers Hotels & Event Venues Delis & Convenience Stores

From the Cresco Resco Team

Why You'll Love It

The True GDM-23W-HC~TSL01 delivers professional wine merchandising with the reliability and efficiency your commercial operation demands.

Perfect for high-traffic wine retailers, restaurants, and specialty food operators seeking impressive bottle display.
The self-cleaning, reversing condenser fan motor and epoxy-coated evaporator minimize maintenance and extend the unit's working life.
Pair with optional red wine, white wine, or chocolate thermostat upgrades for tailored temperature control suited to your specific inventory.

Specifications

Model	GDM-23W-HC~TSL01
Brand	True Manufacturing
Series	GDM Series
Type	Wine Merchandiser Refrigerator
Sections	1
Door Count	1
Door Type	Hinged, Low-E Double-Pane Thermal Glass with Lock
Capacity	106 Bottles / 20.8 cu. ft.
Racks / Shelves	4 Wine Racks + 1 Wine Shelf (5 Total)
Temperature Range	33°F - 38°F
Refrigerant	R290 (Hydrocarbon)
Refrigeration System	Self-Contained, Capillary Tube
Compressor Location	Bottom-Mounted
Fan Motors	Electronically Commutated (Condenser & Evaporator)
Voltage	115V / 60 Hz / 1 Phase
Amperage	5.4 A
Horsepower	1/3 HP
NEMA Configuration	5-15P
Cord Length	9 ft.
Width	27 in.
Depth	29.88 in.
Height	78.63 in.
Weight	310 lbs. (141 kg)
Exterior Finish	Black Laminated Vinyl (standard); White or Stainless Steel available
Interior	Black Aluminum Sides & Top, Stainless Steel Floor, Mirrored Back Wall
Insulation	Foamed-In-Place Polyurethane
Interior Lighting	LED
Exterior Signage	Illuminated Sign Panel
Door Hinging	Right-Hinged (standard); Left Hinge available
Handle Length	12 in. Extruded
Energy Certification	Energy Star
Country of Origin	USA
Warranty	7-Year Parts, Labor & Compressor
