MANITOWOC

Manitowoc UYF0140A NEO 26" Air Cooled Undercounter Half Dice Cube Ice Machine, 137 lb/Day

$2,523.00 ~~Precio rebajado$5,799.00ahorra $3,276.00~~

Key Features:

High-Output Half-Dice Ice Production: Produces up to 137 lb. of half-dice cubes per day (100 lb. AHRI-certified), with each cube measuring 3/8 in. x 1 1/8 in. x 7/8 in. for optimal chilling and drink displacement.
Integrated 90 lb. Storage Bin: Makes and stores ice in one compact, self-contained unit with a 90 lb. bin capacity, featuring an angled lift door that slides up and out of the way for easy, unobstructed access.
Space-Saving Undercounter Footprint: At just 26 in. W x 28.5 in. D x 38.5 in. H, this unit fits neatly under standard counters, making it ideal for bars, hotel service areas, banquet halls, and compact commercial kitchens.
Air-Cooled, Self-Contained Condensing Unit: Simplifies installation and routine maintenance without requiring external water-cooled connections; refrigeration components are fully accessible for fast, straightforward servicing.
Intuitive LED Push-Pad Control Panel: Slanted panel placement with universally recognizable icons allows operators to monitor and control the machine without bending over; functions include power, clean cycle, and a programmable delay that pauses ice production for 4, 12, or 24 hours during slow or closed periods.
Full Bin and Service Indicator Alerts: Dedicated indicator lights notify staff when the bin is full or when service is required, reducing the need for manual checks and minimizing downtime.
AlphaSan Antimicrobial Protection: Integral components feature AlphaSan antimicrobial treatment that actively slows bacteria growth within the food zone for a cleaner, safer ice supply.
Tool-Free Cleaning and Maintenance: Pop-out air filter removes without tools for fast routine cleaning; the removable bin provides full interior access, while the smooth, sealed food zone features a removable distribution tube, damper door, and water trough for simplified sanitation.
Ergonomic Scoop Included: Plastic ergonomic scoop with a comfort-grip handle and holder is included and can be mounted on either side of the machine to reduce cross-contamination risks.
NSF, UL, and AHRI Certified: Meets industry safety and performance standards; AHRI certification validates published ice production ratings for reliable capacity planning.
2025 Kitchen Innovations Award Recipient: Recognized by the National Restaurant Association for progressively boosting efficiency and productivity in commercial foodservice operations.
Reliable Electrical Specs and Warranty: Operates on 115V/60 Hz/1 ph with a NEMA 5-15P plug, uses R404A refrigerant, and is backed by a 3-year parts warranty with a 5-year compressor parts warranty.

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

Manitowoc UYF0140A NEO 26" Air Cooled Undercounter Half Dice Cube Ice Machine, 137 lb/Day

$2,523.00~~$5,799.00~~

Detailed Description

The Manitowoc UYF0140A is a 26 air-cooled NEO series undercounter ice machine built to deliver consistent half dice cube ice right where it's needed in any commercial kitchen, bar, or hotel. Capable of producing up to 137 lb. of ice per day with an integrated 90 lb. storage bin, it packs serious output into a space-saving self-contained footprint. The intuitive LED push-pad control panel features universally recognizable icons for power, full bin, service alerts, and a programmable delay function that pauses production for 4, 12, or 24 hours during slow periods. AlphaSan antimicrobial protection throughout the food zone slows bacterial growth, while a pop-out air filter and removable bin make routine maintenance quick and tool-free. A 2025 Kitchen Innovations Award recipient, the UYF0140A is NSF and UL certified for dependable performance in demanding foodservice environments.

Product Details

137 lb/Day Production

Produces up to 137 lb. of half-dice cubes daily with a 90 lb. storage bin included.

Smart Delay Function

Pause ice production for 4, 12, or 24 hours to save energy during slow or closed periods.

AlphaSan Antimicrobial Protection

Built-in antimicrobial treatment on integral components slows bacteria growth for safer ice.

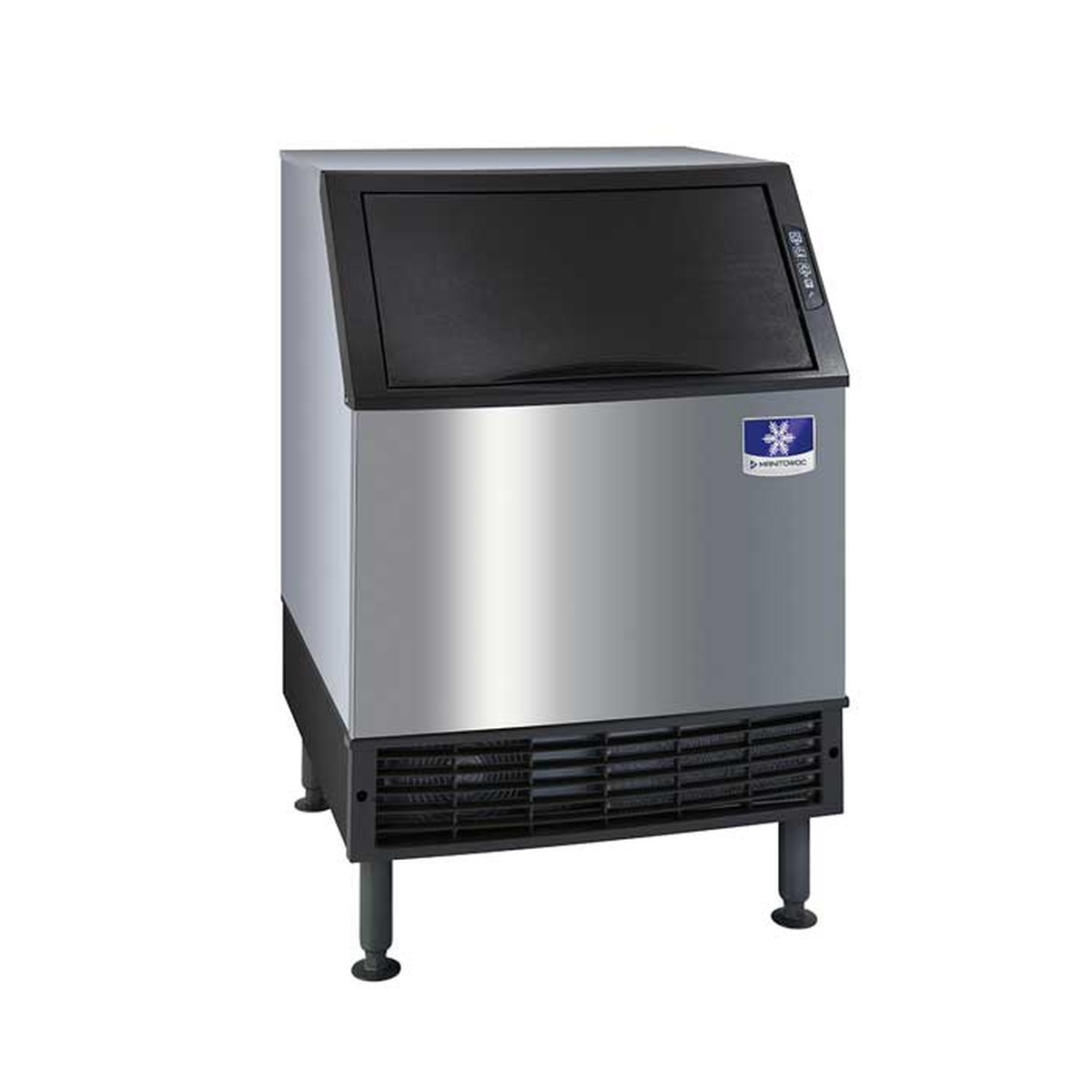

Manitowoc UYF0140A NEO undercounter stainless steel half-dice ice machine with black bin lid and adjustable legs

Commercial Ice Where You Need It

The Manitowoc NEO UYF0140A is a 26" air-cooled undercounter ice machine engineered for demanding commercial environments. Its self-contained design fits under a standard counter while delivering serious output for bars, restaurants, banquet halls, and hotels.

26" wide space-saving undercounter footprint
Air-cooled, self-contained condensing unit for easy installation
Stainless steel exterior with angled bin lid for ergonomic access
Adjustable legs for stable leveling on any floor surface
NSF, UL, and AHRI certified for commercial use

Key Specifications

Daily Production137 lb max / 100 lb AHRI-rated

Bin Capacity90 lb storage

Ice TypeHalf-dice cube (3/8" x 1 1/8" x 7/8")

Electrical115V / 60 Hz / 1 Ph, NEMA 5-15P

Dimensions (W x D x H)26" x 28.5" x 38.5"

Warranty3-year unit / 5-year compressor parts

Drain TypeGravity drain

Cooling MethodAir cooled, R404A refrigerant

Performance at a Glance

137 lb

Max Daily Ice Output

90 lb

Storage Bin Capacity

26"

Compact Width

Ideal For

Bars and cocktail programs Restaurants and cafes Hotel beverage stations Banquet and catering operations Small-volume supplemental ice needs

From the Cresco Resco Team

Why You'll Love It

The Manitowoc NEO UYF0140A delivers professional-grade half-dice ice production in a compact undercounter format built to perform shift after shift.

Perfect for commercial kitchens, bars, and hospitality settings that need reliable, space-saving ice production.
AlphaSan antimicrobial protection and a smooth sealed food zone make cleaning straightforward and food safety a priority.
The LED control panel, ergonomic scoop, and pop-out air filter make daily operation and maintenance simple for any team member.

Specifications

Model	UYF-0140A
Series	NEO®
Ice Type	Half Dice Cube
Ice Cube Size	3/8 in. x 1 1/8 in. x 7/8 in.
Daily Ice Production (Max)	137 lb
Daily Ice Production (AHRI Certified)	100 lb
Bin Storage Capacity	90 lb
Cooling Type	Air Cooled
Refrigerant	R404A
Width	26 in. (66 cm)
Depth	28.5 in. (71.1 cm)
Height	38.5 in. (97.8 cm)
Weight	153 lb (69.4 kg)
Voltage	115/120V
Frequency	60 Hz
Phase	1
Amperage	5 A
Horsepower	0.42 HP
Energy Use	9.6 kWh/100 lbs ice
Power Cord	6 ft. cord with NEMA 5-15P plug
Water Inlet Connection	3/8 in.
Drain Type	Gravity
Heat Transfer Capacity	2,150 BTU
Front Style	Lift Door
Design	Standard Height
Antimicrobial Protection	AlphaSan® antimicrobial on integral components
Warranty	3-Year; 5-Year Compressor Parts
