Vulcan FEG

Vulcan SX24-4BN 24 in 4-Burner Natural Gas Range with Space Saver Oven

$2,512.00 ~~Precio rebajado$7,007.00ahorra $4,495.00~~

Key Features:

(4) 28,000 BTU open top burners with lift-off heads for easy cleaning and service
Heavy-duty 12 in. x 12 in. cast iron top grates with aeration bowls to help direct heat to cookware
Space saver standard oven base with 250 to 500 F temperature range; includes 1 oven rack with 4 rack positions
Durable stainless steel construction: front, sides, backriser, and lift-off high shelf for easier cleanup
Shrouded flash tube pilot ignition system with one pilot serving every two burners
6 in. stainless steel adjustable legs for leveling
Porcelainized oven bottom and door liner for simplified cleaning

Detailed Description

The Vulcan SX24-4BN is a compact 24 inch commercial gas range built for tight kitchens that still need full range-top and oven capability. Four 28,000 BTU open burners with lift-off heads deliver strong, serviceable heat for sautéing, boiling, and simmering. A space saver oven base provides low-volume baking and warming with a 250 to 500 degrees F operating range. Stainless steel construction and 6 inch adjustable legs support durability and easier cleaning in busy lines.

Product Details

High-Output Burner Power

Four 28,000 BTU open top burners support fast sautéing, searing, and simmering.

Space Saver Oven Versatility

Standard oven base provides 250 to 500°F control for baking and warming.

Built for Daily Service

Stainless steel front and sides, plus lift-off components designed for easier cleanup.

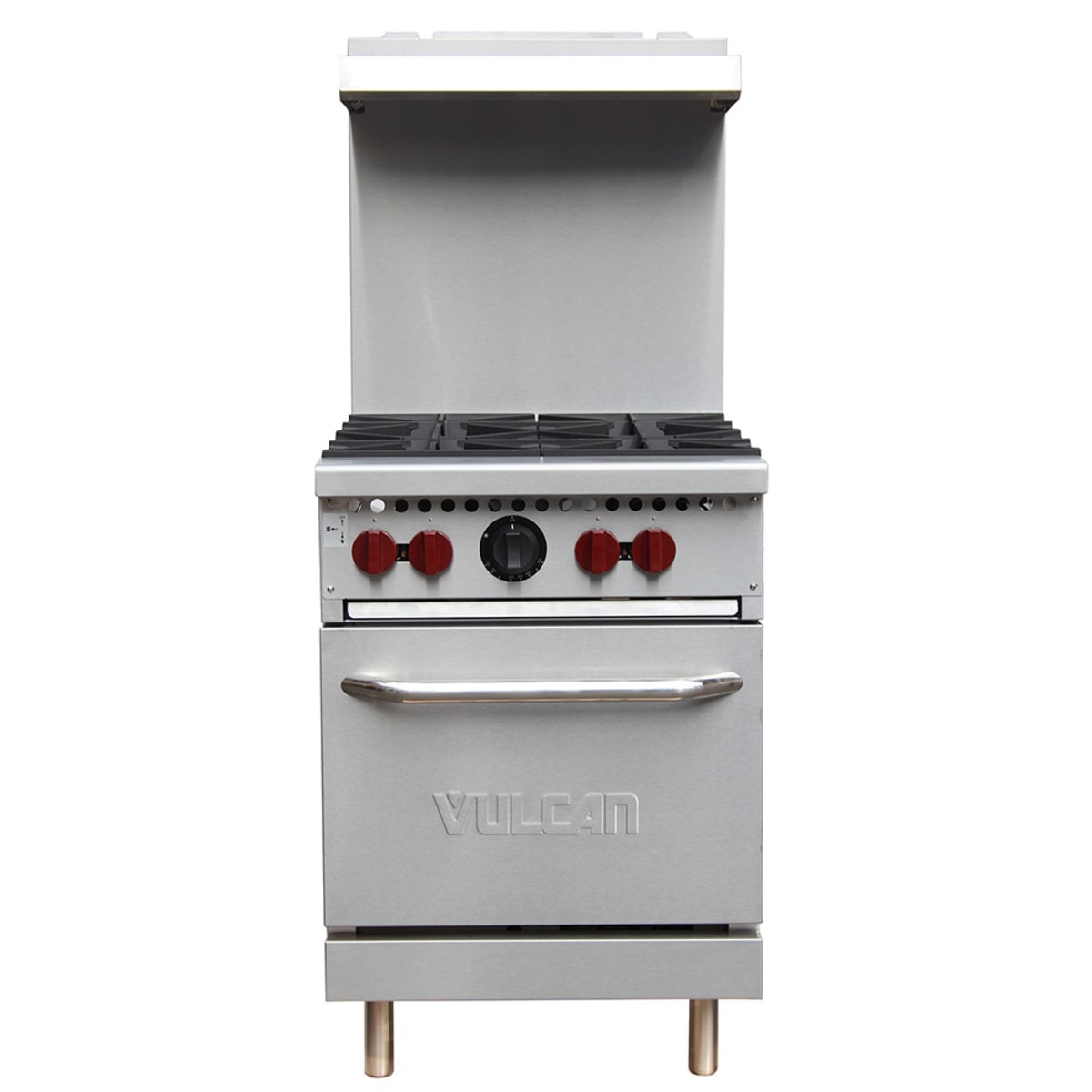

Front view of Vulcan SX24-4BN 24 inch four burner gas range with high shelf and oven

Four Open Top Burners in a 24 Inch Footprint

Designed for tight cooklines, the SX24-4BN gives you four open burners up top with an oven base below for efficient use of space.

(4) open top burners, 28,000 BTU each
Lift-off burner heads for simpler cleaning and service access
12 x 12 inch cast iron lift-off grates with aeration bowls to direct heat toward pans

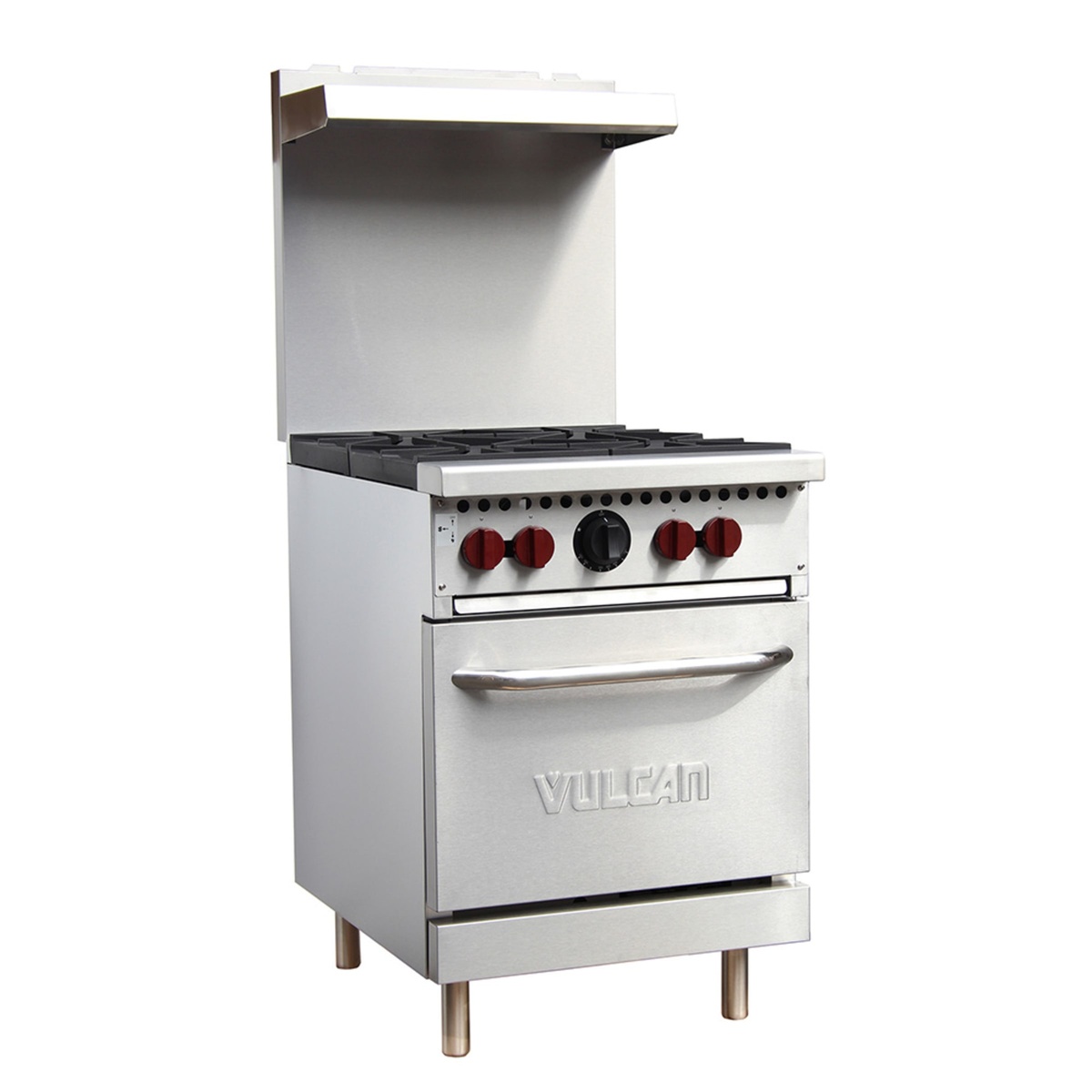

Angled view of Vulcan SX24-4BN commercial gas range showing cooktop grates, control knobs, and oven door

Oven Base for Low-Volume Baking and Warming

The space saver standard oven adds flexibility for finishing, holding, and baking without adding another appliance.

250 to 500°F oven temperature range
30,000 BTU oven burner
Includes one oven rack with four rack positions

Why Choose This Model

Open Top Burners

28,000

BTU Per Burner

250 to 500°F

Oven Temp Range

From the Cresco Resco Team

Why You'll Love It

A compact commercial range that delivers strong burner performance plus an oven base for everyday flexibility.

Great for smaller kitchens that need burners and baking or warming in one unit.
Lift-off burner heads and grates help simplify end-of-shift cleanup.
Pairs well with stock pots, sauté pans, and sheet pans for a wide menu mix.

Specifications

Manufacturer	Vulcan
Model	SX24-4BN
Series	SX Series
Equipment Type	Commercial gas range with space saver (standard) oven
Power Source	Gas
Gas Type	Natural gas (field convertible to propane)
Range Top	(4) open top burners with lift-off heads
BTU per Open Burner	28,000 BTU/hr each
Total Burner Input (Open Top)	112,000 BTU/hr
Oven Base	Space saver standard oven
Oven Burner Input	30,000 BTU/hr
Total Input (Range + Oven)	142,000 BTU/hr
Oven Temperature Range	250°F to 500°F
Oven Interior (W x D x H)	20 5/8 in x 25 1/2 in x 13 3/4 in
Oven Rack(s) Included	1
Oven Rack Positions	4
Grates	12 in x 12 in cast iron
Ignition	Flash tube pilot system (one pilot per 2 burners)
Construction	Stainless steel front, sides, and backriser with lift-off high shelf; porcelainized oven bottom and door liner
Standard Legs	6 in stainless steel adjustable
Overall Dimensions (W x D x H)	24 in x 32 1/2 in x 55 in (on 6 in adjustable legs)
Overall Height (with backriser/high shelf)	60 3/8 in
Installation Type	Freestanding
Gas Inlet Size	3/4 in
Approx. Weight	350 lb
Warranty	1-year limited parts and labor
