STAR MFG.

Star Manufacturing 314HX Holman Proveyor Countertop Conveyor Oven, Quartz Infrared, 208V/1PH

$11,081.00 ~~Precio rebajado$20,147.00ahorra $9,066.00~~

Key Features:

High-power quartz infrared heating elements above and below the belt for fast, even heating.
Forced convection system helps keep the conveyor cool-to-the-touch and extends component life while circulating preheated air into the chamber.
Analog/manual controls to adjust conveyor belt speed plus independent top and bottom heat.
14 in. wide by 38 in. long conveyor belt; adjustable product entry and exit openings from 1-1/2 in. to 4 in.
Removable 6-1/2 in. extended load and unload area and removable crumb tray for easier cleanup.
Compact countertop design; stackable up to three units high with optional stacking kit.

Detailed Description

The Star Holman 314HX Proveyor conveyor oven delivers fast, even cooking with high-power quartz infrared elements positioned above and below the belt. Analog controls let operators dial in conveyor speed and independent top and bottom heat for consistent results across pizzas, subs, and more. A forced convection system helps keep the conveyor cool to the touch while supporting reliable performance. Built for compact countertops, it can be stacked up to three units high with an optional stacking kit.

Product Details

Quartz Infrared Heat, Top and Bottom

High-power elements above and below the belt for fast, even cooking.

Simple Analog Adjustments

Dial in belt speed plus independent top and bottom heat.

Convection Cooling System

Helps keep the conveyor cool-to-the-touch and supports long component life.

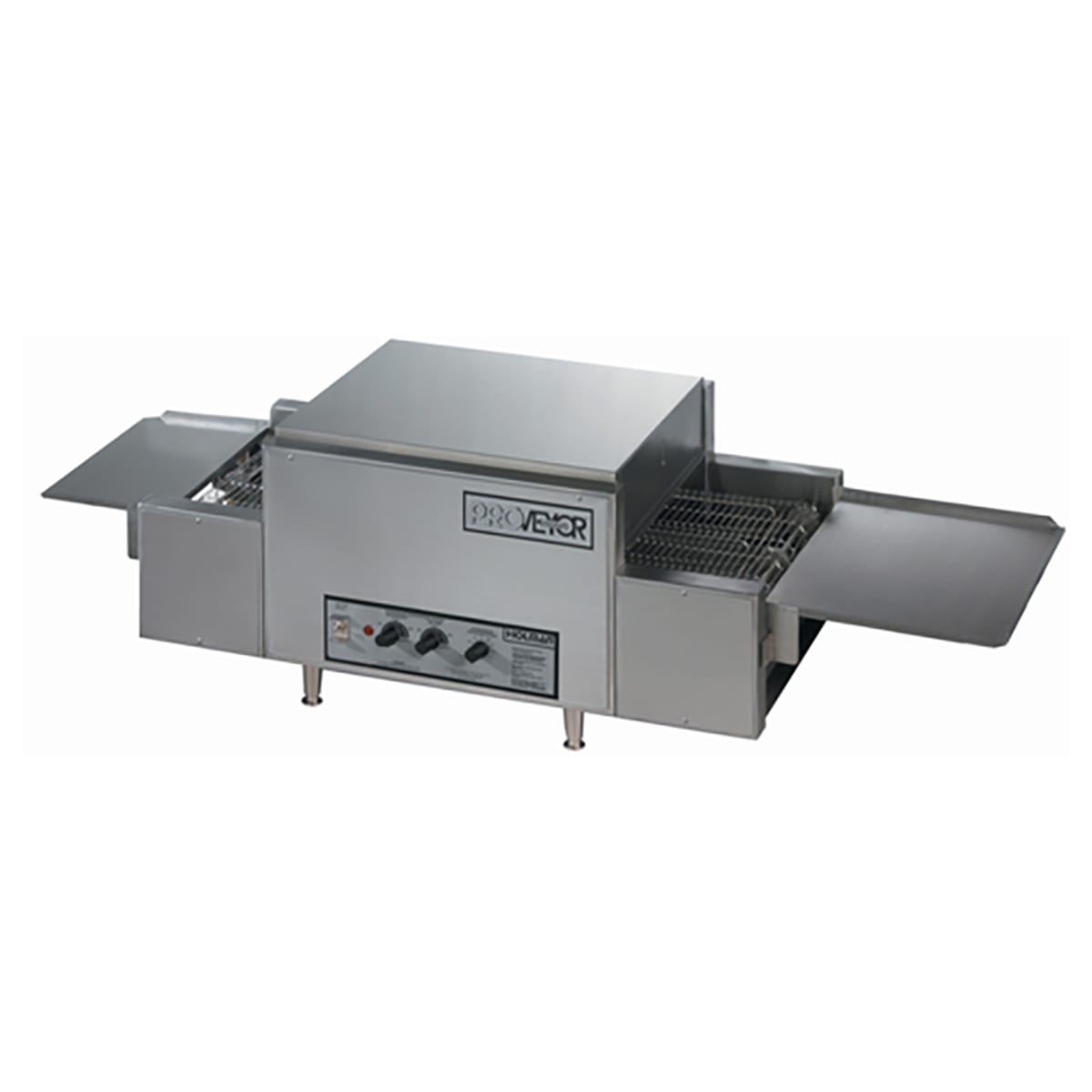

Star Holman 314HX countertop conveyor oven with analog control panel and extended loading and unloading trays

Compact Countertop Conveyor for Consistent Results

The Star Holman 314HX is built to keep product moving with steady heat, even toasting, and straightforward controls that fit busy lines.

14 in. wide by 38 in. long conveyor belt
Adjustable entry and exit opening: 1 1/2 in. to 4 in.
Removable extended load and unload area (6 1/2 in. long)

Why Choose This Model

14 x 38 in.

Belt Size

1 1/2 to 4 in.

Opening Range

5.4 kW

Electric Power

Built for Everyday Menu Variety

Designed for common conveyor applications where speed and repeatability matter, from pizza and sandwiches to cookies and more.

Stackable up to three units high with an optional stacking kit
Removable crumb tray for faster cleanup
Countertop installation for space-efficient throughput

From the Cresco Resco Team

Why You'll Love It

A dependable countertop conveyor oven that pairs quartz infrared heat with adjustable belt speed for consistent, high-volume output.

Great for pizzerias, sandwich shops, and fast-casual lines.
Independent top and bottom heat helps match different products and finishes.
Removable trays and crumb tray make end-of-shift cleanup easier.

Specifications

Brand	Star (Holman Proveyor)
Model	314HX
Oven Type	Countertop electric conveyor oven
Heating	Quartz infrared elements (top and bottom) with convection cooling system
Controls	Analog (manual) controls for conveyor speed, top heat, and bottom heat
Conveyor Belt Size	14 in W x 38 in L
Opening Height Range (Entry/Exit)	1 1/2 in to 4 in adjustable
Load/Unload Extensions	Removable 6 1/2 in extended load/unload area (standard)
Crumb Tray	Removable
Stackable	Up to 3 high (optional stacking kit)
Electrical	208 V, 1 phase, 60 Hz
Power	5.4 kW
Current	26.4 A
NEMA Plug	6-30P or 6-50P (conflicting sources)
Overall Dimensions	Approx. 60 in L x 21 1/2 in D x 16 1/4 in H
Weight	115 lb
Warranty	1-year limited parts and labor
