American Range

American Range AF-75 75 lb Natural Gas Floor Fryer, 160,000 BTU

$3,035.00 ~~Precio rebajado$6,390.00ahorra $3,355.00~~

Key Features:

Heavy duty construction with stainless steel front and sides plus a heavy gauge stainless steel fry tank
High output tube burners: (4) 40,000 BTU/hr burners for 160,000 BTU total, with special alloy metal diffuser in the burner tube for improved heat transfer
75 lb oil capacity with 18 in x 18 in frying area for high volume frying
Millivolt control system with 100% safety shut off and thermostatic temperature control from 200°F to 400°F
Easy draining and cleaning with 1-1/4 in full port drain valve
Shipped with 6 in legs; optional casters available (model shown with optional casters)
Warranty coverage: one year limited warranty (parts and labor) plus five year tank warranty

Denver

Normalmente está listo en 2 a 4 días

Las Vegas

Normalmente está listo en 2 a 4 días

American Range AF-75 75 lb Natural Gas Floor Fryer, 160,000 BTU

$3,035.00~~$6,390.00~~

Detailed Description

The American Range AF-75 is a full-size, floor-model gas fryer built for high-output frying with a large 18 inch x 18 inch fry area and 75 lb oil capacity. Four tube-style burners deliver 160,000 BTU total for fast recovery, while a millivolt thermostatic control provides a 200°F to 400°F operating range with 100% safety shutoff. Stainless steel front, sides, and fry tank are designed for durability in demanding commercial kitchens. A 1-1/4 inch full port drain valve and 6 inch legs (casters optional) support easier service and cleaning.

Product Details

High BTU Output

Four burners rated at 40,000 BTU/hr each for strong heat recovery.

Versatile Temperature Range

Thermostatic control adjusts from 200b0F to 400b0F for consistent frying.

Fast Oil Draining

1-1/4 inch full port drain valve helps speed oil changes and cleanup.

Top view of American Range AF-75 fryer showing two baskets and stainless frypot

Large Frying Area for Steady Output

Built for busy service, the AF-75 pairs a full-size frypot with a wide working surface for repeatable batches.

18 inch x 18 inch frying area
75 lb oil capacity tank
Includes 2 fryer baskets

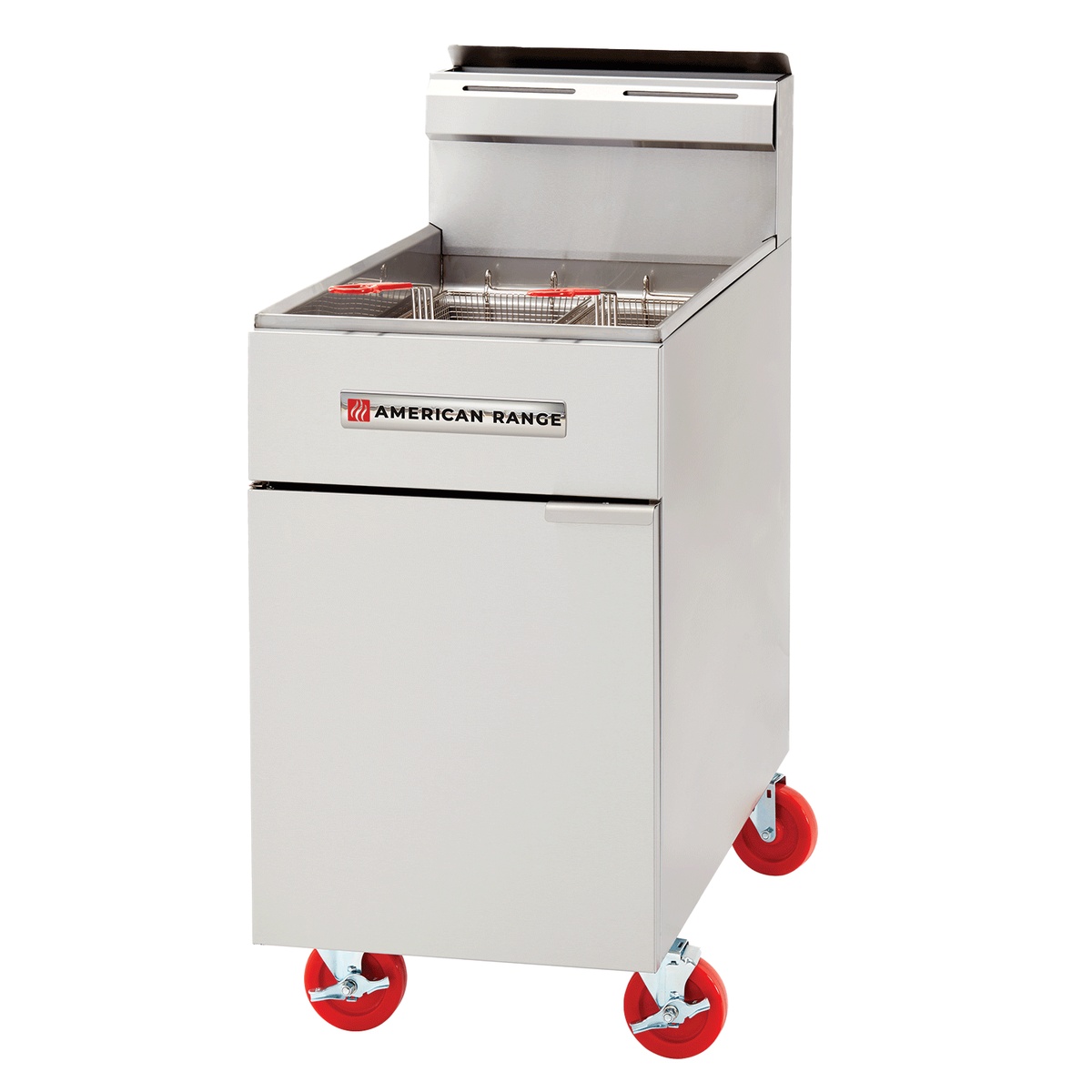

Angled front view of American Range AF-75 stainless steel floor fryer

Stainless Construction Built for Daily Use

Designed for commercial kitchens, with stainless steel front and sides and a heavy gauge stainless steel tank.

Millivolt control system with 100% safety shut off
Special alloy diffuser in the burner tube for improved heat transfer
Shown with optional casters; standard configuration includes 6 inch legs

Key Specifications

Oil Capacity

75 lb

Total Input

160,000 BTU/hr

Temperature Range

200b0F to 400b0F

Frying Area

18 in x 18 in

Drain Valve

1-1/4 in full port

Warranty

1 year limited parts and labor; 5 year tank

From the Cresco Resco Team

Why You'll Love It

The American Range AF-75 is a high-capacity floor fryer designed to keep up with demanding service through reliable heat and straightforward cleanup.

Great for busy menus that need consistent batch-to-batch frying.
Millivolt controls with safety shut off support dependable operation without an electrical hook-up.
The full port drain valve makes oil changes faster at close.

Specifications

Brand	American Range
Model	AF-75
Type	Gas floor fryer
Gas Type	Natural gas
Total Input	160,000 BTU/hr
Burners	4 tube burners, 40,000 BTU/hr each
Fry Pot Configuration	1 fry pot (tube type)
Oil Capacity	75 lb
Frying Area	18 in x 18 in
Temperature Range	200°F to 400°F
Controls	Millivolt thermostatic
Construction	Stainless steel front and sides; heavy-gauge stainless steel tank
Drain Valve	1-1/4 in full port drain valve
Gas Connection	3/4 in NPT inlet
Included Baskets	2
Overall Dimensions (W x D x H)	19 1/2 in x 34 1/2 in x 46 1/2 in
Working Height	36 3/4 in
Ship Weight	198 lb
Legs/Casters	6 in legs (casters optional)
Warranty	1 year limited (parts and labor); 5 year tank warranty
