True MFG Co.

True TD-36-12-HC 36" Solid Slide Lid Deep Well Horizontal Bottle Cooler with Hydrocarbon Refrigerant

$2,570.21 ~~Precio rebajado$8,505.00ahorra $5,934.79~~

Key Features:

Forced-air cooling system with positively guided airflow that chills top bottles first, ensuring consistent temperatures from top to bottom throughout the entire cabinet
High-capacity, factory-balanced refrigeration system maintains cabinet temperatures between 33°F and 38°F (0.5°C to 3.3°C) for optimal beverage preservation
Factory-engineered, self-contained capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant with zero (0) ozone depletion potential (ODP) and only three (3) global warming potential (GWP)
Evaporator coil virtually runs the full length of the cabinet for balanced temperatures throughout; epoxy-coated evaporator eliminates corrosion risk and reduces maintenance
Electronically commutated evaporator and condenser fan motors deliver consistent airflow to minimize heat production and energy consumption; condensing fan motor reverses for 20 seconds on startup to purge dirt and debris from the condensing coil
Refrigeration system slides out from behind the front grille for easy access during service and maintenance
Exterior features a stainless steel countertop and sliding lid with black powder-coated cold-rolled steel front, sides, and back; interior is heavy-duty galvanized steel for long-lasting durability
Entire cabinet structure is foamed-in-place with high-density polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP)
Holds up to 14.5 cases of 12 oz cans or 11 cases of 12 oz bottles; includes 2 heavy-duty, 10 mil thick PVC-coated adjustable bin dividers for organized storage
Includes a built-in bottle cap opener and cap catcher for fast, efficient bar service
LED interior lighting for clear product visibility; lid lock secures contents
Complies with NSF/ANSI Standard 7 for packaged and bottled product; rated 1/10 HP, 1.4A, 115V/60Hz/1-phase with NEMA 5-15P plug
Backed by a 7-year parts and labor warranty plus a 7-year compressor warranty for long-term peace of mind

Denver

Normalmente está listo en 2 a 4 días

Fresno

Normalmente está listo en 2 a 4 días

True TD-36-12-HC 36" Solid Slide Lid Deep Well Horizontal Bottle Cooler with Hydrocarbon Refrigerant

$2,570.21~~$8,505.00~~

Detailed Description

The True TD-36-12-HC is a 36-inch deep well horizontal bottle cooler built for demanding bar and beverage service environments. Powered by a factory-engineered, self-contained refrigeration system using R290 hydrocarbon refrigerant, it maintains cabinet temperatures between 33°F and 38°F for optimal product preservation. Forced-air cooling with positively guided airflow chills the top, most accessible bottles first, while an evaporator coil that virtually spans the full cabinet length ensures balanced temperatures throughout. The exterior features a stainless steel countertop and lid over black powder-coated cold-rolled steel sides, front, and back, with a heavy-duty galvanized steel interior that meets NSF/ANSI Standard 7 for packaged and bottled product. With capacity for up to 14.5 cases of 12 oz cans or 11 cases of 12 oz bottles, this unit delivers reliable performance and years of trouble-free service.

Product Details

Precise Temperature Control

High-capacity refrigeration system holds 33°F to 38°F for consistent, commercial-grade chilling.

Forced-Air Cooling

Positively guided airflow cools top bottles first; evaporator coil spans nearly the full cabinet length for even temperatures.

Durable Construction

Stainless steel countertop and lid with black powder-coated steel exterior and heavy-duty galvanized steel interior.

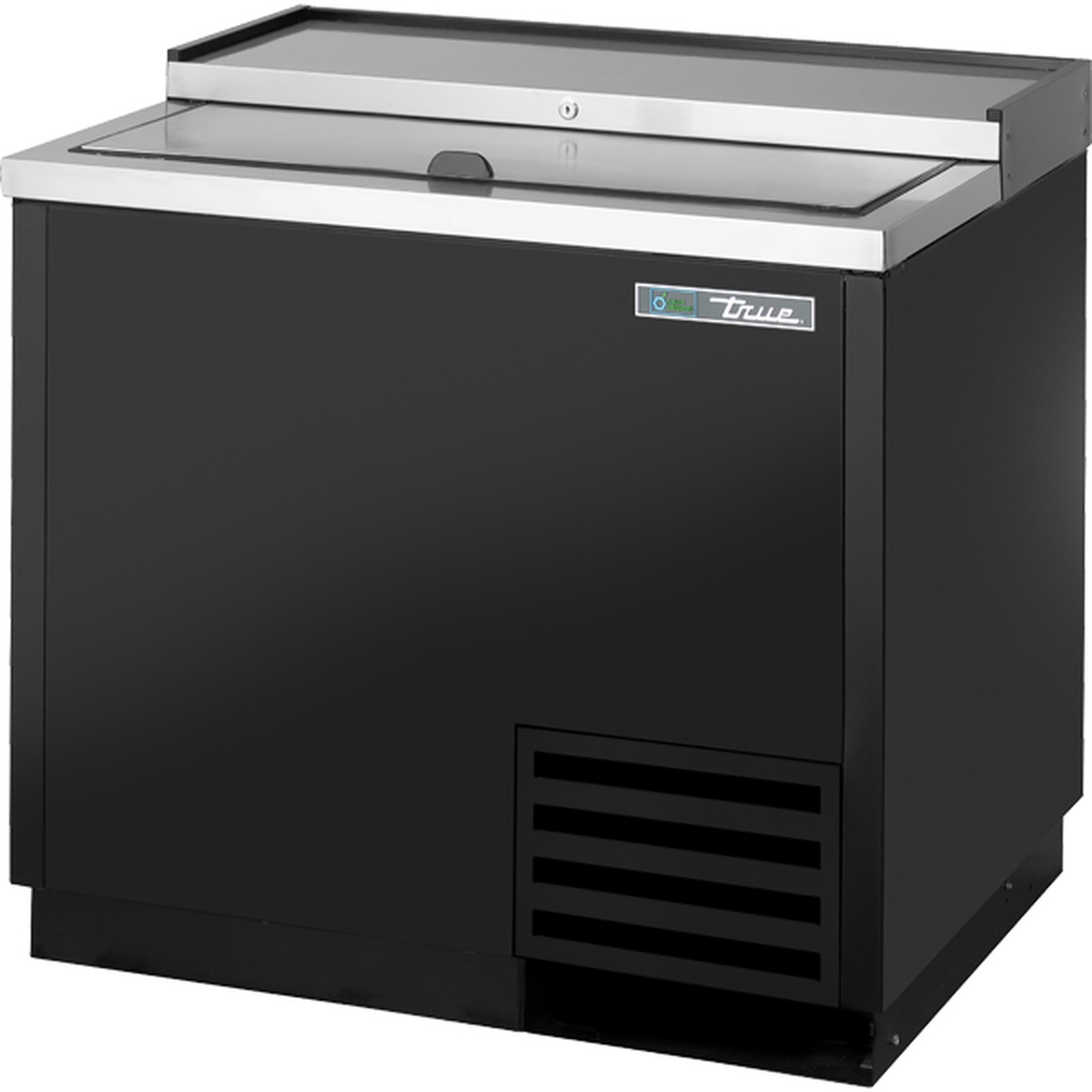

True TD-36-12-HC 36-inch black horizontal deep well bottle cooler with stainless steel sliding lid

High-Volume Bottle Storage for Busy Bars

The True TD-36-12-HC is a 36" deep well horizontal bottle cooler engineered for demanding bar and foodservice environments. Its oversized, factory-balanced refrigeration system and R290 hydrocarbon refrigerant deliver reliable, eco-friendly chilling across a generous capacity.

Holds up to 14.5 cases of 12 oz cans or 11 cases of 12 oz bottles (264 bottles total)
2 heavy-duty, 10 mil PVC-coated adjustable bin dividers for organized storage
Includes bottle cap opener and cap catcher for streamlined service
LED interior lighting for easy product visibility
Lockable stainless steel sliding lid for security and product protection

Key Specifications

Capacity9.8 cu ft | 264 bottles

Temperature Range33°F to 38°F (0.5°C to 3.3°C)

Electrical115V/60Hz/1 ph | 1.4A | 1/10 HP

Dimensions (W x D x H)36.63" x 27.88" x 33.5"

Warranty7-Year Parts, Labor & Compressor

CertificationsNSF/ANSI Standard 7 | UL Listed

Eco-Friendly Refrigerant and Low-Maintenance Design

The TD-36-12-HC uses a factory-engineered, self-contained capillary tube system with R290 hydrocarbon refrigerant, which carries zero ozone depletion potential (ODP) and a global warming potential (GWP) of just three. The entire cabinet is foamed-in-place with high-density polyurethane insulation that also carries zero ODP and zero GWP.

ODP (Refrigerant)

GWP (R290 Refrigerant)

7 Yr

Compressor Warranty

The condensing fan motor automatically reverses for 20 seconds on start-up to purge dirt and debris from the condensing coil, extending unit life and reducing energy consumption. The entire refrigeration system slides out from behind the front grille for fast, easy maintenance access.

From the Cresco Resco Team

Why You'll Love It

The True TD-36-12-HC delivers commercial-grade bottle chilling with durable materials, an eco-conscious refrigerant, and a design built to keep service moving efficiently behind any bar.

Ideal for bars, restaurants, and high-volume food service operations that need reliable, fast bottle chilling.
Forced-air cooling with a full-length evaporator coil ensures every bottle reaches the same cold temperature, regardless of position.
Backed by a 7-year parts, labor, and compressor warranty for long-term peace of mind in demanding commercial environments.

Specifications

Model	TD-36-12-HC
Series	TD Series
Width	36.63 in.
Depth	27.88 in.
Height	33.5 in.
Weight	230 lbs (105 kg)
Capacity (Cubic Feet)	9.8 cu. ft.
Bottle Capacity (12 oz.)	11 cases (264 bottles)
Can Capacity (12 oz.)	14.5 cases
Temperature Range	33°F - 38°F (0.5°C - 3.3°C)
Refrigerant	R290 Hydrocarbon
Cooling Type	Forced Air
Voltage	115V / 60 Hz / 1 Phase
Amperage	1.4 A
Horsepower	1/10 HP
NEMA Configuration	5-15P
Access	Top
Lid Type	Solid Sliding Lid
Number of Lids	1
Number of Bin Dividers	2
Compressor Location	Right Mount
Exterior Material	Stainless steel countertop & lid; black powder-coated cold-rolled steel front, sides, and back
Interior Material	Galvanized Steel
Insulation	Foamed-in-place high-density polyurethane (0 ODP, 0 GWP)
Certifications	NSF/ANSI Standard 7, UL Listed
Warranty	7-Year Parts & Labor; 7-Year Compressor
